Key Takeaways & Executive Findings
- •• • The AC current timescale reduced model achieves approximately 5–6× simulation speedup relative to the full-order model while reproducing fast current and voltage transients with steady-state consistency, directly enabling large-scale wind farm electromagnetic transient studies that would otherwise be computationally intractable. • • Six discrete timescale tiers—switching, AC current, mid-frequency, DC voltage, rotor speed, and operational—are explicitly mapped to dominant physical components and critical state variables, eliminating the ambiguity in model selection that previously forced engineers to choose between over-simplified controlled current source models and full-order representations. • • Trajectory sensitivity analysis identifies key components for retention within the target timescale, while slow variables are handled via steady-state consistency constraints; this structured reduction yields models that maintain fidelity in the dominant dynamic range without the empirical threshold tuning required by local switching approaches. • • The rotor speed timescale model accurately describes power transient evolution under conditions involving rotor inertia and slow-variable regulation, confirming that the framework extends beyond fast electromagnetic transients to electromechanical and operational timescales relevant for frequency response and stability assessment.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Full-order models of direct-drive wind turbines capture microsecond switching transients through second-scale control dynamics but impose prohibitive computational burdens for large-scale or long-duration grid-integration studies. Existing reduced-order approaches—controlled current source equivalents, empirical timescale truncation, linearization with balanced truncation, singular perturbation decomposition, local model switching, and data-driven surrogates—lack a systematic framework for matching model complexity to the dominant response of a specific analysis task. This paper proposes an on-demand simulation framework that partitions turbine dynamics into six hierarchical timescales: switching, AC current, mid-frequency, DC voltage, rotor speed, and operational. Each level is mapped to its dominant physical components, critical state variables, and typical grid-study scenarios, establishing explicit correspondences between analysis objectives and required model fidelity. A reduction methodology combining timescale-dominant response identification with trajectory sensitivity analysis is developed to selectively retain fast dynamics within the target timescale while enforcing steady-state consistency constraints on slower variables. Case studies at the AC current and rotor speed timescales demonstrate that the reduced models reproduce fast current and voltage transients with approximately 5–6× simulation speedup while preserving steady-state accuracy, and accurately capture power transient evolution governed by rotor inertia and slow-variable regulation. The framework provides a structured pathway for constructing hierarchical, precision-controllable turbine models for large-scale wind farm simulation and multi-scenario grid-integration analysis.
1. Introduction
Grid-integration analysis of direct-drive wind turbines confronts a fundamental computational paradox: the full-order model must resolve microsecond switching transients, millisecond electromagnetic dynamics, and second-scale control and operational processes simultaneously, yet large-scale wind farm studies and long-duration simulations cannot bear the resulting computational cost. Existing reduced-order strategies have each addressed this tension partially. Controlled current source equivalents discard mechanical and electromagnetic transients entirely, rendering internal energy coupling during wind speed steps or frequency disturbances unobservable. Empirical timescale truncation simplifies implementation but freezes slow dynamics as constants, degrading adaptability under varying operating conditions. Linearization-based balanced truncation and singular perturbation decompositions are tightly coupled to specific analysis objectives and fail under large disturbances or strong nonlinearities. Local model switching introduces online discrimination overhead and relies on empirical thresholds, while power-sensitivity-based switching produces models whose applicable timescale boundaries remain ambiguous because power is itself a slow variable. Data-driven surrogates offer high modeling efficiency but lack physical interpretability and cannot adjust timescale coverage once the model structure is fixed.
This work addresses the absence of a unified framework for flexibly configuring model complexity and accuracy according to the timescale of interest. The proposed on-demand simulation methodology systematically partitions turbine dynamics into six hierarchical timescales, explicitly linking each to its dominant response components, critical state variables, and typical grid-analysis scenarios. A reduction method combining timescale-dominant response identification with trajectory sensitivity analysis then constructs simplified models that retain only the dynamics relevant to the target timescale while enforcing steady-state consistency on slower variables. Validation at the AC current and rotor speed timescales demonstrates 5–6× speedup with preserved fast-transient fidelity and accurate power transient reproduction, establishing a structured pathway for precision-controllable turbine modeling in multi-scenario grid-integration studies.
Loading authentic research manuscript (Pages 1–5)...
LI Hang, HE Lili, TAO Yiwei, CAI Haiqing, CHEN Wei, SHUAI Zhikang (2026). Multi-Timescale Reduced-Order Modeling of Direct-Drive Wind Turbines for On-Demand Simulation Across Diverse Grid-Integration Scenarios. Power Automation Equipment. https://doi.org/10.16081/j.epae.202606012
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What specific computational speedup does the AC current timescale reduced model achieve compared to the full-order model, and under what conditions is this speedup realized?
The AC current timescale reduced model achieves approximately 5–6× simulation speedup relative to the full-order model. This speedup is realized while reproducing fast current and voltage transients with good consistency and maintaining steady-state accuracy. The speedup derives from eliminating switching-level dynamics and applying steady-state consistency constraints to slower variables such as DC voltage and rotor speed, which would otherwise require small integration steps over extended simulation horizons.

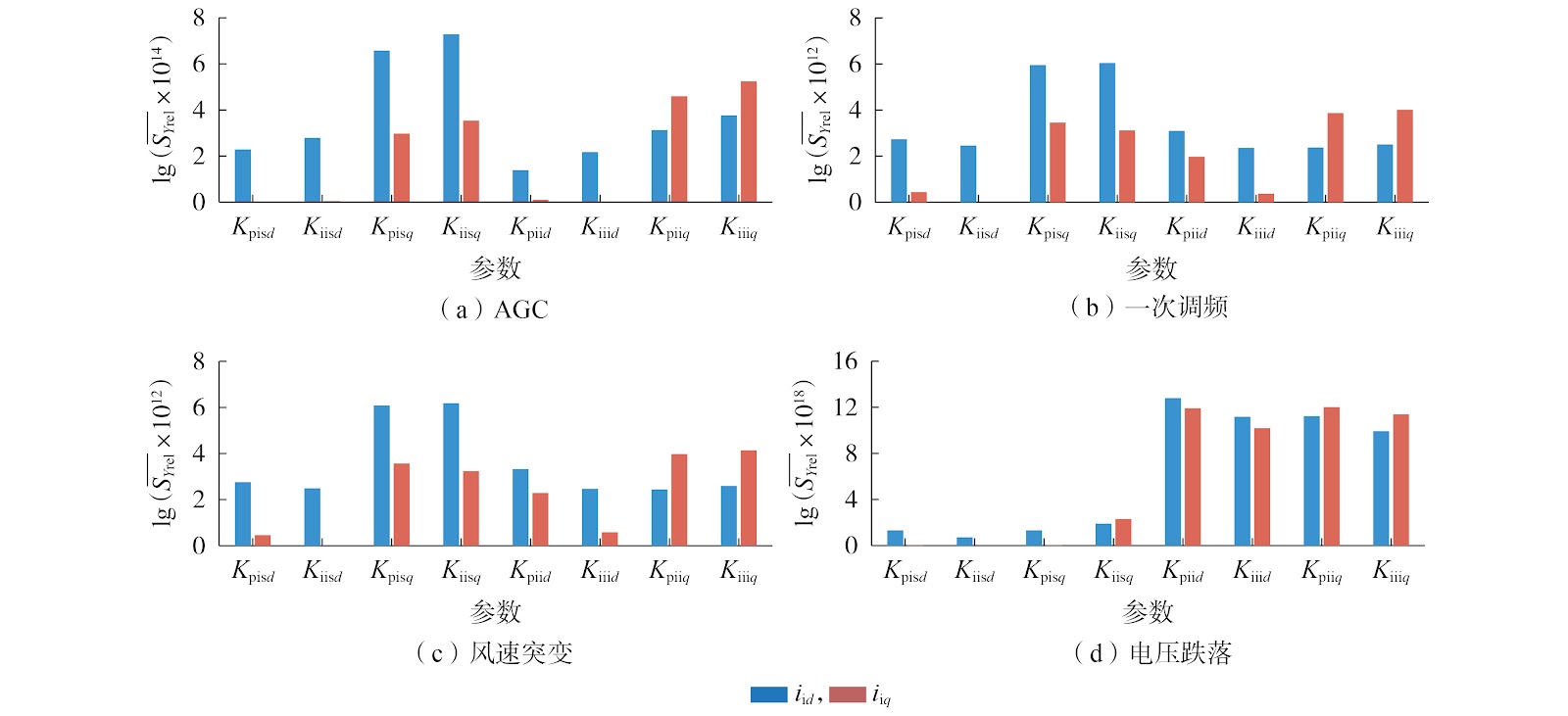

How does the proposed trajectory sensitivity analysis determine which components to retain versus simplify, and what prevents the loss of critical dynamics under large disturbances?
Trajectory sensitivity analysis quantifies the influence of each state variable on the target output trajectory within the specified timescale, identifying dominant components that must be retained. Slow variables outside the target timescale are replaced by steady-state consistency constraints rather than frozen constants, preserving their equilibrium contribution without integrating their full dynamics. This approach differs from linearization-based methods because trajectory sensitivity is evaluated along the actual nonlinear trajectory, maintaining validity under large disturbances and strong nonlinear operating conditions where linearized models fail.
What are the six timescale tiers, and how does the framework map a specific grid-integration analysis task—such as fault ride-through or primary frequency response—to the appropriate model complexity?
The six tiers are switching, AC current, mid-frequency, DC voltage, rotor speed, and operational timescales. Each tier is mapped to dominant physical components, critical state variables, and typical application scenarios. For fault ride-through analysis, which involves millisecond-scale initial overcurrent and current-limiting responses, the AC current timescale model retains fast current loop dynamics while constraining DC voltage and rotor speed to steady state. For primary frequency response, which spans second-scale dynamics, the rotor speed timescale model retains rotor inertia and slow-variable regulation while eliminating faster electromagnetic transients. This mapping directly answers the question of which model complexity is appropriate for a given analysis task.
How does the proposed method address the limitations of local model switching approaches that rely on empirical thresholds or power sensitivity?
Local model switching based on state deviation thresholds introduces online discrimination computational overhead and depends on empirically set thresholds that may not generalize across operating conditions. Power-sensitivity-based switching is problematic because power is a relatively slow variable, making the applicable timescale boundary of the resulting model unclear. The proposed method replaces online switching with offline timescale partitioning and trajectory sensitivity analysis, producing a fixed model structure for each timescale that requires no online discrimination. This eliminates threshold tuning, reduces computational overhead during simulation, and provides explicit timescale boundaries derived from the physical response characteristics of each component.
What evidence supports the claim that the rotor speed timescale model accurately captures power transient evolution, and what are the implications for wind farm-level stability studies?
Simulation results demonstrate that under conditions involving rotor inertia and slow-variable regulation, the rotor speed timescale model accurately describes power transient evolution and maintains good consistency with the full-order model within its dominant dynamic range. This accuracy is achieved while eliminating faster electromagnetic transients that are irrelevant to rotor-speed-governed phenomena. For wind farm-level stability studies—particularly those assessing frequency response, inertial support, and active power regulation—this model provides a computationally efficient representation that preserves the dynamics governing grid frequency stability without requiring resolution of microsecond switching events across hundreds of turbines.
