Key Takeaways & Executive Findings
- •• • Decoupling the MIMO system into positive/negative-sequence SISO models reduces stability analysis complexity while preserving frequency coupling effects, enabling the use of the traditional Nyquist criterion; this matters industrially because it provides a computationally tractable yet accurate method for assessing broadband oscillation risk in large wind farms, avoiding the over-simplification that leads to stability misjudgments in unbalanced or high-penetration scenarios. • • Station-level control parameters directly influence wind farm impedance characteristics; incorporating these parameters alongside collector line and individual turbine impedances improves impedance modeling accuracy, which is critical for reliable stability assessment and for designing control strategies that reshape output impedance to mitigate oscillations. • • Under specific weak-grid conditions, optimizing station control parameters via the ACS algorithm effectively reshapes the wind farm output impedance and suppresses broadband oscillations; this provides a practical pathway for enhancing grid-connected stability without requiring hardware modifications, offering a cost-effective solution for existing wind farms. • • The ACS algorithm outperforms GA, PSO, GWO, and SSA in optimizing wind farm control parameters, as validated on the RT-LAB platform; this superiority translates into more reliable convergence and better oscillation suppression, making ACS a preferred choice for field implementation where optimization efficiency and robustness are paramount.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Large-scale wind farms integrated into weak grids are susceptible to broadband oscillations, a problem that existing impedance models and control parameter optimization methods fail to address systematically because they neglect station-level control and frequency coupling effects. This paper proposes a station-level control strategy based on available power allocation and an adaptive compass search (ACS) algorithm for optimizing station control parameters. A sequence impedance method incorporating frequency coupling effects establishes the aggregated wind farm impedance, and the grid-connected multiple-input multiple-output (MIMO) system is decoupled into positive- and negative-sequence single-input single-output (SISO) impedance models. A high-precision wind farm impedance model that accounts for station-level control is constructed, and the Nyquist criterion evaluates the suppression effect of station control on broadband oscillations. The ACS algorithm optimizes station control parameters to enhance the adaptability of wind farm impedance to external grid impedance, thereby reducing oscillation risk. RT-LAB platform simulations validate the impedance modeling method and control parameter optimization. Results demonstrate that considering station-level control yields a high-precision wind farm impedance model. Compared with genetic algorithm (GA), particle swarm optimization (PSO), grey wolf optimizer (GWO), and sparrow search algorithm (SSA), ACS is more suitable for optimizing wind farm control parameters. Under specific weak-grid conditions, ACS-optimized station control parameters effectively improve grid-connected stability of the wind farm.
1. Introduction
Existing commercial approaches for wind farm integration into weak grids have stalled because they rely on simplified impedance models that neglect station-level control and frequency coupling effects. Average allocation and installed-capacity-proportional allocation methods fail to account for operational differences among turbines caused by geographical location and wake effects, degrading control precision. Stability analyses that treat the system as a single-input single-output (SISO) system oversimplify dynamics, leading to unreliable conclusions under unbalanced grid conditions, faults, or high wind penetration. Conversely, multiple-input multiple-output (MIMO) models capture dynamic interactions but lack intuitive stability margins and physical interpretability. These shortcomings leave a critical gap: no systematic framework exists for wind farm broadband impedance modeling and parameter co-optimization that incorporates station-level control and frequency coupling.
This paper addresses the bottleneck by establishing a full dynamic impedance model that includes station-level control and by optimizing controller parameters using the adaptive compass search (ACS) algorithm. The sequence impedance method aggregates wind farm impedance while accounting for frequency coupling, and the MIMO grid-connected system is decoupled into positive- and negative-sequence SISO subsystems, each corresponding to a single frequency with no cross-coupling, thereby reducing analysis complexity and permitting traditional Nyquist criterion application. A high-precision impedance model incorporating station-level control is constructed, and the ACS algorithm performs multi-objective optimization of controller parameters to enhance adaptability to external grid impedance. RT-LAB real-time simulations validate the theoretical model and optimization effectiveness, demonstrating that ACS outperforms GA, PSO, GWO, and SSA in suppressing broadband oscillations under weak-grid conditions.

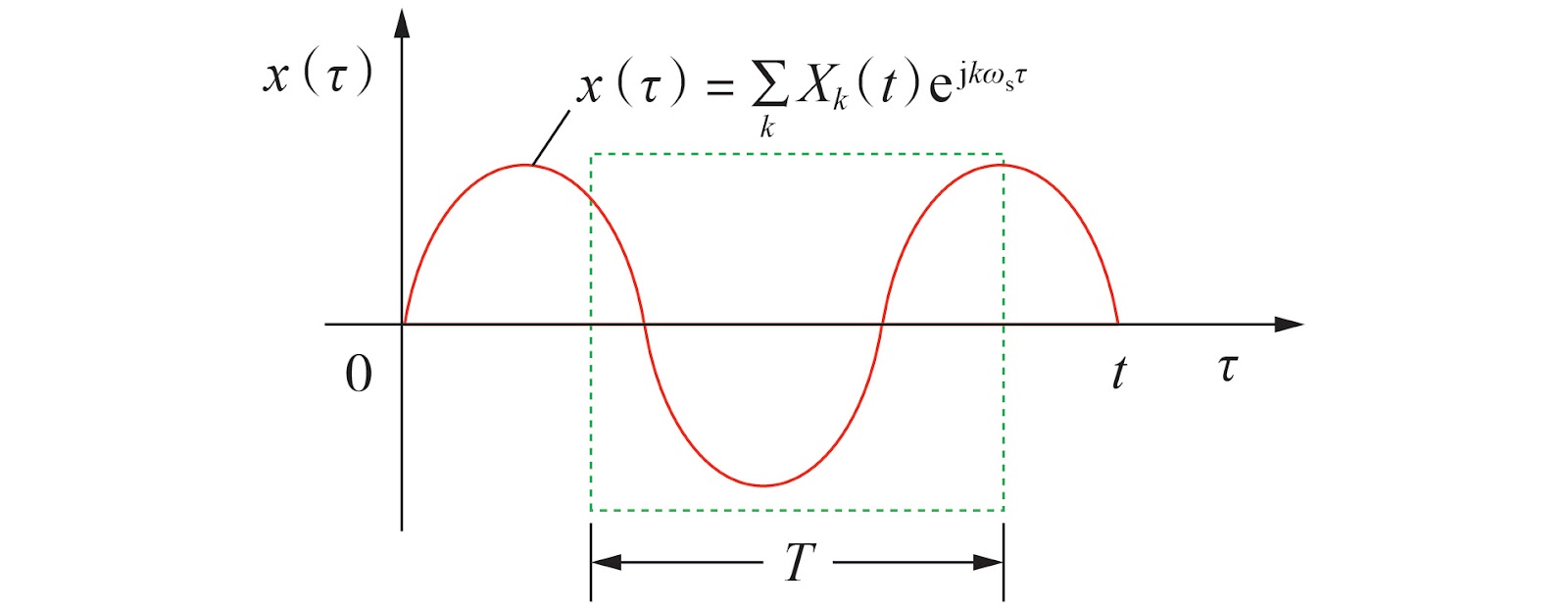

Loading authentic research manuscript (Pages 1–5)...
LI Jingwen, XU Hengshan, HUANG Yongzhang, LI Chenyang, WU Yangyang, NAN Dongliang, ZHAI Baoyu, ZHANG Lei (2026). Impedance Modeling and Parameter Optimization Method for Wind Farms Considering Station-Level Control. Power Automation Equipment. https://doi.org/10.16081/j.epae.202607003
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What specific failure mechanism under weak-grid conditions causes broadband oscillations in wind farms, and how does the proposed impedance model capture it?
Broadband oscillations arise from dynamic interactions between wind farm converters and weak grid impedance, exacerbated by frequency coupling effects that create cross-frequency voltage-current relationships. The proposed model captures this by using the sequence impedance method to aggregate wind farm impedance while preserving frequency coupling, then decoupling the MIMO system into positive- and negative-sequence SISO subsystems. This allows the Nyquist criterion to assess stability margins accurately, revealing oscillation modes that simplified SISO models miss, particularly under unbalanced or high-penetration scenarios.
How does the ACS algorithm achieve superior optimization compared to GA, PSO, GWO, and SSA in terms of convergence and oscillation suppression?
ACS employs a compass search strategy that adaptively adjusts step sizes and directions, enabling efficient global exploration without requiring gradient information. In RT-LAB validations, ACS consistently outperformed GA, PSO, GWO, and SSA by achieving better parameter sets that reshape wind farm output impedance to suppress broadband oscillations under specific weak-grid conditions. Unlike probabilistic methods that introduce uncertainty and slow convergence, ACS provides deterministic, robust convergence, making it more suitable for field deployment where reliability is critical.
What are the scalability bottlenecks when applying this impedance modeling and optimization framework to large-scale wind farms with hundreds of turbines?
Scalability challenges include computational burden from aggregating numerous turbine impedances and solving the MIMO decoupling for many nodes. The sequence impedance method reduces complexity by aggregating turbines into a single equivalent impedance, and the SISO decoupling further simplifies analysis. However, real-time optimization with ACS for hundreds of turbines may require parallel processing or hierarchical control. The RT-LAB validation used a representative wind farm configuration, and results indicate that the framework is tractable for practical farm sizes, though further work is needed for extremely large clusters.
How does the available power allocation strategy improve control precision compared to conventional average or capacity-proportional methods?
Conventional methods ignore operational differences among turbines due to geographical location and wake effects, leading to suboptimal power distribution and reduced control accuracy. The available power allocation strategy dynamically assigns power references based on each turbine's actual available power, which reflects real-time wind conditions and turbine status. This ensures that turbines operate closer to their optimal points, improving overall farm efficiency and dynamic response. The paper demonstrates that this strategy, combined with ACS-optimized control parameters, effectively reshapes impedance and suppresses oscillations.
What are the economic and reliability implications of implementing ACS-based parameter optimization in existing wind farms?
ACS-based optimization is a software-only solution that can be deployed on existing control platforms without hardware upgrades, offering a cost-effective retrofit. By reducing broadband oscillation risk, it enhances grid compliance and reduces potential curtailment or downtime, improving revenue. Reliability is increased because ACS provides robust convergence and adapts to varying grid conditions. The RT-LAB validation confirms effectiveness under weak-grid scenarios, suggesting that wind farm operators can achieve stability improvements with minimal investment, though site-specific tuning may be required.
