Key Takeaways & Executive Findings
- •• • Two-stage VF2-based graph clustering reduces effective execution sequence variants from 20 to 1, cutting DRAM-related access cycles from 18,595 to 1,502 and raising L2 cache hit rate from 16.09% to 84.54%. This directly mitigates thread warp divergence in SIMT architectures, enabling predictable memory access patterns essential for scaling to thousands of heterogeneous power electronic devices. • • Static specialization via automatic code generation eliminates dynamic graph parsing, reducing instruction count per control step by 91.8%. This translates to a 2.7x kernel-level speedup, demonstrating that removing runtime interpretation overhead is critical for converting GPU raw compute throughput into actual EMT simulation acceleration. • • The integrated method achieves a nearly 3x end-to-end speedup over conventional CPU-based simulation for a grid with thousands of renewable energy devices. This performance level is necessary for practical wide-frequency oscillation analysis and stability studies where traditional CPU serial or multi-core parallelism fails to meet efficiency requirements. • • The approach exhibits excellent scalability, as validated on large-scale scenarios. By discarding idealized homogeneity assumptions and automatically aggregating structurally isomorphic control topologies, it addresses load imbalance that plagues simple grouping methods, making it viable for real-world grids with diverse wind, PV, and storage systems from multiple manufacturers.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

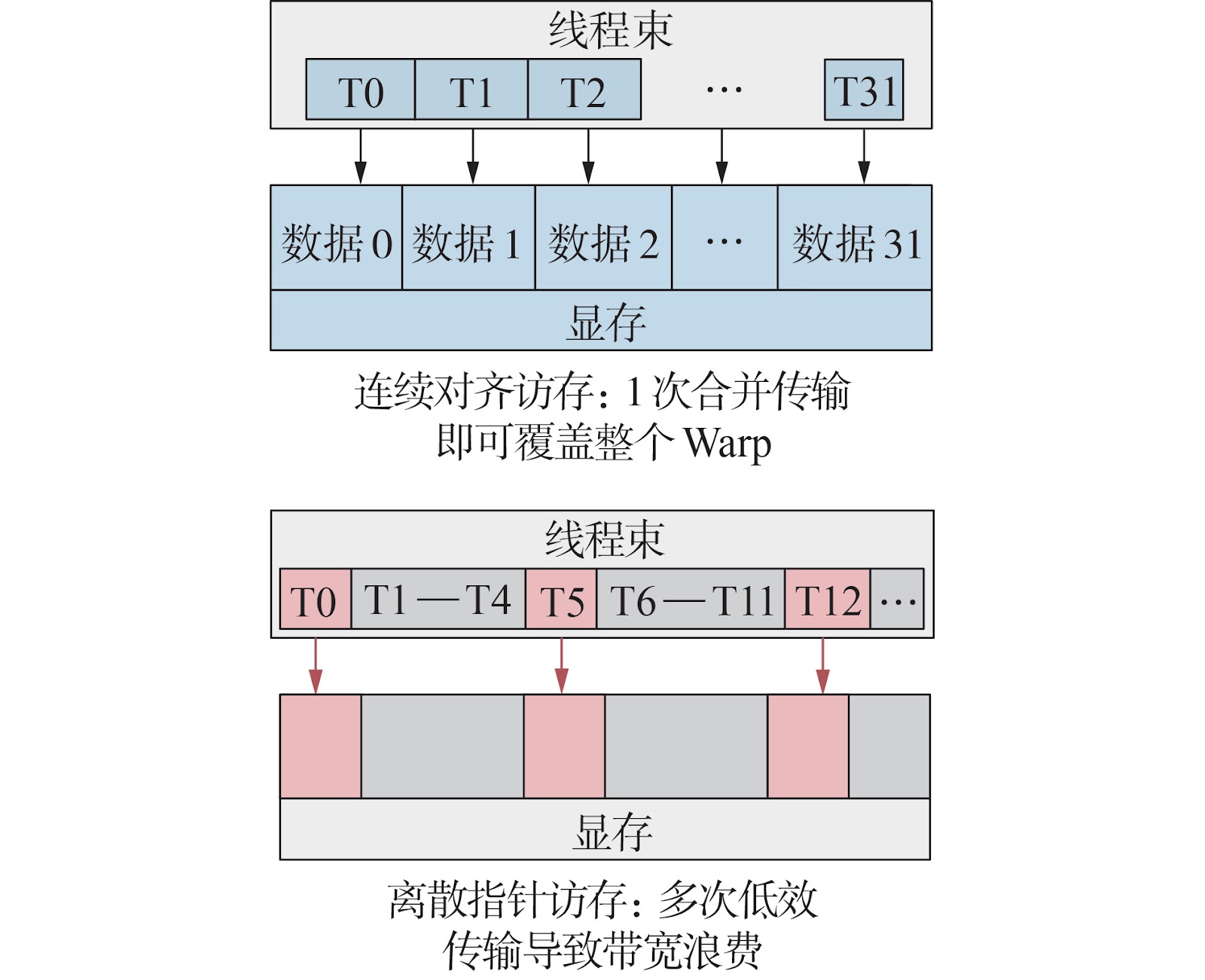

The integration of high-penetration renewable energy sources imposes severe computational bottlenecks on electromagnetic transient (EMT) simulation of large-scale power grids containing thousands of power electronic devices. Graphics processing units (GPUs) offer high-throughput parallelism, but direct application is hindered by three obstacles: thread warp divergence caused by heterogeneous control topologies, non-coalesced memory access from graph-based computation, and instruction redundancy from dynamic parsing. This paper proposes a heterogeneous parallel acceleration method for large-scale renewable energy grids. By introducing graph isomorphism, a two-stage graph clustering algorithm identifies and aggregates control systems at the topological level, eliminating instruction flow divergence from heterogeneous controllers. A GPU-oriented automatic code generation framework transforms aggregated models into branchless, memory-coalesced computational kernels. Experimental results on a scenario with thousands of renewable devices demonstrate a nearly 3x speedup over conventional simulation methods, with excellent scalability. Specifically, compressing effective execution sequence variants from 20 to 1 reduces DRAM-related access cycles from 18,595 to 1,502 and raises L2 cache hit rate from 16.09% to 84.54%. Static specialization eliminates dynamic graph parsing logic, reducing instruction count per control step by 91.8% and achieving a 2.7x kernel-level speedup. The method provides a high-fidelity, highly versatile, and high-performance EMT simulation solution for large-scale renewable energy systems.
1. Introduction
Existing commercial EMT simulation tools for power grids with high renewable penetration rely on CPU-based serial or multi-core parallel execution, which cannot meet computational efficiency demands when thousands of power electronic devices are involved. While GPU acceleration has been explored, prior methods often assume model homogeneity or use general-purpose graph interpreters. These approaches fail in real grids where control topologies are strongly heterogeneous across device types and manufacturers, leading to severe thread warp divergence, non-coalesced memory access, and instruction redundancy. Full-GPU strategies struggle with sparse, stiff network equations, and CPU-GPU-FPGA co-designs suffer from high development cost and inflexibility for frequently changing topologies.
This work introduces a GPU-oriented heterogeneous parallel acceleration method that fundamentally addresses these bottlenecks. A two-stage graph clustering algorithm based on VF2 identifies and aggregates isomorphic control topologies, eliminating instruction flow divergence at the mathematical level. An automatic code generation framework then transforms aggregated models into branchless, memory-coalesced CUDA kernels with consistent topological ordering. Experimental validation on a scenario with thousands of renewable devices demonstrates a nearly 3x speedup over conventional simulation, with DRAM access cycles reduced from 18,595 to 1,502 and L2 cache hit rate improved from 16.09% to 84.54%. Static specialization cuts instruction count per control step by 91.8%, yielding a 2.7x kernel-level speedup. The method provides a high-fidelity, scalable solution for EMT simulation of large-scale renewable energy grids.
Loading authentic research manuscript (Pages 1–5)...
YU Zhitong, YANG Minghao, SONG Yankan, HUANG Shaowei, CHEN Ying, SHEN Chen (2026). GPU-Based Parallel Acceleration Method for Electromagnetic Transient Simulation of Large-Scale Renewable Energy Power Grids. Power Automation Equipment. https://doi.org/10.16081/j.epae.202606011
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What specific hardware bottlenecks in GPU-based EMT simulation does the proposed method address, and what are the quantified improvements?
The method targets three bottlenecks: thread warp divergence from heterogeneous control topologies, non-coalesced memory access from graph-based computation, and instruction redundancy from dynamic parsing. Quantitatively, graph clustering reduces effective execution sequence variants from 20 to 1, cutting DRAM-related access cycles from 18,595 to 1,502 and raising L2 cache hit rate from 16.09% to 84.54%. Static specialization reduces instruction count per control step by 91.8%, yielding a 2.7x kernel-level speedup. End-to-end, a nearly 3x speedup is achieved over conventional simulation for thousands of renewable devices.
How does the two-stage VF2-based graph clustering algorithm handle real-world heterogeneity where devices from different manufacturers have distinct control logic?
The algorithm abandons idealized homogeneity assumptions by mathematically identifying and aggregating control graphs that are essentially isomorphic but may have different execution order expressions. It compresses effective execution sequence variants from 20 to 1, which directly reduces the execution order heterogeneity faced by the unified control kernel under SIMT architecture. This aggregation eliminates instruction flow divergence and load imbalance that simple grouping methods cause, as validated on scenarios with thousands of heterogeneous devices.
What is the measured impact of static specialization on instruction count and kernel performance, and why does this matter for scalability?
Static specialization eliminates dynamic graph parsing logic, reducing the number of execution instructions per control step by 91.8%. This leads to a 2.7x kernel-level speedup. The reduction in instruction redundancy frees floating-point resources and enables more predictable memory access, which is critical for scaling to larger grids because it prevents the GPU's high compute throughput from being wasted on interpretation overhead. The method demonstrates excellent scalability, as shown by the nearly 3x end-to-end speedup on a scenario with thousands of devices.
How does the proposed method compare to full-GPU or CPU-GPU-FPGA co-design approaches in terms of numerical stability and engineering flexibility?
Full-GPU approaches force sparse, stiff network equations onto the GPU, leading to low sparse matrix solving efficiency and poor numerical stability, which fails to meet high-fidelity simulation accuracy requirements. CPU-GPU-FPGA co-designs offer speed and bandwidth advantages but suffer from high FPGA development thresholds, high hardware costs, long compilation cycles, and lack of flexibility for frequently changing topologies. The proposed CPU-GPU heterogeneous architecture with graph clustering and automatic code generation maintains numerical stability and engineering generality while achieving a nearly 3x speedup, making it the best choice for real-world grids with diverse and evolving device models.
What are the limitations of the current static specialization, and what future work is proposed to address them?
The current static specialization leads to parameter fixation, which limits dynamic tuning of control parameters. Future work aims to extend the structural identification and static specialization from the component level to the case level, enabling batch parallel simulation for large-scale N-1 fault scanning. By promoting graph isomorphism and differentiated compilation to the case level and decoupling topological logic from operating parameters, it is expected to achieve automatic clustering and incremental code generation for massive similar cases, avoiding full modeling and compilation for each N-1 scenario or parameter adjustment. This will further exploit GPU throughput for concurrent simulation of hundreds or thousands of fault cases.
