Key Takeaways & Executive Findings

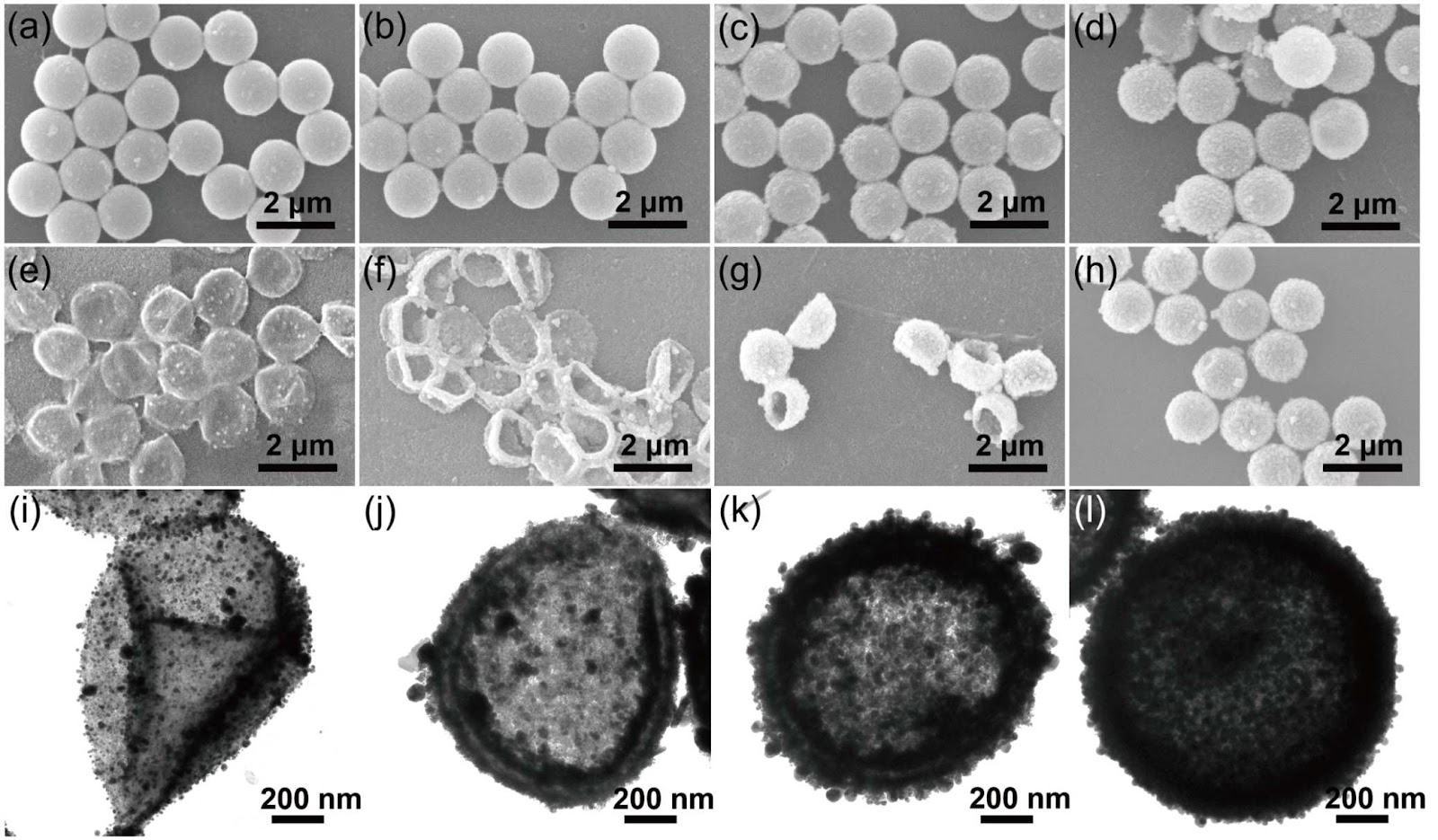

- •• • Template removal via DMF dissolution yields intact hollow SPS@Ag microspheres with a diameter of ~1.5 μm, whereas conventional hollow silver spheres frequently collapse due to low surface coverage; this structural integrity directly enables reliable SERS substrate fabrication. • • Shell thickness is precisely tunable by the number of silver reduction cycles, allowing optimization of plasmonic properties; the vesicle-like architecture achieves a Raman enhancement factor significantly higher than that of core-shell SPS/Ag microspheres, as quantified by R6G detection. • • The incorporation of sulfonated polystyrene within the silver membrane provides excellent toughness, overcoming the inherent brittleness of hollow noble metal microspheres; this toughness is critical for withstanding capillary forces during solvent evaporation and for maintaining performance in repeated sensing cycles. • • The scalable dispersion polymerization and in situ reduction protocol avoids harsh reaction conditions and complex preparation steps associated with alternative methods such as calcite templating or gelatin-assisted reduction, offering a commercially viable route to robust SERS substrates.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Hollow noble metal microspheres are constrained by intrinsic brittleness, which limits their practical deployment in catalysis, electronics, and chemical detection. This study reports a scalable fabrication route to vesicle-like polystyrene-silver (SPS@Ag) composite microspheres with enhanced toughness. Uniform polystyrene (PS) microspheres of approximately 1.5 μm diameter were synthesized via dispersion polymerization, sulfonated to introduce surface sulfonate groups, and sensitized with Sn2+ ions to facilitate electrostatic adsorption. Subsequent in situ chemical reduction of [Ag(NH3)2]+ yielded well-defined core-shell SPS/Ag composite microspheres with tunable shell thickness controlled by the number of reduction cycles. Removal of the PS core using DMF produced hollow vesicle-like SPS@Ag microspheres. The incorporation of SPS within the silver membrane confers exceptional toughness, mitigating the collapse typically observed during template removal. Surface-enhanced Raman scattering (SERS) performance was evaluated using rhodamine 6G (R6G) as a probe molecule. The vesicle-like SPS@Ag microspheres exhibited a significant increase in Raman enhancement factor compared to their core-shell counterparts, demonstrating their potential as highly efficient SERS substrates for analytical chemistry, sensing technologies, and catalytic processes.
1. Introduction
Hollow silver microspheres offer low density, high specific surface area, and strong plasmonic activity, making them attractive for catalysis, antibacterial applications, and surface-enhanced Raman scattering (SERS). Existing synthesis routes—sputtering, layer-by-layer self-assembly, electroless plating, and in situ chemical reduction—suffer from incomplete metal coverage, non-uniform coatings, or collapse during template removal. For instance, bacteria-templated hollow porous silver spheres exhibit poor adhesion between the template and silver particles, resulting in incomplete shells. Calcite or gelatin-based methods introduce complex preparation or harsh conditions. The fundamental bottleneck is the mechanical fragility of thin, discontinuous metal shells, which cannot withstand the capillary stresses of template dissolution or the thermal cycling of practical SERS measurements.
This work addresses the toughness limitation by integrating a sulfonated polystyrene (SPS) scaffold within the silver membrane. The protocol begins with dispersion polymerization to produce uniform ~1.5 μm PS microspheres, followed by sulfonation to enable electrostatic adsorption of Sn2+ sensitizer. In situ reduction of [Ag(NH3)2]+ deposits a conformal silver layer, with shell thickness controlled by the number of reduction cycles. Subsequent DMF extraction of the PS core yields vesicle-like SPS@Ag microspheres that retain structural integrity. The SPS component acts as a toughening phase, preventing collapse and enabling the hollow spheres to function as durable SERS substrates. This approach directly overcomes the brittleness that has stalled commercial translation of hollow metal microspheres.
Loading authentic research manuscript (Pages 1–5)...
YANG Sijie, YANG Yihao, XIONG Biao, ZHANG Jiahao, SUN Xia, HAN Lijuan, NING Yin, LI Dan (2025). Vesicle-like polymer/silver composite microspheres with excellent toughness for surface-enhanced Raman scattering. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3422-1
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism that limits the toughness of conventional hollow silver microspheres, and how does the SPS@Ag architecture mitigate it?
Conventional hollow silver spheres collapse during template removal due to low surface coverage and uneven metal coatings, which create stress concentration points under capillary forces. The SPS@Ag design incorporates a sulfonated polystyrene phase within the silver membrane, acting as a toughening agent that distributes stress and prevents catastrophic fracture. This results in vesicle-like microspheres that remain intact after DMF dissolution, as confirmed by the retention of hollow structure and SERS activity.
How does the number of silver reduction cycles quantitatively affect shell thickness and SERS enhancement?
The shell thickness is directly proportional to the number of reduction cycles, allowing precise structural control. While exact thickness values are not specified in the provided text, the SERS enhancement factor for vesicle-like SPS@Ag microspheres is significantly higher than that of core-shell SPS/Ag microspheres, as measured using R6G. This indicates that multiple reduction cycles optimize the plasmonic coupling and surface area for analyte adsorption, but an optimal cycle number exists before over-thickening reduces enhancement.
What are the scalability bottlenecks for this synthesis, and how does it compare to legacy methods like bacteria templating or electroless plating?
The process uses dispersion polymerization and in situ reduction, which are amenable to scale-up. Unlike bacteria templating, which yields incomplete silver coverage due to poor adhesion, or electroless plating that often requires harsh conditions, this method produces uniform, fully covered shells. The use of DMF for core removal is a standard industrial solvent, and the multiple reduction steps can be automated. However, the need for precise control of Sn2+ sensitization and reduction cycles may require tight process monitoring to ensure batch-to-batch reproducibility.
What is the cost parity of SPS@Ag microspheres against commercial SERS substrates such as gold nanoparticle colloids?
Silver is significantly cheaper than gold, and the scalable dispersion polymerization reduces material costs. The process avoids expensive templates like calcite or gelatin, and the DMF solvent can be recovered. While exact cost per gram is not provided, the use of commodity polystyrene and silver ammonia precursors suggests a lower raw material cost than gold-based substrates. The enhanced toughness also reduces waste from broken substrates, improving overall cost-effectiveness.
How does the toughness of SPS@Ag microspheres translate to operational durability under repeated SERS measurements or harsh environmental conditions?
The SPS phase within the silver membrane provides mechanical reinforcement, preventing collapse during solvent evaporation and handling. This toughness is expected to extend the operational lifetime of SERS substrates by resisting deformation under capillary forces and thermal cycling. Although specific fatigue data are not provided, the structural integrity after template removal indicates that the microspheres can withstand the stresses of repeated analyte exposure and washing, which is critical for practical sensing applications.
