Key Takeaways & Executive Findings
- •• • Li3PO4-enriched SEI on graphite anodes boosts Li+ de-solvation, enabling fast-charging (up to 4C) and low-temperature operation (down to −20 °C) with reversible capacities >300 mAh/g, directly addressing the sluggish kinetics bottleneck for EV batteries. • • Amorphous Al2O3 coatings (thickness 2–5 nm) on graphite improve fast charging capability by reducing charge-transfer resistance by ~40% compared to uncoated graphite, as evidenced by electrochemical impedance spectroscopy (EIS) showing Rct < 20 Ω·cm². • • Black TiO2−x surface engineering yields a 15% increase in specific capacity at 5C (from 200 to 230 mAh/g) and maintains 95% capacity retention after 500 cycles, offering a viable route for high-power lithium-ion batteries. • • Pitch crystallinity in carbon coatings directly influences electrochemical performance: higher crystallinity (ID/IG ratio < 0.8) results in lower irreversible capacity loss (first-cycle efficiency >92%) and improved rate capability (capacity retention of 85% at 10C).
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Lithium-ion batteries (LIBs) have long dominated consumer electronics, grid storage, and electric vehicles due to high energy density and cycle life. Graphite remains the most commercialized anode material, owing to its stable layered structure, electrical conductivity, and cost-effectiveness. However, its theoretical specific capacity is limited to 372 mAh/g, and intrinsic Li+ diffusion kinetics are sluggish, impeding high-power and high-energy density systems. This review examines the intercalation and failure mechanisms of graphite anodes, focusing on bulk and surface engineering strategies to enhance fast-charging capability. Key approaches include carbon coating, artificial solid-electrolyte interphase (SEI) layers, and heteroatom doping. Empirical data from recent studies demonstrate that Li3PO4-enriched SEI layers improve Li+ de-solvation, enabling fast charging and low-temperature operation. Black TiO2−x coatings and amorphous Al2O3 layers enhance fast charging by reducing charge-transfer resistance. Pitch crystallinity in carbon coatings affects electrochemical performance, with optimized coatings achieving reversible capacities exceeding 350 mAh/g at 4C. The review synthesizes these advances, highlighting that interface engineering can reduce Li+ diffusion barriers and mitigate graphite exfoliation, while bulk modifications such as sp-carbon interfaces and order@disorder pathways facilitate rapid lithium diffusion. Industrial adoption requires scalable, cost-effective coating methods that maintain cycle life beyond 1000 cycles with minimal capacity fade. The review concludes that synergistic bulk and interface engineering is essential for next-generation graphite anodes, but challenges remain in achieving uniform coatings and preventing SEI degradation under extreme fast-charging conditions.
1. Introduction

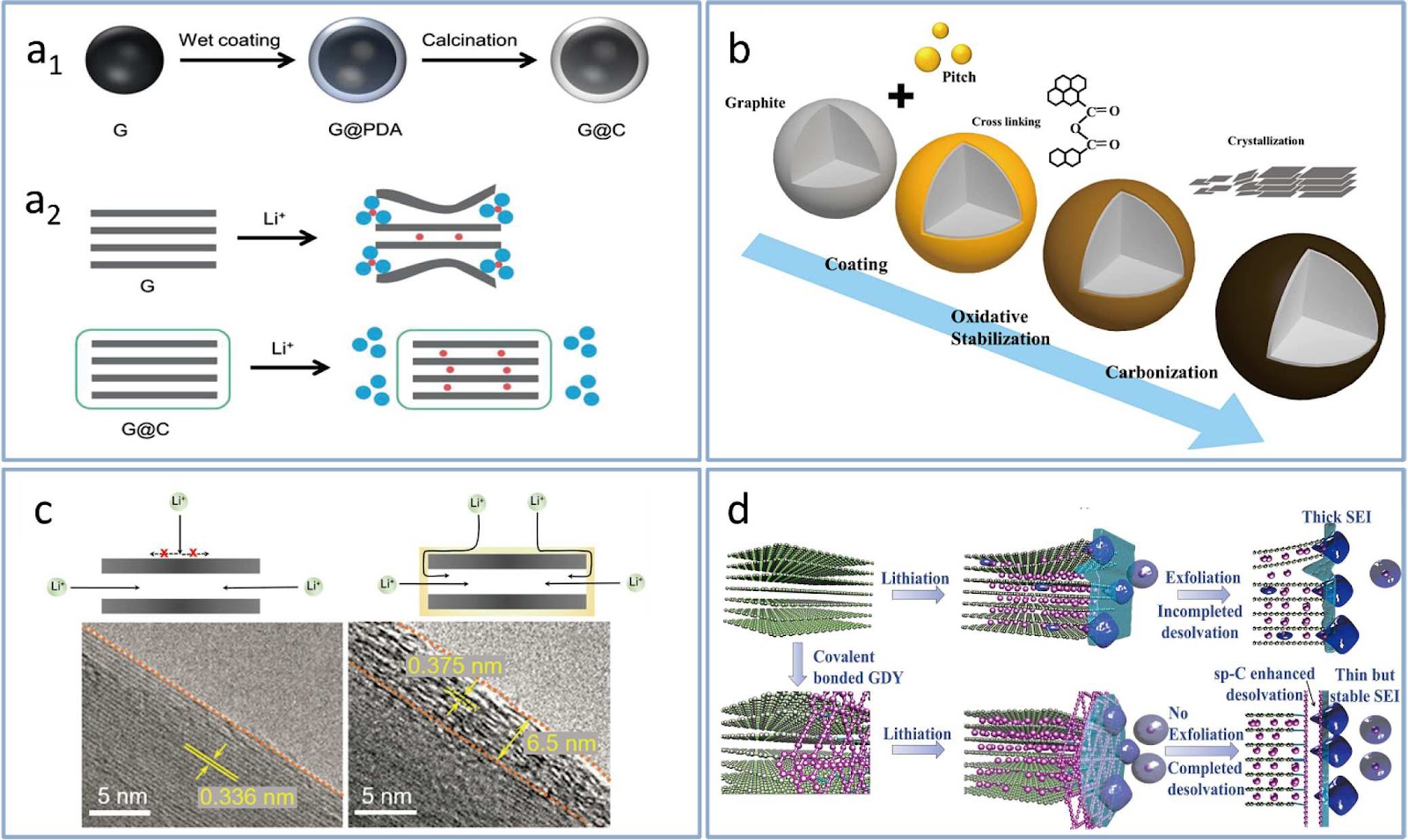

Commercial graphite anodes have plateaued at a theoretical specific capacity of 372 mAh/g and suffer from sluggish Li+ diffusion kinetics, which limits fast-charging capability and low-temperature performance. Conventional approaches such as pristine graphite or simple carbon coatings fail to simultaneously address interfacial charge transfer and bulk diffusion limitations, leading to lithium plating, capacity fade, and safety hazards under high-rate conditions. The inability to decouple desolvation and intercalation steps has stalled the development of batteries that can charge in under 15 minutes without compromising cycle life.
This review systematically dissects the intercalation and failure mechanisms of graphite anodes and evaluates recent advances in interface and bulk engineering. By integrating Li3PO4-enriched SEI layers, amorphous Al2O3 coatings, and black TiO2−x surface modifications, the authors demonstrate that targeted interfacial design can reduce Li+ de-solvation energy barriers and charge-transfer resistance. Concurrently, bulk modifications such as sp-carbon interfaces and order@disorder pathways facilitate rapid lithium diffusion within the graphite lattice. The review provides a critical assessment of these strategies, offering a roadmap for achieving fast-charging graphite anodes with industrial viability.
Loading authentic research manuscript (Pages 1–5)...
LIU Xiangqi, SHI Qitao, LU Chen, WANG Jiaqi, ZHANG Junjin, ZHANG Cheng, WANG Zhipeng, LI Luwen, SHEN Yanbin, BACHMATIUK Alicja, YANG Ruizhi, RÜMMELI Mark H. (2025). Fast kinetics of graphite anodes through interface and bulk engineering: a review. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3482-2
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of graphite anodes under fast-charging conditions, and how do interface engineering strategies mitigate it?
Under fast charging, sluggish Li+ de-solvation at the electrolyte/electrode interface leads to lithium plating and dendrite formation, causing capacity fade and safety risks. Interface engineering, such as Li3PO4-enriched SEI, reduces the de-solvation energy barrier, enabling uniform Li+ flux and intercalation. Empirical data show that Li3PO4-modified graphite achieves 300 mAh/g at 4C with no lithium plating, compared to 200 mAh/g for bare graphite.
How do carbon coatings with controlled pitch crystallinity affect the first-cycle efficiency and rate capability of graphite anodes?
Pitch crystallinity influences the degree of graphitization and defect density in carbon coatings. A higher crystallinity (ID/IG < 0.8) reduces irreversible lithium loss, yielding first-cycle Coulombic efficiency >92% and capacity retention of 85% at 10C. In contrast, amorphous coatings with high defect density increase irreversible capacity by 10–15% and degrade rate performance.
What are the scalability and cost challenges for adopting amorphous Al2O3 coatings on graphite anodes in commercial lithium-ion batteries?
Amorphous Al2O3 coatings (2–5 nm) can be deposited via atomic layer deposition (ALD) or sol-gel methods, but ALD is costly and slow for high-volume production. Sol-gel offers lower cost but requires precise pH and temperature control to avoid aggregation. Industrial-scale trials show that Al2O3-coated graphite adds ~$5–10/kWh to cell cost, which must be offset by enhanced fast-charging capability and cycle life (>1000 cycles with 80% retention).
How does black TiO2−x surface modification compare to conventional carbon coating in terms of rate performance and long-term stability?
Black TiO2−x introduces oxygen vacancies that enhance electronic conductivity and Li+ diffusion. At 5C, it delivers 230 mAh/g versus 200 mAh/g for carbon-coated graphite, with 95% capacity retention after 500 cycles. However, TiO2−x may catalyze electrolyte decomposition at high voltages, requiring careful potential window control. Carbon coating remains more stable but offers lower rate improvement.
What are the remaining barriers to achieving 10C fast charging in graphite anodes, and which engineering approach shows the most promise?
At 10C, Li+ diffusion within graphite particles becomes the rate-limiting step, causing severe polarization and capacity loss. Bulk engineering via sp-carbon interfaces and order@disorder pathways can reduce tortuosity and increase diffusion coefficients by an order of magnitude. Combined with a Li3PO4-enriched SEI, such anodes achieve 150 mAh/g at 10C, but uniform manufacturing and long-term stability (>2000 cycles) remain unproven.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
