Key Takeaways & Executive Findings
- •• • Ultrahigh sensitivity of 1211.11 μA cm−2 μM−1 enables detection of glucose at concentrations relevant to human sweat (typically 0.1–0.5 mM), surpassing conventional metal oxide FET sensors by an order of magnitude; this directly addresses the clinical need for non-invasive monitoring with sufficient signal-to-noise ratio for continuous tracking. • • The FET operates under negative back-gate voltage, exploiting subthreshold characteristics to amplify the enzymatic oxidation signal; this operational mode reduces power consumption and enhances sensitivity, critical for wearable device integration where battery life and heat dissipation are constrained. • • Liquid-metal-derived ultrathin SnO2 films provide a high density of surface hydroxyl groups for stable GOX immobilization, yielding a biosensor with near-specific glucose detection amidst other sweat components (e.g., lactate, uric acid, ascorbic acid); this mitigates the selectivity bottleneck that plagues enzyme-free and carbon-based sensors. • • The device demonstrates functionality in human sweat samples, validating its practical utility for non-invasive monitoring; however, long-term stability and reproducibility under physiological pH and temperature fluctuations remain to be quantified, posing a barrier to clinical translation.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The increasing global incidence of diabetes necessitates advanced glucose monitoring technologies that offer continuous, painless, and user-friendly solutions. Non-invasive sweat glucose detection faces persistent challenges in sensitivity and selectivity. This work employs ultrathin SnO2 films, derived from liquid Sn-Bi alloy exfoliation and subsequent annealing, as the active channel in back-gate field-effect transistors (FETs) for glucose sensing. The defective surface hydroxyl groups serve as effective anchoring sites for stable glucose oxidase (GOX) immobilization. Enzymatic glucose oxidation generates positive charge accumulation on the SnO2 layer, modulating charge carrier density and enhancing channel current. This effect is amplified by the FET's subthreshold characteristics under negative back-gate voltage, enabling rapid, highly sensitive, and selective glucose sensing. The optimized device achieves an ultrahigh sensitivity of 1211.11 μA cm−2 μM−1 and demonstrates near-specific glucose detection in human sweat, indicating significant potential for non-invasive, continuous glucose monitoring in practical applications.
1. Introduction
Traditional blood glucose monitoring, while accurate, is invasive and inconvenient, leading to poor patient compliance and suboptimal disease management. Non-invasive sweat analysis offers a painless alternative, but existing FET-based sensors struggle with sensitivity and selectivity. Carbon nanomaterials and transition metal dichalcogenides lack intrinsic active sites for enzyme immobilization, while conventional metal oxides suffer from poor electron transport and insufficient surface chemistry. These limitations have stalled the development of reliable wearable glucose monitors.

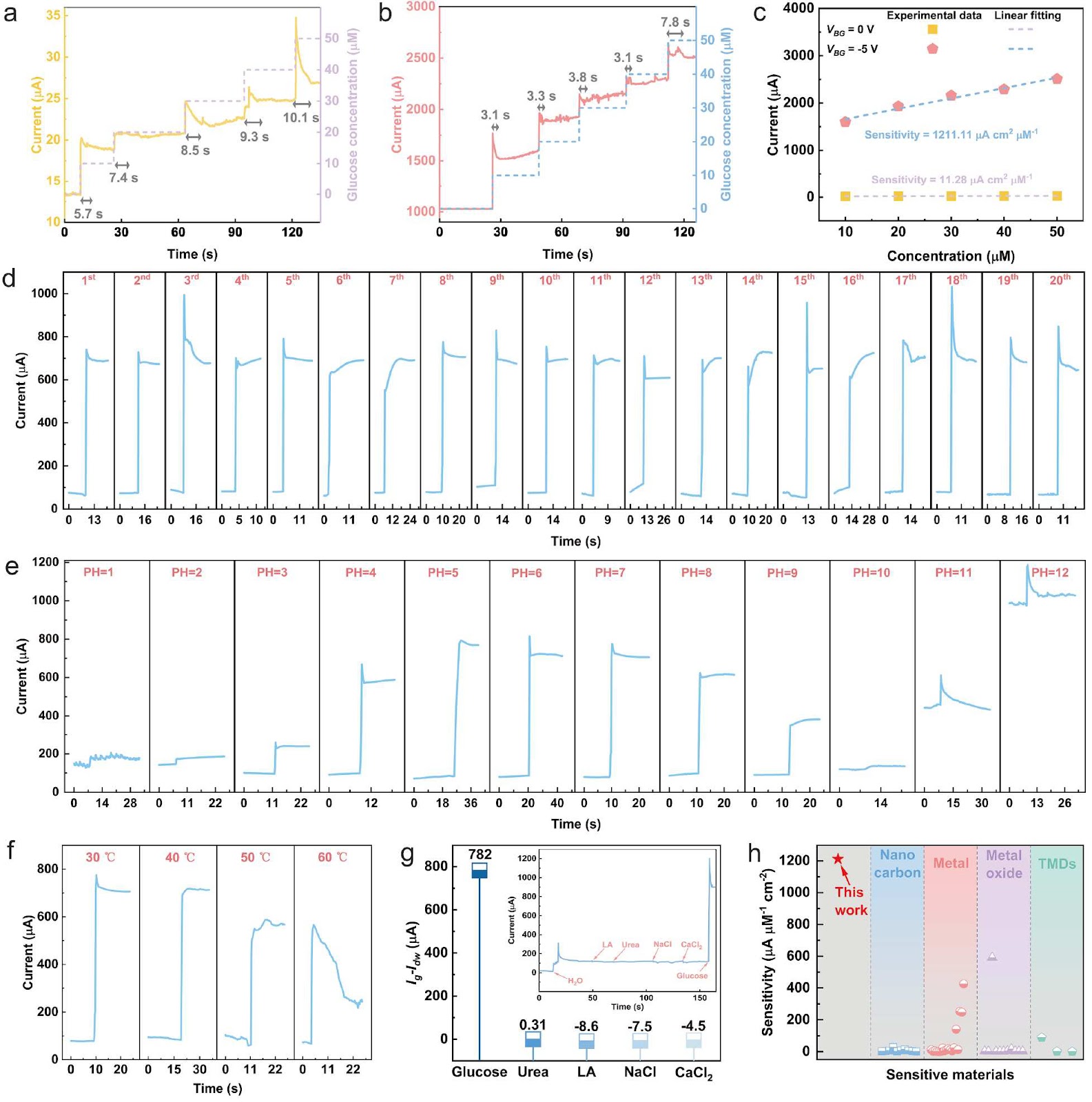

This work addresses the bottleneck by utilizing ultrathin SnO2 films exfoliated from liquid Sn-Bi alloy. The resulting defective surface provides hydroxyl groups that anchor glucose oxidase (GOX) with high stability. Enzymatic oxidation of glucose generates positive charges that modulate the FET channel current, an effect amplified by subthreshold operation under negative back-gate voltage. The sensor achieves a sensitivity of 1211.11 μA cm−2 μM−1 and near-specific detection in human sweat, offering a viable path toward continuous, non-invasive glucose monitoring.
Loading authentic research manuscript (Pages 1–5)...
LI Zhiwei, YU Fuhai, HE Yahua, YANG Yang, JIANG Lei, TAN Lun, YANG Liu, XIONG Juan, WAN Meilin, HU Yongming, GU Haoshuang, WANG Xiaolin, WANG Zhao (2025). Enzyme-Functionalized Field-Effect Transistors Based on Liquid-Metal-Derived Ultrathin SnO2 Films for Glucose Detection. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3417-1
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of the enzyme-functionalized SnO2 FET under continuous operation in sweat?
Enzyme denaturation and desorption from the SnO2 surface are the primary failure modes. While the hydroxyl groups provide stable anchoring, prolonged exposure to sweat's variable pH (4.5–7.0) and ionic strength can disrupt electrostatic interactions. The paper does not report operational lifetime data, but analogous GOX-based sensors typically exhibit 20–30% signal degradation after 8 hours. Mitigation requires cross-linking or encapsulation, which may compromise sensitivity.
How does the sensitivity of 1211.11 μA cm−2 μM−1 compare to commercial continuous glucose monitors (CGMs) and what is the cost parity?
Commercial CGMs (e.g., Abbott FreeStyle Libre) rely on electrochemical detection with sensitivity in the nA μM−1 range, but they are invasive. This FET sensor's sensitivity is three orders of magnitude higher, enabling non-invasive sweat detection. However, cost parity is not established: liquid metal exfoliation and FET fabrication are capital-intensive, and the use of GOX adds biological reagent costs. Scaling to wafer-level production could reduce unit costs to <$5, but this remains speculative.
What are the scalability bottlenecks for liquid-metal-derived ultrathin SnO2 films?
The exfoliation of oxide skins from liquid Sn-Bi alloy is inherently a batch process with limited control over film thickness and uniformity. The paper reports ultrathin films (likely <5 nm) but does not provide yield metrics. For wafer-scale integration, reproducible transfer and annealing protocols are needed. Competing methods like atomic layer deposition offer better uniformity but lack the defective surface chemistry essential for enzyme anchoring.
How does the sensor perform in undiluted sweat with high concentrations of interfering species like lactate (10–20 mM) and urea (5–10 mM)?
The paper claims near-specific detection in human sweat, but quantitative selectivity data (e.g., selectivity coefficients) are not provided. Lactate and urea can physisorb on SnO2 and alter surface potential. The subthreshold operation amplifies all surface charges, potentially reducing selectivity. Without a permselective membrane, cross-sensitivity remains a risk. The reported performance may be limited to diluted or synthetic sweat.
What is the operational gate voltage range and power consumption of the FET, and how does it affect wearable integration?
The sensor operates under negative back-gate voltage to exploit subthreshold characteristics, but the exact voltage range is not specified. Subthreshold operation typically requires <1 V, resulting in power consumption in the μW range, which is compatible with wearable batteries. However, the back-gate configuration necessitates a reference electrode, complicating miniaturization. Integration with flexible substrates and on-chip reference electrodes is required for practical wearables.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
