Key Takeaways & Executive Findings
- •• • Hf0.85Ce0.15O2−δ films on (011)-oriented STO achieve 2Pr = 102.1 μC/cm2, the highest reported for HfO2-based ferroelectrics, enabling reduced capacitor cell area and stronger ferroelectric field modulation for high-density non-volatile memory. • • Fatigue resistance remains <10% degradation after 107 switching cycles, satisfying industrial endurance requirements for embedded memory and in-memory computing arrays. • • The (011) substrate orientation maximizes Ce3+ content and unit cell volume, inducing chemical negative strain that stabilizes the ferroelectric orthorhombic phase; this orientation-dependent control is critical for reproducible device performance. • • Piezoresponse force microscopy confirms robust polarization switching with ~180° phase reversal under ±10 V bipolar cycling, validating reliable ferroelectric switching at the local scale for capacitor and transistor integration.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Hafnium oxide (HfO2)-based ferroelectrics are compatible with complementary metal-oxide-semiconductor (CMOS) processing and lead-free, but their remanent polarization (2Pr) remains insufficient for advanced non-volatile memory. This work achieves an ultrahigh 2Pr of 102.1 μC/cm2 in Ce-doped HfO2 thin films via biaxial strain engineering. Hf0.85Ce0.15O2−δ films were grown on crystallographically oriented SrTiO3 (STO) substrates, and the substrate orientation was found to control Ce3+ content, unit cell volume, and ferroelectric phase stabilization. Films on (011)-oriented STO exhibit the highest Ce3+ fraction and largest unit cell volume, corresponding to chemical negative strain that stabilizes the metastable orthorhombic phase. The optimized films show 2Pr = 102.1 μC/cm2, the highest reported for HfO2-based ferroelectrics, and fatigue resistance with <10% degradation after 107 switching cycles. Piezoresponse force microscopy confirms robust polarization switching with ~180° phase reversal under ±10 V bipolar cycling. The results establish substrate-induced strain as a viable route to overcome the polarization bottleneck of HfO2-based materials, providing a foundation for high-density, low-power non-volatile memory and in-memory computing.
1. Introduction
HfO2-based ferroelectrics have emerged as leading candidates for non-volatile memory because of their CMOS compatibility and lead-free composition, yet their practical deployment is constrained by weak remanent polarization. Pure HfO2 and conventional single-element doping strategies—such as Si, Zr, or Al—struggle to simultaneously stabilize the metastable orthorhombic phase and suppress oxygen-vacancy-related leakage and fatigue. Si doping beyond 5 at.% promotes amorphization, Zr doping offers limited control over oxygen vacancies and suffers high-field leakage, and Al doping provides insufficient lattice distortion due to its small ionic radius (~0.540 Å). These trade-offs cap achievable polarization and reliability, impeding the scaling of ferroelectric random-access memory and ferroelectric field-effect transistors.
This study addresses the polarization bottleneck through biaxial strain engineering using crystallographically oriented SrTiO3 substrates. By growing Hf0.85Ce0.15O2−δ films on (001), (011), and (111) STO, the authors systematically correlate substrate orientation with Ce3+ content, unit cell volume, and ferroelectric phase stabilization. The (011) orientation induces the largest chemical negative strain, yielding an ultrahigh remanent polarization of 102.1 μC/cm2 and fatigue resistance below 10% degradation after 107 cycles. These metrics directly confront the endurance and polarization limitations that have stalled HfO2-based ferroelectrics in advanced memory architectures.
Loading authentic research manuscript (Pages 1–5)...
LI Hangren, TU Jie, DING Jiaqi, XIA Jing, SHI Longyuan, DU Siyuan, LIU Xiuqiao, LIU Xudong, LI Menglin, TIAN Jianjun, ZHANG Linxing (2025). Ultrahigh remanent polarization of Ce-doped HfO2 ferroelectric thin films through strain engineering. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3456-6
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the exact remanent polarization and fatigue endurance of the Ce-doped HfO2 films, and how do they compare to prior HfO2-based ferroelectrics?
The Hf0.85Ce0.15O2−δ films on (011)-oriented STO exhibit 2Pr = 102.1 μC/cm2, the highest value reported for HfO2-based ferroelectrics, with <10% degradation after 107 switching cycles. This exceeds typical reported values for Si-, Zr-, or Al-doped HfO2, which often fall below 40 μC/cm2 and show greater fatigue.
What is the mechanism by which substrate orientation enhances ferroelectric polarization?
The (011)-oriented STO substrate imposes biaxial strain that maximizes Ce3+ content and unit cell volume, creating chemical negative strain. This strain stabilizes the metastable orthorhombic phase, as evidenced by the correlation between increased unit cell volume and enhanced remanent polarization.
How does the film composition and substrate choice affect scalability and integration with CMOS?
The films are Hf0.85Ce0.15O2−δ grown on SrTiO3 substrates, which are not standard CMOS substrates. While the HfO2-based material is CMOS-compatible, the use of STO requires transfer or buffer layers for silicon integration, posing a scalability challenge that must be addressed for industrial adoption.
What is the switching behavior and local ferroelectric uniformity of the films?

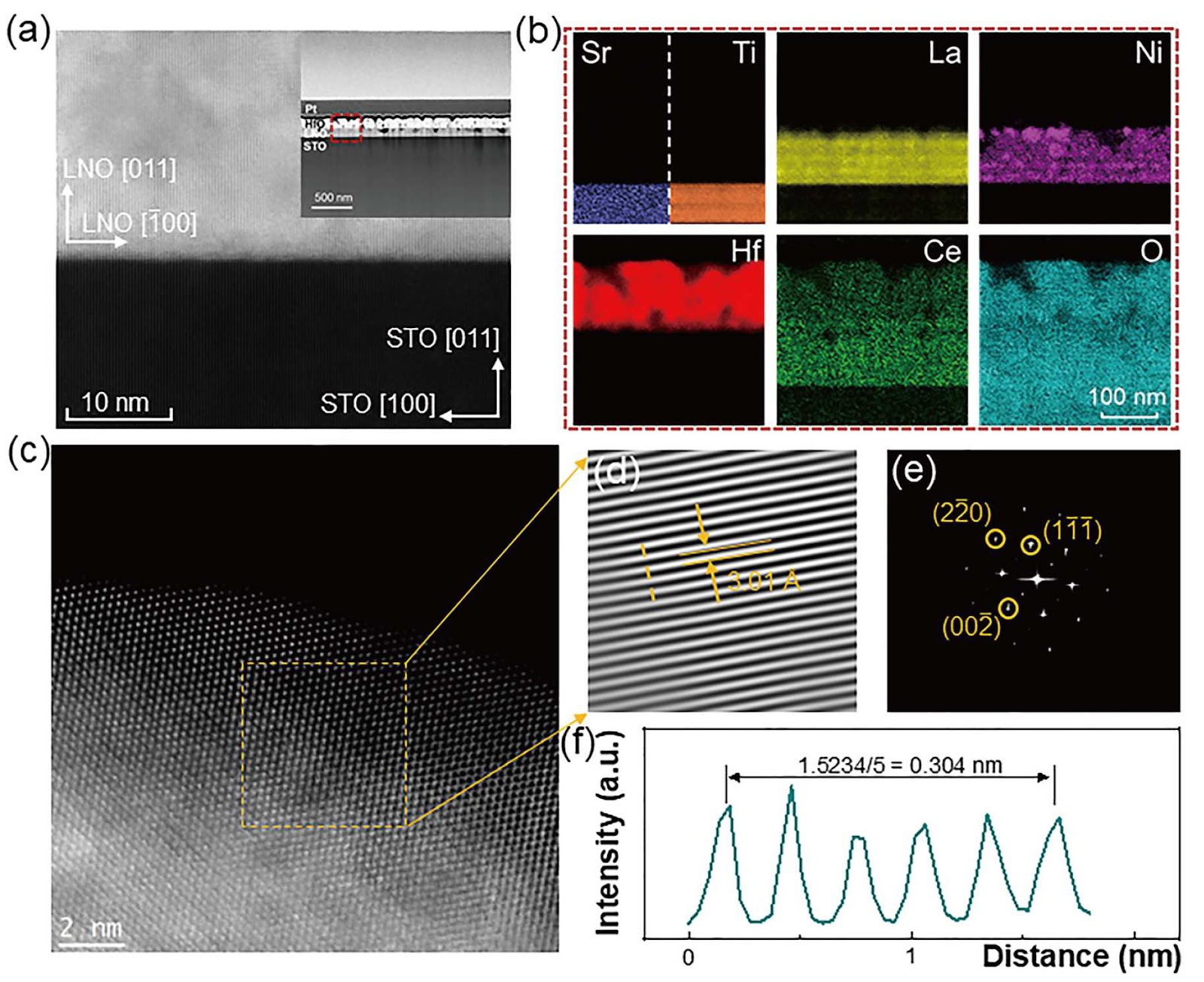

Piezoresponse force microscopy over an 8 μm × 8 μm area shows robust polarization switching with ~180° phase reversal under bipolar cycling from −10 V to +10 V. The low surface roughness supports uniform surface ferroelectric switching, indicating good local uniformity.
What are the remaining barriers to commercial deployment of these Ce-doped HfO2 films?
Key barriers include the need for epitaxial growth on oriented STO substrates, which is costly and not directly compatible with silicon manufacturing. Additionally, long-term reliability beyond 107 cycles, high-temperature stability, and oxygen vacancy control under operating fields require further validation.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
