Key Takeaways & Executive Findings
- •• • The Ir/WOx NSs achieve a mass activity of 2.34 A mgIr−1 at 300 mV overpotential, 11.1× and 9.8× higher than Ir NSs and commercial Ir/C, respectively, enabling significant reduction in Ir loading for cost-effective PEMWE deployment. • • The catalyst exhibits a low overpotential of 216 mV at 10 mA cm−2geo, surpassing commercial IrO2 and indicating enhanced intrinsic activity for acidic OER. • • In a PEM electrolyzer, Ir/WOx NSs deliver 1.0 A cm−2 at a cell voltage of 1.71 V, meeting ampere-level operational requirements for industrial hydrogen production. • • Long-term stability tests show a potential decay rate of only 2.8 μV h−1, compared to 210 μV h−1 for commercial IrO2, under dynamic current densities (0.2–1.0 A cm−2), demonstrating robust durability essential for intermittent renewable energy integration.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Iridium-based materials remain the only commercially viable anode electrocatalysts for the acidic oxygen evolution reaction (OER) in proton exchange membrane water electrolyzers (PEMWE), yet their high cost and insufficient activity necessitate reducing Ir loading while enhancing performance. This work reports the synthesis of ultrathin Ir/WOx hybrid nanosheets (Ir/WOx NSs) featuring abundant two-dimensionally confined heterointerfaces, composed of crystalline Ir nanograins embedded within an amorphous WOx matrix. The Ir/WOx NSs achieve a mass activity of 2.34 A mgIr−1 at an overpotential of 300 mV, approximately 11.1 and 9.8 times higher than Ir NSs and commercial Ir/C, respectively. The 2D-confined interactions establish synergistic bifunctional sites and efficient charge transfer interfaces, accelerating the initial hydrolysis dissociation step. On interfacial Ir atoms, the adsorption of *O and subsequent formation of *OOH intermediates are thermodynamically facilitated, promoting the adsorbate evolution mechanism. The Ir/WOx NSs-based PEMWE delivers a low cell voltage of 1.71 V at 1.0 A cm−2 and exhibits outstanding long-term durability, with a potential decay rate of 2.8 μV h−1 compared to 210 μV h−1 for commercial IrO2. This work demonstrates the engineering of 2D-confined metal-oxide interfacial electrocatalysts for efficient and stable green hydrogen production.
1. Introduction
Proton exchange membrane water electrolysis (PEMWE) offers higher voltage efficiency, ampere-level current density, and superior adaptability to fluctuating renewable energy sources compared to alkaline water electrolysis. However, the acidic oxygen evolution reaction (OER) at the anode suffers from sluggish kinetics due to a complex four-proton-coupled electron transfer process, resulting in significant overpotential. The strongly acidic and oxidizing environment further demands exceptional catalyst stability at high current densities. Iridium-based materials are the only commercially available OER electrocatalysts for PEMWE, but their extreme cost and unsatisfactory performance necessitate urgent improvements to reduce Ir usage while enhancing activity and durability.
Existing Ir-based catalysts primarily follow the adsorbate evolution mechanism (AEM), which involves adsorption and desorption of intermediates such as *O, *OH, and *OOH. The free energy barrier for the rate-determining step (*O → *OOH) often limits overall activity. This work addresses the bottleneck by constructing ultrathin Ir/WOx hybrid nanosheets with abundant two-dimensionally confined heterointerfaces between crystalline Ir nanograins and an amorphous WOx matrix. The 2D-confined interactions create synergistic bifunctional sites and efficient charge transfer interfaces, accelerating the initial hydrolysis dissociation step and thermodynamically facilitating *O and *OOH formation on interfacial Ir atoms. This strategy substantially enhances acidic OER activity and stability, enabling ampere-level PEMWE operation with reduced Ir loading.
Loading authentic research manuscript (Pages 1–5)...
Junlin Cai, Hongpu Huang, Weizhen Chen, Yuhang Peng, Luhong Fu, Shupeng Wang, Zhongyuan Zou, Zhichao Fu, Xiaohong Wang, Zhaoxiong Xie, Shuifen Xie (2025). Two-dimensionally confined Ir/WOx heterointerfaces boost the acidic oxygen evolution reaction for ampere-level stable PEM water electrolysis. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3398-9
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the long-term stability of Ir/WOx NSs under dynamic current density conditions, and how does it compare to commercial IrO2?
Ir/WOx NSs exhibit a potential decay rate of 2.8 μV h−1 during long-term operation under dynamic current densities ranging from 0.2 to 0.5 to 1.0 A cm−2, whereas commercial IrO2 shows a decay rate of 210 μV h−1. This 75-fold reduction in degradation rate indicates superior durability, essential for practical PEMWE systems subjected to intermittent renewable energy inputs.
What are the mass activity and overpotential metrics of Ir/WOx NSs compared to baseline catalysts?
Ir/WOx NSs achieve a mass activity of 2.34 A mgIr−1 at an overpotential of 300 mV, which is 11.1 times higher than Ir NSs and 9.8 times higher than commercial Ir/C. Additionally, the overpotential at 10 mA cm−2geo is only 216 mV, significantly lower than commercial IrO2, demonstrating enhanced intrinsic activity and potential for reducing Ir loading.
How does the 2D-confined heterointerface enhance the acidic OER mechanism?

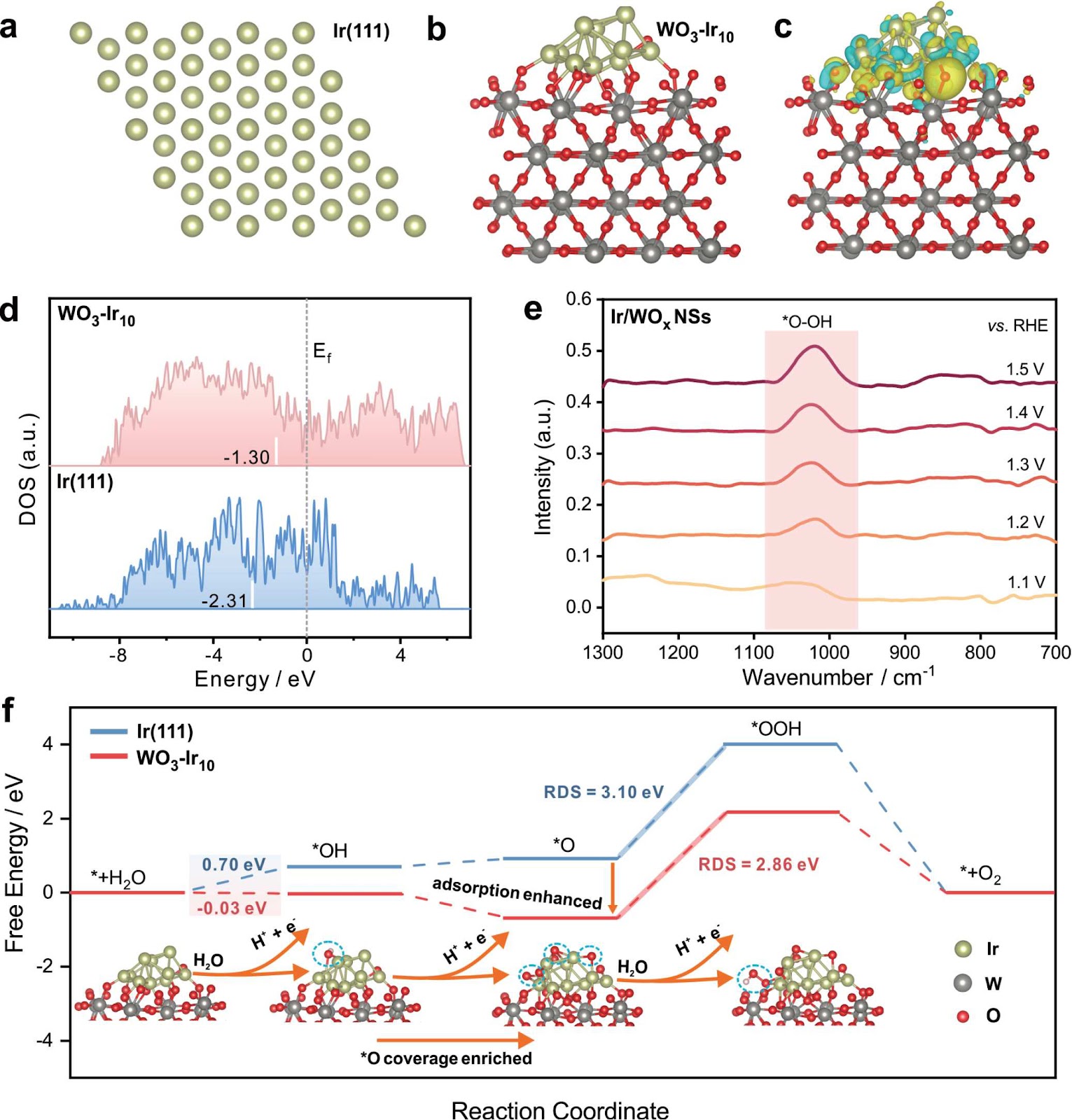

The 2D-confined interactions between crystalline Ir nanograins and amorphous WOx matrix create synergistic bifunctional sites and efficient charge transfer interfaces. In situ ATR-SEIRAS and theoretical calculations show that these interfaces enhance hydrolysis dissociation and deprotonation steps, increase oxophilicity of proximal Ir atoms, and reduce the free energy barrier for the rate-determining step (*O → *OOH) in the adsorbate evolution mechanism, thereby accelerating OER kinetics.
What cell voltage is required for Ir/WOx NSs to deliver 1.0 A cm−2 in a PEM electrolyzer, and what are the implications for industrial hydrogen production?
The Ir/WOx NSs-based PEMWE achieves a cell voltage of 1.71 V at 1.0 A cm−2, meeting ampere-level operational requirements. This low voltage, combined with outstanding durability, enables efficient and stable green hydrogen production, potentially lowering energy consumption and operational costs for industrial-scale PEMWE deployment.
What are the scalability challenges for synthesizing Ir/WOx NSs, and how might they impact commercial viability?
The synthesis of ultrathin Ir/WOx hybrid nanosheets with abundant 2D-confined heterointerfaces involves elaborate procedures that may pose scalability challenges. However, the substantial reduction in Ir usage (due to high mass activity) and enhanced durability could offset initial synthesis costs. Further optimization of assembly, testing, and analysis of PEMWE devices is expected to improve performance and facilitate scale-up.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
