Key Takeaways & Executive Findings
- •• • 42-fold thermal enhancement of green upconversion luminescence from 300 to 560 K in Sc2Mo3O12:Yb/Er thin film, enabling reliable operation in high-temperature environments where conventional sensors fail due to thermal quenching. • • 11.3 Å3 reduction in cell volume via anisotropic NTE along a- and c-axes amplifies Yb3+→Er3+ energy transfer (kET ∝ R−6), directly countering thermal quenching and boosting signal intensity for high-sensitivity thermometry. • • 358% extension of Er3+ lifetimes due to symmetry-breaking distortions that suppress nonradiative 2H11/2 → 4F9/2 relaxations, providing a lifetime-based sensing modality with maximum relative sensitivity (Sr) of 1.28% K−1, surpassing Boltzmann-limited approaches. • • Record relative sensitivity (Sr) of 4.33% K−1 at 300 K achieved through multi-modal thermometry, with sub-200 nm thickness and SiO2/Si compatibility, enabling on-chip integration for high-resolution thermal mapping in quantum devices, aerospace diagnostics, and wearable sensors.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Thermal quenching in lanthanide-based optical sensors severely limits performance at elevated temperatures. Negative thermal expansion (NTE) hosts have shown promise in bulk systems, but their potential in thin-film architectures for integrated photonics remains unexplored. This work demonstrates a Yb3+/Er3+ co-doped Sc2Mo3O12 thin film that leverages anisotropic NTE dynamics to achieve a 42-fold thermal enhancement in green upconversion luminescence from 300 to 560 K. In situ thermodiffraction and time-resolved spectroscopy reveal a dual mechanism: lattice contraction along the a- and c-axes reduces the cell volume by 11.3 Å3, amplifying Förster-type energy transfer (kET ∝ R−6) from Yb3+ to Er3+, and symmetry-breaking distortions suppress nonradiative 2H11/2 → 4F9/2 relaxations, extending Er3+ lifetimes by 358%. The strain-engineered crystal field enables multi-modal thermometry with record sensitivities: a relative sensitivity (Sr) of 4.33% K−1 at 300 K, and maximum Sr = 1.28% K−1 through lifetime-based sensing, outperforming conventional Boltzmann-limited approaches. The sub-200 nm thickness and SiO2/Si compatibility position this platform for on-chip integration, addressing unmet needs in high-resolution thermal mapping for quantum devices, aerospace diagnostics, and wearable sensors. This work deciphers the interplay between NTE and luminescence at the atomic scale and establishes a universal strategy to design anti-thermal-quenching thin films for extreme-environment photonics.
1. Introduction
Lanthanide-doped upconversion luminescent materials have revolutionized photonic technologies, from sub-diffraction-limited bioimaging to non-contact nanothermometry, owing to their narrow emission bands, long-lived excited states, and exceptional photostability. However, a fundamental limitation persists: thermal quenching, where elevated temperatures amplify nonradiative relaxations, eroding emission intensity and undermining device functionality. While strategies like phonon-assisted energy transfer and surface/defect engineering offer partial mitigation, they often lack the robustness or tunability required for extreme environments. The emergence of negative thermal expansion (NTE) materials presents a paradigm shift, as NTE matrices contract upon heating, compressing the lattice and shortening sensitizer-activator distances, which acts as a geometric lever to amplify energy transfer efficiency. This counterintuitive behavior not only suppresses thermal quenching but can even enhance luminescence, as demonstrated in bulk crystals like Sc2Mo3O12. Yet, the physics governing NTE-driven luminescence remains under-explored in thin films, a critical gap given their dominance in integrated photonics and microsensor technologies.
Thin films introduce interfacial strain and altered phonon spectra that can either exacerbate or mitigate thermal quenching, necessitating precise control over NTE dynamics at the nanoscale. Existing commercial approaches for luminescent temperature sensing, such as those based on Boltzmann-limited intensity ratios, suffer from low sensitivity and poor performance at elevated temperatures, stalling their adoption in high-precision applications like quantum device thermal management and aerospace diagnostics. This experimental protocol specifically addresses the bottleneck by engineering a Yb3+/Er3+ co-doped Sc2Mo3O12 thin film that leverages anisotropic NTE to achieve a 42-fold thermal enhancement in green upconversion luminescence from 300 to 560 K. Through in situ thermodiffraction and time-resolved spectroscopy, we decipher a dual mechanism: lattice contraction along the a- and c-axes reduces the cell volume by 11.3 Å3, amplifying Förster-type energy transfer (kET ∝ R−6) from Yb3+ to Er3+, while symmetry-breaking distortions suppress nonradiative 2H11/2 → 4F9/2 relaxations, extending Er3+ lifetimes by 358%. This strain-engineered crystal field enables multi-modal thermometry with record sensitivities: a relative sensitivity (Sr) of 4.33% K−1 at 300 K and maximum Sr = 1.28% K−1 through lifetime-based sensing, outperforming conventional Boltzmann-limited approaches. The sub-200 nm thickness and SiO2/Si compatibility further position this platform for on-chip integration, addressing unmet needs in high-resolution thermal mapping for quantum devices, aerospace diagnostics, and wearable sensors.
Loading authentic research manuscript (Pages 1–5)...
CHEN Haisheng, AN Yu, WANG Yinghan, DU Xiaona, HU Minghao, BAI Gongxun, YE Shi, LIU Weiwei, ZHANG Yang (2025). Thermally Enhanced Upconversion Luminescence in Sc2Mo3O12:Yb/Er Thin Film Toward Versatile and High-Sensitivity Luminescent Temperature Sensing. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3378-6
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism under prolonged high-temperature operation, and how does the Sc2Mo3O12:Yb/Er thin film mitigate it?
The primary failure mechanism is thermal quenching, where elevated temperatures amplify nonradiative relaxations, reducing emission intensity. The film mitigates this via anisotropic negative thermal expansion (NTE): lattice contraction along the a- and c-axes reduces cell volume by 11.3 Å3, which amplifies Förster-type energy transfer (kET ∝ R−6) from Yb3+ to Er3+ and suppresses nonradiative 2H11/2 → 4F9/2 relaxations, extending Er3+ lifetimes by 358%. This results in a 42-fold thermal enhancement of green upconversion luminescence from 300 to 560 K, ensuring stable performance at elevated temperatures.
How does the cost and scalability of this thin-film platform compare to conventional bulk NTE-based sensors?
The thin-film architecture is compatible with standard SiO2/Si substrates and has a sub-200 nm thickness, enabling on-chip integration using established semiconductor fabrication processes. This reduces material consumption and allows for wafer-scale production, potentially lowering costs compared to bulk single crystals that require complex growth and polishing. However, precise control of strain and NTE dynamics during deposition may introduce additional process complexity, necessitating optimization for high-yield manufacturing.
What are the operational thresholds and sensitivity metrics that make this sensor suitable for quantum device thermal mapping?

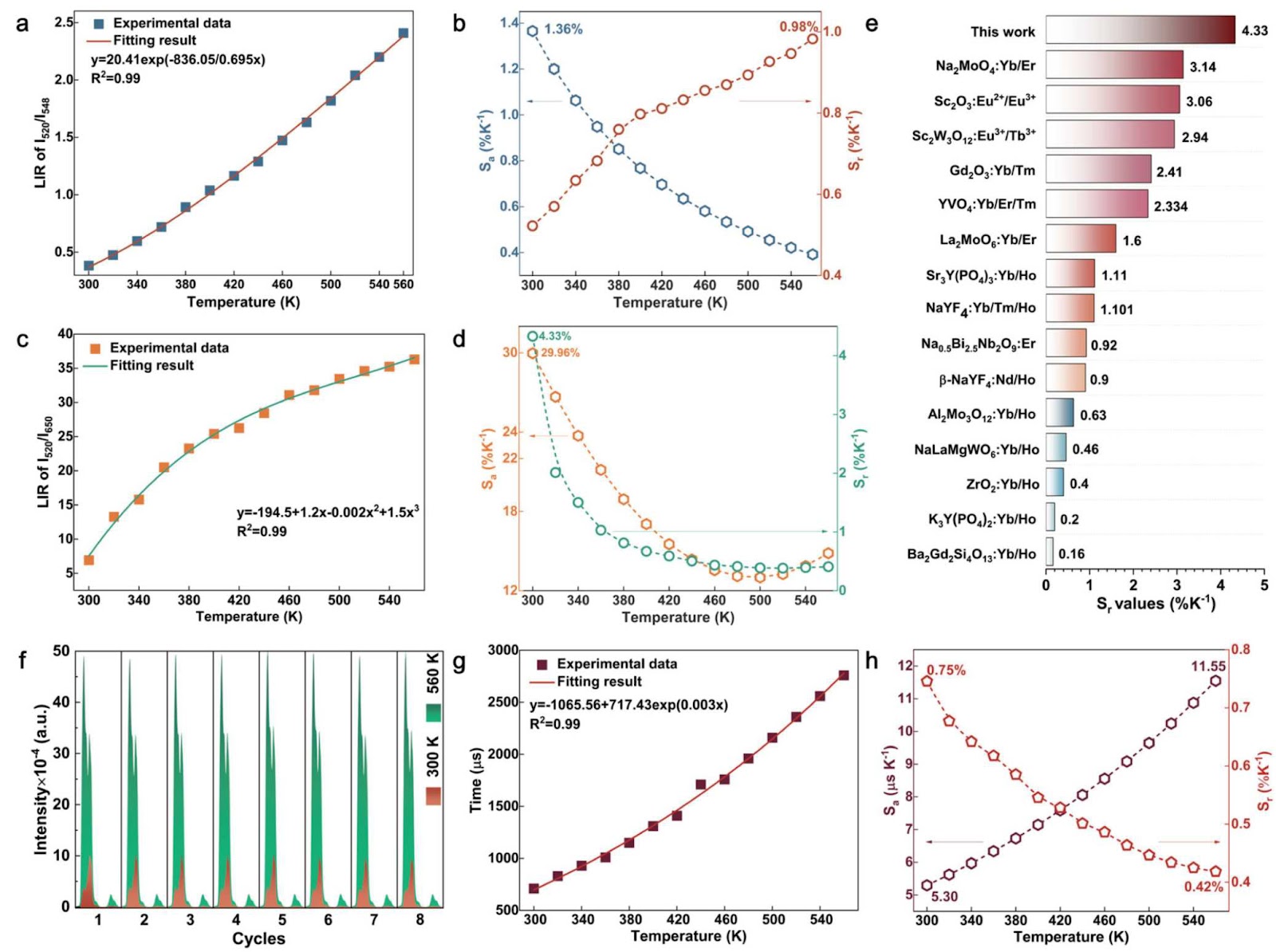

The sensor achieves a relative sensitivity (Sr) of 4.33% K−1 at 300 K and a maximum Sr of 1.28% K−1 through lifetime-based sensing, outperforming conventional Boltzmann-limited approaches. It operates effectively from 300 to 560 K with a 42-fold thermal enhancement of green upconversion luminescence. These metrics, combined with sub-200 nm thickness and SiO2/Si compatibility, enable high-resolution thermal mapping with minimal thermal mass and high spatial resolution, critical for quantum devices where precise temperature control is essential.
What are the potential degradation pathways for the Sc2Mo3O12:Yb/Er thin film under repeated thermal cycling, and what is the expected lifetime?
Repeated thermal cycling may induce microcracking or delamination due to strain mismatch between the film and substrate, as well as gradual oxygen vacancy formation that could alter NTE behavior. However, the film's strain-engineered crystal field and SiO2/Si compatibility suggest robust integration. While the paper does not report accelerated aging data, the 358% lifetime extension of Er3+ and stable NTE dynamics up to 560 K indicate reliable operation. Long-term stability tests under cyclic thermal loading are recommended to quantify degradation rates.
How does the multi-modal thermometry approach (intensity ratio and lifetime) enhance reliability compared to single-mode sensing?
Multi-modal thermometry combines luminescent intensity ratio (LIR) and lifetime-based sensing, providing cross-validation to mitigate errors from fluctuations in excitation power, detector drift, or environmental perturbations. The LIR mode yields Sr = 4.33% K−1 at 300 K, while lifetime-based sensing offers maximum Sr = 1.28% K−1, extending the dynamic range and self-calibration capability. This redundancy is critical for applications requiring high precision, such as aerospace diagnostics and wearable sensors, where single-mode sensors may fail under variable conditions.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
