Key Takeaways & Executive Findings
- •• • Vickers hardness reaches 155 GPa at ~30 GPa and 1400 °C, exceeding natural cubic diamond by >40%, but this value is anisotropic and obtained on a millimeter-sized bulk; industrial adoption requires isotropic hardness and reproducible scaling to centimeter dimensions. • • Synchrotron XRD shows interlayer spacing of graphite at 30 GPa (and even 50 GPa) remains >2.5 Å, contradicting the <2.5 Å threshold required for direct C–C bond formation between layers; this invalidates the proposed direct post-graphite-to-HD transformation mechanism and necessitates alternative coherent interface models. • • Low synthesis temperatures (e.g., 1400 °C) are mandatory to achieve high HD volume fractions, but they result in poorly sintered large-angle grain boundaries, reducing impact toughness below practical thresholds; high-pressure flash sintering is identified as a potential remedy. • • The reported HD bulk is derived from highly oriented pyrolytic graphite (HOPG) precursor, and the process yields a highly oriented microstructure; industrial viability hinges on replacing expensive HOPG with cost-effective polycrystalline graphite while maintaining >90% HD phase purity and hardness >100 GPa.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

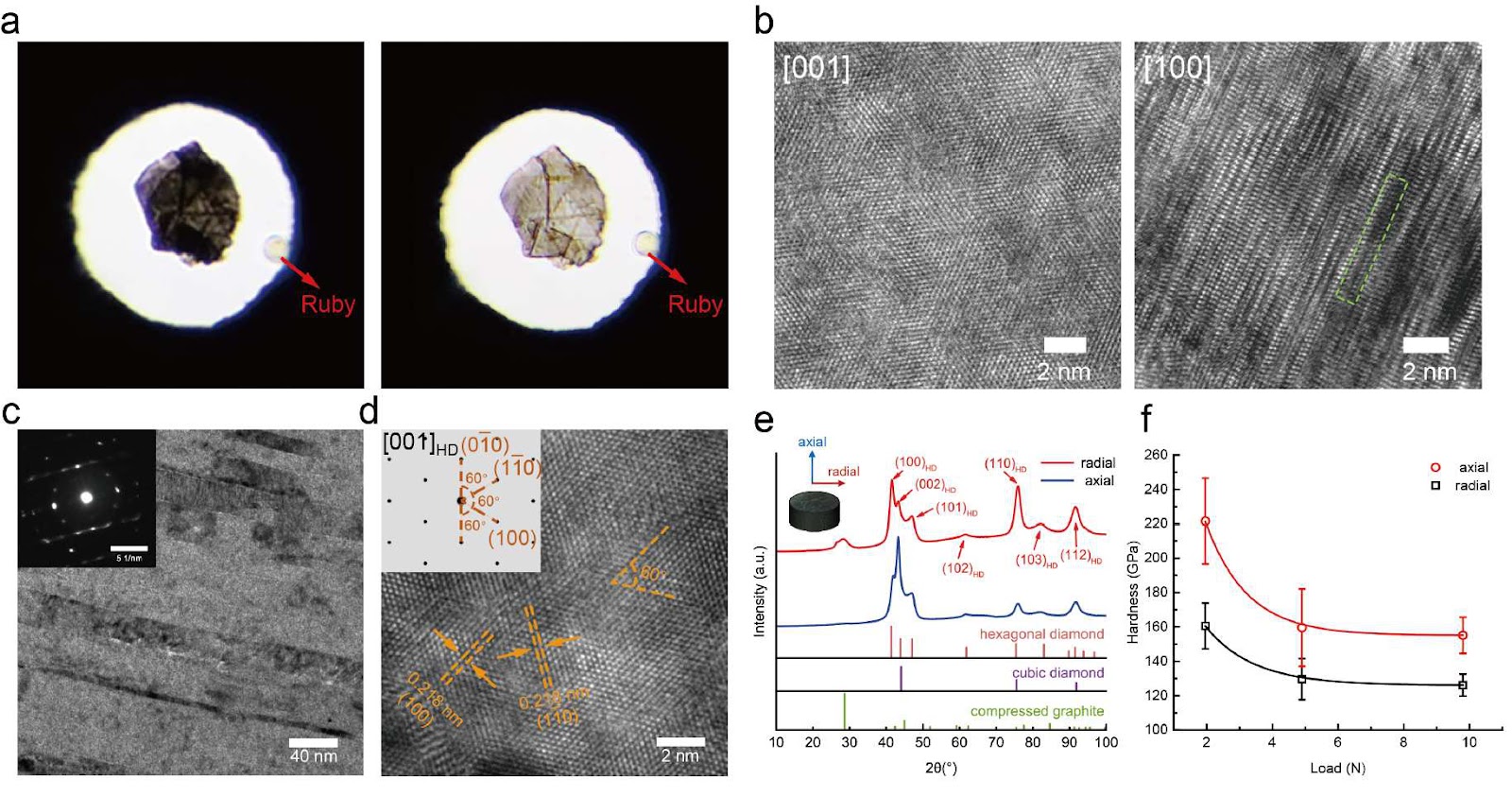

The recent synthesis of millimeter-sized hexagonal diamond (HD)-dominated bulk from highly oriented pyrolytic graphite (HOPG) at ~30 GPa and 1400 °C by Liu, Yao and co-workers represents a significant advance in superhard materials. The bulk exhibits a highly oriented microstructure, yielding an anisotropic Vickers hardness of up to 155 GPa, exceeding natural cubic diamond by over 40%. However, the proposed direct transformation mechanism from post-graphite to HD remains contentious. First-principles calculations indicate that C–C bond formation between graphite layers requires interlayer spacing below 2.5 Å, yet synchrotron X-ray diffraction shows that at 30 GPa (and even 50 GPa) the interlayer spacing is substantially larger. This discrepancy challenges the direct phase transformation pathway. An alternative mechanism involving coherent gradia interface formation and subsequent interface advance, previously established for graphite-to-diamond conversion, offers a more plausible explanation. Furthermore, achieving high HD volume fractions necessitates low synthesis temperatures, which impede sintering of large-angle grain boundaries between diamond grains, compromising toughness—particularly impact toughness. Future efforts must prioritize advanced sintering techniques, such as high-pressure flash sintering, to meet practical toughness demands. This commentary assesses the breakthrough, its unresolved mechanistic questions, and the critical barriers to industrial deployment.
1. Introduction
Commercial superhard materials have long been dominated by cubic diamond and cubic boron nitride (cBN), but their intrinsic hardness ceilings and limited fracture toughness restrict performance in cutting, drilling, and wear applications. Natural and synthetic cubic diamond typically exhibit Vickers hardness of 70–100 GPa, and polycrystalline diamond (PCD) suffers from grain boundary weakness, leading to premature failure under impact. Hexagonal diamond (HD), also known as lonsdaleite, has been theoretically predicted to surpass cubic diamond in hardness, yet reproducible synthesis of bulk HD has remained elusive for over half a century. Previous attempts using shock compression or chemical vapor deposition produced only nanoscale or highly faulted HD, with no measurable bulk hardness.
The recent work by Liu, Yao and co-workers claims a breakthrough: millimeter-sized HD-dominated bulk synthesized from highly oriented pyrolytic graphite at ~30 GPa and 1400 °C, with a reported Vickers hardness of 155 GPa. This value, if confirmed, would represent a 40% improvement over natural cubic diamond. However, the proposed direct transformation mechanism from post-graphite to HD is mechanistically inconsistent with synchrotron X-ray diffraction data showing interlayer spacing >2.5 Å at 30 GPa. The absence of a validated transformation pathway raises concerns about phase purity, reproducibility, and the true nature of the measured hardness. Furthermore, the low synthesis temperature required for high HD yield inherently limits grain boundary sintering, compromising toughness. This commentary dissects the empirical evidence, identifies unresolved mechanistic and engineering bottlenecks, and outlines the sintering and scalability challenges that must be addressed before HD can displace incumbent superhard materials.
Loading authentic research manuscript (Pages 1–5)...
LIU Yang, YAO Ming, CHEN Dong, CHEN Guang, LV Lin, et al. (2025). Synthesis of Millimeter-Sized Hexagonal Diamond Bulk from Highly Oriented Pyrolytic Graphite at 30 GPa and 1400 °C: A Critical Commentary on Phase Transformation Mechanisms and Sintering Challenges. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3328-5
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the fundamental mechanistic flaw in the proposed direct post-graphite to hexagonal diamond transformation?
First-principles calculations require interlayer spacing <2.5 Å for C–C bond formation between graphite layers, but synchrotron XRD shows spacing >2.5 Å at 30 GPa and even 50 GPa. This 0.5–1.0 Å discrepancy invalidates the direct transformation pathway. An alternative coherent gradia interface mechanism, previously validated for graphite-to-diamond conversion, is more consistent with the data.
Why does low-temperature synthesis, necessary for high HD volume fraction, degrade impact toughness?
At 1400 °C, large-angle grain boundaries between diamond grains are not well sintered, leaving weak interfaces that crack under impact. Impact toughness remains below the 10–15 MPa·m^0.5 typical of commercial PCD. High-pressure flash sintering at >2000 °C for seconds could densify boundaries while preserving HD phase, but this remains unproven at scale.
Can the reported 155 GPa Vickers hardness be reliably reproduced and scaled for industrial tools?
The 155 GPa value is anisotropic and measured on a millimeter-sized bulk with highly oriented microstructure. Reproducibility requires precise control of HOPG precursor orientation, pressure (30 ± 1 GPa), and temperature (1400 ± 50 °C). Scaling to centimeter-sized tools would likely reduce hardness to <100 GPa due to orientation loss and grain boundary defects. No independent replication has been reported.
What are the primary cost and scalability barriers to commercializing HD bulk?
HOPG precursor costs $100–$500 per gram, and high-pressure synthesis at 30 GPa requires multi-anvil or diamond anvil cells with limited volume (mm^3 scale). Producing 1 cm^3 of HD would require >1000 individual runs, making cost parity with PCD (>$10 per carat) impossible. Replacing HOPG with polycrystalline graphite could reduce cost but may compromise phase purity and hardness.
What experimental evidence is needed to validate the HD phase purity and rule out faulted cubic diamond?
The 2025 synthesis lacks quantitative phase analysis; previous work (Németh et al., 2014) showed that many 'lonsdaleite' samples are faulted and twinned cubic diamond. Required evidence includes high-resolution TEM with atomic-scale stacking sequence mapping, electron diffraction matching simulated HD patterns, and Raman spectroscopy showing the characteristic HD peak at ~1300 cm^-1 without cubic diamond features. No such data are presented.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
