Key Takeaways & Executive Findings
- •• • Inflow angle as a sensitivity factor yields a higher calibration quality than wind shear: in the 190°–200° sector, R² improves from 0.8802 to 0.9544, and overall Type A uncertainty decreases, enabling an additional wind direction sector to meet the adjacent sector correlation change criterion (≤2%). • • Wind speed as a sensitivity factor (Method 2) achieves the highest calibration quality: R² increases from 0.9092 to 0.9551 in the 190°–200° sector, effectively removing the influence of wind shear and other factors on the wind speed ratio. • • Lower blade tip calibration fails to meet IEC 61400-12-3 requirements: self-consistency means range from 1.0176 to 1.0287 (outside 0.98–1.02), R² values are 0.6445–0.8078 (below 0.95), and adjacent sector correlation changes exceed 2% (e.g., 1.1495), due to greater terrain-induced flow distortion at lower heights. • • Discarding data bins with low correlation between sensitivity factors and wind speed ratio improves calibration quality: for wind shear, R² in the 190°–200° sector increases and Type A uncertainty decreases; for inflow angle, the improvement is more pronounced, with R² rising by 0.0742.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Site calibration under IEC 61400-12-3 conventionally relies on wind direction and either mean wind speed or wind shear as the primary sensitivity factors. This study investigates the influence of wind speed, wind shear, inflow angle, turbulence intensity, and wind veer on the calibration relationship at a moderately complex site. Data from a reference met mast and a temporary met mast at the turbine position were analyzed. Results show that inflow angle exhibits a stronger correlation with the wind speed ratio than wind shear. Discarding data bins with low correlation improves calibration quality. At the lower blade tip height, terrain-induced flow distortion increases scatter, yielding poor calibration quality that fails to meet IEC 61400-12-3 requirements. The optimal calibration model uses wind speed as the sensitivity factor (Method 2), achieving a coefficient of determination (R²) of 0.9551 in the 190°–200° sector, compared to 0.9092 with wind shear. Using inflow angle as the sensitivity factor raises R² from 0.8802 to 0.9544 in the same sector and reduces overall Type A uncertainty. For the 200°–220° sector, Method 2 is recommended. The study demonstrates that inflow angle can serve as an effective alternative sensitivity factor, particularly in complex terrain, and that lower blade tip calibration is unreliable for power curve testing in such environments.
1. Introduction
Site calibration for wind turbine power performance testing under IEC 61400-12-3 has traditionally relied on wind direction and either mean wind speed or wind shear as the primary sensitivity factors. This approach assumes that wind shear adequately captures the effects of atmospheric stability, turbulence, and wind veer on the wind speed ratio between the turbine position and the reference mast. However, in moderately complex to extremely complex terrain, surface relief alters the coupling between wind shear, turbulence intensity, and wind veer, and the inflow angle may exert a non-negligible influence on the calibration relationship. Existing commercial calibration practices have not systematically quantified the impact of inflow angle, and the resulting calibration quality often fails to meet the stringent self-consistency and goodness-of-fit criteria of the standard, particularly at lower blade tip heights where flow distortion is more severe.

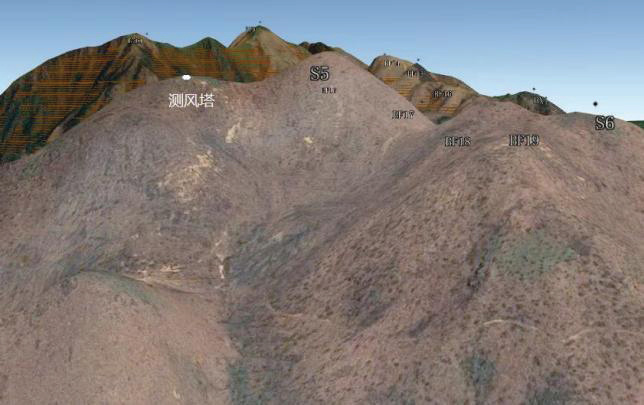

This study addresses the bottleneck by analyzing data from a wind farm site located in a transitional zone between moderately complex and extremely complex terrain. The wind resource characteristics at the reference mast and the turbine position are examined, and the correlations of wind speed, wind shear, inflow angle, turbulence intensity, and wind veer with the wind speed ratio are quantified. By comparing calibration models that use different sensitivity factors and by discarding data bins with low correlation, the study identifies the optimal calibration strategy. The results demonstrate that inflow angle can outperform wind shear as a sensitivity factor, and that wind speed as a sensitivity factor yields the highest calibration quality. These findings provide a practical pathway for improving site calibration accuracy in complex terrain, where conventional methods often fall short.
Loading authentic research manuscript (Pages 1–5)...
YE Juan, NIE Feng, LIU Fei, CHEN Yanbin (2026). Sensitivity Factors in Site Calibration for Wind Turbine Power Performance Testing. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9726
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
Why does lower blade tip calibration fail to meet IEC 61400-12-3 requirements in complex terrain?
At the lower blade tip height, airflow is more strongly influenced by surface relief than at hub height, leading to greater scatter in the wind speed relationship between the turbine position and the reference mast. In the 190°–200° sector, the self-consistency mean is 1.0287 (outside the 0.98–1.02 range), R² is 0.6445 (below 0.95), and the adjacent sector correlation change is 1.1495 (exceeding 2%). These values indicate that the calibration quality is insufficient for power curve testing, and equivalent wind speed methods should be avoided in moderately complex or worse terrain.
What is the quantitative improvement in calibration quality when using inflow angle instead of wind shear as the sensitivity factor?
In the 190°–200° sector, using inflow angle as the sensitivity factor increases the coefficient of determination (R²) from 0.8802 to 0.9544, a gain of 0.0742. Additionally, the overall Type A uncertainty is reduced, and one more wind direction sector satisfies the adjacent sector correlation change criterion (≤2%). This improvement is attributed to the stronger correlation between inflow angle and the wind speed ratio compared to wind shear at this site.
How does discarding data bins with low correlation affect the calibration outcome?
Removing data bins where the sensitivity factor shows low correlation with the wind speed ratio improves calibration quality. For wind shear, this leads to a higher R² in the 190°–200° sector and a reduction in overall Type A uncertainty. For inflow angle, the improvement is more pronounced: R² rises from 0.8802 to 0.9544, and an additional wind direction sector meets the standard's requirements. This demonstrates that data filtering based on correlation strength is an effective strategy for enhancing calibration reliability.
What is the recommended calibration strategy for the 200°–220° sector?
For the 200°–220° sector, Method 2 (using wind speed as the sensitivity factor) is recommended. This method achieves a high calibration quality by removing the influence of wind shear and other factors on the wind speed ratio. If a shorter power testing period is desired, inflow angle can be used as the sensitivity factor in the 190°–200° sector, while Method 2 is applied in the 200°–220° sector, yielding higher overall calibration quality.
What are the industrial implications of these findings for wind farm site calibration?
The findings provide a practical methodology for improving site calibration accuracy in complex terrain, where conventional wind shear-based methods often fail. By adopting inflow angle or wind speed as sensitivity factors and filtering out low-correlation data, developers can achieve calibration quality that meets IEC 61400-12-3 requirements, reduce uncertainty in power performance testing, and avoid costly delays or invalid tests. This is particularly relevant for the growing number of wind farms in complex terrain, where precise energy yield assessment is critical for project financing and performance guarantees.
