Key Takeaways & Executive Findings
- •• • Reduction-sintered BaTiO3−δ ceramics achieve an effective flexoelectric coefficient μeff > 50 mC m−1, exceeding the highest reported value by more than 25 times; this order-of-magnitude improvement enables practical flexoelectric devices that previously suffered from insufficient electromechanical coupling. • • The flexoelectric piezoelectric metamaterial (FPM) design yields a giant effective piezoelectric coefficient d33 > 20000 pC N−1, a fivefold increase over the best conventional single crystals (d33 ≈ 4000 pC N−1), directly addressing the sensitivity bottleneck in actuators and transducers. • • No depoling is observed above the Curie temperature of BaTiO3, eliminating the operational temperature ceiling that restricts conventional ferroelectrics to below TC; this permits high-temperature sensing and actuation in aerospace, automotive, and industrial process control environments. • • The giant response originates from spontaneously polarized surface layers and a negative capacitance amplification effect caused by defect inhomogeneity (oxygen vacancies) formed during reduction sintering; this provides a defect-engineering pathway for enhancing properties without complex crystal growth or epitaxial deposition.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Conventional piezoelectric materials, exemplified by Sm-doped Pb(Mg1/3Nb2/3)O3-PbTiO3 single crystals, exhibit a maximum piezoelectric coefficient d33 of approximately 4000 pC N−1, yet their operational temperature is fundamentally constrained by the Curie temperature (TC), above which the non-centrosymmetric ferroelectric phase transitions to a non-piezoelectric paraelectric state. This study demonstrates that reduction-sintered BaTiO3 ceramics overcome both the magnitude and temperature limitations through a flexoelectric piezoelectric metamaterial (FPM) architecture. Reduction sintering yields an effective flexoelectric coefficient μeff exceeding 50 mC m−1, a 25-fold enhancement over the highest previously reported value. The resulting BaTiO3−δ FPMs exhibit a giant effective d33 above 20000 pC N−1 with no depoling observed above TC. The mechanism is attributed to spontaneously polarized surface layers, formed by inhomogeneous oxygen vacancy distributions, coupled with a negative capacitance amplification effect that boosts the dielectric and piezoelectric responses of these surface layers. This work establishes a generic strategy for designing high-performance piezoelectric materials with extended working temperatures, and identifies a new route for engineering negative capacitance materials for low-energy memory applications.
1. Introduction
Commercial piezoelectric devices rely on ferroelectric ceramics and single crystals that require a non-centrosymmetric crystal structure. The highest piezoelectric response, d33 ≈ 4000 pC N−1, has been achieved in Sm-doped Pb(Mg1/3Nb2/3)O3-PbTiO3 single crystals, but these materials undergo a phase transition to a non-piezoelectric paraelectric state above their Curie temperature (TC). This fundamental constraint imposes a trade-off: stronger piezoelectricity typically correlates with lower operational temperature, limiting deployment in high-temperature environments such as automotive engine sensors, aerospace actuators, and industrial process monitoring. Decades of research into morphotropic phase boundary compositions, ionic doping, domain engineering, and grain orientation have not resolved this intrinsic coupling.
Flexoelectricity, the electromechanical coupling between polarization and strain gradient, offers a route to piezoelectric-like response in centrosymmetric materials, bypassing the crystal-structure prerequisite. Prior flexoelectric piezoelectric metamaterials (FPMs) based on (Ba,Sr)TiO3 ceramics achieved effective d33 > 3000 pC N−1, but the flexoelectric coefficient itself remained modest. This study demonstrates that reduction sintering of BaTiO3 ceramics generates an inhomogeneous distribution of oxygen vacancies, producing spontaneously polarized surface layers and a negative capacitance amplification effect. The resulting FPM exhibits μeff > 50 mC m−1 (25× the highest reported value) and effective d33 > 20000 pC N−1 with no depoling above TC, establishing a defect-engineering strategy that decouples piezoelectric performance from thermal stability.
Loading authentic research manuscript (Pages 1–5)...
TIAN Dongxia, XIA Baoju, QI Yagang, GUO Xiongxin, YANG Xu, SHI Xinnan, CHU Baojin (2025). Semiconductive Flexoelectric Piezoelectric Metamaterials with Strong Electromechanical Response. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3421-2
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the exact measured flexoelectric coefficient and its enhancement factor relative to prior art?

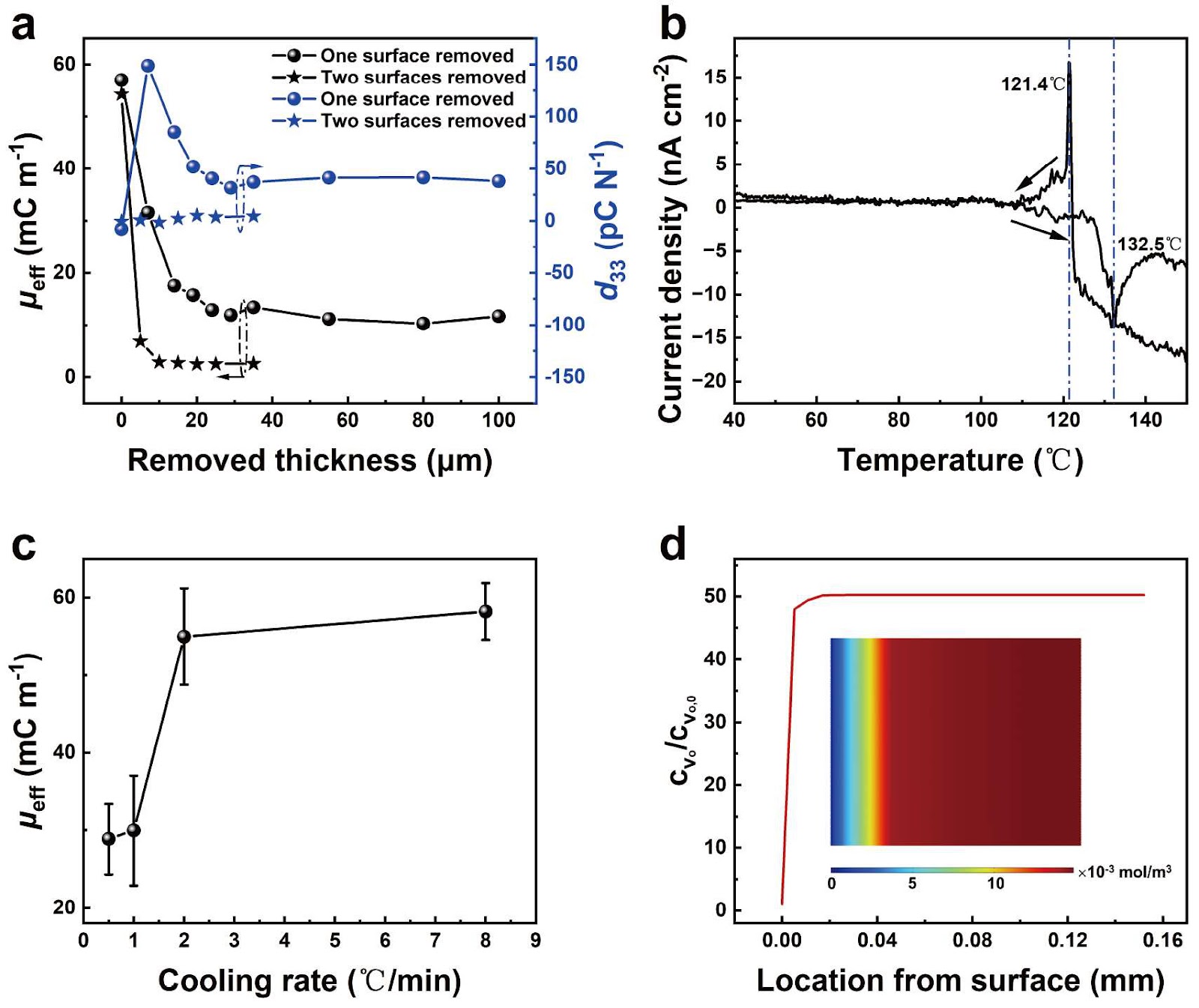

The reduction-sintered BaTiO3−δ ceramics exhibit an effective flexoelectric coefficient μeff > 50 mC m−1, which is more than 25 times larger than the highest previously reported value. This enhancement is attributed to spontaneously polarized surface layers and a negative capacitance amplification effect arising from defect inhomogeneity.
How does the effective piezoelectric coefficient d33 compare to conventional high-performance piezoelectrics, and what is the operational temperature limit?
The BaTiO3 piezoelectric metamaterials achieve an effective d33 > 20000 pC N−1, compared to d33 < 4000 pC N−1 for conventional materials such as Sm-doped PMN-PT single crystals. No depoling is observed above the Curie temperature of BaTiO3, removing the operational temperature ceiling that restricts conventional ferroelectrics.
What is the physical mechanism responsible for the giant electromechanical response?
The giant response originates from spontaneously polarized surface layers formed by inhomogeneous oxygen vacancy distributions during reduction sintering, combined with a negative capacitance amplification effect. This negative capacitance effect amplifies the dielectric and piezoelectric responses of the surface layers, as confirmed by the stabilization of the system within the negative capacitance region of the layer with higher spontaneous polarization (Ps).
Can this approach be scaled to industrial production, and what are the manufacturing implications?
The process utilizes conventional reduction sintering of BaTiO3 ceramics, a scalable and cost-effective technique already established in multilayer ceramic capacitor production. The defect inhomogeneity is generated during sintering without the need for single-crystal growth, epitaxial deposition, or complex domain engineering, facilitating direct transfer to existing ceramic manufacturing lines.
What are the potential failure mechanisms or long-term stability concerns under sustained electrical or thermal stress?
The paper does not report degradation rates or lifetime testing. However, the reliance on oxygen vacancy distributions suggests that prolonged operation at elevated temperatures or under high electric fields could induce vacancy migration, potentially altering the surface layer polarization and negative capacitance state. The stability of the negative capacitance region, which is bounded by the volume fraction of the two layers, must be maintained to prevent collapse of the amplification effect.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
