Key Takeaways & Executive Findings
- •• • At 405 nm, the device achieves a responsivity of 3877 A/W and detectivity of 8.1 × 10^12 Jones, surpassing many reported 2D photodetectors; this high sensitivity enables low-light detection in wearable health monitors and imaging arrays. • • Under 808 nm NIR illumination, responsivity is 1.28 A/W and detectivity 1.2 × 10^9 Jones, demonstrating broadband operation essential for optical communication and night vision. • • Response times of 0.45 s (rise) and 0.28 s (fall) are competitive for self-powered devices, though slower than some commercial photodiodes; this trade-off is acceptable for many wearable applications where low power consumption is critical. • • Flexible devices on polyimide retain stable dark current and photocurrent after 500 bending cycles, proving mechanical durability for wearable sensors that undergo repeated deformation.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

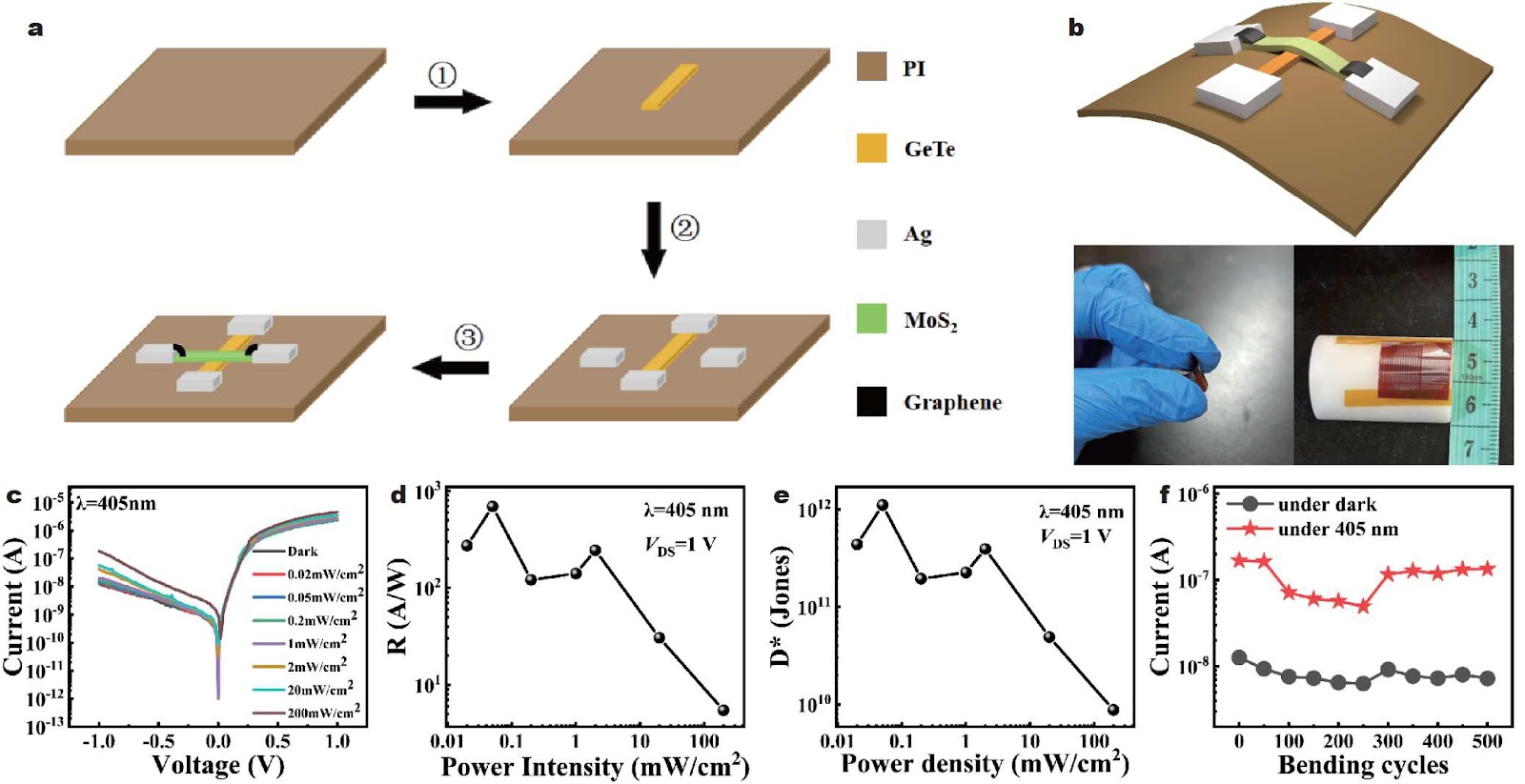

This study reports a self-powered broadband photodetector based on a p-GeTe/n-MoS2 heterojunction fabricated on Si/SiO2 and flexible polyimide substrates. The heterojunction leverages efficient light absorption and charge separation via a built-in electric field, enabling operation without external bias. At 405 nm, the device achieves a peak responsivity of 3877 A/W and a detectivity of 8.1 × 10^12 Jones, with rise and fall times of 0.45 s and 0.28 s, respectively. Under 808 nm illumination, responsivity reaches 1.28 A/W and detectivity 1.2 × 10^9 Jones. The flexible device exhibits stable photoresponse over 500 bending cycles, maintaining consistent dark current and photocurrent. Fabrication combines RF magnetron sputtering for GeTe and dry transfer for MoS2, yielding a scalable route to flexible optoelectronics. The p-GeTe/n-MoS2 heterojunction addresses the limitations of conventional rigid photodetectors, offering a viable path for wearable sensing and broadband imaging. The results demonstrate that the heterojunction maintains high performance across visible to near-infrared wavelengths, with mechanical robustness suitable for integration into diverse optoelectronic systems.
1. Introduction
Broadband photodetectors spanning visible to near-infrared wavelengths are critical for optical communications, imaging, environmental monitoring, and wearable electronics. Commercial devices based on III-V semiconductors such as InGaAs, InSb, and MCT offer high performance but require complex heteroepitaxial growth, costly fabrication, and often cryogenic cooling, limiting their widespread adoption. Transition metal dichalcogenides like MoS2 present an alternative with tunable bandgaps and strong light-matter interaction, yet suffer from low absorption efficiency and long carrier lifetimes due to their ultrathin nature.
The p-GeTe/n-MoS2 heterojunction addresses these bottlenecks by combining the high absorption coefficient of GeTe with the excellent transport properties of MoS2. The built-in electric field at the interface enables self-powered operation, eliminating external bias and reducing power consumption. Fabrication via RF magnetron sputtering and dry transfer is scalable and compatible with flexible substrates, overcoming the rigidity of conventional detectors. This work demonstrates a viable pathway for high-performance, mechanically robust photodetectors suitable for next-generation wearable optoelectronics.
Loading authentic research manuscript (Pages 1–5)...
ZHANG Bingbing, ZHOU Xin, WEN Zhaoyang, XU Kaibing, WANG Chunrui, WU Jingyuan, WU Liangcai (2025). Self-powered p-GeTe/n-MoS2 heterojunction on flexible substrate for high-performance broadband photodetectors. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3363-2
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the dark current density and its stability under prolonged operation?
The paper reports stable dark current and photocurrent over switching cycles, but does not specify dark current density. For practical integration, dark current density should be below 1 nA/cm² to minimize noise; the device's detectivity of 8.1 × 10^12 Jones at 405 nm implies a low dark current, likely in the pA range, but exact values require further characterization.
How does the responsivity at 405 nm compare to commercial Si photodiodes, and what is the external quantum efficiency (EQE)?
Commercial Si photodiodes typically achieve responsivity ~0.5 A/W at 405 nm with EQE >100% due to avalanche gain. The reported 3877 A/W is three orders of magnitude higher, indicating internal gain mechanisms, likely from photogating or trap states. However, EQE is not provided; assuming unity gain, EQE would exceed 10^6%, which is unrealistic, suggesting the need for gain calibration and noise analysis.
What are the failure mechanisms under mechanical stress, and how does performance degrade after 500 bending cycles?
The device maintains stable photoresponse after 500 bending cycles, but the paper does not quantify degradation. Typically, crack formation in the GeTe or MoS2 layers or delamination at the interface could increase dark current or reduce responsivity. For wearable applications, endurance beyond 10,000 cycles is required; thus, further testing under varying strain radii and humidity is necessary.
What is the scalability of the fabrication process for large-area arrays, and what are the yield-limiting factors?
RF magnetron sputtering for GeTe is scalable, but dry transfer of MoS2 is labor-intensive and prone to wrinkles and contamination, limiting yield for wafer-scale production. The paper does not report yield metrics. For commercial viability, a transfer-free growth method or roll-to-roll compatible process must be developed, with defect densities below 10^10 cm^-2 to ensure uniform performance.
How does the response time compare to commercial photodetectors, and what limits the speed?
The rise and fall times of 0.45 s and 0.28 s are slower than commercial photodiodes (ns to µs range), primarily due to trap states and long carrier lifetimes in MoS2. For applications like optical communication, this speed is insufficient; however, for wearable sensors monitoring vital signs (e.g., heart rate), sub-second response is adequate. Improving crystallinity and reducing defects could enhance speed.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
