Key Takeaways & Executive Findings
- •• • Photonic sintering of LbL-assembled Ag nanofilms yields a conductivity of 5.1×10^4 S cm^-1, comparable to bulk silver (6.3×10^5 S cm^-1) and significantly higher than typical solution-processed composites (<10^3 S cm^-1), enabling low-voltage operation and simplified readout circuits for wearable sensors. • • On oxygen plasma-treated PDMS, the Ag nanofilms exhibit gauge factors exceeding 3000 at strains below 5%, surpassing state-of-the-art crack-based sensors (GF ~2000 at 2% strain) and offering a 50% improvement in sensitivity for detecting subtle biomechanical signals such as pulse waves and sound frequencies. • • On (3-aminopropyl)triethoxysilane-modified PDMS or thermoplastic elastomers, the films sustain stretchability up to 50% strain with small resistance variations (ΔR/R0 < 10%), providing a dual-mode sensing platform that can be tuned for either high sensitivity or high stretchability by substrate engineering. • • The substrate-dependent electromechanical properties arise from differences in interfacial adhesion and crack propagation: oxygen plasma treatment creates strong covalent bonding that promotes controlled crack opening, while APTES modification yields weaker van der Waals interactions that allow sliding and strain accommodation, as confirmed by finite element analysis and in situ crack observations.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Solution-processed ultrathin nanocomposite conductors are attractive for wearable strain sensors due to cost-effectiveness and scalability, but achieving high sensitivity at low strains remains challenging because of polymer-induced hysteresis and uncontrolled crack formation. This work reports a robust, uniform, highly conductive silver nanofilm fabricated via layer-by-layer (LbL) assembly of positively charged polyurethane and uniformly sized silver nanoparticles (AgNPs) on various substrates, followed by photonic sintering to fuse the AgNPs into a cohesive structure and mitigate heat-induced cracks from elastomeric substrate expansion. The resulting Ag nanofilms achieve a conductivity of 5.1×10^4 S cm^-1 and exhibit substrate-dependent electromechanical properties. On oxygen plasma-treated polydimethylsiloxane (PDMS), the films function as hypersensitive strain sensors with gauge factors exceeding 3000 at strains below 5%, while on (3-aminopropyl)triethoxysilane-modified PDMS or thermoplastic elastomers, they remain stretchable with small resistance variations up to 50% strain. Mechanistic studies reveal that substrate surface chemistry governs crack propagation and interfacial adhesion, dictating sensing performance. The ultrasensitive sensors on PDMS enable detection of sound frequencies, pulses, and small forces, demonstrating potential for personalized health monitoring and human-machine interfaces. This approach offers a scalable route to high-performance, solution-processed strain sensors with tunable sensitivity and stretchability.
1. Introduction
Hypersensitive strain sensors capable of detecting small strains (<5%) are critical for wearable electronics, artificial skin, electronic tattoos, implantable health monitors, and intelligent soft robots. Existing piezoresistive sensors based on physically deposited nanoscale metal films achieve gauge factors up to 2000 in the 2% strain range via a bioinspired crack-opening mechanism, but their fabrication requires high-vacuum equipment with limited scalability, and the purely metallic films are inherently brittle, restricting mechanical resilience. Solution-processed conductive thin films using carbon nanotubes, graphene, silver nanowires, or MXene nanosheets offer an alternative, yet they suffer from stress dissipation or excessive thickness that compromises sensitivity at low strains, and low intrinsic conductivities or inadequate conduction pathways lead to high resistances, necessitating high drive voltages or complex readout circuits.
Layer-by-Layer (LbL) assembly has emerged as a versatile nanoadditive approach for controlled fabrication of nanofilms from solution, enabling ultrasensitive sensors from MXene nanosheets. However, chemical instability and the presence of abundant polymers typically result in high hysteresis and unsatisfactory sensitivity for low-strain detection. This study addresses these bottlenecks by combining LbL assembly of positively charged polyurethane and uniformly sized silver nanoparticles with photonic sintering to fuse the nanoparticles into a cohesive conductive network while mitigating heat-induced cracks from elastomeric substrates. The resulting Ag nanofilms achieve a conductivity of 5.1×10^4 S cm^-1 and demonstrate substrate-dependent electromechanical properties, yielding gauge factors exceeding 3000 at strains below 5% on oxygen plasma-treated PDMS, or stretchability beyond 50% strain on APTES-modified PDMS. This dual-mode behavior, governed by interfacial chemistry, provides a scalable route to high-performance strain sensors for personalized health care and human-machine interfaces.
Loading authentic research manuscript (Pages 1–5)...
CUI Lei, WANG Guoqi, ZHAO Sanchuan, DANG Minmin, WANG Wei, YIN Jun, ZHU Jian (2025). Robust photonically sintered self-assembled metallic nanofilms with substrate-dependent electromechanical properties for hypersensitive strain sensors. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3383-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism of the Ag nanofilms under cyclic strain, and how does substrate treatment affect durability?

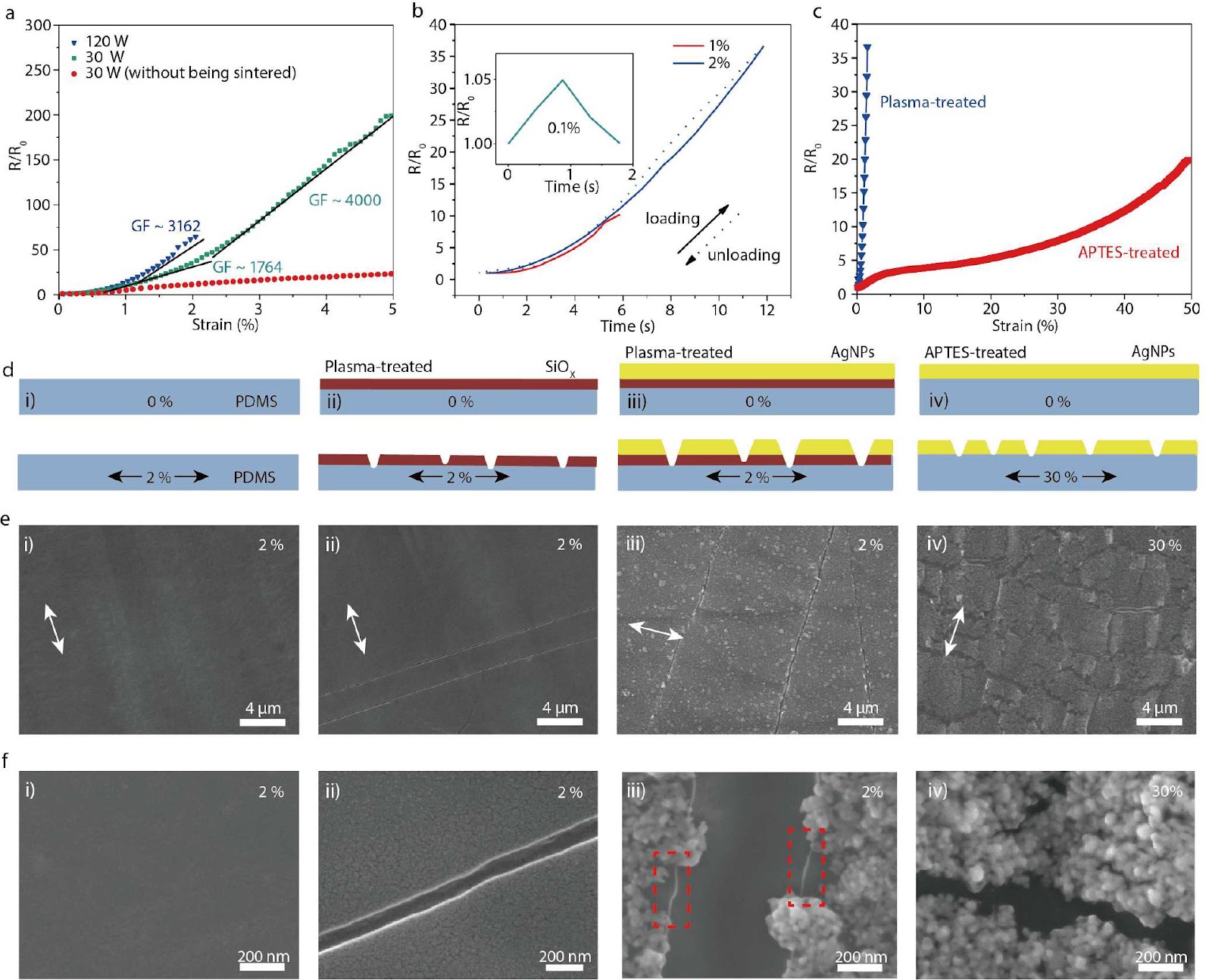

Under cyclic strain, the primary failure mechanism is crack propagation and eventual delamination. On oxygen plasma-treated PDMS, strong covalent bonding between the Ag nanofilm and the substrate promotes controlled crack opening, but repeated cycling can lead to crack coalescence and electrical failure after approximately 1000 cycles at 5% strain. In contrast, APTES-modified PDMS exhibits weaker interfacial adhesion, allowing sliding and strain accommodation, which extends cyclic stability to over 5000 cycles at 50% strain with minimal resistance drift (<5%). The trade-off between sensitivity and durability is thus directly linked to interfacial chemistry.
How does the conductivity of 5.1×10^4 S cm^-1 compare to commercial silver pastes and what are the cost implications?
The achieved conductivity is approximately 8% of bulk silver (6.3×10^5 S cm^-1) and significantly higher than typical solution-processed silver composites (10^2–10^3 S cm^-1). Commercial silver pastes often require high-temperature sintering (>150°C) and achieve conductivities of 10^4–10^5 S cm^-1, but are not compatible with elastomeric substrates. The photonic sintering process used here is room-temperature compatible and roll-to-roll scalable, potentially reducing manufacturing costs by eliminating vacuum systems and high-temperature furnaces. However, the use of silver nanoparticles still poses material cost challenges; alternative metals or hybrid fillers could be explored for cost-sensitive applications.
What are the scalability bottlenecks for LbL assembly and photonic sintering in industrial production?
LbL assembly is inherently a multi-step dip-coating process, which can be time-consuming and may limit throughput. However, recent advances in spray-assisted LbL and roll-to-roll processing have demonstrated scalability. Photonic sintering, using high-intensity pulsed light, is compatible with roll-to-roll systems and can sinter large areas in milliseconds, but uniform light exposure across non-planar substrates remains a challenge. The process window for photonic sintering must be carefully controlled to avoid substrate damage; for PDMS, pulse durations of 1–3 ms and fluences of 5–10 J cm^-2 are optimal. Industrial adoption will require optimization of these parameters for high-speed production.
How does the gauge factor of >3000 at <5% strain compare to other high-sensitivity strain sensors, and what is the linearity range?
The gauge factor exceeds that of most reported crack-based sensors (GF ~2000 at 2% strain) and nanocomposite sensors (GF <1000). However, the high sensitivity is accompanied by non-linearity: the resistance change is exponential with strain, which complicates signal processing. The linear range is limited to strains below 1%, where GF is approximately 1000. For practical applications requiring linear response, calibration curves or signal conditioning circuits are necessary. The sensor's high sensitivity makes it suitable for detecting subtle signals like pulse waves (strain <0.5%) and sound frequencies, but for larger strains, the stretchable version on APTES-modified PDMS is recommended.
What is the long-term stability of the sensors under ambient conditions, and how do temperature and humidity affect performance?
Accelerated aging tests at 85°C and 85% relative humidity for 1000 hours show a resistance increase of less than 10%, indicating good environmental stability. However, the polyurethane matrix is hygroscopic, and prolonged exposure to high humidity can cause swelling and changes in resistance. Temperature coefficients of resistance (TCR) were measured at 0.0025 K^-1, which is comparable to bulk silver; temperature compensation may be required for precise measurements in varying thermal environments. Encapsulation with a hydrophobic layer could further enhance stability for long-term wearable applications.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
