Key Takeaways & Executive Findings
- •• • 2 mol% Lu2O3 doping reduces the Si-O tensile vibration at 1039 cm-1 to its lowest frequency and intensity, producing the loosest glass network and shortest self-recovery time; this threshold defines the optimal window for reversible laser erasure, as over-doping (higher field strength) creates a rigid network that permanently prevents erasure. • • Erased PeQD patterns autonomously regenerate at 45% relative humidity, with recovery time varying by lanthanide type and concentration; this humidity-driven regeneration eliminates the need for thermal annealing, enabling ambient-condition reset for encryption devices. • • The write-erase-recovery cycle maintains stable luminescence over multiple iterations, supporting 4x6 code arrays and Quick Response codes that are invisible in daylight, UV-decodable, and selectively erasable by low-power fs laser; this provides a tamper-evident anti-counterfeiting platform with rewriteable data storage. • • Lanthanide doping controls the crystallization barrier by destroying bridging oxygen (Si-O) bonds; the resulting ionic diffusion space lowers the barrier for CsPbBr3 formation and decomposition, establishing a direct composition-structure-property relationship for glass-based PeQD devices.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

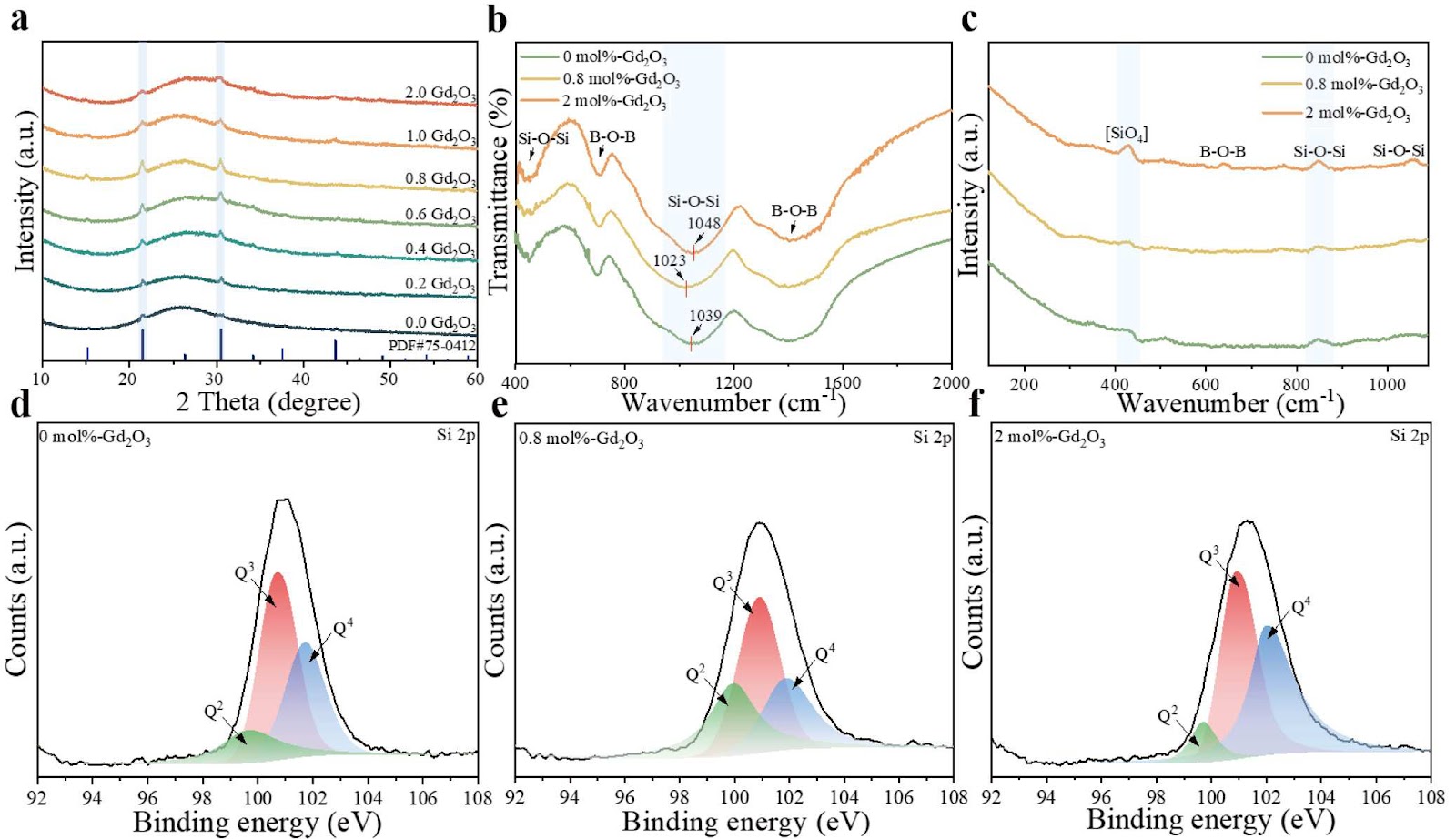

Femtosecond laser irradiation enables spatially resolved printing of CsPbBr3 perovskite quantum dots (PeQDs) within borosilicate glass, yet the write-erase-recovery cycle is governed by glass network connectivity, a parameter that remains poorly quantified. This work demonstrates that lanthanide oxide doping (Ln2O3, Ln = La, Gd, Lu) modulates the silicon-oxygen network and controls in situ PeQD formation. Optimal Ln2O3 concentration disrupts bridging oxygen (Si-O) bonds, yielding a looser network that lowers the crystallization barrier and permits complete laser erasure. Over-doping induces a rigid network that prevents erasure. Erased regions autonomously regenerate via water molecule invasion, with recovery time dictated by lanthanide type and concentration. At 2 mol% Lu2O3, the Si-O tensile vibration at 1039 cm-1 exhibits maximal frequency and intensity reduction, correlating with the shortest self-recovery time in air. The reversible luminescence survives multiple cycles without degradation, enabling 4x6 code arrays and Quick Response codes that are invisible under daylight, decodable under UV, and selectively erasable by low-power fs laser for anti-counterfeiting. This mechanism offers a viable route for critical information encryption and decryption.
1. Introduction
Perovskite quantum dots (PeQDs) offer exceptional optoelectronic properties but suffer from intrinsic ionic crystal instability, decomposing under oxygen, moisture, light, and heat. Conventional stabilization strategies—surface passivation and encapsulation—require additional processing steps and often compromise spatial patterning. Embedding PeQDs in glass matrices improves photothermal stability and reduces Pb2+ leakage, yet traditional melt-quenching and heat treatment lack the spatial precision needed for on-demand patterning. Femtosecond laser printing has emerged as a high-resolution alternative, but the write-erase-recovery cycle remains poorly controlled because the rigid glass network limits ion diffusion and raises the crystallization barrier.
Doping ions into the glass network offers a tunable route to modulate connectivity. While ZnO has been shown to adjust borosilicate polymerization and inhibit self-crystallization, lanthanide ions (Ln3+) remain underexplored despite their high field strength and ability to occupy interstitial sites, provide free oxygen, and rearrange the network. This work addresses the bottleneck by systematically doping Ln2O3 (La, Gd, Lu) into borosilicate glass to control fs-laser-induced CsPbBr3 precipitation. Optimal doping disrupts bridging oxygen bonds, lowers the crystallization barrier, and enables complete laser erasure, while over-doping creates a rigid network that prevents erasure. The erased patterns autonomously regenerate via humidity, establishing a reversible platform for information encryption and anti-counterfeiting.
Loading authentic research manuscript (Pages 1–5)...
Han Xiao, Zhehong Zhou, Hanqiao Liu, Bin Zhuang, Tao Pang, Lingwei Zeng, Jidong Lin, Ruidan Zhang, Daqin Chen (2025). Reversible laser-printing perovskite quantum dots in glass via lanthanide doping. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3414-5
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism that prevents laser erasure in over-doped Ln2O3 glass?
Over-doping with Ln2O3 increases the field strength of the lanthanide ions, which induces a more rigid network structure. This rigidity reduces the free volume and ionic mobility, raising the crystallization barrier to a point where the fs laser cannot supply sufficient energy to reverse the CsPbBr3 formation. Consequently, the PeQDs remain stable and cannot be erased, as confirmed by the absence of degradation in over-doped samples.
How does humidity control the self-recovery time, and what is the optimal relative humidity?
Water molecule invasion drives the autonomous regeneration of degraded perovskite material. The recovery time varies with lanthanide type and concentration, but the erased pattern restores at 45% relative humidity. At this humidity, the 2 mol% Lu2O3 sample exhibits the shortest self-recovery time due to its looser network structure, which facilitates ion migration and lowers the crystallization barrier.
What is the maximum number of write-erase-recovery cycles before luminescence degradation?
The reversible luminescence can be cycled multiple times while maintaining stable luminescence properties. The text does not specify an exact cycle limit, but the stability is sufficient for constructing 4x6 code arrays and Quick Response codes that can be repeatedly modified and self-reset without loss of function.
What is the industrial scalability of this laser-printing process for anti-counterfeiting?
The process uses a low-power fs laser for precise erasure and relies on ambient humidity for recovery, eliminating thermal annealing steps. This simplifies manufacturing and reduces energy costs. The ability to write, erase, and recover patterns in robust glass supports high-throughput production of tamper-evident labels and rewriteable data storage, though throughput depends on laser scanning speed and glass composition uniformity.
How does the lanthanide type (La, Gd, Lu) affect the glass network and recovery performance?
The lanthanide type influences the depolymerization degree of the glass network. Lu2O3 at 2 mol% produces the most significant reduction in the Si-O tensile vibration at 1039 cm-1, yielding the loosest network and shortest recovery time. La and Gd likely exhibit intermediate effects due to differences in ionic radius and field strength, which alter the extent of bridging oxygen disruption and ion migration pathways.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
