Key Takeaways & Executive Findings
- •• • PEM electrolyzers achieve minute-level startup and second-level response, enabling direct coupling with intermittent PV/wind without buffering batteries, as demonstrated by the 2.5 MW Ulanqab project directly coupled to wind power. • • Low-iridium and non-noble metal catalysts, along with domestically produced proton exchange membranes, reduce material costs and mitigate supply chain risks associated with imported components, though long-term degradation rates under dynamic operation remain to be quantified. • • Direct PV-PEM coupling requires matching the electrolyzer's voltage-current curve to the PV array's maximum power point; mismatches can lead to efficiency losses exceeding 15% under variable irradiance, necessitating advanced DC-DC converter control. • • Hydrogen storage provides seasonal energy shifting (months-long storage) at a levelized cost that is currently 2-3 times higher than lithium-ion batteries for short-duration storage, but becomes competitive for durations exceeding 100 hours, addressing curtailment rates of 5-10% in high-renewable regions.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
This study critically examines the coupling characteristics of proton exchange membrane (PEM) water electrolysis with photovoltaic (PV) and wind power systems, addressing the operational bottlenecks that impede deep decarbonization of the hydrogen sector. The analysis evaluates electrolyzer stack modifications and capacity configurations to assess the feasibility of integrated electricity-hydrogen systems. Key findings indicate that PEM technology, with its rapid response (minute-level startup, second-level load tracking) and wide load range, uniquely matches the intermittency of renewable sources. Recent advances in low-iridium and non-noble metal catalysts, along with domestically produced proton exchange membranes, have reduced reliance on imported materials. Demonstration projects, including the 2.5 MW PEM electrolyzer directly coupled to wind power in Ulanqab and the megawatt-scale project at Zhongyuan Oilfield, confirm technical viability. However, economic parity remains constrained by high capital expenditure and fluctuating electricity prices. The study identifies dynamic response optimization, DC-DC converter matching, and AI-driven control as critical pathways to enhance efficiency and lifespan. These results provide a framework for scaling green hydrogen production and integrating hydrogen into the 'source-grid-load-storage' architecture, offering a viable route to a closed-loop hydrogen economy.
1. Introduction
Industrial-scale hydrogen production remains dominated by fossil fuel pathways—steam methane reforming, coal gasification, and partial oxidation of heavy hydrocarbons—which collectively account for approximately 95% of global output. Electrolytic hydrogen constitutes only 5% of supply, hindered by high capital costs, reliance on expensive iridium catalysts, and operational inflexibility under fluctuating renewable input. The intermittency of solar and wind resources introduces severe stress on conventional alkaline electrolyzers, which exhibit slow cold-start (tens of minutes) and limited load-following range (typically 20-100% of nominal capacity), leading to efficiency penalties and accelerated degradation when coupled directly to renewables.
This study addresses the integration bottleneck by systematically evaluating PEM electrolysis as the only commercially mature technology capable of matching renewable dynamics. The analysis focuses on material innovations (low-iridium anodes, domestic membranes), system-level power electronics (DC-DC converter matching), and control strategies (AI-optimized dynamic response) that collectively enable direct coupling without buffering storage. By examining demonstration projects in China—including the 2.5 MW Ulanqab wind-coupled system and the Zhongyuan Oilfield megawatt-scale plant—the study quantifies operational thresholds and identifies remaining techno-economic barriers to scaling green hydrogen production within the 'source-grid-load-storage' framework.

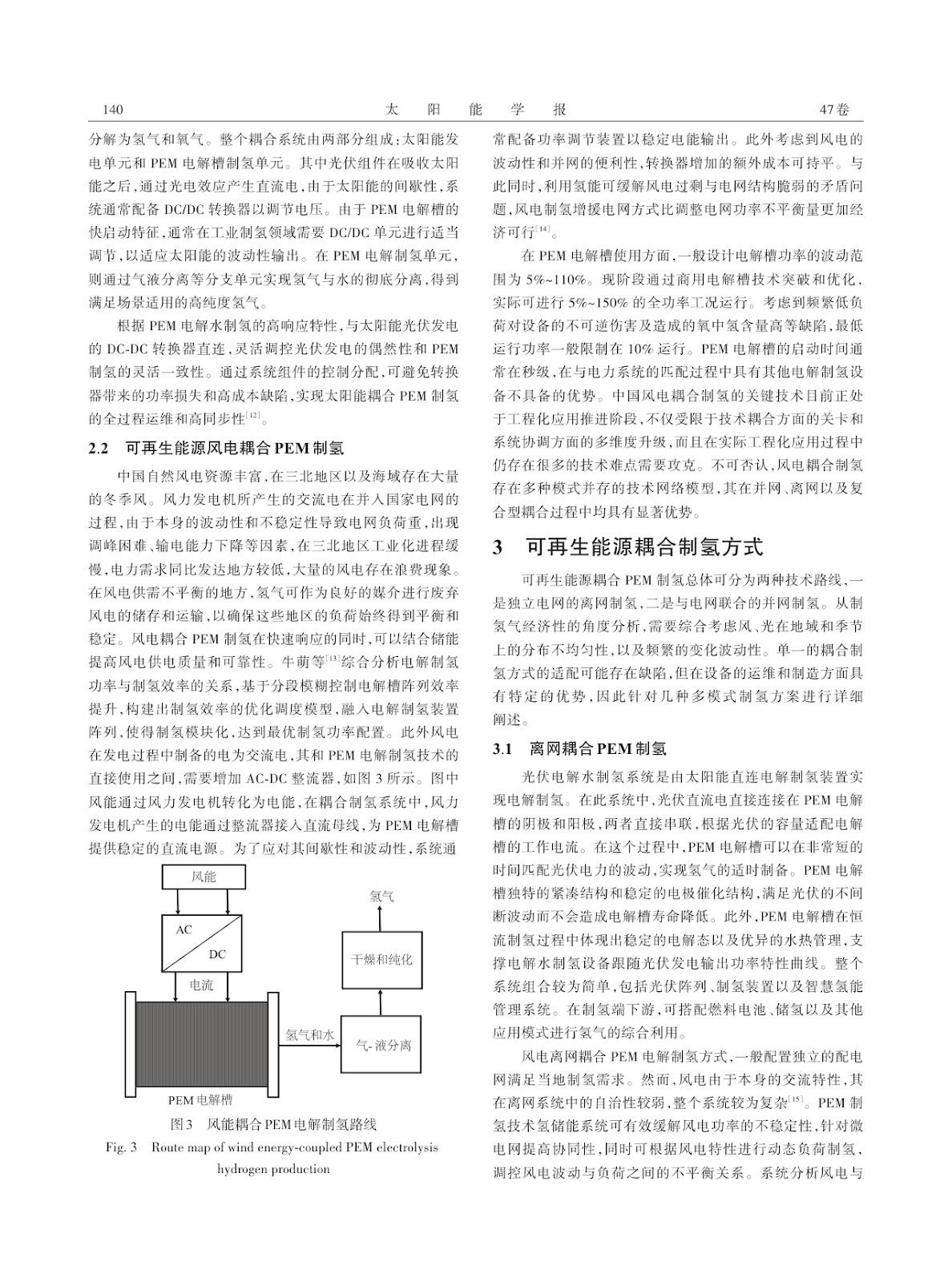

Loading authentic research manuscript (Pages 1–5)...
WU Liang, LU Wenlong (2026). Prospects for the Application of PEM Water Electrolysis Hydrogen Production Coupled with Renewable Energy. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9671
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the primary failure mechanisms of PEM electrolyzers under direct renewable coupling, and how do they affect stack lifetime?
Under direct PV/wind coupling, frequent start-stop cycles and rapid load changes induce high potential excursions at the anode, accelerating iridium dissolution and membrane degradation. Titanium bipolar plates undergo passivation, increasing interfacial contact resistance by up to 30% after 5,000 cycles. Current mitigation strategies include adaptive control algorithms that limit voltage overshoot and maintain stack temperature within ±2°C, extending lifetime to >60,000 hours in demonstration projects.
What is the current cost parity status of PEM electrolysis versus alkaline for renewable-coupled hydrogen production?
PEM stack capital costs remain 1.5-2.0 times higher than alkaline (approximately $400-600/kW vs. $250-350/kW). However, PEM's higher current density (1.5-2.0 A/cm² vs. 0.3-0.5 A/cm²) reduces balance-of-plant costs and footprint. For high-capacity-factor wind resources (>35%), the levelized cost of hydrogen (LCOH) from PEM is projected to reach $2.5-3.5/kg by 2030, approaching parity with alkaline when accounting for PEM's superior dynamic efficiency (85-90% vs. 70-80% under variable load).
How does direct PV-PEM coupling without batteries affect hydrogen production efficiency and system reliability?
Direct coupling eliminates battery losses (typically 10-15% round-trip) but requires precise impedance matching. Field data from the Ulanqab project show that without maximum power point tracking (MPPT) on the electrolyzer side, annual hydrogen yield drops by 12-18% due to mismatch losses. Advanced DC-DC converters with wide input voltage range (200-800 V) and AI-based predictive control recover 95% of available energy, but add 5-8% to system cost. Reliability is maintained through modular stack design, allowing individual module isolation during low-irradiance periods.
What are the scalability bottlenecks for PEM electrolysis in gigawatt-scale renewable hydrogen projects?
Iridium supply is the critical constraint: global annual production (~7-9 tonnes) supports only 3-5 GW of PEM capacity at current loading (0.4 mg/cm²). Scaling to 100 GW would require iridium loading below 0.1 mg/cm², achievable only with advanced catalyst deposition techniques not yet proven at scale. Additionally, proton exchange membrane production capacity (currently dominated by a few suppliers) must expand tenfold. Demonstration projects up to 2.5 MW confirm technical feasibility, but gigawatt-scale deployment requires parallel development of recycling infrastructure and non-iridium catalyst alternatives.
How do dynamic response requirements impact the economic viability of PEM electrolyzers compared to steady-state operation?
Dynamic operation (load cycling 10-100% at ramp rates >10%/s) reduces stack efficiency by 3-5 percentage points compared to steady-state, primarily due to increased ohmic losses during transients. However, this penalty is offset by higher capacity factors when coupled to renewables: a wind-coupled PEM system in Inner Mongolia achieves 4,500 full-load hours annually versus 3,000 hours for grid-powered steady operation. The net effect is a 15-20% reduction in LCOH, provided that control systems minimize thermal cycling and maintain stack temperature stability within ±3°C.
