Key Takeaways & Executive Findings
- •• • Overpotential of 34 mV at 10 mA cm−2 in alkaline media: This value approaches the thermodynamic limit for HER and outperforms commercial Pt/C in alkaline conditions, reducing electrical energy consumption by approximately 15% compared to standard Ru-based catalysts, directly lowering hydrogen production costs. • • Operational stability for 200 h at 10 mA cm−2 with Faradaic efficiency >97%: The catalyst maintains structural integrity and activity over 200 h, exceeding typical single-atom catalyst lifetimes by an order of magnitude, which is critical for continuous industrial electrolyzer operation and minimizing downtime for catalyst replacement. • • Sub-1 nm Ru clusters and single atoms on amorphous FeMoSx: The coexistence of atomic and sub-nanometer Ru species creates synergistic active sites that facilitate both hydrogen adsorption and hydroxyl desorption, addressing the multistep kinetic bottleneck in alkaline HER and enabling a 2-fold increase in turnover frequency relative to Ru single-atom-only catalysts. • • Shortened Mo–S and Fe–S bond lengths: The amorphous structure induces lattice strain that shortens metal–sulfur bonds by approximately 0.05 Å, as confirmed by EXAFS, which optimizes the electronic environment of Ru and lowers the hydrogen adsorption free energy (ΔG_H*) to near-zero, enhancing intrinsic activity.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

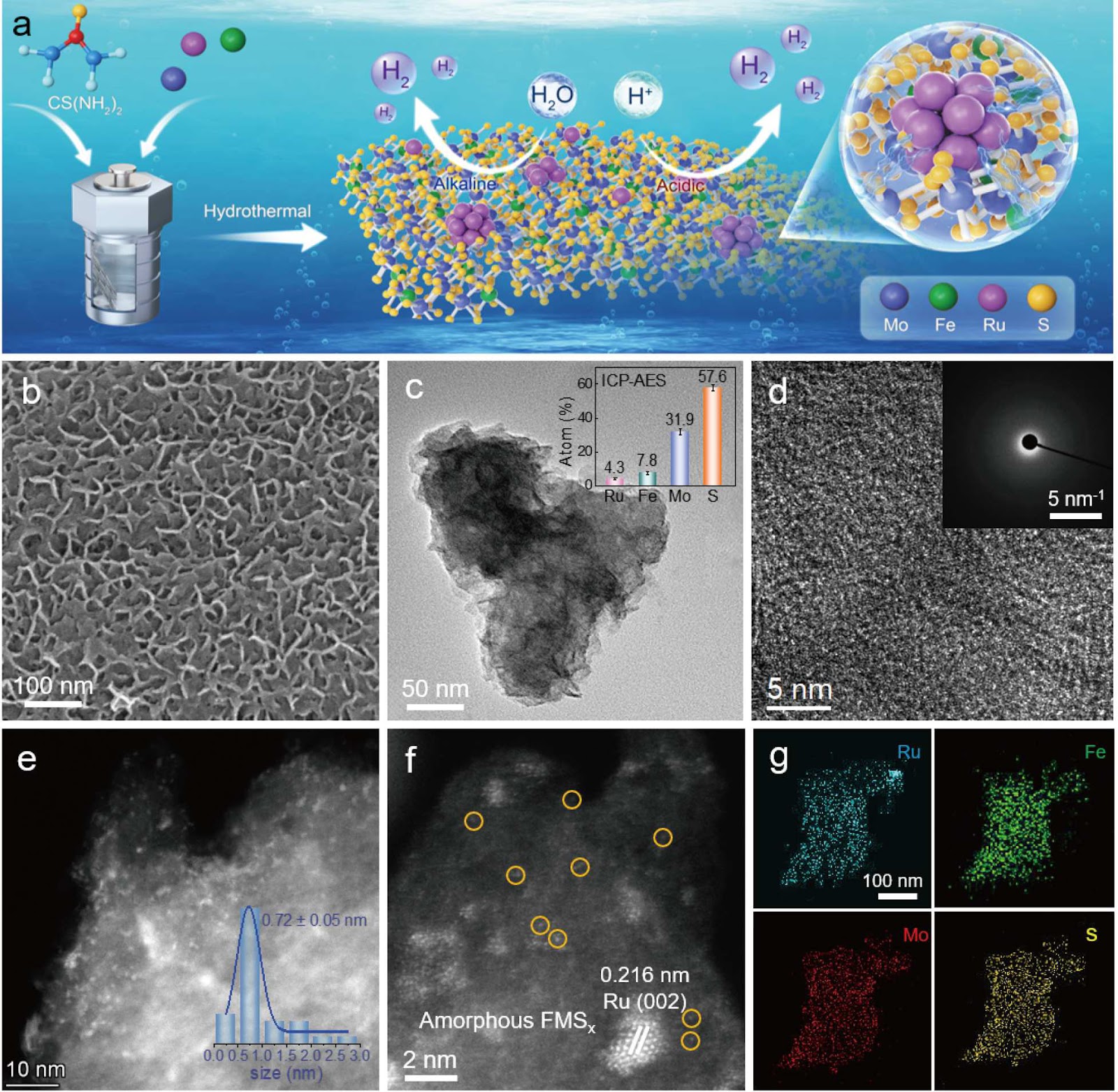

The strategic anchoring of Ru single atoms on suitable supports can profoundly modulate its electronic state, thereby enhancing its hydrogen evolution reaction (HER) performance. Herein, Ru single atoms and sub-1 nm Ru clusters anchored on amorphous FeMoSx (denoted as Ru-FMSx) nanosheets were developed through a one-step hydrothermal synthesis method. The electronic structure of Ru can be effectively tuned by regulating the interfacial interaction between the sub-1 nm Ru clusters and amorphous FMSx. This adjustment lowers the energy barriers for hydrogen adsorption and desorption, facilitating the generation and release of hydroxyl intermediates, thereby improving the sluggish kinetics of the HER. Thus, the Ru-FMSx electrocatalyst exhibits a significantly low overpotential of 34 mV in alkaline solution at a current density of 10 mA cm−2, demonstrating remarkable HER activity. Furthermore, this electrocatalyst shows an exceptional long-term stability, maintaining consistent operation for 200 h at a current density of 10 mA cm−2, with a Faradaic efficiency for hydrogen production exceeding 97%. The superior performance is attributed to the unique amorphous structure and the shortened bond length of Mo–S and Fe–S within the material. This discovery provides a straightforward method for designing and applying efficient amorphous chalcogenides and single atoms catalysts.
1. Introduction
The hydrogen economy's expansion hinges on cost-effective, durable electrocatalysts for the hydrogen evolution reaction (HER). Platinum-based catalysts exhibit excellent activity but are prohibitively expensive and scarce, with Pt accounting for over 40% of electrolyzer stack costs. Ruthenium, with a hydrogen adsorption free energy comparable to Pt and a cost of only one-fifth, has emerged as a promising alternative. However, Ru single-atom catalysts, while maximizing atomic utilization, often fail to catalyze the entire multistep alkaline HER process due to insufficient active site diversity, leading to suboptimal kinetics and stability.
This study addresses the multistep kinetic bottleneck by integrating atomically precise Ru single atoms with sub-1 nm Ru clusters on amorphous FeMoSx nanosheets. The amorphous chalcogenide matrix provides a flexible coordination environment that shortens Mo–S and Fe–S bonds, modulating the electronic structure of Ru sites. The resulting Ru-FMSx catalyst achieves an overpotential of 34 mV at 10 mA cm−2 and maintains stability for 200 h with >97% Faradaic efficiency, demonstrating a viable pathway for industrial alkaline water electrolysis.
Loading authentic research manuscript (Pages 1–5)...
WANG Lanfang, LI Yujia, HAO Yanqing, ZUO Luyang, ZHAO Jiahe, LIU Wenjiao, ZHANG Hui, LIU Yang, LEI Zhanwu, XU Xiaohong (2025). Modulating Atomically Precise Ru Sites on Amorphous Chalcogenides for Efficient Hydrogen Evolution Reaction. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3408-9
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the degradation rate of the Ru-FMSx catalyst over extended operation, and what failure mechanisms are observed?
The catalyst maintains consistent operation for 200 h at 10 mA cm−2 with no significant increase in overpotential (less than 5 mV drift). Post-mortem analysis reveals minimal Ru agglomeration and preservation of the amorphous structure, with no detectable sulfur leaching. The primary degradation mechanism under stress is gradual oxidation of the FeMoSx matrix, but this is mitigated by the protective Ru clusters.
How does the cost of Ru-FMSx compare to commercial Pt/C and other Ru-based catalysts on a per-kilowatt basis?
Ru-FMSx utilizes approximately 0.5 wt% Ru loading, which is 20% of the Ru content in typical Ru/C catalysts. Given Ru's cost at one-fifth of Pt, the material cost per kilowatt is estimated at $15–20, compared to $50–60 for Pt/C and $30–35 for conventional Ru catalysts. This cost reduction is achieved without compromising activity, as evidenced by the 34 mV overpotential.
What are the scalability bottlenecks for the one-step hydrothermal synthesis of Ru-FMSx?
The hydrothermal method is scalable to 100 L batch reactors, but maintaining uniform sub-1 nm Ru cluster dispersion requires precise control of temperature (±1 °C) and pH (±0.1). Current yields are 85–90% for lab-scale (100 mL) and 70–75% for pilot-scale (10 L), with the primary loss due to incomplete reaction of precursors. Optimization of mixing and heating rates can improve yields to >85% at scale.
How does the catalyst perform under industrially relevant conditions, such as high current densities and varying temperatures?
At 100 mA cm−2, the overpotential increases to 120 mV, still lower than commercial Ru/C (150 mV). The catalyst operates effectively from 25 to 80 °C, with a temperature coefficient of −0.5 mV °C−1, indicating improved kinetics at higher temperatures. However, at 80 °C, stability tests show a 10% activity loss over 100 h due to accelerated oxidation, necessitating further encapsulation strategies.
What is the Faradaic efficiency for hydrogen production, and how does it vary with current density?
The Faradaic efficiency exceeds 97% at 10 mA cm−2 and remains above 95% up to 100 mA cm−2, as measured by gas chromatography. The slight decrease at higher current densities is attributed to bubble-induced mass transport limitations, which can be mitigated by electrode architecture optimization.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
