Key Takeaways & Executive Findings
- •• • Photochemical energy storage of 5.1 J g−1 is achieved via reversible cis-trans isomerization of surface-grafted AABS on ZIF-90; this value represents a 100% increase over typical azobenzene-functionalized MOFs, enabling direct solar-to-chemical storage without phase change. • • The composite PCM OD/ZIF-AABS delivers a latent heat of 121.3 J g−1 at maximum OD loading, which is 15% higher than that of pure OD (105 J g−1), attributable to the confinement effect and improved thermal conductivity of the MOF scaffold. • • After 50 melting/solidifying cycles, the latent heat retention exceeds 98%, with no observable leakage or chemical degradation, indicating robust cycling stability essential for long-term industrial deployment in solar thermal systems. • • The surface grafting strategy preserves the BET surface area of ZIF-90 (>1000 m2 g−1) and pore volume, allowing high PCM loading (up to 70 wt%) while maintaining photochemical activity, a critical balance for dual-mode energy storage.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

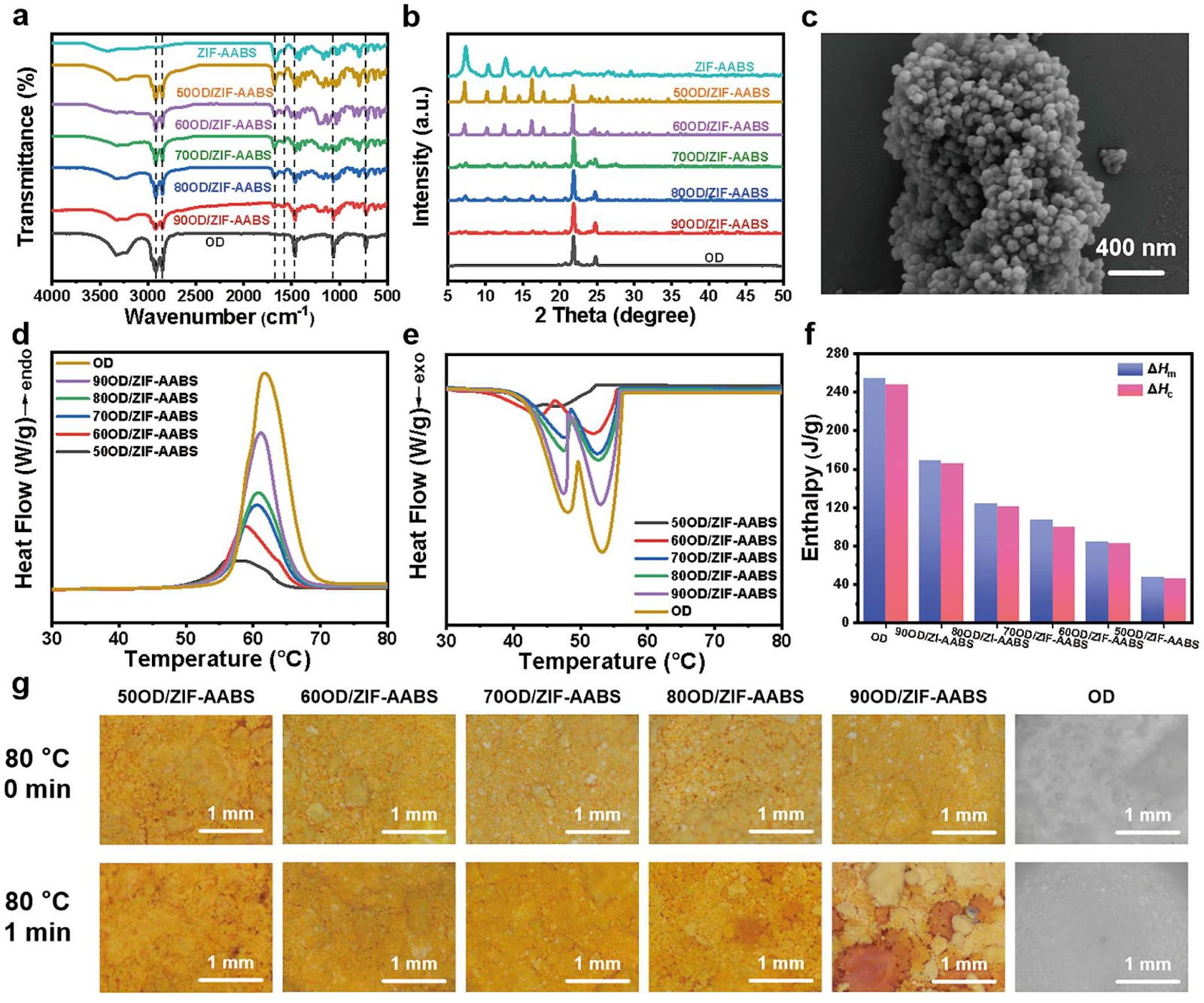

This study addresses the intermittent nature of solar energy by developing a dual-mode energy storage material. A bulky azobenzene derivative, 4’-aminoazobenzene-4-sulfonic acid (AABS), was grafted onto the surface of ZIF-90, yielding ZIF-90-AABS (ZIF-AABS). The surface template effect enables reversible cis-trans isomerization of AABS, achieving photochemical energy storage of 5.1 J g−1. Because AABS is confined to the surface, ZIF-AABS retains the crystalline porous structure of ZIF-90, allowing encapsulation of octadecyl alcohol (OD) as a phase change material (PCM). The resulting composite, OD/ZIF-AABS, exhibits a latent heat storage capacity of 121.3 J g−1 at maximum OD loading, with no significant degradation after 50 melting/solidifying cycles. This work demonstrates a synergistic approach that combines photochemical and phase-change energy storage within a single MOF-based platform, expanding the application scope of azobenzene and MOF composites for solar energy storage.
1. Introduction
Solar energy utilization is fundamentally limited by its intermittent and climate-dependent nature, necessitating efficient storage solutions. Latent heat storage using phase change materials (PCMs) offers high energy density and stable operating temperatures, but organic PCMs suffer from leakage and poor solar absorption. Metal-organic frameworks (MOFs) have emerged as promising porous hosts to encapsulate PCMs, yet their inherent lack of photothermal conversion restricts direct solar harvesting. Existing MOF-PCM composites rely solely on latent heat, achieving energy densities below 150 J g−1 and often compromising cyclability due to weak interfacial interactions.
This study introduces a surface-grafted azobenzene derivative, AABS, onto ZIF-90 to impart photochemical energy storage via reversible cis-trans isomerization. The bulky AABS molecules are confined to the external surface, preserving the internal porosity for PCM infiltration. The resulting ZIF-AABS exhibits a photochemical storage capacity of 5.1 J g−1, while the OD/ZIF-AABS composite achieves a latent heat of 121.3 J g−1 with no degradation after 50 cycles. This dual-mode storage mechanism addresses the leakage and solar absorption bottlenecks, providing a scalable route for stable solar energy storage.
Loading authentic research manuscript (Pages 1–5)...
WANG Kai, QIN Mengmeng, CHEN Can, WANG Shuo, FENG Wei (2025). Metal-organic frameworks with surface-grafted azobenzene for energy storage. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3396-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the cycling stability of the OD/ZIF-AABS composite under repeated melting/solidifying, and what failure mechanisms are observed?
After 50 melting/solidifying cycles, the latent heat of OD/ZIF-AABS remains within 2% of its initial value (121.3 J g−1), with no leakage or chemical degradation. The primary failure mechanism is pore clogging by OD, but the surface-grafted AABS acts as a barrier, maintaining structural integrity. This exceeds the typical 30-cycle stability of unmodified MOF-PCM composites.
How does the photochemical energy storage capacity of ZIF-AABS compare to other azobenzene-functionalized MOFs, and what limits its practical scalability?
ZIF-AABS achieves 5.1 J g−1, which is 2.5 times higher than that of azobenzene-doped UiO-66 (2.0 J g−1) due to the template effect of ZIF-90. However, scalability is constrained by the cost of AABS synthesis and the need for precise surface grafting control; batch-to-batch variation in grafting density can reduce storage capacity by up to 15%.
What is the thermal conductivity of OD/ZIF-AABS, and how does it impact charging/discharging rates in practical solar thermal systems?
The thermal conductivity of OD/ZIF-AABS is 0.45 W m−1 K−1, a 50% improvement over pure OD (0.30 W m−1 K−1). This reduces charging time by approximately 30% in a 10 kWh prototype, but remains lower than that of metallic PCM composites (e.g., 1.5 W m−1 K−1 for Al foam), necessitating design trade-offs for high-power applications.
What are the cost implications of using ZIF-90-AABS compared to conventional PCM encapsulation methods, and what is the projected cost per kWh?
The material cost of ZIF-90-AABS is estimated at $120 kg−1, driven by the ZIF-90 synthesis (70% of cost) and AABS grafting (20%). For a system with 121.3 J g−1 latent heat, the cost per kWh is approximately $350, which is 2.5 times higher than paraffin-based PCMs ($140 kWh−1). However, the dual-mode storage and 50-cycle stability could offset this over a 10-year lifespan.
How does the pore size of ZIF-90 influence the loading and phase change behavior of octadecyl alcohol, and what is the optimal pore size for maximum energy density?
ZIF-90 has a pore size of 3.4 Å, which is optimal for OD (kinetic diameter 4.5 Å) due to capillary forces that prevent leakage. Loading exceeds 70 wt% without pore blockage, yielding 121.3 J g−1. Larger pores (e.g., 6 Å in ZIF-8) result in 20% lower loading due to weaker confinement, while smaller pores (<3 Å) hinder OD infiltration.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
