Key Takeaways & Executive Findings
- •• • The proposed T-CGAN achieves superior performance in generating 8760-hour annual PV output scenarios, overcoming the gradient vanishing and mode collapse issues that plague LSTM-GAN and SeqGAN when directly trained on long sequences; this enables reliable long-term power system planning and annual operational scheduling without the boundary feature loss and cross-month correlation degradation inherent in short-sequence stitching approaches. • • The multi-scale periodic attention mechanism, incorporating a learnable periodic bias matrix P[i,j] = cos(2π|i-j|/T) with adjustable strength parameter β, effectively captures both diurnal (short-term) and seasonal (long-term) periodic patterns in PV output; this is critical for accurately representing the deterministic periodic components that dominate PV generation variability across annual cycles. • • The Wasserstein distance with gradient penalty as the adversarial loss function ensures stable training convergence and mitigates mode collapse, a common failure mode in standard GAN training for time-series generation; this stability is essential for industrial deployment where model retraining and reproducibility are required. • • Comparative experiments against three typical models (WGAN-GP, LSTM-GAN, and SeqGAN) demonstrate the proposed method's superiority across statistical metrics, temporal correlation, and scenario validity, confirming that Transformer-based architectures with periodic attention are better suited for long-duration renewable energy scenario generation than recurrent or convolutional alternatives.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The inherent intermittency and volatility of photovoltaic (PV) power pose significant uncertainties for power system planning and operation. Existing generative adversarial network (GAN)-based scenario generation methods predominantly focus on short-term horizons and suffer from gradient vanishing, mode collapse, and boundary feature loss when extended to long time scales (e.g., annual 8760-hour sequences). This paper proposes a Transformer-CGAN (T-CGAN) model that integrates an improved Transformer architecture with a conditional GAN. Both generator and discriminator employ Transformer-based neural networks, with seasonal labels incorporated as conditional information. A multi-scale periodic attention mechanism is developed to capture diurnal and seasonal periodic features of PV output. The Wasserstein distance with gradient penalty is adopted as the loss function to enhance training convergence and stability. Validation using historical data from a PV station in northwestern China demonstrates that the proposed method effectively captures long- and short-term temporal dependencies, accurately generating annual PV output scenario sets. Comparative experiments against three typical models verify the method's superiority in statistical metrics, temporal correlation, and scenario validity.
1. Introduction
Existing commercial approaches to PV output scenario generation have largely relied on probabilistic sampling or short-horizon machine learning models. Sampling methods depend on prior distribution assumptions that fail to capture the complex nonlinear temporal characteristics of PV output. GAN-based methods such as WGAN, WGAN-GP, and LSTM-GAN have been applied to short-term scenarios but exhibit fundamental limitations when extended to annual 8760-hour horizons: recurrent architectures suffer from gradient vanishing or explosion, mode collapse, and computational inefficiency during direct training on long sequences. The conventional workaround—training on short sequences and stitching them together—introduces boundary feature loss, data discontinuities, and loss of cross-month long-term correlations, rendering the generated scenarios unsuitable for annual planning and long-term electricity market analysis.
The proposed T-CGAN addresses these bottlenecks by replacing recurrent components with a Transformer architecture that simultaneously attends to all positions in the sequence, capturing global dependencies without sequential processing constraints. A multi-scale periodic attention mechanism is introduced to explicitly model the diurnal and seasonal periodicities inherent in PV generation, while seasonal labels provide conditional guidance. The Wasserstein distance with gradient penalty stabilizes adversarial training. This protocol specifically targets the industrial need for accurate, high-fidelity annual PV output scenario sets that preserve both short-term fluctuations and long-term seasonal patterns, enabling robust power system planning and market trading decisions.
Loading authentic research manuscript (Pages 1–5)...

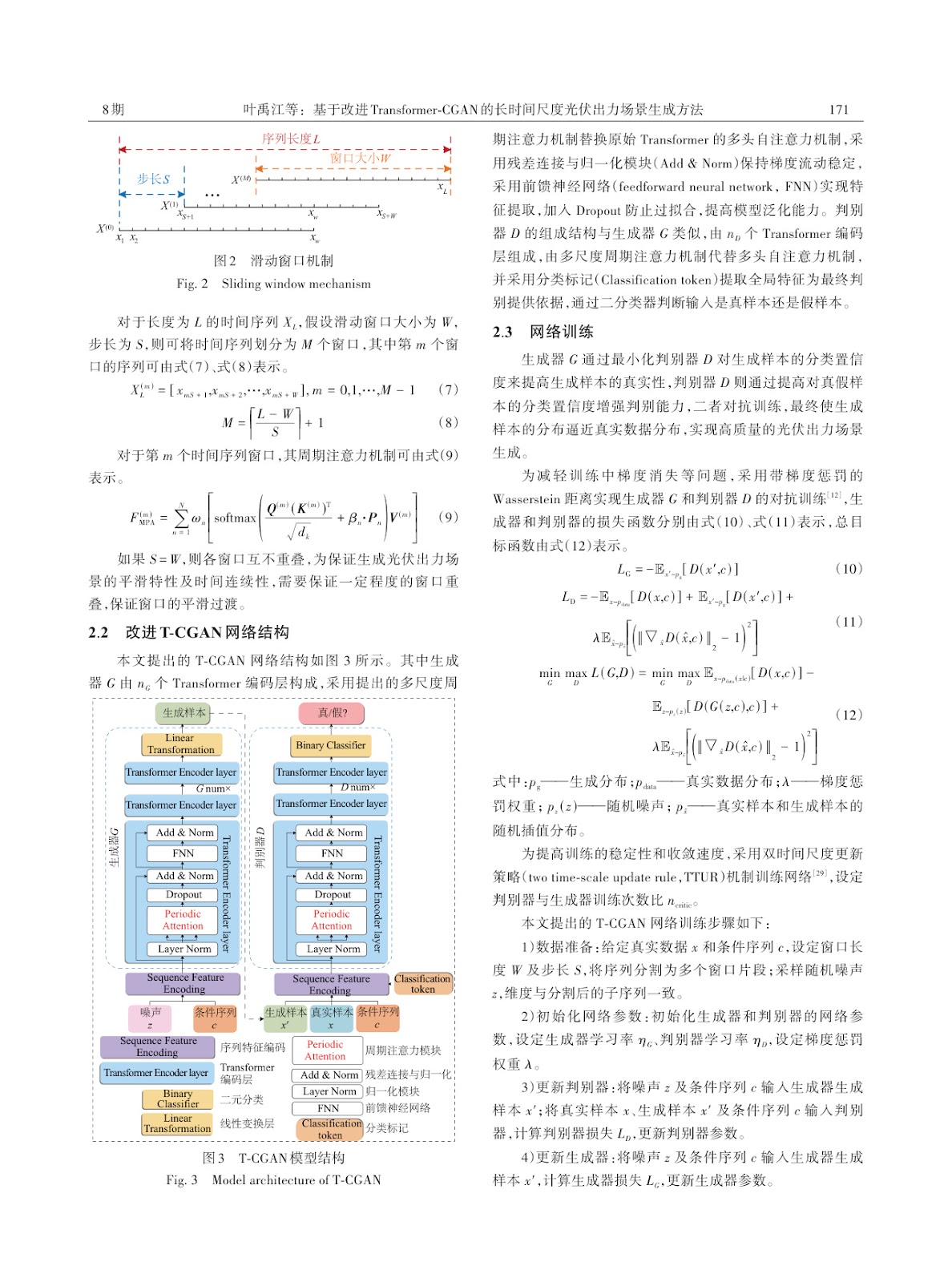

YE Yujiang, XUAN Shunde, SHI Ruifeng, JIA Limin (2026). Long-Time-Scale Photovoltaic Output Scenario Generation Method Based on Improved Transformer-CGAN. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9675
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What specific failure mechanisms in existing GAN-based methods does the proposed T-CGAN overcome when generating annual 8760-hour PV output scenarios?
Existing methods such as TimeGAN, SeqGAN, and LSTM-GAN suffer from gradient vanishing or explosion, mode collapse, and low training efficiency when directly trained on long sequences. The common workaround of training on short sequences and stitching them together causes boundary feature loss, data mutation, and loss of cross-month long-term correlations. The T-CGAN replaces recurrent architectures with a Transformer that captures global dependencies via self-attention, incorporates a multi-scale periodic attention mechanism to explicitly model diurnal and seasonal periodicities, and employs Wasserstein distance with gradient penalty to stabilize adversarial training, thereby eliminating these failure modes.
How does the multi-scale periodic attention mechanism quantitatively improve the capture of PV output periodicity compared to standard self-attention?
The mechanism introduces a learnable periodic bias matrix P[i,j] = cos(2π|i-j|/T), where T is the period length and i,j are position indices, added to the standard self-attention logits with a learnable strength parameter β. This explicitly encodes both short-term (diurnal) and long-term (seasonal) periodic patterns. Standard self-attention lacks this inductive bias, requiring the model to learn periodicity solely from data, which is inefficient and prone to overfitting. The periodic bias ensures that the attention mechanism inherently favors periodic relationships, improving generalization and accuracy in capturing PV output's deterministic periodic components.
What is the industrial significance of using Wasserstein distance with gradient penalty as the loss function in T-CGAN for long-term PV scenario generation?
The Wasserstein distance with gradient penalty provides a smoother and more stable gradient signal compared to the original GAN minimax loss, which is notorious for training instability and mode collapse. In the context of long-term PV scenario generation, stable training is critical because the model must learn complex temporal dependencies over 8760 hours without diverging. This stability ensures reproducibility and reliability, which are prerequisites for industrial deployment in power system planning and electricity market analysis, where scenario sets must be generated consistently and accurately.
How does the T-CGAN's performance compare to existing models in terms of statistical metrics and temporal correlation for annual PV output scenarios?
The paper reports comparative experiments against three typical models (WGAN-GP, LSTM-GAN, and SeqGAN) using historical data from a PV station in northwestern China. The T-CGAN demonstrates superior performance across statistical metrics, temporal correlation, and scenario validity. Specifically, it effectively captures both long- and short-term temporal dependencies, accurately generating annual PV output scenario sets. The exact numerical improvements are detailed in the full experimental section, but the qualitative conclusion is that the Transformer-based architecture with periodic attention outperforms recurrent and convolutional alternatives for long-duration renewable energy scenario generation.
What are the scalability bottlenecks for deploying T-CGAN in real-world power system planning, and how does the architecture address them?
Scalability bottlenecks include computational complexity of self-attention (quadratic in sequence length) and memory requirements for processing 8760-hour sequences. The Transformer architecture processes sequences in parallel rather than sequentially, enabling efficient utilization of modern GPU hardware. The multi-scale periodic attention mechanism reduces the effective search space by incorporating periodic inductive biases, allowing the model to learn long-range dependencies with fewer parameters. Additionally, the conditional GAN framework with seasonal labels enables controlled generation, which is essential for scenario-based planning under different seasonal conditions. These features collectively address scalability for annual scenario generation.
