Key Takeaways & Executive Findings
- •• • Fe3O4@PDAPEI achieves adsorption capacities of 168.3, 168.5, 179.7, and 180.3 mg/g for Gd3+, Nd3+, Ho3+, and Y3+, respectively, exceeding most reported magnetic REE adsorbents by a factor of 1.5–2.0, enabling efficient recovery from low-concentration mine wastewater (typically <50 mg/L REEs). • • The adsorbent retains >90% of its initial capacity after five reuse cycles, demonstrating robust reusability essential for continuous industrial operation and reducing operational costs associated with adsorbent replacement. • • In the presence of competing ions (Na+, Mg2+, Al3+), the adsorption capacity remains above 100 mg/g for all four REEs, indicating high selectivity that mitigates pre-treatment costs in complex wastewater matrices. • • The adsorption mechanism involves binding to primary amines and electrostatic interactions, as confirmed by DFT calculations, zeta potential measurements, and AFM surface force measurements, providing a molecular-level foundation for designing next-generation adsorbents with tailored functional groups.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

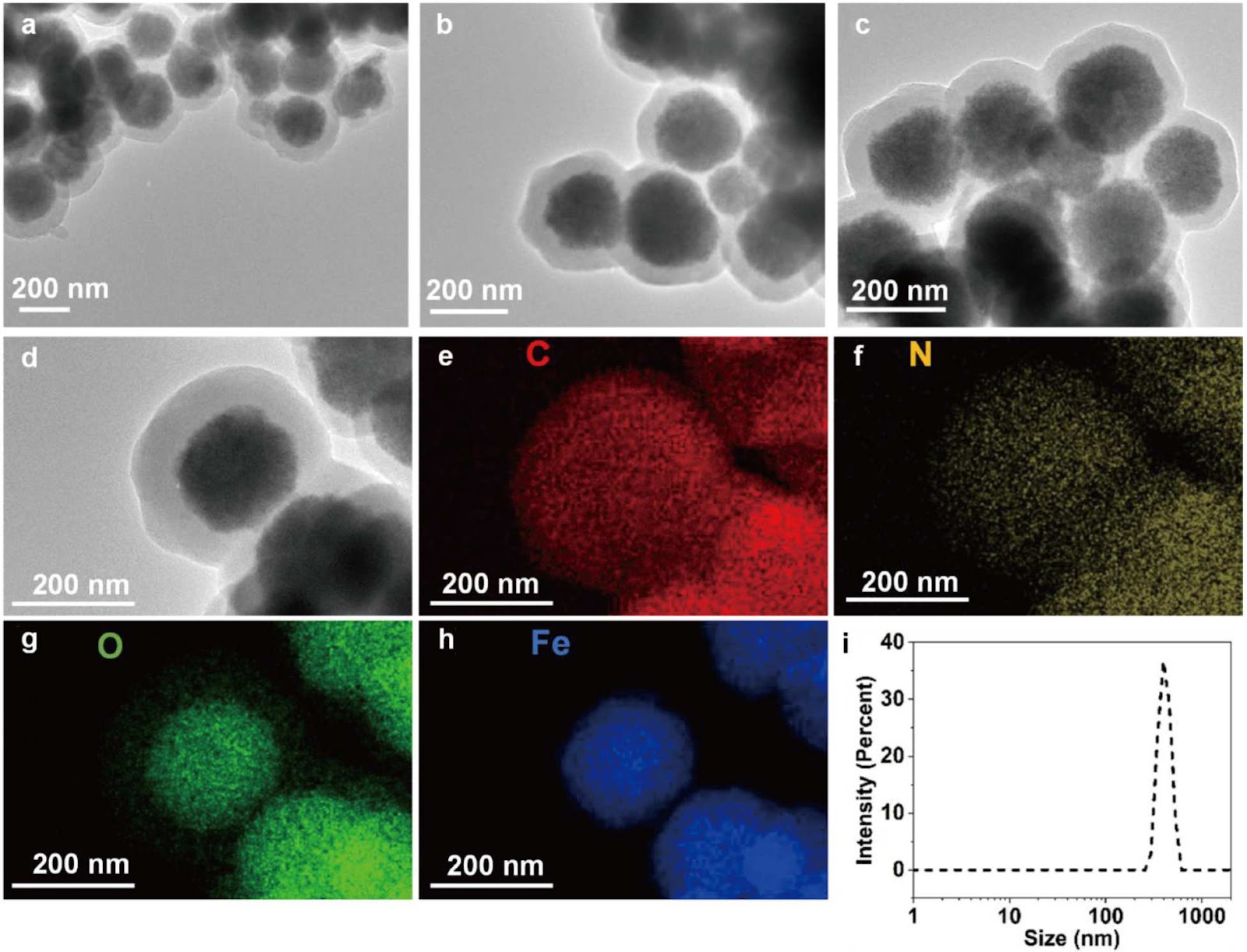

The adsorption of rare earth elements (REEs) from wastewater is vital for environmental protection and resource utilization. Adsorbents with magnetic properties are easy to separate but incorporating magnetic particles can reduce adsorption capacity by decreasing the surface area or blocking active sites. Herein, an efficient magnetic adsorbent (i.e., Fe3O4@PDAPEI), consisting of an Fe3O4 core, a polydopamine (PDA) intermediate layer and a polyethylenimine (PEI) outer layer, was designed to extract Gd3+, Nd3+, Ho3+, and Y3+ from low-concentration solutions with adsorption capacities of 168.3, 168.5, 179.7, and 180.3 mg/g, respectively. The adsorption capacities exceed those of most reported magnetic REE adsorbents in the literature. The adsorption behavior could be fitted to the pseudo-second-order model, intraparticle diffusion model, and Langmuir model. Fe3O4@PDAPEI exhibited good reusability, with the adsorption capacity remaining above 90% of the initial value after five reuse cycles. In addition, despite the presence of competing ions (i.e., Na+, Mg2+, and Al3+) in model wastewater, the adsorption capacity could be maintained above 100 mg/g for all four REEs. The adsorption mechanism was investigated via density functional theory calculations, zeta potential measurements, and surface force measurements via atomic force microscopy. REEs could adsorb on Fe3O4@PDAPEI through binding to primary amines and electrostatic interactions. This work presents a highly efficient magnetic adsorbent and evaluates the underlying interaction mechanism from both theoretical and experimental perspectives, shedding light on facile and efficient REE recovery in various engineering processes.
1. Introduction
Rare earth elements (REEs) are indispensable in high-tech industries, from neodymium-iron-boron permanent magnets to gadolinium-based MRI contrast agents and holmium surgical lasers. The escalating demand, coupled with limited supply and environmental concerns over REE-containing wastewater, necessitates efficient recovery methods. Adsorption is particularly effective for low-concentration REE solutions, such as mine wastewater, but conventional magnetic adsorbents suffer from reduced capacity due to surface area loss and active site blocking upon magnetic nanoparticle incorporation.
This study introduces Fe3O4@PDAPEI, a core-shell magnetic adsorbent with a polydopamine (PDA) intermediate layer and a polyethylenimine (PEI) outer layer, designed to overcome these limitations. The PDA layer facilitates PEI grafting and enhances stability, while the PEI shell provides abundant primary amines for REE binding. The adsorbent achieves high capacities for light, medium, and heavy REEs (Gd3+, Nd3+, Ho3+, Y3+) and maintains performance under competing ions and multiple reuse cycles. The interaction mechanism is elucidated through density functional theory, zeta potential, and atomic force microscopy, offering a rational design strategy for advanced REE recovery materials.
Loading authentic research manuscript (Pages 1–5)...
MAO Xiaohui, WEI Xuyi, SUN Yongxiang, ZHAN Weiting, HU Ying, HAN Junwei, ZENG Hongbo (2025). Highly efficient recovery of light, medium and heavy rare earth elements using magnetic core-shell nanoparticles. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3403-x
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the adsorption capacity of Fe3O4@PDAPEI for heavy REEs compared to light REEs, and what does this imply for industrial separation?
The adsorption capacities are 180.3 mg/g for Y3+ (heavy), 179.7 mg/g for Ho3+ (heavy), 168.5 mg/g for Nd3+ (light), and 168.3 mg/g for Gd3+ (medium). The slightly higher capacities for heavy REEs suggest a preference that could be exploited for selective recovery, but the differences are marginal (≈7%), indicating that the adsorbent is effective across the REE series without strong selectivity, which may simplify processing but require additional separation steps if individual REEs are desired.
How does the adsorbent perform in the presence of competing ions, and what are the implications for real wastewater treatment?
In model wastewater containing Na+, Mg2+, and Al3+, the adsorption capacity remains above 100 mg/g for all four REEs. This represents a 40–45% reduction from capacities in pure solutions, but still exceeds many reported adsorbents. The resilience to Al3+ (a trivalent competitor) is particularly notable, as Al3+ often severely inhibits REE adsorption. This suggests that Fe3O4@PDAPEI could be deployed in real mine wastewater with minimal pre-treatment, though capacity loss may necessitate higher adsorbent doses or multiple cycles.
What is the reusability of Fe3O4@PDAPEI, and what are the economic implications?
The adsorbent retains >90% of its initial capacity after five reuse cycles. Assuming a conservative 2% loss per cycle beyond the fifth, the capacity would drop to ~80% after 15 cycles. This reusability reduces material replacement costs, but the actual economic viability depends on the desorption and regeneration protocol, which is not detailed in the abstract. Industrial-scale operation would require a cost analysis of the regeneration chemicals and energy versus the value of recovered REEs.
What are the scalability challenges for synthesizing Fe3O4@PDAPEI, and how might they affect commercial deployment?
The synthesis involves multiple steps: Fe3O4 core preparation, PDA coating, and PEI grafting. Each step requires precise control of pH, temperature, and reactant concentrations to ensure uniform core-shell morphology. Scale-up from laboratory to pilot scale often leads to aggregation and inconsistent coating thickness, which can reduce capacity. The use of dopamine and PEI adds material costs, but the high capacity and reusability may offset these. A continuous flow synthesis approach could improve reproducibility and reduce batch variability.
What is the adsorption mechanism, and how does it inform future adsorbent design?
The mechanism involves binding to primary amines on the PEI layer and electrostatic interactions, as confirmed by DFT calculations, zeta potential measurements, and AFM surface force measurements. The primary amines form coordination bonds with REE ions, while electrostatic attraction between the positively charged PEI (at acidic pH) and REE cations enhances uptake. This suggests that increasing amine density or optimizing the spacer length between amines could further boost capacity. However, excessive amine density may hinder diffusion, so a balance is needed.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
