Key Takeaways & Executive Findings
- •• • Wafer-scale CuCrS2 films with thickness controlled from 2 to 10 nm via two-step vapour deposition; enables uniform ferroelectric layers for high-density memory arrays, overcoming previous micron-scale lateral size limits. • • Ferroelectric hysteresis loops strengthen with temperature, with ionized Cu atoms gaining mobility above 200 K; this threshold defines the operational temperature window for reliable polarization switching in ferro-ionic devices. • • Vertical memristor devices using 200 nm Au electrodes exhibit LRS-LRS characteristics and reproducible hysteresis across multiple locations; demonstrates device-level robustness for large-area integration. • • Extension to CuCrSe2 films (7.8 nm) with Raman peaks at ~146 and 220 cm−1 and SHG six-fold symmetry confirms method reproducibility; provides a general route for other 2D ferroelectric films, reducing process development costs.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

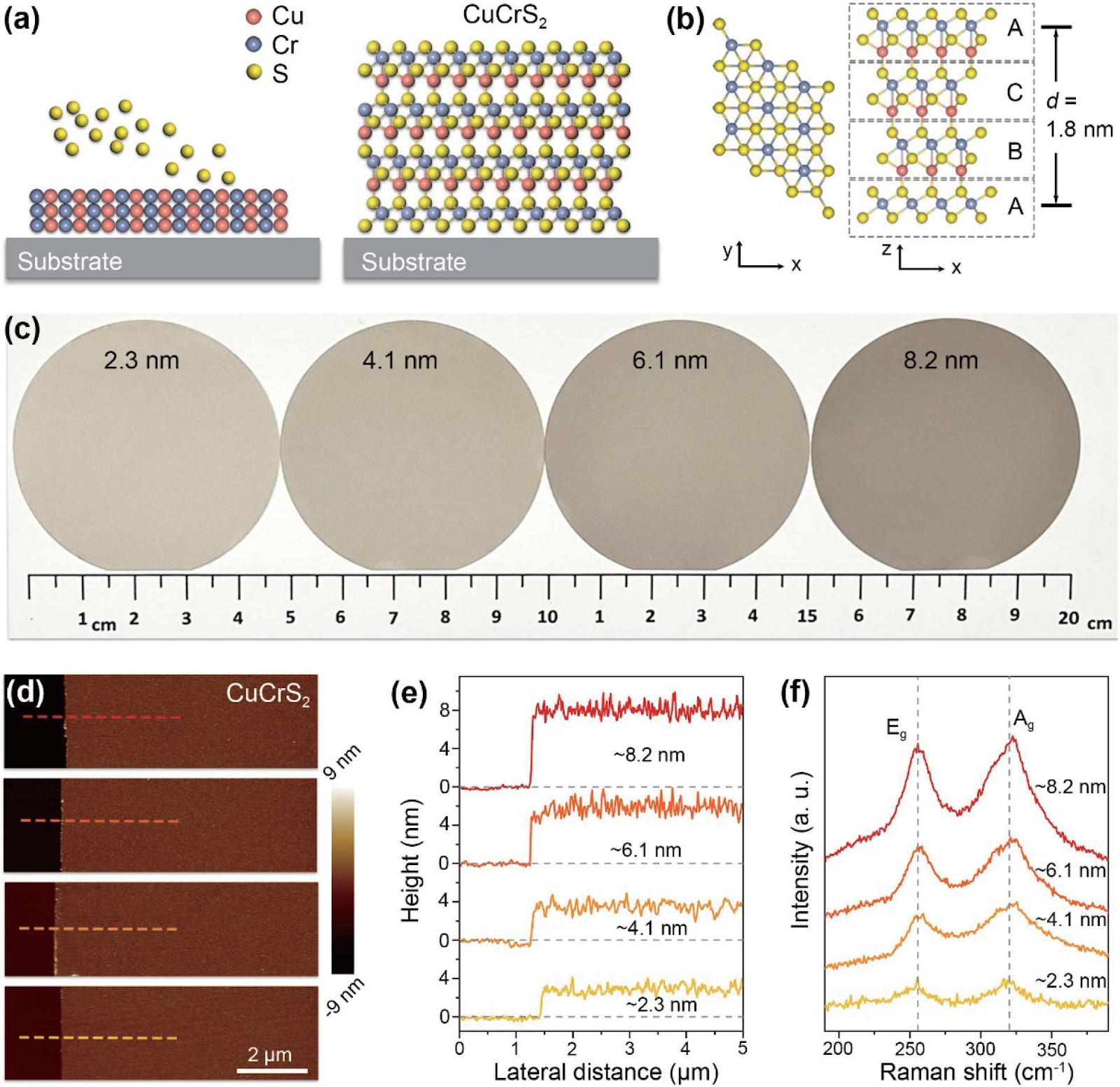

Two-dimensional ferroelectrics with high Curie temperature (Tc) enable stable ferroelectricity at the nanoscale, critical for miniaturized nonvolatile memory and in-memory computing. However, wafer-scale growth of 2D ferroelectric films with controlled thickness remains a bottleneck. This work reports a two-step vapour deposition method to grow wafer-scale 2D CuCrS2 ferroelectric films with uniform thickness from 2 to 10 nm. The films exhibit a non-centrosymmetric 3R stacking sequence, confirmed by second-harmonic generation (SHG) showing six-fold rotational symmetry. Ferroelectric polarization is demonstrated via hysteresis loops that strengthen with increasing temperature, attributed to ionized Cu movement above 200 K. The Tc exceeds room temperature, ensuring ferroelectric stability. Vertical memristor devices fabricated with 200 nm Au electrodes exhibit typical LRS-LRS memristor characteristics and robust hysteresis loops across multiple locations. The method is extended to CuCrSe2 films (7.8 nm thick) with Raman peaks at ~146 and 220 cm−1, confirming reproducibility. This work establishes a scalable route for integrating 2D ferroelectrics into next-generation electronic devices.
1. Introduction
Conventional ferroelectrics such as BaTiO3 and PbTiO3 suffer from depolarization fields that suppress or eliminate ferroelectricity below a critical thickness, typically a few nanometers, and are further degraded by surface defects and dangling bonds. These limitations impede their use in miniaturized ferroelectric devices, where stable polarization at the nanoscale is mandatory. Two-dimensional ferroelectrics offer dangling-bond-free surfaces and stable ferroelectricity down to the monolayer limit, but existing growth methods yield only micron-scale domains with non-uniform thickness, precluding wafer-scale integration.
This study addresses the scalability bottleneck by developing a two-step vapour deposition process that produces wafer-scale CuCrS2 films with uniform thickness from 2 to 10 nm. The 3R non-centrosymmetric stacking and ferroelectric polarization are validated by SHG and hysteresis measurements, with Tc above room temperature. The method's applicability is extended to CuCrSe2, demonstrating a reproducible pathway for manufacturing 2D ferroelectric films compatible with back-end-of-line integration for nonvolatile memory and in-memory computing.
Loading authentic research manuscript (Pages 1–5)...
Kun Yu, Hui Wang, Weilin Liu, Zihao Fu, Yichen Feng, Wenna Tang, Lu Han, Yuefeng Nie, Dong Li, Zhenjia Zhou, Jun Li, Anlian Pan, Libo Gao (2025). Growth of wafer-scale two-dimensional ferroelectric CuCrS2 films. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3424-6
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the operational temperature threshold for ferroelectric polarization in CuCrS2 films, and what mechanism governs it?
Hysteresis loops strengthen with increasing temperature, with a critical threshold at 200 K. Above 200 K, Cu ions fixed in the potential trap of the [CuS6] unit gain sufficient energy to move freely, generating polarized charge. This ferro-ionic mechanism, analogous to CuInP2S6, defines the lower bound for reliable device operation.
How does the two-step vapour deposition method ensure thickness uniformity and wafer-scale coverage?
The method yields films with uniform thickness from 2 to 10 nm across a wafer, as confirmed by AFM. The two-step process decouples nucleation and growth, enabling controlled lateral expansion and thickness. This overcomes the micron-scale lateral size limitation of previous single-domain growth, achieving wafer-scale continuity.
What are the memristor characteristics of the vertical Au/CuCrS2/Au devices, and how robust are they?
Devices with 200 nm Au electrodes exhibit typical LRS-LRS memristor behavior under dual sweeps at various maximum voltages. Hysteresis loops are reproducible across randomly selected locations, demonstrating significant robustness for large-area ferroelectric device fabrication.
Can this growth method be extended to other 2D ferroelectric materials, and what evidence supports reproducibility?
Yes. CuCrSe2 films of 7.8 nm thickness were grown by the same two-step method. Raman peaks at ~146 and 220 cm−1 correspond to Eg and Ag modes, and SHG shows six-fold rotational symmetry in lateral and vertical directions. These results confirm the method's general applicability and reproducibility.
What is the Curie temperature of CuCrS2, and why is it industrially significant?
The Tc of CuCrS2 is higher than room temperature, ensuring ferroelectric stability at ambient conditions. This expands the available operating temperature range and provides better retention for nonvolatile memory applications, unlike conventional ferroelectrics that lose polarization near room temperature.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
