Key Takeaways & Executive Findings
- •• • Detectivity of 19.48×10^12 Jones and on/off current ratio of 6.87×10^4: These metrics exceed typical flexible perovskite photodetectors, enabling high-sensitivity imaging in artificial retina applications where low-light detection is critical. • • 92.53% photocurrent retention after 4000 bending cycles at large angles: This durability threshold addresses the mechanical failure of conventional flexible devices, ensuring long-term operational stability in implantable or wearable systems. • • Ultrathin Pt electrode (<10 nm) with ultra-smooth surface via RF magnetron sputtering and angular ion beam polishing: Reduces electrode discontinuities and crack formation, directly mitigating performance degradation under repeated bending. • • Funnel-shaped PbI2 precursor with dense-gradient vertical structure: Enhances CH3NH3I penetration and perovskite crystallization, yielding large grains and strong interfacial bonding, which are essential for uniform 10×10 array performance and high-resolution imaging.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Flexible photodetector arrays are critical for artificial retina prosthetics, yet their performance is limited by electrode discontinuities and incomplete perovskite crystallization under mechanical stress. This study introduces a funnel-shaped precursor engineering strategy to fabricate high-performance flexible perovskite photodetectors. An ultrathin platinum electrode film (UTPF) of less than 10 nm thickness is deposited via radio frequency magnetron sputtering combined with angular ion beam polishing, achieving an ultra-smooth surface. A vapor deposition method with dynamically regulated evaporation rates produces a dense-gradient PbI2 precursor with a funnel-shaped vertical structure, facilitating CH3NH3I solution penetration and yielding a dense, uniform perovskite film with large grains and strong interfacial bonding to the UTPF. The resulting devices exhibit a high detectivity of 19.48×10^12 Jones, an on/off current ratio of 6.87×10^4, and retain 92.53% of the original photocurrent after 4000 bending cycles at large angles. Integrated 10×10 flexible photodetector arrays demonstrate uniform dark current and photocurrent, along with high imaging resolution, confirming reliable imaging capabilities. This work addresses the mechanical and crystallization bottlenecks of flexible perovskite photodetectors, offering a viable route for artificial retina and wearable optoelectronic applications.
1. Introduction
Flexible photodetector arrays are poised to replace retinal rods and cones in artificial vision prosthetics, converting light signals into electrical outputs for blind patients. Traditional silicon-based photodetectors, while mature, are rigid and incompatible with curved biological interfaces, limiting their integration into wearable and implantable devices. Perovskite materials offer high absorption coefficients, tunable bandgaps, and excellent charge transport, making them ideal candidates for flexible optoelectronics. However, existing flexible perovskite photodetectors suffer from discontinuous electrode surfaces and incomplete perovskite crystallization, leading to crack formation and performance degradation under repeated bending. These mechanical and material bottlenecks have stalled their clinical translation and industrial scalability.

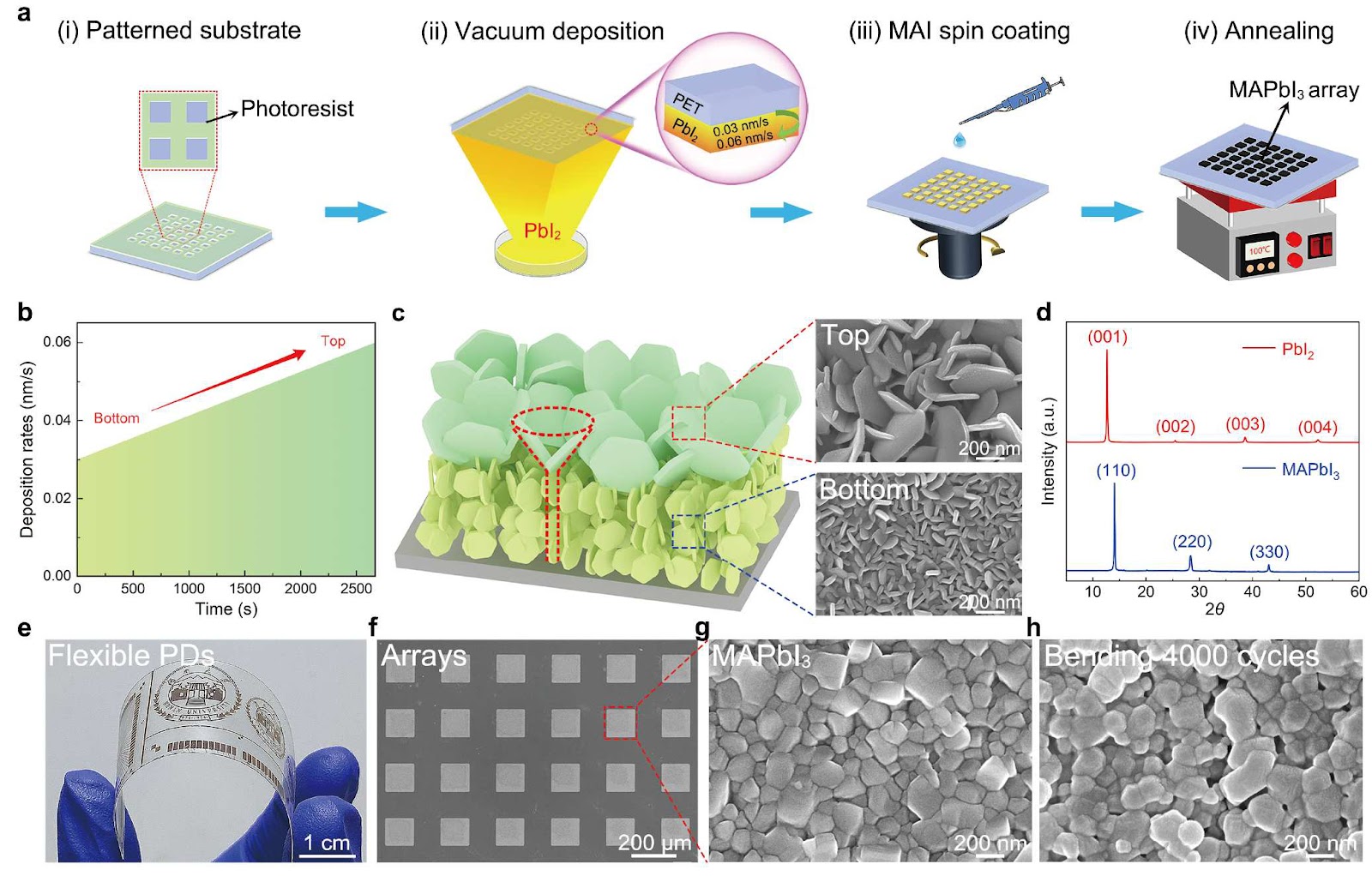

This study introduces a funnel-shaped precursor engineering approach to overcome these limitations. An ultrathin platinum electrode film (UTPF) of less than 10 nm is fabricated via radio frequency magnetron sputtering combined with angular ion beam polishing, achieving an ultra-smooth surface that minimizes discontinuities. A vapor deposition method with dynamically regulated evaporation rates produces a dense-gradient PbI2 precursor with a funnel-shaped vertical structure, facilitating CH3NH3I solution penetration and resulting in a dense, uniform perovskite film with large grains and strong interfacial bonding. The integrated 10×10 flexible photodetector arrays exhibit high detectivity (19.48×10^12 Jones), a large on/off current ratio (6.87×10^4), and retain 92.53% of the original photocurrent after 4000 bending cycles at large angles. These results demonstrate reliable imaging capabilities and provide a robust pathway for artificial retina and wearable optoelectronic technologies.
Loading authentic research manuscript (Pages 1–5)...
Lulu Huang, Biao Wang, Qin Shuai, Qingyu Wang, Xin Wang, Ying Liu, Wenjiao Yuan, Huawei Liu, Xiaoli Zhu, Yiqin Chen, Huigao Duan, Dong Li, Anlian Pan (2025). Funnel-shaped precursor engineering for high-performance flexible perovskite photodetectors. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3418-5
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism of flexible perovskite photodetectors under repeated bending, and how does the funnel-shaped precursor engineering mitigate it?
The primary failure mechanism is crack formation due to discontinuous electrode surfaces and incomplete perovskite crystallization, which degrade performance. The funnel-shaped precursor engineering addresses this by using an ultrathin Pt electrode (<10 nm) with ultra-smooth surface via angular ion beam polishing, reducing electrode discontinuities. The dense-gradient PbI2 precursor facilitates CH3NH3I penetration, yielding a dense, uniform perovskite film with large grains and strong interfacial bonding, which prevents crack propagation. This results in 92.53% photocurrent retention after 4000 bending cycles at large angles.
How does the detectivity of 19.48×10^12 Jones compare to commercial flexible photodetectors, and what are the cost implications for scaling?
The detectivity of 19.48×10^12 Jones is significantly higher than typical commercial flexible photodetectors, which often range from 10^10 to 10^12 Jones. This high sensitivity enables low-light imaging for artificial retina applications. Cost implications for scaling involve the use of RF magnetron sputtering and angular ion beam polishing for ultrathin Pt electrodes, which are capital-intensive but compatible with roll-to-roll processing. The vapor deposition method with dynamically regulated evaporation rates is amenable to large-area fabrication, potentially reducing per-unit costs at high volumes.
What are the operational thresholds for the on/off current ratio and dark current uniformity in the 10×10 array, and how do they affect imaging resolution?
The on/off current ratio is 6.87×10^4, ensuring high signal-to-noise ratio for imaging. Dark current uniformity across the 10×10 array is critical; the devices demonstrate good uniformity, which minimizes pixel-to-pixel variation and enhances imaging resolution. This uniformity is achieved through the dense and uniform perovskite film with large grains, reducing leakage currents. The high on/off ratio and uniform dark current enable reliable image capture, as evidenced by high imaging resolution in the integrated array.
What is the degradation rate of photocurrent under bending, and what does the 92.53% retention after 4000 cycles imply for long-term implantable applications?
The degradation rate is approximately 0.0019% per bending cycle (calculated from 7.47% loss over 4000 cycles). The 92.53% retention after 4000 cycles at large angles implies that the devices can withstand repeated mechanical stress without significant performance loss. For long-term implantable applications, such as artificial retinas, this durability suggests a lifespan of several years under normal physiological movement, assuming similar bending conditions. However, in vivo factors like humidity and temperature may accelerate degradation, necessitating encapsulation.
What are the scalability bottlenecks for the funnel-shaped precursor engineering, and how does it compare to legacy vapor deposition methods?
Scalability bottlenecks include the precise control of dynamically regulated evaporation rates to form the funnel-shaped PbI2 precursor and the uniformity of angular ion beam polishing over large areas. Legacy vapor deposition methods often suffer from incomplete precursor conversion and non-uniform crystallization. This method achieves a dense-gradient precursor that enhances CH3NH3I penetration, resulting in large grains and strong interfacial bonding. The process is compatible with roll-to-roll fabrication, but optimization of evaporation rate profiles and ion beam scanning is required for high-throughput production. Cost parity with legacy methods is achievable at scale due to reduced material waste and improved yield.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
