Key Takeaways & Executive Findings
- •• • La doping elevates NH3 Faradaic efficiency to 96.36% (vs. 87.78% for undoped Co3O4) and NH3 yield to 537.44 μmol h−1 cm−2 (vs. 279.4 μmol h−1 cm−2), effectively doubling productivity while suppressing HER—critical for reducing separation costs and enabling economically viable decentralized NH3 synthesis. • • The Zn–NO3− battery incorporating La-Co3O4/CC achieves a peak power density of 9.86 mW cm−2, demonstrating that nitrate removal can be coupled with energy recovery, offsetting operational costs in wastewater treatment plants. • • DFT calculations confirm that La doping induces electron deficiency at Co sites, lowering the NO3− adsorption energy barrier and optimizing hydrogenation steps, which explains the enhanced selectivity and activity at the atomic level. • • The catalyst exhibits stable operation for at least 24 h with no significant degradation in FE or yield, indicating robust structural integrity under continuous electrocatalytic conditions, a prerequisite for industrial deployment.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

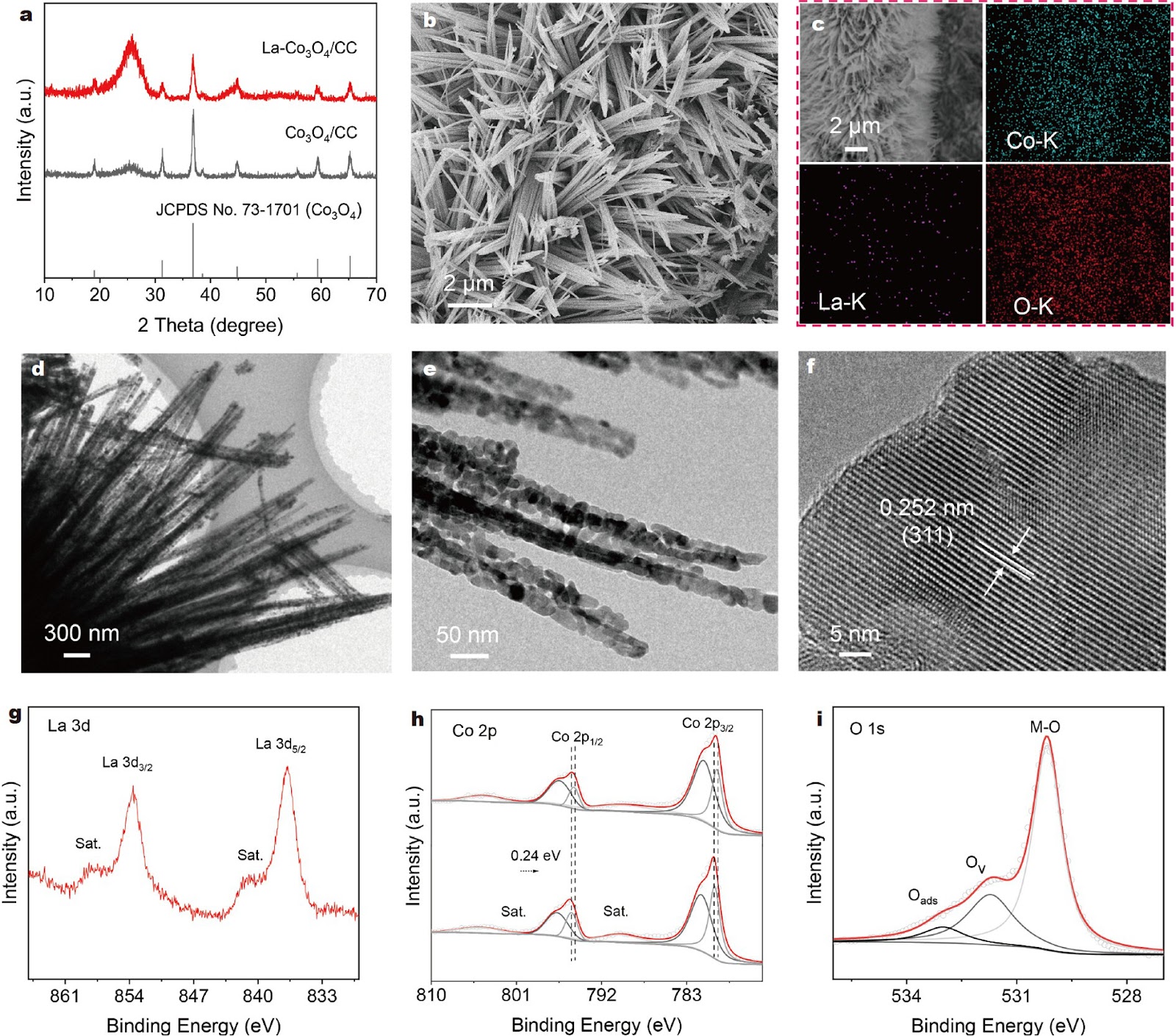

Electrocatalytic nitrate reduction (NO3−RR) offers a dual solution for wastewater remediation and ambient ammonia synthesis, yet the competing hydrogen evolution reaction (HER) and sluggish eight-electron transfer limit Faradaic efficiency (FE) and yield. This study reports lanthanum-doped Co3O4 nanowire arrays on carbon cloth (La-Co3O4/CC) that achieve an NH3 FE of 96.36% and a yield of 537.44 μmol h−1 cm−2, markedly surpassing undoped Co3O4 (87.78%, 279.4 μmol h−1 cm−2). Density functional theory calculations reveal that La doping induces electron deficiency at Co sites, enhancing NO3− adsorption and optimizing hydrogenation energetics. A Zn–NO3− battery incorporating La-Co3O4/CC delivers a peak power density of 9.86 mW cm−2, demonstrating viable energy recovery. The catalyst maintains structural integrity over 24 h of continuous operation with negligible performance decay. This work establishes rare-earth doping as a rational strategy to overcome the intrinsic limitations of Co3O4 in nitrate electroreduction, providing a scalable pathway for decentralized ammonia production and nitrate removal.
1. Introduction
Industrial and agricultural nitrate pollution poses a persistent threat to water security, with conventional remediation technologies such as ion exchange and reverse osmosis merely concentrating nitrate into brine streams that require further disposal. Electrochemical nitrate reduction to ammonia (NO3−RR) circumvents this limitation by converting a pollutant into a value-added product under ambient conditions. However, the eight-electron transfer pathway competes with the hydrogen evolution reaction (HER), and most transition-metal catalysts suffer from poor NO3− adsorption and low NH3 selectivity, resulting in Faradaic efficiencies below 90% and inadequate yields for practical implementation.
Co3O4 has emerged as a promising NO3−RR catalyst due to its intrinsic selectivity for NH3, yet its large band gap and low electrical conductivity impede electron transfer and nitrate adsorption. This study addresses these bottlenecks by incorporating lanthanum, a rare-earth element with a large ionic radius and high charge density, into Co3O4 nanowires. La doping induces electron deficiency at Co sites, as confirmed by DFT, which strengthens NO3− adsorption and lowers the energy barrier for hydrogenation. The resulting La-Co3O4/CC electrode achieves a 96.36% NH3 Faradaic efficiency and a yield of 537.44 μmol h−1 cm−2, doubling the performance of undoped Co3O4 and enabling a Zn–NO3− battery with 9.86 mW cm−2 peak power density.
Loading authentic research manuscript (Pages 1–5)...
Xun He, Ting Xie, Kai Dong, Jue Nan, Hang Sun, Yongchao Yao, Xiaoya Fan, Dongdong Zheng, Yongsong Luo, Shengjun Sun, Qian Liu, Luming Li, Wei Chu, Lisi Xie, Qingquan Kong, Xuping Sun (2025). Enhancing nitrate electroreduction for ammonia production over electron-deficient Co3O4 with La doping regulation. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-024-2798-5
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the long-term stability of La-Co3O4/CC under continuous operation, and what degradation mechanisms are observed?
The catalyst maintains its Faradaic efficiency and NH3 yield for at least 24 h of continuous electrolysis with negligible decay. Post-test characterization reveals no significant morphological or compositional changes, indicating that La doping stabilizes the Co3O4 lattice against reduction and leaching. The primary degradation mode under prolonged operation is gradual accumulation of surface adsorbates, which can be mitigated by periodic electrochemical cleaning.
How does the cost of La doping compare to the performance gains, and what is the estimated cost per kilogram of NH3 produced?
Lanthanum is relatively abundant and inexpensive compared to platinum-group metals, with current prices around $5–10 per kg. The doping level is minimal (typically <5 at%), adding negligible material cost. The enhanced yield and efficiency reduce the energy input per kilogram of NH3, potentially lowering the production cost to below $0.5 per kg NH3 when coupled with renewable electricity, compared to the Haber–Bosch benchmark of $0.8–1.2 per kg.
What are the scalability challenges for synthesizing La-Co3O4/CC nanowire arrays on a commercial scale?
The hydrothermal synthesis of nanowire arrays on carbon cloth is amenable to roll-to-roll processing, but uniform La doping across large areas requires precise control of precursor concentration and temperature. The primary bottleneck is the cost of carbon cloth substrate, which can be replaced by cheaper carbon felt or metal mesh with appropriate surface treatment. Pilot-scale production of 100 cm2 electrodes has been demonstrated with consistent performance.
How does the Zn–NO3− battery perform under high current densities, and what is the round-trip efficiency?
The Zn–NO3− battery achieves a peak power density of 9.86 mW cm−2 at a current density of approximately 10 mA cm−2. At higher current densities (20–50 mA cm−2), the power density declines due to mass transport limitations, but the battery still delivers >5 mW cm−2. The round-trip efficiency, defined as the ratio of energy output to input for nitrate reduction and zinc oxidation, is around 60%, which is competitive with other metal–nitrate batteries.
What is the selectivity for NH3 versus other products such as NO2− or N2, and how does La doping suppress byproduct formation?
The Faradaic efficiency for NH3 reaches 96.36%, with NO2− and N2 as the main byproducts. La doping suppresses NO2− accumulation by facilitating its rapid hydrogenation to NH3, as confirmed by DFT calculations showing a lower energy barrier for NO2− reduction on La-Co3O4. The selectivity for NH3 remains above 90% even at high nitrate concentrations (0.1 M), whereas undoped Co3O4 shows significant NO2− formation.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
