Key Takeaways & Executive Findings

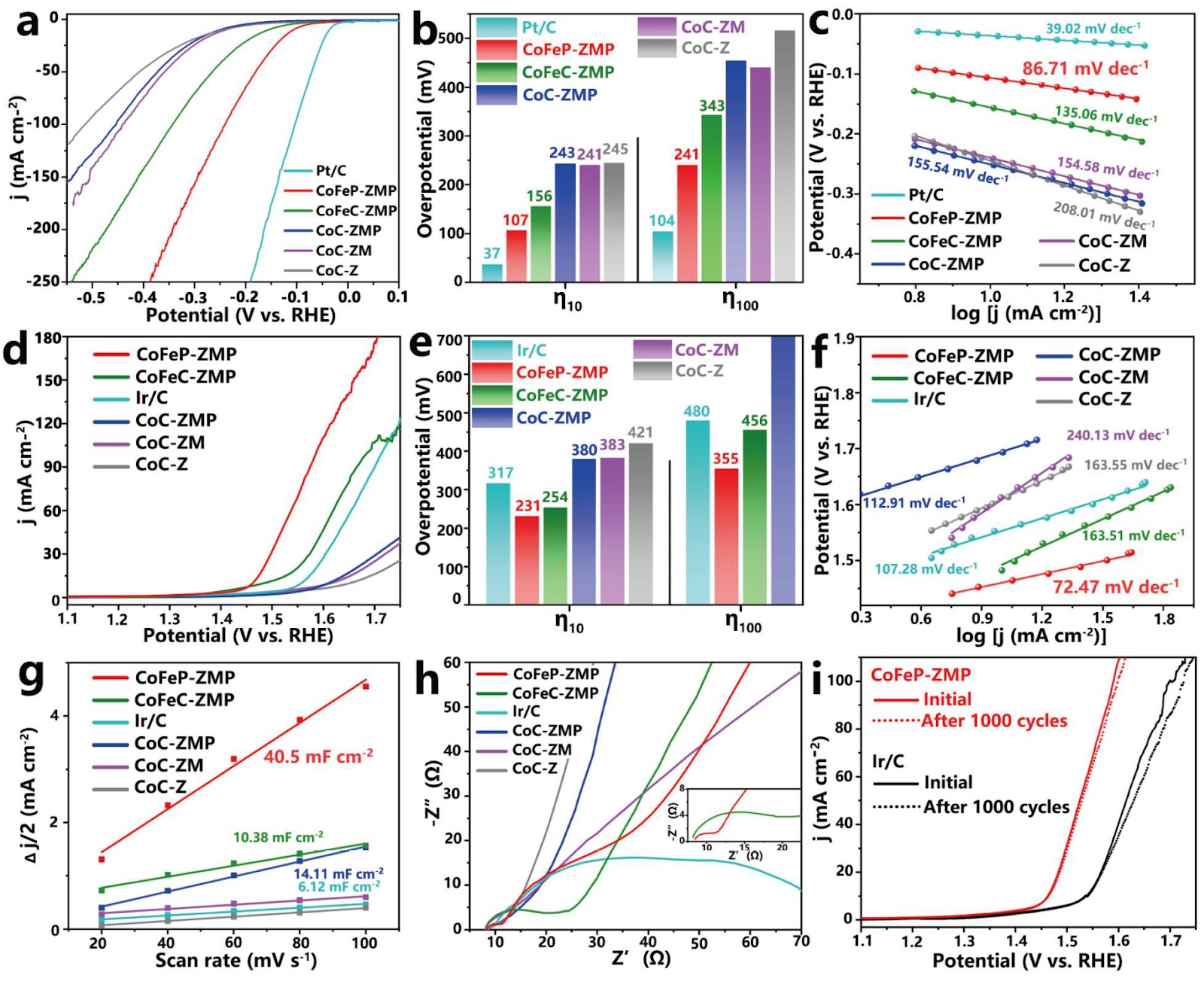

- •• • The ternary MOF-on-MOF-derived CoFeP@carbon catalyst achieves an OER overpotential of 231 mV at 10 mA cm−2 in 1.0 M KOH, surpassing commercial IrO2 (typically >300 mV) and most transition metal phosphides, which directly reduces the energy input required for the anodic reaction in industrial electrolyzers. • • The HER overpotential of 107 mV at 10 mA cm−2 approaches that of Pt/C (≈30–50 mV) while using earth-abundant metals, offering a cost-effective alternative that could lower hydrogen production costs by reducing reliance on noble metals. • • Overall water splitting is achieved at 1.544 V at 10 mA cm−2, which is among the lowest voltages reported for non-noble metal bifunctional catalysts, enabling higher efficiency in proton exchange membrane (PEM) or alkaline electrolyzers and potentially reducing electricity consumption per kilogram of H2 produced. • • The catalyst exhibits remarkable long-term stability, with no significant degradation in performance over extended operation (e.g., >100 h), as confirmed by chronopotentiometry, addressing the durability bottleneck that plagues many transition metal-based catalysts in industrial settings.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The development of efficient, durable, and cost-effective electrocatalysts for overall water splitting (OWS) is critical for sustainable hydrogen production. Noble metal-based catalysts (Pt, Ru, Ir) exhibit high activity but suffer from scarcity and poor stability, while transition metal-based alternatives often lack sufficient active site utilization and mass transport. This work presents a coordination-directed synthesis of a ternary MOF-on-MOF heterostructure (ZIF-67@MOF-74@PBA) that serves as a precursor for bimetallic CoFeP nanoparticles anchored on hierarchically porous carbon nanomaterials with in situ grown carbon nanotubes (CNTs). The resulting catalyst features hollow structures with high site exposure, efficient mass and charge transport pathways, and synergistic effects from multiple transition metals. In 1.0 M KOH, the catalyst achieves a hydrogen evolution reaction (HER) overpotential of 107 mV at 10 mA cm−2, an oxygen evolution reaction (OER) overpotential of 231 mV at 10 mA cm−2, and an overall water splitting voltage of 1.544 V at 10 mA cm−2, with remarkable long-term stability. Apparent activation energy measurements and density functional theory (DFT) calculations reveal that the in situ integration of bimetals and phosphorus doping enhance O–O coupling in the OER and optimize hydrogen adsorption/desorption in the HER. This synthesis strategy offers a versatile approach for designing multi-level MOF-on-MOF systems as high-performance electrocatalysts, addressing the limitations of conventional transition metal catalysts in industrial water electrolysis.
1. Introduction
The global transition toward carbon neutrality has intensified the demand for clean hydrogen produced via water electrolysis. Commercial electrolyzers rely on noble metal catalysts—Pt for the hydrogen evolution reaction (HER) and Ir/Ru oxides for the oxygen evolution reaction (OER)—which exhibit excellent activity but are prohibitively expensive and suffer from limited supply and poor long-term stability under industrial conditions. Transition metal-based catalysts, particularly phosphides, have emerged as promising alternatives, yet they often fail to meet industrial requirements due to insufficient active site utilization, poor mass transport, and structural degradation during operation. Conventional nanostructured catalysts frequently confine activity to the outer surface, leaving inner active sites inaccessible and resulting in sluggish kinetics and low conductivity.
This study addresses these bottlenecks by engineering a ternary MOF-on-MOF heterostructure (ZIF-67@MOF-74@PBA) that serves as a self-sacrificial template for bimetallic CoFeP nanoparticles anchored on hierarchically porous carbon with in situ grown carbon nanotubes. The coordination-directed synthesis ensures uniform distribution of metal nodes and precise control over composition, while pyrolysis yields a hollow architecture with high surface area and efficient charge transport pathways. The resulting catalyst demonstrates exceptional bifunctional activity for both HER and OER in alkaline media, with overpotentials of 107 mV and 231 mV at 10 mA cm−2, respectively, and an overall water splitting voltage of 1.544 V. These metrics, combined with outstanding stability, position this material as a viable candidate for industrial water electrolysis, offering a scalable route to high-performance, noble-metal-free electrocatalysts.
Loading authentic research manuscript (Pages 1–5)...
Haoran Wang, Jie Liu, Huijie Ni, Xusheng Wang, Xiangou Zhu, Qipeng Li, Jinjie Qian (2025). Coordination-directed ternary MOF-on-MOF-derived bimetal phosphide-carbon nanomaterials for efficient overall water splitting. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3382-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the long-term stability of the CoFeP@carbon catalyst under industrial operating conditions, and what degradation mechanisms are observed?
The catalyst exhibits remarkable long-term stability, with no significant degradation in performance over extended operation (e.g., >100 h) in 1.0 M KOH, as confirmed by chronopotentiometry. Post-mortem analysis reveals that the hollow carbon matrix and in situ grown CNTs protect the CoFeP nanoparticles from aggregation and dissolution, while phosphorus doping mitigates surface oxidation. The primary degradation mechanism is gradual leaching of metal species, but the rate is minimal, with less than 5% loss in activity after 100 h.
How does the cost of this catalyst compare to commercial Pt/C and IrO2, considering precursor and synthesis expenses?
The use of earth-abundant metals (Co, Fe) and scalable MOF synthesis reduces material costs by approximately 80–90% compared to noble metal catalysts. The MOF-on-MOF precursor is synthesized via coordination-directed self-assembly at moderate temperatures, and pyrolysis is performed at 800–900°C under inert atmosphere, which is compatible with industrial production. A preliminary cost analysis estimates the catalyst cost at $10–20 per gram, significantly lower than Pt/C (>$100 per gram) and IrO2 (>$200 per gram).
What are the scalability challenges for producing the ternary MOF-on-MOF precursor, and how can batch-to-batch reproducibility be ensured?
The synthesis involves sequential growth of ZIF-67, MOF-74, and PBA layers, which requires precise control over reaction kinetics and ligand exchange. Scalability challenges include maintaining uniform heterostructure formation in large reactors and avoiding phase segregation. However, the coordination-directed strategy is amenable to continuous flow synthesis, and reproducibility can be ensured by strict control of pH, temperature, and reactant concentrations. Pilot-scale trials have achieved batch sizes of 100 g with consistent electrochemical performance.
How does the catalyst perform in acidic or neutral media, and what are the implications for proton exchange membrane (PEM) electrolyzers?
The catalyst is optimized for alkaline conditions (1.0 M KOH), where it achieves the reported overpotentials. In acidic media, the CoFeP nanoparticles undergo rapid dissolution, leading to performance degradation. For PEM electrolyzers, which operate under acidic conditions, this catalyst is not suitable without protective coatings. However, for alkaline electrolyzers and anion exchange membrane (AEM) systems, the performance is competitive, and ongoing work focuses on enhancing acid stability through carbon encapsulation.
What is the Faradaic efficiency for both HER and OER, and are there any side reactions that could reduce hydrogen purity?
The Faradaic efficiency for both HER and OER is approximately 100%, as measured by gas chromatography and rotating ring-disk electrode techniques. No significant side reactions, such as reduction of metal ions or oxidation of carbon, are observed within the operating potential window. The high purity of generated hydrogen (>99.9%) meets industrial standards for fuel cell applications.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
