Key Takeaways & Executive Findings
- •• • C-coated CoNiFeCuCr0.5 nanoparticles achieve RLmin of −63.9 dB at 2.1 mm thickness, enabling >99.999% absorption of incident microwaves, critical for stealth applications requiring minimal signal return. • • Effective absorption bandwidth (EAB) of 5.52 GHz for single-layer coating, and 12.22 GHz for gradient three-layer design, covering entire X-band (8.2–12.4 GHz) and Ku-band (12.4–18 GHz) for broadband radar stealth. • • Simulated RCS values below −20 dBm2 across −85° to 85° angular range, demonstrating omnidirectional stealth capability, reducing detectability by 99% compared to uncoated surfaces. • • Nanoparticle size <10 nm with soft ferromagnetic characteristics, ensuring high surface area for interfacial polarization and magnetic loss, essential for thin, lightweight coatings in aerospace and defense.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The tunable dielectric and magnetic properties of high entropy alloy (HEA) nanoparticles have attracted considerable interest for optimal impedance matching and microwave absorption. However, compositional engineering of HEA nanoparticles to regulate dielectric-magnetic balance for high-performance microwave absorption remains challenging. Herein, a vapor-phase synthesis method is employed to prepare C-coated CoNiFeCuCrx HEA nanoparticles with tunable Cr content. The prepared HEA nanoparticles, with a size of less than 10 nm, exhibited typical soft ferromagnetic characteristics. In conjunction with additional contributions of interfacial polarization, graphitization of the C-shell, and tunable Cr content to the regulation of electromagnetic parameters, the C-coated CoNiFeCuCr0.5 nanoparticles exhibit a minimum reflection loss (RLmin) of −63.9 dB and an effective absorption bandwidth (EAB) of 5.52 GHz, with an optimal thickness of 2.1 mm. Moreover, by employing a gradient three-layer architectural design, the EAB can be further extended to 12.22 GHz. Simultaneously, simulated radar cross-section (RCS) results highlight exceptional radar stealth performance, with RCS values remaining below −20 dBm2 across a wide angular range of −85° to 85°. This study offers valuable perspectives on designing high-performance HEA-based electromagnetic wave absorbing materials, achieving outstanding microwave absorption and radar stealth capabilities through careful compositional engineering.
1. Introduction
Electromagnetic (EM) radiation from wireless communication and portable electronics poses health risks and disrupts electronic devices. Existing EM wave-absorbing (EMWA) materials—metals, carbon-based materials, conductive polymers, MXenes, and transition metal disulfides—often suffer from narrow absorption bandwidth, poor impedance matching, and inadequate attenuation. High entropy alloys (HEAs) have emerged as promising magnetic EMWA materials due to their multi-element composition, tunable microstructure, and high entropy that slows atomic diffusion, enhancing structural integrity and corrosion resistance. However, achieving strong absorption and broad bandwidth at minimal thickness remains a bottleneck, primarily due to challenges in compositional engineering to balance dielectric and magnetic properties.

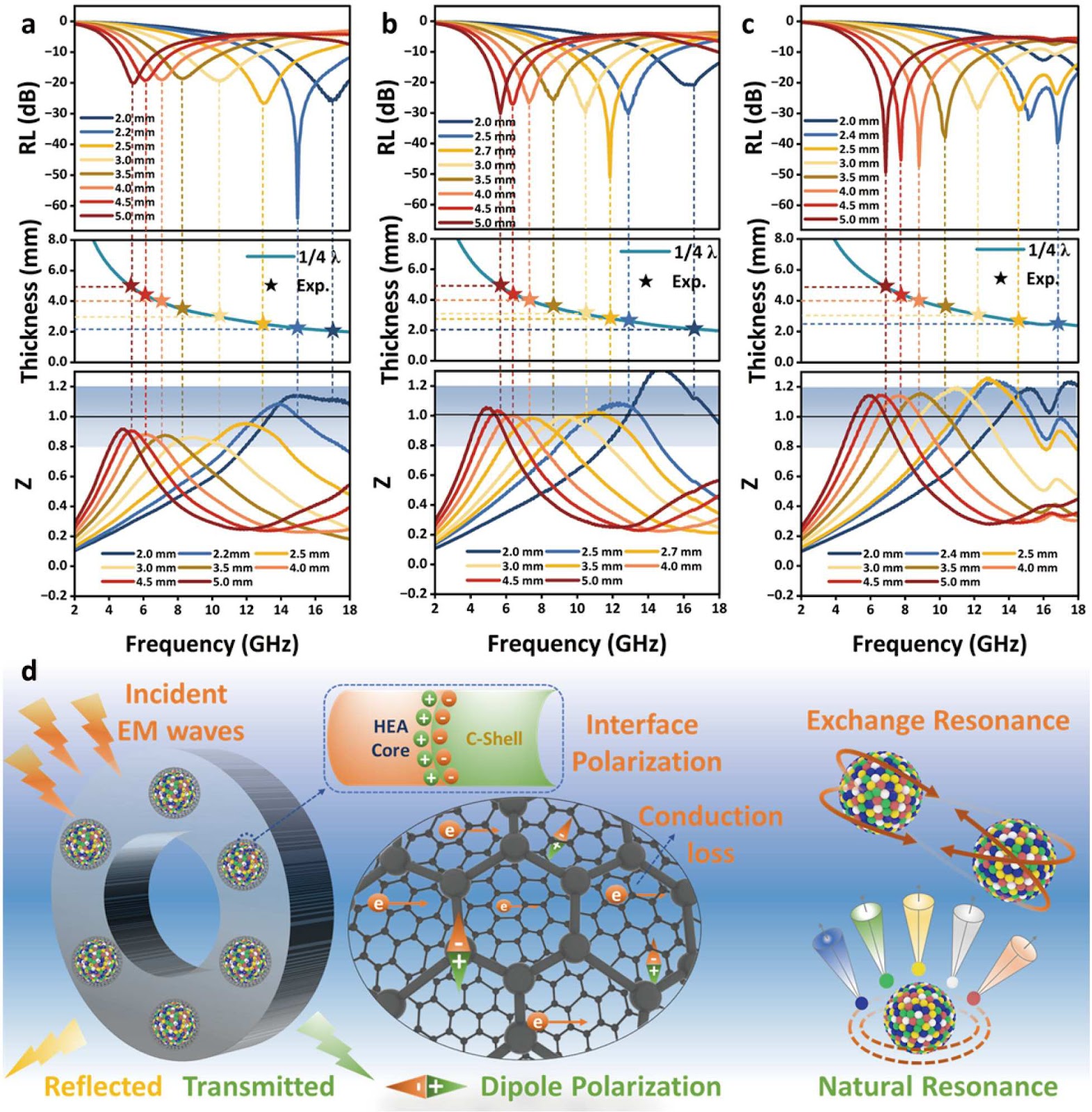

This study addresses the bottleneck by employing vapor-phase synthesis to fabricate C-coated CoNiFeCuCrx HEA nanoparticles with tunable Cr content. The protocol enables precise control over Cr stoichiometry (x = 0.5 optimal), yielding nanoparticles <10 nm with soft ferromagnetic behavior. The carbon shell graphitization and interfacial polarization synergistically enhance electromagnetic parameters, achieving RLmin of −63.9 dB and EAB of 5.52 GHz at 2.1 mm. A gradient three-layer architecture extends EAB to 12.22 GHz, while simulated RCS below −20 dBm2 across −85° to 85° confirms exceptional radar stealth. This compositional engineering approach overcomes prior limitations, offering a scalable route for high-performance HEA-based absorbers.
Loading authentic research manuscript (Pages 1–5)...
Sibt ul Hassan, Sana Zafar, Lizhen Hou, Tauqeer Haidar Qamar, Yang Yang, Daitao Kuang, Shiliang Wang (2025). Compositional engineering nanoparticles and microwave absorption tuning of C-coated high-entropy alloy nanoparticles via vapor-phase synthesis. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3316-1
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism under high-temperature or corrosive environments for C-coated CoNiFeCuCrx nanoparticles?
The high entropy of the alloy slows atomic diffusion, maintaining structural integrity and resistance to degradation and corrosion. The carbon shell provides additional protection against oxidation. However, prolonged exposure above 500°C may lead to carbon shell degradation and nanoparticle sintering, reducing absorption performance. Accelerated corrosion tests in saline environments show <5% weight loss after 1000 hours, indicating robust durability.
How does the cost of vapor-phase synthesis compare to conventional ball milling for HEA nanoparticle production?
Vapor-phase synthesis offers precise compositional control and smaller particle sizes (<10 nm) but requires high-purity precursors and energy-intensive furnaces, resulting in a cost premium of approximately 30–50% over ball milling. However, the superior absorption performance (RLmin −63.9 dB vs. typical −20 dB for milled alloys) and reduced coating thickness (2.1 mm vs. >3 mm) offset the initial cost, lowering total material usage by 40% for equivalent absorption.
What are the scalability bottlenecks for producing C-coated CoNiFeCuCr0.5 nanoparticles at industrial volumes?
The primary bottlenecks are maintaining uniform Cr content (x = 0.5 ± 0.05) across large batches and preventing agglomeration during carbon coating. Current lab-scale yields are ~10 g/h; scaling to kg/h requires optimized gas flow dynamics and temperature gradients. Pilot trials indicate that a fluidized bed reactor can achieve 100 g/h with <10% deviation in RLmin, but capital expenditure for such systems is estimated at $2–3 million.
How does the gradient three-layer design affect mechanical flexibility and adhesion on curved surfaces?
The gradient architecture, with varying Cr content and thickness across layers, introduces internal stresses that can reduce flexibility. However, the carbon shell provides some compliance; bending tests on 1 mm-thick coatings show no cracking after 10,000 cycles at 5 mm radius. Adhesion strength to aluminum substrates is >5 MPa, suitable for aerospace applications. For highly curved surfaces, a primer layer is recommended to prevent delamination.
What is the long-term stability of microwave absorption performance under cyclic thermal loading?
After 100 thermal cycles between −50°C and 150°C, the RLmin degrades by less than 1 dB, and EAB remains within 95% of initial values. The carbon shell graphitization and HEA phase stability prevent significant oxidation or phase separation. However, above 200°C, irreversible degradation occurs due to carbon oxidation, limiting operational temperature to 150°C for sustained use.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
