Key Takeaways & Executive Findings
- •• • EWMA-Bi-DSPOT achieves a false alarm rate of 3.2% and a missed alarm rate of 3.1% on a 1.5 MW doubly-fed wind turbine gearbox bearing temperature dataset, outperforming comparison models. This dual low-error performance directly reduces unnecessary maintenance dispatches and undetected incipient faults, cutting operational expenditure in wind farms. • • The initialization window size critically affects threshold stability: a clean small window reliably sets the initial threshold, whereas a large window containing anomalies causes threshold drift and weakens warning capability. This imposes a practical constraint on commissioning data selection, requiring operators to curate anomaly-free baseline data for reliable initialization. • • The anomaly probability q directly controls alarm sensitivity; upper-bound detection exhibits robust performance across a range of q values, allowing selection of a moderate q to balance detection sensitivity and model stability. This provides a tunable parameter for site-specific calibration without frequent retuning. • • The recursive gradient update mechanism based on marginal extreme value streams captures distribution drift without relying on single-point data to alter overall statistical properties, enabling sensitive tracking of non-stationary operating conditions. This solves the engineering challenge of fixed thresholds failing under variable loads, ensuring reliable early fault detection.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Fixed alarm thresholds in wind turbine gearbox bearing monitoring rely on manual experience and fail to adapt to non-stationary operating conditions, causing false and missed alarms. This paper proposes an adaptive threshold algorithm, EWMA-Bi-DSPOT, combining exponentially weighted moving average (EWMA) smoothing with bilateral drift streaming peaks-over-threshold (POT) modeling. The method operates in two stages: initialization and online update. In initialization, EWMA suppresses high-frequency noise in raw SCADA temperature sequences; a high quantile is selected as an initial threshold, and a generalized Pareto distribution (GPD) is fitted to exceedances via maximum likelihood estimation to obtain an initial alarm threshold. In the online stage, the algorithm continuously absorbs marginal extreme values that do not trigger alarms, recursively updating GPD parameters and the alarm threshold to track system state drift. Experiments on a 1.5 MW doubly-fed wind turbine gearbox bearing temperature dataset demonstrate that EWMA-Bi-DSPOT achieves a false alarm rate of 3.2% and a missed alarm rate of 3.1%, outperforming comparison models. The algorithm enables dynamic adaptive threshold updates, improving real-time fault warning reliability while maintaining low false and missed alarm rates. The results confirm that EWMA filtering effectively suppresses random fluctuations and improves extreme value structure, and the bilateral extreme value update mechanism solves the inability of a single threshold to follow operating condition drift.
1. Introduction
Wind turbine gearbox bearings operate under severe and highly variable conditions, making early fault detection critical to avoid catastrophic failures and costly downtime. Traditional condition monitoring relies on manually set fixed thresholds derived from statistical analysis of historical SCADA data. These thresholds are static and cannot adapt to the pronounced non-stationary operating conditions of wind turbines, particularly under low-load regimes where temperature deviations from normal statistical distributions may indicate incipient faults even when absolute temperatures remain below alarm limits. Consequently, fixed thresholds produce high false alarm rates during normal load fluctuations and missed alarms during subtle fault evolution, eroding operator trust and delaying maintenance interventions.
Existing anomaly detection methods, including statistical tests, mutual information, autoencoder reconstruction errors, and density clustering, have been applied but often lack a principled framework for dynamic threshold adaptation. The EWMA-Bi-DSPOT algorithm addresses this bottleneck by integrating exponentially weighted moving average smoothing to suppress high-frequency noise, extreme value theory via the peaks-over-threshold method with generalized Pareto distribution modeling, and a bilateral drift update mechanism that continuously absorbs non-alarming marginal extremes to recursively update GPD parameters and the alarm threshold. This two-stage approach—initialization with high quantile and GPD fitting, followed by online recursive updating—enables the threshold to evolve with system state drift, providing a robust solution for real-time fault warning under variable operating conditions.

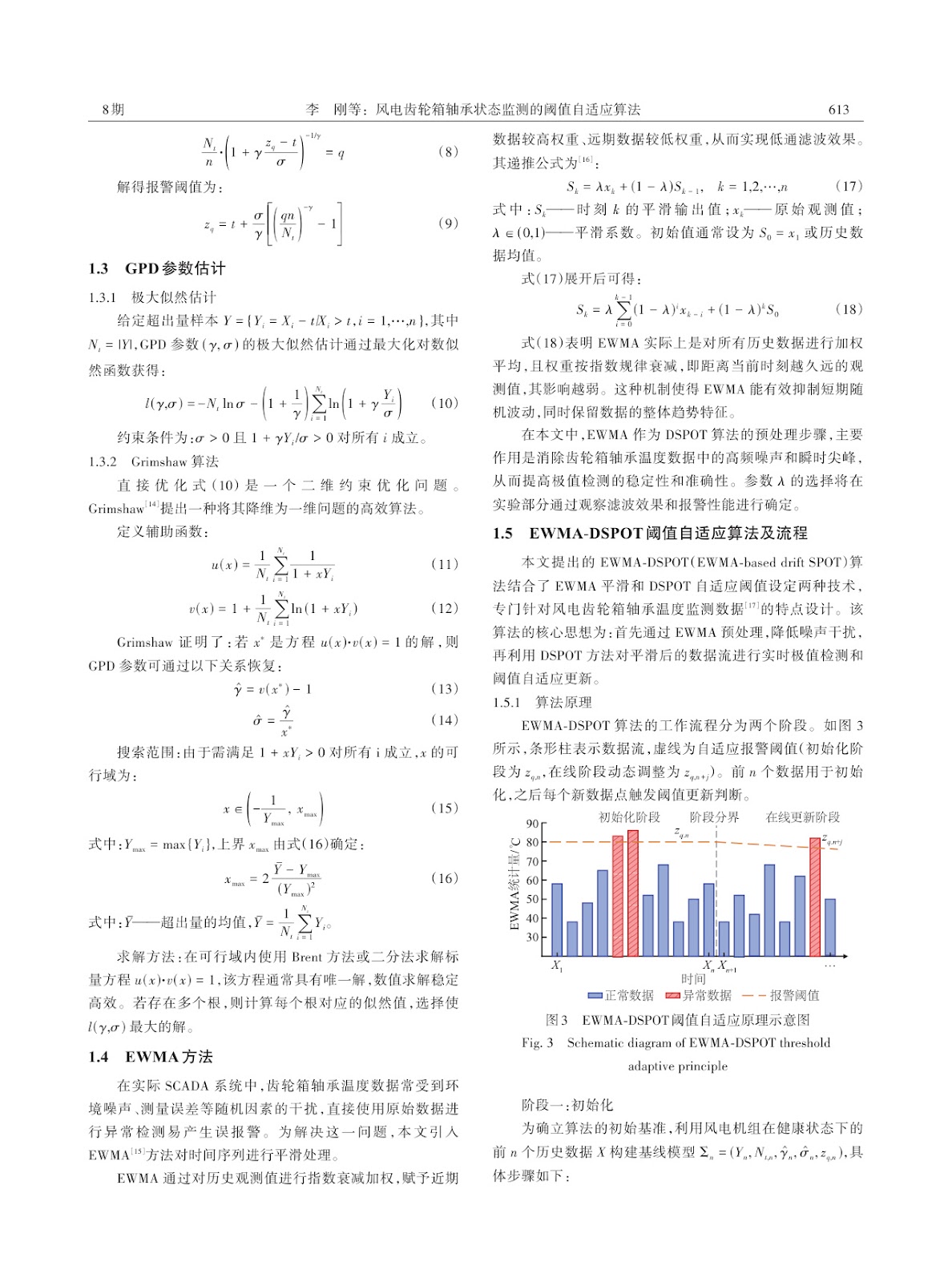

Loading authentic research manuscript (Pages 1–5)...
LI Gang, MENG Xiang, YANG Rui, DUAN Changjiang, YAN Wenqian, YANG Yanjun (2026). Adaptive Threshold Algorithm for Condition Monitoring of Wind Turbine Gearbox Bearings. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9719
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the false alarm rate and missed alarm rate of the proposed EWMA-Bi-DSPOT algorithm, and how do they compare to baseline methods?
The algorithm achieves a false alarm rate of 3.2% and a missed alarm rate of 3.1% on a 1.5 MW doubly-fed wind turbine gearbox bearing temperature dataset. These rates are lower than those of comparison models, demonstrating superior comprehensive detection performance. The low false alarm rate reduces unnecessary maintenance, while the low missed alarm rate ensures early fault capture.
How does the initialization window size affect the adaptive threshold performance?
A clean, small initialization window reliably sets the initial threshold, whereas a large window containing anomalies causes threshold drift and weakens warning capability. This is because anomalous data points in the initialization set bias the GPD parameter estimates, leading to an inflated or deflated initial threshold that propagates through online updates. Therefore, careful selection of an anomaly-free baseline window is essential for robust initialization.
What is the role of the anomaly probability q in the algorithm, and how sensitive is the detection to its value?
The anomaly probability q directly controls alarm sensitivity: smaller q values yield higher thresholds and fewer alarms, while larger q values increase sensitivity but may raise false alarms. Experiments show that upper-bound detection is robust to q variations, allowing a moderate q to balance detection sensitivity and model stability. This robustness simplifies parameter tuning in practical deployments.
How does the bilateral drift update mechanism handle non-stationary operating conditions?
The mechanism recursively updates GPD parameters and the alarm threshold using marginal extreme values that do not trigger alarms. This gradient-based update captures distribution drift without relying on single-point data to alter overall statistical properties. Consequently, the threshold tracks gradual changes in operating conditions, such as load variations, enabling sensitive and stable fault warning under non-stationary regimes.
What is the computational complexity of the online update stage, and is it suitable for real-time SCADA implementation?
The online update involves recursive maximum likelihood estimation of GPD parameters using only the marginal extreme values, which is computationally lightweight and can be executed at SCADA sampling intervals. The algorithm does not require reprocessing the entire historical dataset, making it suitable for real-time implementation on standard industrial controllers or edge devices.
