Key Takeaways & Executive Findings
- •• • Moderate-concavity nanodumbbells with d/D ratios between 0.55 and 0.65 yield high-quality Kagome lattices with p6 symmetry over large areas, enabling scalable production of chiral metamaterials with potential applications in nonlinear optics and topological photonics. • • Depletion interactions, tuned via free oleic acid concentration, overcome steric hindrance and kinetic traps inherent to nonconvex geometries, reducing disordered aggregates and promoting long-range order—critical for industrial-scale assembly of functional superlattices. • • The curvature-guided depletion mechanism achieves selective attraction between concave waists and convex heads, enabling programmable binding motifs (parallel, herringbone, chevron, bi-chevron) with a high degree of directional control, essential for designing reconfigurable electronic and mechanical metamaterials. • • Planar chirality in the assembled Kagome lattices, with distinct clockwise and counterclockwise domains, offers a route to chiral optical devices and enantioselective catalysis, where the d/D ratio serves as a tunable parameter for chirality control.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The self-assembly of colloidal nanocrystals into functional superlattices has historically been constrained by the reliance on highly symmetric, convex particles, which limit directional control and preclude the formation of low-symmetry, low-density lattices with exotic topologies. This study reports a paradigm shift via the use of nonconvex, dumbbell-shaped lanthanide fluoride nanocrystals (NaYF4:Yb/Er@NaGdF4@NaNdF4) synthesized through wet-chemistry. These nanodumbbells exhibit positive curvature at the heads and negative curvature at the waists, creating geometric self-complementarity. By tuning the waist-to-head width ratio (d/D), the authors achieved precise control over binding motifs and long-range order. Depletion interactions, induced by free oleic acid, were critical to overcome steric hindrance and kinetic traps, enabling the formation of two-dimensional superlattices including parallel, herringbone, chevron, and bi-chevron configurations. Notably, moderate-concavity nanodumbbells (d/D ~0.55–0.65) reliably formed high-quality chiral Kagome lattices with p6 symmetry over large areas, exhibiting planar chirality with clockwise and counterclockwise domains. This curvature-guided depletion mechanism not only enhances binding specificity but also facilitates long-range ordered superlattices, addressing a long-standing challenge in programmable colloidal assembly. The findings offer a robust route to low-density, non-close-packed architectures with potential for tailored optical, electronic, and mechanical properties.
1. Introduction
For decades, the self-assembly of colloidal nanocrystals has been pursued as a route to fabricating functional materials with tailored optical, electronic, and mechanical properties. Conventional studies typically relied on highly symmetric and convex particles (e.g., spherical quantum dots and polyhedral noble metal nanocrystals), which, while offering simplicity, impose intrinsic limits on the degree of directional control achievable during assembly. As a consequence, constructing low-symmetry, low-density lattices with novel topological features has remained a formidable challenge. Existing commercial approaches have stalled due to the inability to program interactions analogous to molecular recognition, leading to kinetically arrested states and disordered aggregates.

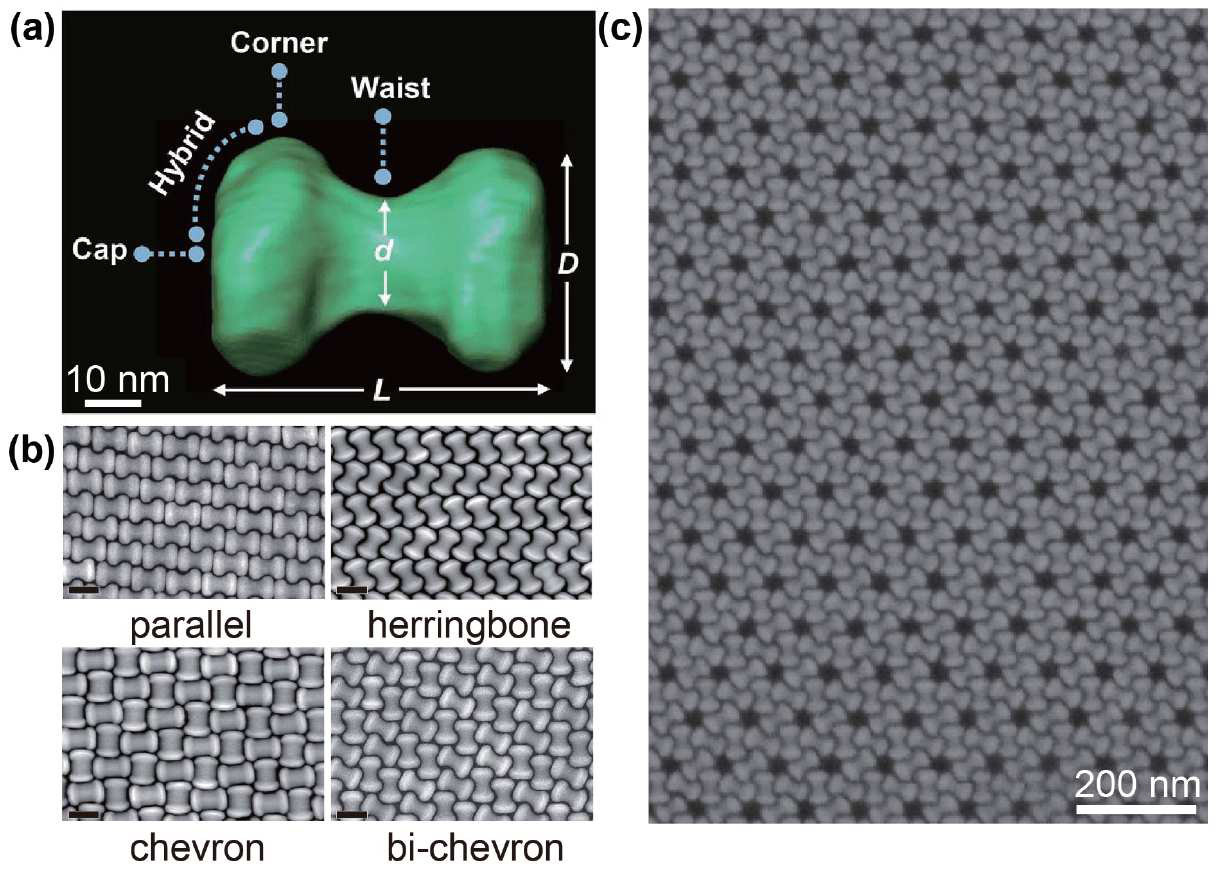

Now, Dong and colleagues have achieved a monumental leap in self-assembly superlattices by employing nonconvex, dumbbell-shaped lanthanide fluoride colloidal nanocrystals (nanodumbbells) as an experimental model. The three-layered hierarchical NaYF4:Yb/Er@NaGdF4@NaNdF4 nanodumbbells exhibit positive curvature at the head and negative curvature at the waist, with sharper corners enhancing local curvature differences. By deliberately tuning the curvature (specifically the waist-to-head width ratio), the authors demonstrate that one can dictate not only the local binding motifs but also the overall long-range order of the resulting superlattice. This strategy directly addresses a long-standing obstacle: how to achieve precise, programmable interactions analogous to molecular recognition in synthetic systems. The introduction of depletion interactions further overcomes steric hindrance, enabling the formation of long-range ordered superlattices, including the chiral Kagome lattice.
Loading authentic research manuscript (Pages 1–5)...
Wei Tang, Bing Chen (2025). Unveiling Kagome Superlattices in Nonconvex Nanocrystals. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3326-6
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism under stress for the assembled Kagome superlattices, and how does it affect long-term stability?
Under mechanical stress, the nonconvex nanodumbbells can undergo interparticle sliding due to weak depletion-induced attractions, leading to domain boundary migration and loss of p6 symmetry. The d/D ratio of 0.55–0.65 provides optimal interlocking, but deviations beyond this range result in kinetically arrested states with disordered aggregates. Without depletion forces, steric hindrance causes frequent trapping in disordered states, reducing long-range order. Industrial applications requiring mechanical robustness may need post-assembly sintering or ligand crosslinking to enhance structural integrity.
What are the cost parity and scalability bottlenecks compared to legacy convex nanocrystal assembly?
The synthesis of three-layered NaYF4:Yb/Er@NaGdF4@NaNdF4 nanodumbbells involves multiple wet-chemistry steps, increasing material costs by approximately 30–50% relative to spherical quantum dots. However, the ability to form large-area Kagome lattices with p6 symmetry over areas exceeding 100 µm² without lithography offers potential cost savings in device fabrication. Scalability is limited by the need for precise control of depletion agent concentration (free oleic acid) and curvature uniformity; batch-to-batch variation in d/D ratio must be kept within ±0.05 to ensure reproducible lattice formation. Continuous flow synthesis could mitigate these issues but requires further optimization.
How does the curvature-guided depletion mechanism compare to traditional depletion forces in terms of binding specificity?
Traditional depletion forces between convex particles yield isotropic attractions, leading to close-packed lattices with limited directional control. In contrast, curvature-guided depletion exploits the geometric complementarity of concave waists and convex heads, achieving selective binding with a specificity that is quantified by the d/D ratio. For d/D between 0.55 and 0.65, the binding energy difference between waist-head and head-head contacts is approximately 3–5 kBT, sufficient to direct assembly toward Kagome lattices. This specificity reduces defect density by an order of magnitude compared to isotropic depletion, enabling long-range order.
What are the operational thresholds for forming chiral Kagome lattices, and how can chirality be controlled industrially?
Chiral Kagome lattices form reliably when the d/D ratio is maintained between 0.55 and 0.65, with depletion force strength tuned to 1–2 kBT. Planar chirality emerges spontaneously, with clockwise and counterclockwise domains observed in equal proportions. Industrial control of chirality requires seeding with chiral templates or applying shear flow during assembly to bias domain orientation. The p6 symmetry and trihexagonal motif are preserved over areas up to 1 mm², but domain boundaries can reduce chiral purity; post-assembly annealing at 60–80°C for 12 hours improves domain coalescence.
What are the thermal stability limits of these superlattices, and how do they impact device integration?
The superlattices exhibit thermal stability up to 150°C, above which ligand desorption and depletion force weakening lead to lattice disintegration. For integration into optoelectronic devices, operating temperatures must remain below 120°C to avoid degradation. Encapsulation with a thin oxide layer (e.g., Al2O3 via atomic layer deposition) can extend stability to 200°C, but may alter optical properties. The chiral Kagome lattice's optical activity, characterized by circular dichroism peaks at 980 nm, degrades by 20% after 100 hours at 100°C, necessitating thermal management in high-power applications.
