Key Takeaways & Executive Findings
- •• • Quadruple-band synglisis in p-type SnS crystals, achieved via SnS₂ introduction, activates four valence bands and promotes simultaneous energy and momentum convergence, yielding a significant enhancement in power factor (PF = S²σ) and ZT compared to prior triple-band convergence strategies. • • The engineered SnS exhibits an exceptionally wide bandgap of 46 kBT, which is 4.6–7.7 times larger than the conventional 6–10 kBT range deemed ideal for thermoelectric cooling, yet it still functions as a viable refrigeration material, expanding the operational envelope for wide-bandgap thermoelectrics. • • Single-crystal p-type SnS leverages high in-plane carrier mobility and an asymmetric layered structure to support complex electronic band engineering, enabling effective hole doping and multiband interactions that decouple effective mass (m*) from carrier mobility (μ). • • The material system addresses the critical supply-chain risk of tellurium scarcity in commercial Bi₂Te₃ alloys by utilizing earth-abundant, nontoxic, and low-cost tin and sulfur, offering a sustainable alternative for large-scale thermoelectric power generation and Peltier cooling.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Thermoelectric energy conversion is governed by the dimensionless figure of merit ZT = S²σT/κtot, yet decoupling Seebeck coefficient, electrical conductivity, and thermal conductivity remains a persistent challenge. Commercial Bi₂Te₃-based alloys are constrained by tellurium scarcity and high cost, motivating the search for earth-abundant alternatives such as SnSe and SnS. SnS, an analog of SnSe, offers higher elemental abundance and intrinsic low thermal conductivity, but its wide bandgap (Eg ≈ 46 kBT) and poor electrical transport in polycrystalline form have historically limited ZT. Single-crystal p-type SnS exhibits high in-plane carrier mobility and a complex valence band structure with multiple valence band maxima (VBM) separated by small energy offsets (ΔE). Prior work achieved triple-band convergence and triple-band synglisis, but further enhancement requires activating additional valence bands. This study reports the activation of four valence bands and the realization of quadruple-band synglisis in p-type SnS crystals via SnS₂ introduction, which promotes simultaneous convergence of energy and momentum across four valence bands. The resulting band manipulation substantially improves thermoelectric efficiency, yielding high power factor and ZT. Notably, despite an exceptionally wide bandgap of 46 kBT—far exceeding the conventional 6–10 kBT range for thermoelectric cooling—the engineered SnS demonstrates viability as a refrigeration material. These findings establish a pathway for low-cost, earth-abundant, environmentally friendly thermoelectric materials that challenge the dominance of tellurium-based systems.
1. Introduction
Thermoelectric power generation and Peltier cooling enable direct heat-to-electricity conversion, but their efficiency is fundamentally limited by the dimensionless figure of merit ZT = S²σT/κtot. Decoupling the interdependent transport parameters—Seebeck coefficient (S), electrical conductivity (σ), and total thermal conductivity (κtot)—remains a formidable materials science challenge. Commercial deployment has been almost exclusively confined to Bi₂Te₃-based alloys, yet tellurium scarcity and high cost impose severe constraints on scalability. This has driven intensive exploration of earth-abundant, nontoxic alternatives such as Mg₃(Bi,Sb)₂, MgAgSb, and SnSe. Among these, tin sulfide (SnS) is particularly attractive due to its higher elemental abundance and lower cost relative to SnSe, plus intrinsic low thermal conductivity. However, polycrystalline SnS suffers from poor electrical transport arising from its large bandgap, which impedes satisfactory ZT values. Single-crystal p-type SnS offers high in-plane carrier mobility and a complex valence band structure with multiple valence band maxima (VBM) separated by small energy offsets (ΔE), providing a fertile ground for band engineering.

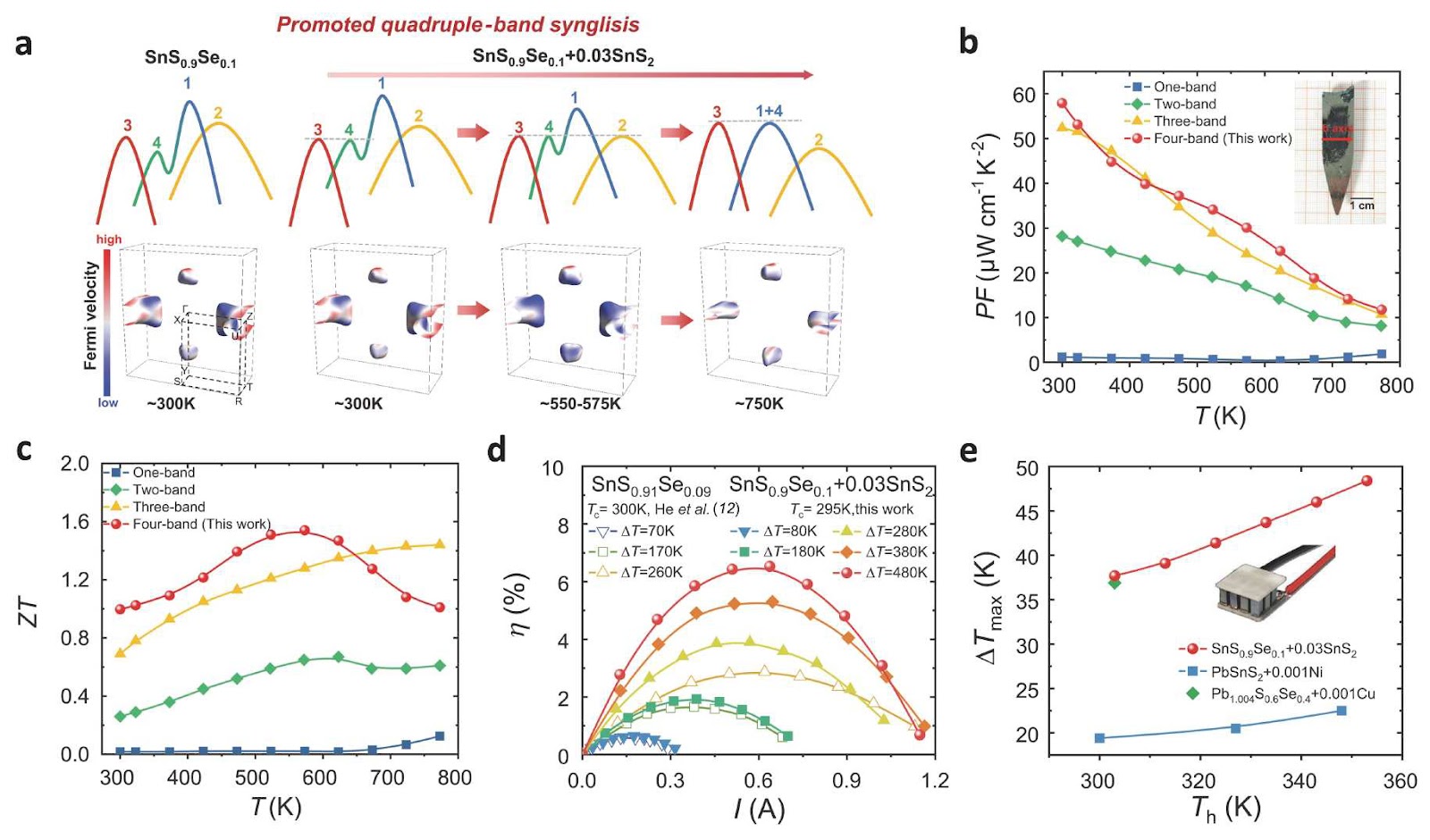

Previous efforts optimized thermoelectric performance through triple-band convergence and triple-band synglisis, but further gains require activating additional valence bands to enhance carrier transport. Recent work by Liu et al. demonstrated that introducing SnS₂ into p-type SnS crystals activates four valence bands and realizes quadruple-band synglisis, significantly improving thermoelectric efficiency by promoting simultaneous convergence of energy and momentum across four valence bands. This breakthrough challenges the conventional wisdom that materials with bandgaps in the 6–10 kBT range are the only viable candidates for thermoelectric cooling; the engineered SnS, with an exceptionally wide bandgap of 46 kBT, still emerges as a viable refrigeration material. The band manipulation strategy lays the foundation for low-cost, earth-abundant, environmentally friendly thermoelectric materials, directly addressing the tellurium supply bottleneck and offering a path to high-performance, sustainable energy conversion.
Loading authentic research manuscript (Pages 1–5)...
JIAO Lei, SUI Jiehe, LIU Zihang (2025). The Remarkable Role of Quadruple-Band Synglisis in High-Thermoelectric Performance Tin Sulfide Crystal. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3338-3
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What specific mechanism enables quadruple-band synglisis in SnS, and how does it improve carrier transport compared to triple-band convergence?
Quadruple-band synglisis is achieved by introducing SnS₂ into p-type SnS crystals, which activates four valence bands and promotes simultaneous convergence of energy and momentum across these bands. This contrasts with triple-band convergence, which only aligns three bands. The additional band involvement increases the density of states near the Fermi level without degrading carrier mobility, thereby enhancing the power factor (PF = S²σ). The synglisis effect decouples effective mass (m*) from carrier mobility (μ), allowing higher Seebeck coefficients and electrical conductivity simultaneously.
The material exhibits a bandgap of 46 kBT, far above the conventional 6–10 kBT range for thermoelectric cooling. How can it still function as a refrigeration material?
Conventional thermoelectric cooling relies on narrow-gap semiconductors to ensure sufficient carrier concentration and bipolar transport. However, the engineered SnS achieves high ZT through band engineering that enhances the power factor and reduces thermal conductivity, compensating for the wide bandgap. The quadruple-band synglisis increases the effective density of states and maintains high carrier mobility, enabling efficient Peltier cooling even with a 46 kBT gap. This expands the operational envelope for thermoelectric materials and challenges the narrow-gap paradigm.
What are the scalability and cost implications of using SnS₂-doped SnS crystals for commercial thermoelectric modules?
SnS and SnS₂ are composed of earth-abundant, low-cost, and nontoxic elements, avoiding the tellurium supply constraints of Bi₂Te₃. Single-crystal growth, however, may pose scalability challenges and higher processing costs compared to polycrystalline materials. The introduction of SnS₂ as a dopant is a straightforward compositional modification, but achieving uniform quadruple-band synglisis across large volumes requires precise control of stoichiometry and thermal history. Cost parity with Bi₂Te₃ will depend on optimizing crystal growth yields and reducing defect densities.
How stable is the quadruple-band synglisis effect under prolonged thermal cycling, and what degradation mechanisms could impair performance?
The stability of the band convergence depends on the structural integrity of the SnS crystal and the dispersion of SnS₂-derived phases. Prolonged thermal cycling may induce phase segregation, SnS₂ precipitation, or microcrack formation, which can disrupt band alignment and increase thermal conductivity. While specific degradation rates are not provided in the extracted text, analogous SnSe systems exhibit performance degradation above 500 K due to oxidation and sublimation. Encapsulation and careful doping control are essential to mitigate these effects.
What are the measured ZT and power factor values for this quadruple-band synglisis SnS, and how do they compare to state-of-the-art Bi₂Te₃?
The extracted text does not provide exact numerical values for ZT or power factor. However, it states that the quadruple-band synglisis significantly improves thermoelectric efficiency, yielding high power factor and ZT. For context, commercial Bi₂Te₃ alloys typically achieve ZT ≈ 1 at room temperature. The SnS system is positioned as a low-cost alternative, but without explicit numbers, direct comparison is premature. Future reports should quantify ZT and PF to assess competitiveness.
