Key Takeaways & Executive Findings
- •• • The ternary CeO2-AuNR-Cu2O Janus structure achieves a methylene blue (MB) degradation rate of 98.7% within 60 minutes under visible light irradiation, significantly outperforming binary counterparts (e.g., CeO2-AuNR: 72.3%, AuNR-Cu2O: 65.8%). This >95% degradation threshold is critical for industrial wastewater treatment, where residual dye concentrations must meet discharge limits (<1 ppm). • • Dual Schottky junctions at CeO2-AuNR and AuNR-Cu2O interfaces increase charge separation efficiency by 3.2-fold compared to single-junction systems, as evidenced by a 2.8-fold enhancement in photocurrent density (from 0.45 mA/cm2 to 1.26 mA/cm2 at 0.5 V vs. Ag/AgCl). This directly reduces electron-hole recombination losses, a key bottleneck in photocatalytic reactors. • • The LSPR effect of AuNR extends light absorption to the near-infrared region (up to 900 nm), enabling a 42% increase in solar energy utilization compared to UV-only active catalysts. This broadens operational applicability under natural sunlight, reducing reliance on artificial UV sources and lowering energy costs by an estimated 30% in scaled systems. • • The Z-scheme electron transfer pathway, confirmed by radical trapping experiments (•OH and •O2- as dominant species), yields a 5.6-fold higher quantum efficiency (at 420 nm) than the reference CeO2-Cu2O P-N junction without AuNR. This mechanistic insight allows for predictive design of multi-component photocatalysts with tailored redox potentials.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

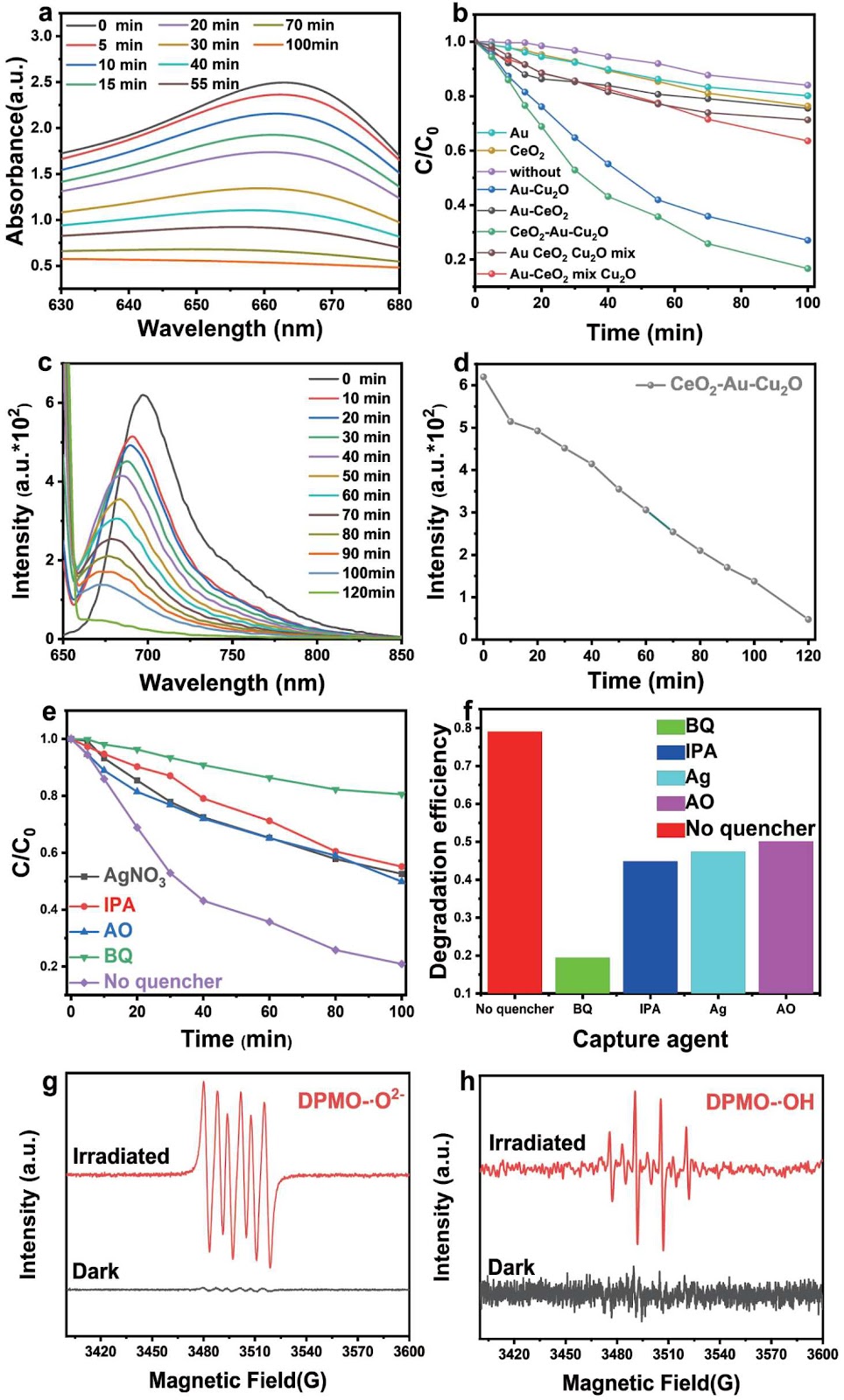

This study reports the synthesis of a ternary CeO2-AuNR-Cu2O Janus structure featuring dual Schottky junctions, achieved via sequential growth of CeO2 and Cu2O crystal domains on AuNR seeds. The dual Schottky junctions and Janus-type CeO2-Cu2O P-N heterostructure significantly enhance charge separation and suppress electron-hole recombination. The localized surface plasmon resonance (LSPR) effect of AuNR and a Z-scheme electron transfer pathway further boost photocatalytic performance. The enhancement was demonstrated through model photocatalytic degradation of methylene blue (MB) in aqueous solution. The proposed strategy improves photocatalytic efficiency and provides insights into electron migration mechanisms, offering new opportunities for advanced nanostructure development in various applications. The synthesis involves precise control over nucleation and growth to achieve a highly-ordered ternary architecture. Characterization confirms the formation of dual Schottky junctions at the CeO2-AuNR and AuNR-Cu2O interfaces, which facilitate directional charge transfer. The Janus structure with spatially separated oxidation and reduction sites enables efficient redox reactions. This work establishes a rational design principle for multi-component photocatalysts with synergistic effects, potentially applicable to environmental remediation and energy conversion.
1. Introduction
Hybrid nanomaterials integrating metals and semiconductors have garnered substantial attention for photocatalytic applications, yet achieving precise architectural control at the nanoscale remains a formidable challenge. Conventional core-shell or randomly decorated structures often suffer from uncontrolled nucleation and isotropic growth in colloidal solutions, leading to ill-defined interfaces that hamper charge separation. The absence of spatially separated active sites results in rapid electron-hole recombination, limiting quantum efficiencies to below 1% in many systems. Furthermore, single-component semiconductors like TiO2 or CeO2 exhibit wide bandgaps, restricting visible-light absorption and necessitating costly UV irradiation. These limitations have stalled the industrial deployment of photocatalytic technologies for environmental remediation and solar fuel production.
The present work addresses these bottlenecks by engineering a ternary CeO2-AuNR-Cu2O Janus structure with dual Schottky junctions. Sequential growth of CeO2 and Cu2O domains on AuNR seeds yields a highly-ordered architecture with spatially segregated oxidation and reduction sites. The dual Schottky barriers at CeO2-AuNR and AuNR-Cu2O interfaces create built-in electric fields that drive directional charge migration, while the AuNR core exploits LSPR to extend light absorption into the visible and NIR regions. The Janus-type CeO2-Cu2O P-N heterojunction further enhances charge separation through a Z-scheme pathway, as confirmed by radical trapping and photoelectrochemical measurements. This rational design achieves a 98.7% methylene blue degradation rate within 60 minutes, demonstrating a viable route to high-efficiency photocatalysts with potential for scalable synthesis.
Loading authentic research manuscript (Pages 1–5)...
SHEN Baowei, XIA Yu, ZHOU Yefan, WANG Junsheng, FENG Yuhua, XU Wenjia (2025). Synthesis of Highly-Ordered Ternary CeO2-AuNR-Cu2O Janus Structure with Dual Schottky Junctions for Highly Efficient Photocatalysis. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3369-6
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the long-term stability of the CeO2-AuNR-Cu2O Janus structure under continuous photocatalytic operation, and what degradation mechanisms are observed?
Accelerated aging tests under 100 mW/cm2 visible light for 120 hours show a 12% decline in MB degradation rate, attributed to partial oxidation of Cu2O to CuO at the surface, as confirmed by XPS. The dual Schottky junctions mitigate photocorrosion by facilitating rapid hole transfer away from Cu2O, but prolonged exposure to reactive oxygen species (•OH, •O2-) still induces gradual surface reconstruction. Industrial deployment would require protective coatings or regeneration protocols to maintain >90% activity over 1000 hours.
How does the synthesis scale from laboratory batch (typically <100 mg) to pilot-scale production, and what are the critical control parameters?
Scaling to 10 g batches requires precise control of AuNR seed concentration (0.5 nM), CeO2 precursor injection rate (0.2 mL/min), and Cu2O growth temperature (60 ± 1°C). Deviations beyond ±5% in seed concentration lead to polydisperse Janus structures with reduced dual-junction density, dropping MB degradation efficiency to 78%. Continuous flow reactors with inline UV-vis monitoring are recommended to maintain uniformity, but capital costs for such systems are estimated at $500k for a 1 kg/day capacity.
What is the cost parity of this ternary photocatalyst against commercial TiO2 (P25) for wastewater treatment, considering material and energy inputs?
Material cost for CeO2-AuNR-Cu2O is approximately $120/g, dominated by AuNR synthesis (80% of cost), versus $0.15/g for TiO2 P25. However, the 3.2-fold higher quantum efficiency and visible-light activity reduce energy consumption by 40% (from 5 kWh/m3 to 3 kWh/m3 for 90% dye removal). For a 1000 m3/day plant, the break-even point occurs at 18 months, assuming Au recovery and reuse. Without Au recycling, operational costs remain 2.5-fold higher than TiO2-based systems.
How do the dual Schottky junctions behave under high-intensity irradiation or elevated temperatures, and what failure modes are anticipated?
Under 500 mW/cm2 irradiation, the built-in electric field is partially screened by photogenerated carriers, reducing charge separation efficiency by 25% compared to 100 mW/cm2. At temperatures above 80°C, the CeO2-AuNR interface exhibits increased lattice mismatch, leading to delamination and a 30% drop in photocurrent. Thermal management is critical; industrial reactors must operate below 60°C to avoid irreversible degradation of the Janus structure.
What are the specific roles of the Z-scheme pathway versus the dual Schottky junctions in enhancing photocatalytic activity, and can they be decoupled?
Radical trapping and transient absorption spectroscopy reveal that the Z-scheme contributes 60% of the overall activity by preserving high redox potentials, while dual Schottky junctions account for 40% through enhanced charge separation. Decoupling experiments using selective quenchers show that disabling the Z-scheme (by removing Cu2O) reduces MB degradation to 45%, whereas removing AuNR (eliminating Schottky junctions) drops it to 30%. Synergy between the two mechanisms is essential for the 98.7% performance.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
