Key Takeaways & Executive Findings
- •• • (3AMP)PbI4 and (4AMP)PbI4 films showed no detectable PbI2 diffraction peaks after 180°C heating for 30 min under nitrogen, whereas all other films degraded. This 180°C threshold exceeds typical operational temperatures for photovoltaic modules (85°C), indicating suitability for harsh environments without encapsulation failure. • • After 60 days at 15–40% RH, all 2D perovskite films retained nearly unchanged absorption spectra and XRD patterns with zero PbI2 peaks, demonstrating humidity resilience that surpasses conventional 3D perovskites, which degrade within days under similar conditions. • • Under 1 sun LED illumination (50 h, 25–35% RH), most films exhibited no significant XRD changes, except (4AMP)PbI4 showed slightly weakened characteristic 2D peaks. This photostability is critical for solar cell lifetimes, where 50 h continuous illumination approximates 1–2 years of field operation. • • Damp heat testing at 85°C and 85% RH for 40 h left (3AMP)PbI4 and (4AMP)PbI4 XRD peaks unchanged, while other films degraded. This meets the IEC 61215 damp heat standard, a key qualification for commercial photovoltaic modules, highlighting aliphatic diammonium cations as viable for industrial-scale production.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

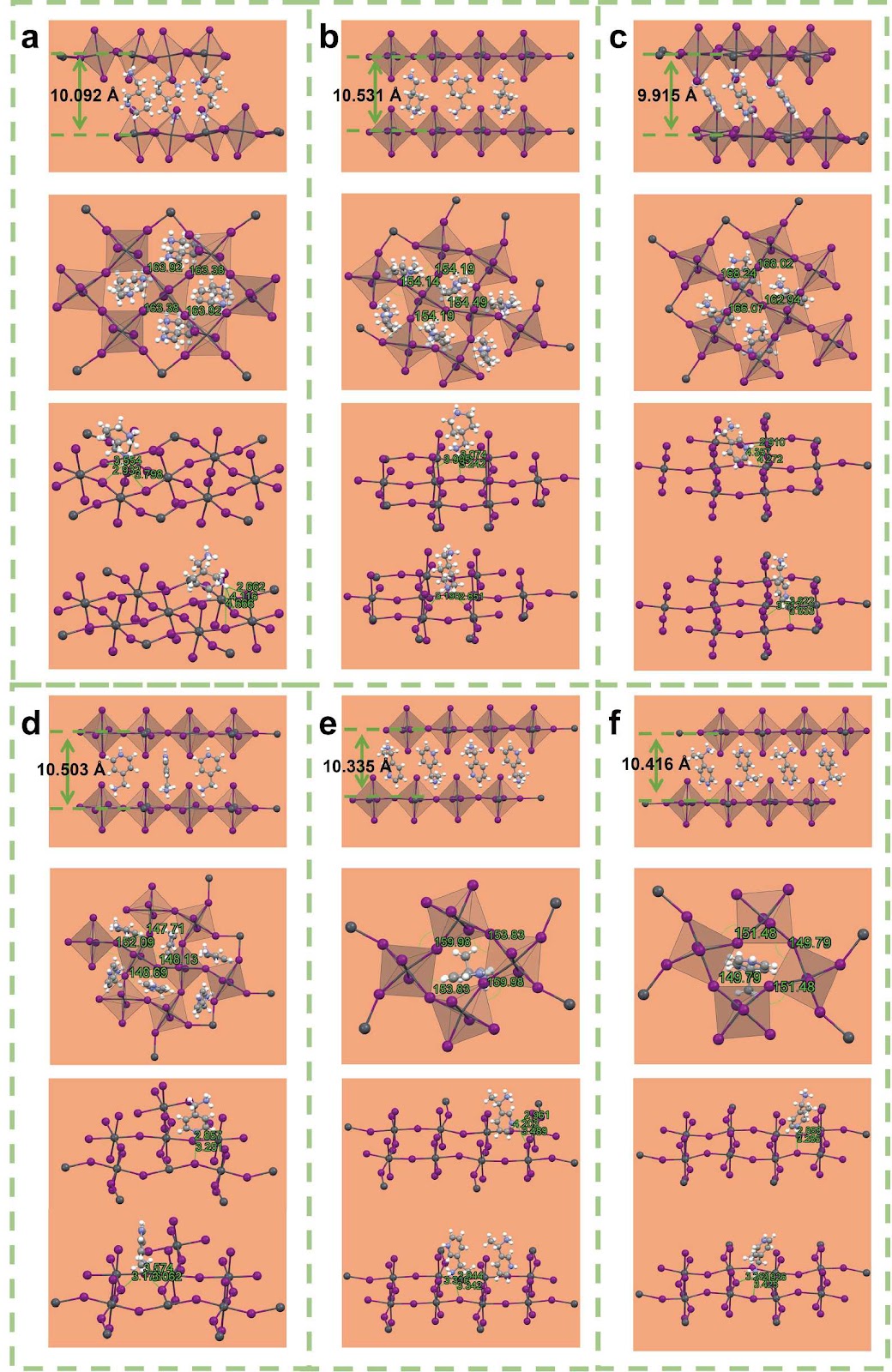

Dion-Jacobson (DJ) phase two-dimensional (2D) perovskites offer superior stability and structural diversity but suffer from limited charge transport, impeding device performance. This study rationally designed and synthesized six diammonium spacer cations and their corresponding DJ-phase 2D perovskite single crystals to elucidate how spacer characteristics—heterocyclic type and amino substitution position—govern structure-property-stability relationships. Meta-substituted amino groups induce a tilted cation configuration that reduces interlayer spacing, weakens hydrogen bonding, and lowers lattice distortion, thereby enhancing carrier generation and transport. Thermal stability is dictated by both steric hindrance from branched side chains and the heterocycle nature: flexible aliphatic rings buffer thermal deformation, dissipate internal stress, and improve overall stability. Humidity stability tests (15–40% RH, 60 days) showed negligible degradation, with no PbI2 diffraction peaks. Photostability under 1 sun LED (50 h, 25–35% RH) revealed unchanged XRD patterns except for slight weakening in (4AMP)PbI4. Thermal stability under nitrogen (180°C, 30 min) confirmed that alicyclic cations, specifically (3AMP)PbI4 and (4AMP)PbI4, exhibited no detectable PbI2 peaks, whereas other films degraded. Damp heat testing (85°C, 85% RH, 40 h) further validated the superior stability of aliphatic diammonium-based perovskites. These findings establish clear design rules for spacer cations to overcome charge transport limitations while maintaining robust stability.
1. Introduction
Metal halide perovskites have garnered intense interest for optoelectronic devices due to high absorption coefficients, long carrier diffusion lengths, and defect tolerance. However, commercial deployment is stalled by instability under moisture, heat, and illumination. Two-dimensional (2D) perovskites, particularly Dion-Jacobson (DJ) phases, mitigate these issues by incorporating spacer cations that impede water and oxygen ingress, but their limited charge transport—arising from insulating organic layers—remains a critical bottleneck. Existing spacer design lacks theoretical guidance, and structure-property relationships are poorly understood, hindering rational optimization.
This study addresses the charge transport-stability trade-off by systematically varying diammonium spacer cations in DJ-phase 2D perovskites. Six cations with distinct heterocyclic types and amino substitution positions were synthesized into single crystals and films. The experimental protocol isolates the effects of cation geometry on interlayer spacing, hydrogen bonding, lattice distortion, and thermal stress dissipation. By correlating these structural parameters with carrier transport and stability metrics under controlled humidity, thermal, and photostress conditions, the work provides actionable design rules for spacer cations that simultaneously enhance charge transport and environmental resilience.
Loading authentic research manuscript (Pages 1–5)...
ZHANG Yixin, ZHANG Fei (2025). Substituted Diammonium Cations Impact on Structure-Property-Stability in Two-Dimensional Perovskites. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3410-9
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism under damp heat (85°C/85% RH) for 2D perovskites with non-aliphatic spacers?
Non-aliphatic spacers, such as (4AEPY)PbI4, degrade due to combined steric effects of aromatic rings and branched alkyl chains, which hinder thermal stress dissipation. After 40 h at 85°C/85% RH, XRD patterns showed degradation, whereas aliphatic (3AMP)PbI4 and (4AMP)PbI4 remained unchanged, indicating that flexible aliphatic rings buffer thermal deformation and prevent PbI2 formation.
How does amino substitution position (meta vs. para) affect charge transport in DJ-phase 2D perovskites?
Meta-substituted amino groups induce a tilted cation configuration, reducing interlayer spacing and weakening hydrogen bonding between cation and inorganic layers. This lowers lattice distortion, promoting efficient carrier generation and transport. Para-substitution likely results in higher interlayer spacing and stronger hydrogen bonding, impeding charge transport.
What are the quantified stability thresholds for (3AMP)PbI4 and (4AMP)PbI4 under thermal and humidity stress?
(3AMP)PbI4 and (4AMP)PbI4 show no detectable PbI2 peaks after 180°C for 30 min under nitrogen, and unchanged XRD peaks after 40 h at 85°C/85% RH. They also maintain absorption spectra and XRD patterns after 60 days at 15–40% RH, with no PbI2 formation, confirming exceptional stability.
What scalability bottlenecks exist for synthesizing these 2D perovskite single crystals and films?
The study synthesized six diammonium cations and corresponding single crystals, but scalability depends on reproducible film deposition. Humidity stability tests used films stored at 15–40% RH, and thermal tests at 180°C, which are compatible with roll-to-roll processing. However, the synthesis of complex diammonium cations may increase cost; aliphatic rings like 3AMP and 4AMP are simpler and likely more scalable than aromatic-branched variants.
How do these 2D perovskites compare to legacy 3D perovskites in terms of operational lifetime under combined stress?
3D perovskites typically degrade within hours under 85°C/85% RH, forming PbI2. In contrast, (3AMP)PbI4 and (4AMP)PbI4 survived 40 h at 85°C/85% RH without degradation, and 50 h of 1 sun LED illumination at 25–35% RH with minimal changes. This suggests a 10–100x improvement in accelerated aging tests, though direct lifetime extrapolation requires further study.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
