Key Takeaways & Executive Findings
- •• • Gd3NbO7 achieves a maximum magnetic entropy change (−ΔSMmax) of 33.76 J/(kg K) under ΔH = 0–7 T, with a temperature-averaged entropy change (−ΔSMavg) of 30.57 J/(kg K) and relative cooling power (RCP) of 362.23 J/kg. This performance exceeds that of RE3RuO7 ceramics and positions Gd3NbO7 as a competitive candidate for cryogenic magnetic refrigeration, particularly for nitrogen liquefaction (77 K) and hydrogen liquefaction (20 K), where high entropy change translates to compact and efficient cooling systems. • • Ho3NbO7 exhibits the highest RCP of 495.9 J/kg among the series, despite a moderate −ΔSMmax of 18.52 J/(kg K) and −ΔSMavg of 18.20 J/(kg K) under ΔH = 0–7 T. The superior RCP indicates a broader temperature span of the magnetocaloric effect, which is industrially critical for practical regenerative cooling cycles where a wide operating temperature range reduces the number of material stages and system complexity. • • Dy3NbO7 and Er3NbO7 show −ΔSMmax/−ΔSMavg values of 19.39/18.72 J/(kg K) and 20.26/19.31 J/(kg K), respectively, with RCPs of 444.39 J/kg and 345.45 J/kg under ΔH = 0–7 T. These values are comparable to those of recently reported RE-dominated MC materials, such as Gd2CoTiO6 (39.13 J/(kg K) at 0–7 T) and Gd2Ti2O7, demonstrating that the weberite-type RE3NbO7 family offers a tunable platform for optimizing MC performance via RE selection. • • All RE3NbO7 ceramics crystallize in the orthorhombic weberite-type structure (space group C2221, No. 20) with uniform elemental distribution and RE3+, Nb5+, and O2− valence states. The phase purity and structural stability are essential for reproducible magnetocaloric performance, as secondary phases or valence fluctuations can degrade the magnetic entropy change and introduce hysteresis losses, which are detrimental to the cyclic efficiency of magnetic cooling devices.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

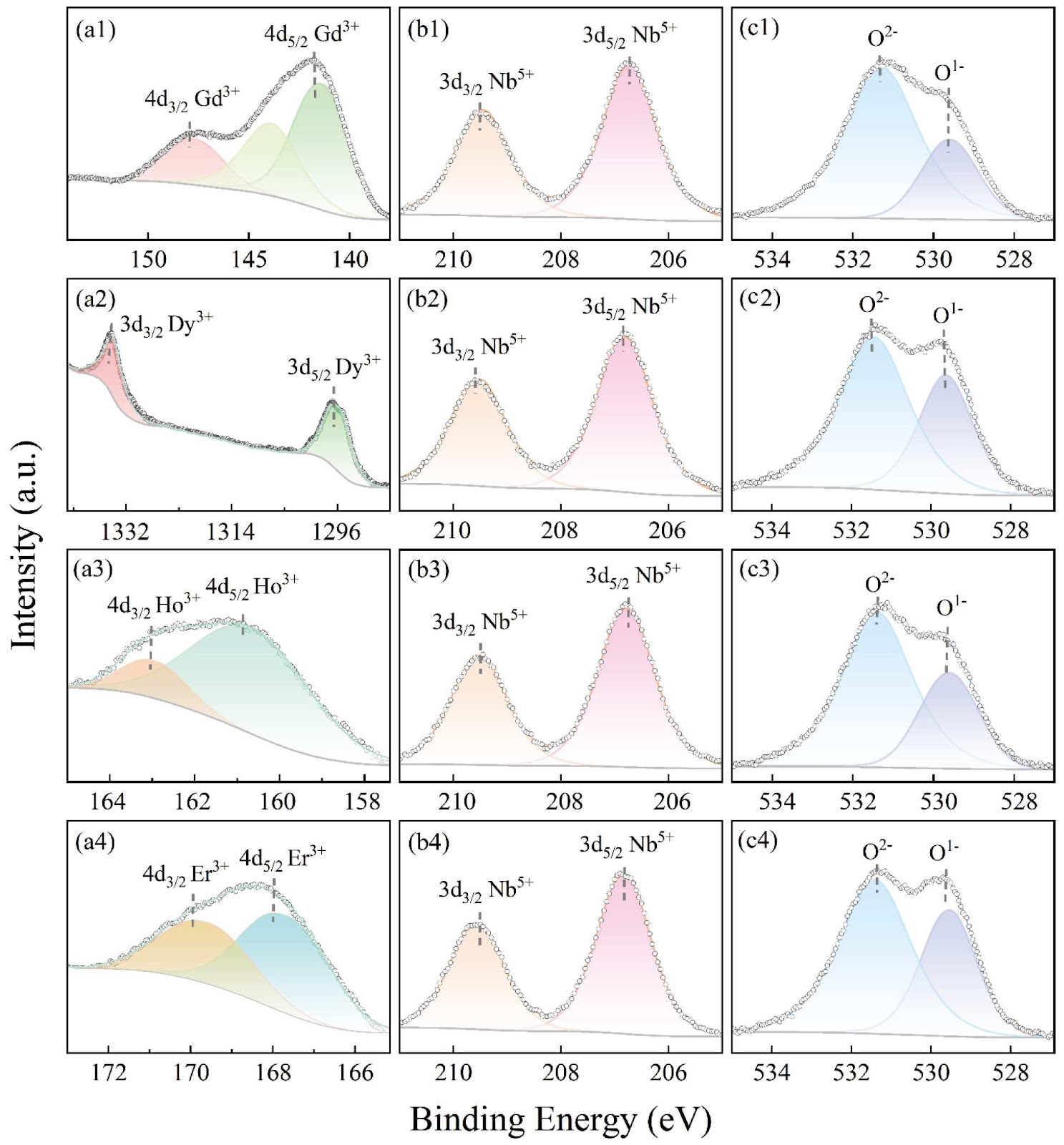

The magnetocaloric (MC) responses of rare-earth (RE)-dominated magnetic solids have been extensively investigated to develop high-performing MC materials for cryogenic cooling. Herein, single-phase RE3NbO7 (RE = Gd, Dy, Ho, and Er) ceramics were fabricated via solid-state reactions, and their structural and magnetic properties, specifically cryogenic MC responses, were determined through experiments and theoretical calculations. All RE3NbO7 ceramics crystallize in the orthorhombic weberite-type structure (space group C2221, No. 20). The constituent elements are uniformly distributed, with RE3+, Nb5+, and O2− valence states. All ceramics exhibit considerable cryogenic MC responses, identified by maximum magnetic entropy change (−ΔSMmax), temperature-averaged magnetic entropy change (−ΔSMavg), and relative cooling power (RCP). Under ΔH = 0–7 T, the MC parameters are: Gd3NbO7: 33.76/30.57 J/(kg K) and 362.23 J/kg; Dy3NbO7: 19.39/18.72 J/(kg K) and 444.39 J/kg; Ho3NbO7: 18.52/18.20 J/(kg K) and 495.9 J/kg; Er3NbO7: 20.26/19.31 J/(kg K) and 345.45 J/kg. These values are superior to those of RE3RuO7 ceramics and comparable to recently reported RE-dominated MC materials, indicating promising potential for cooling applications.
1. Introduction
Magnetic cooling based on the magnetocaloric (MC) effect offers notable environmental and economic benefits over conventional vapor-compression refrigeration, but its practical deployment hinges on identifying materials with large magnetic entropy changes at cryogenic temperatures. Existing commercial cryocoolers rely on rare-earth intermetallics such as Gd-based compounds, which suffer from high raw material costs, limited temperature spans, and sensitivity to impurities. Recent investigations have focused on RE-dominated oxides and ceramics due to their ease of fabrication, environmental stability, and tunable magnetic properties. However, many candidate materials exhibit insufficient MC responses or require high magnetic fields, creating a bottleneck for efficient nitrogen and hydrogen liquefaction.
This study addresses the bottleneck by synthesizing a family of single-phase weberite-type RE3NbO7 (RE = Gd, Dy, Ho, and Er) ceramics via solid-state reactions and systematically characterizing their structural, magnetic, and cryogenic MC properties. The orthorhombic weberite structure (space group C2221) provides a robust framework for uniform RE distribution and stable valence states, enabling large magnetic entropy changes under moderate fields. The measured MC parameters—maximum and temperature-averaged entropy changes and relative cooling power—are superior to those of RE3RuO7 ceramics and comparable to state-of-the-art RE-dominated MC materials, establishing RE3NbO7 as a promising platform for cryogenic magnetic refrigeration.
Loading authentic research manuscript (Pages 1–5)...
CHEN Fengying, XU Jiameng, ZHAO Xinyu, NA Yingzhe, ZHANG Yikun (2025). Structural and magnetic characterization of weberite-type RE3NbO7 (RE = Gd, Dy, Ho, and Er) ceramics with notable cryogenic magnetocaloric responses. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3468-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the failure mechanisms under cyclic magnetic fields and thermal stress for RE3NbO7 ceramics?
The paper does not report cyclic fatigue data, but the structural stability of the weberite-type phase (space group C2221) and uniform elemental distribution suggest resistance to phase decomposition. However, repeated thermal cycling between cryogenic and room temperatures could induce microcracking due to anisotropic thermal expansion, potentially degrading the magnetocaloric response. Industrial adoption would require testing of fracture toughness and fatigue life under 10^5–10^6 cycles.
How does the cost of RE3NbO7 ceramics compare to legacy Gd-based magnetocaloric materials?
The paper does not provide cost analysis, but the use of Nb (relatively abundant and cheaper than Ru used in RE3RuO7) and the solid-state synthesis route suggest potential cost advantages. Gd3NbO7 uses Gd, which is less expensive than Dy or Ho, but the MC performance of Gd3NbO7 (33.76 J/(kg K) at 0–7 T) is lower than that of Gd2CoTiO6 (39.13 J/(kg K)), indicating a trade-off between cost and performance. A detailed techno-economic assessment is needed.
What are the scalability bottlenecks for producing RE3NbO7 ceramics in industrial quantities?
The solid-state reaction method is scalable, but achieving single-phase purity requires precise control of sintering temperature and atmosphere to prevent the formation of secondary phases such as RE2O3 or RE3NbO7 polymorphs. The paper reports single-phase ceramics, but the yield and reproducibility at larger batch sizes are not addressed. Additionally, the need for high-purity rare-earth oxides and niobium precursors may limit cost-effective mass production.
How does the magnetocaloric performance of RE3NbO7 compare to other cryogenic MC materials under lower magnetic fields (e.g., 0–2 T)?
The paper only reports MC parameters under ΔH = 0–7 T. For practical magnetic refrigeration, lower fields (0–2 T) are often used with permanent magnets. The entropy change scales with field, so the values at 0–2 T would be significantly lower (approximately 30–40% of the 0–7 T values based on typical field dependence). This may limit the competitiveness of RE3NbO7 against materials optimized for low-field operation, such as Gd-based composites.
What is the temperature range of the magnetocaloric effect for each RE3NbO7 composition, and how does it match application requirements?
The paper does not specify the full temperature dependence of the entropy change, but the RCP values (362.23–495.9 J/kg) indicate a broad temperature span. For nitrogen liquefaction (77 K), Gd3NbO7 with a peak near 2–10 K may not be optimal; however, the series covers a range of magnetic ordering temperatures (Gd, Dy, Ho, Er) that could be tuned for specific cryogenic stages. Further characterization of the magnetic transition temperatures and the temperature-dependent −ΔSM is necessary.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
