Key Takeaways & Executive Findings
- •• • m-V-CzDPA and m-V-DPADPA exhibit high triplet energies of 2.89 eV and 2.87 eV, respectively, effectively confining triplet excitons in the emitting layer and preventing energy back-transfer, which is critical for maintaining high efficiency in deep-blue TADF OLEDs. • • Carrier diffusion coefficients of 0.54 cm2 s−1 for x-m-CzDPA and 0.44 cm2 s−1 for x-m-DPADPA, with hole mobilities of 4.30×10−4 and 1.39×10−4 cm2 V−1 s−1, demonstrate outstanding intrinsic hole transport capability, enabling balanced charge transport and reduced driving voltage. • • Solution-processed deep-blue TADF-OLEDs employing x-m-CzDPA achieved a maximum current efficiency of 5.25 cd A−1 and maximum external quantum efficiency of 18.06%, with CIE coordinates of (0.162, 0.042), satisfying the BT.2020 standard for ultra-high-definition displays. • • This is the first report of cross-linkable HTMs serving as efficient deep-blue TADF-OLEDs via solution processing, overcoming interlayer mixing and energy level mismatch, and providing a viable route for large-area, flexible deep-blue OLED displays.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

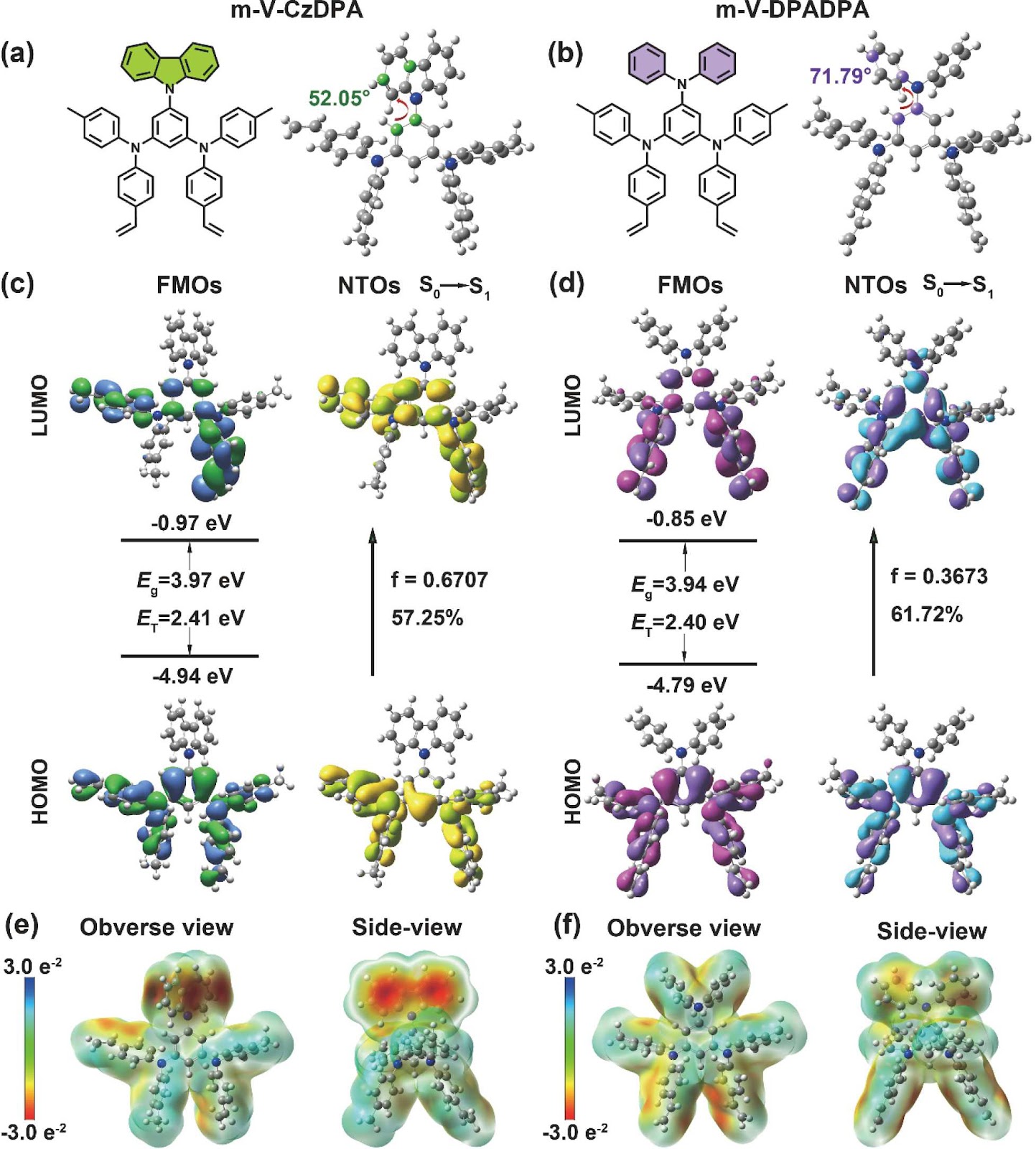

Solution-processed organic light-emitting diodes (OLEDs) face interlayer miscibility issues that degrade efficiency and lifetime. Cross-linkable hole transport materials (x-HTMs) with solvent resistance address this, but deep-blue OLEDs require high triplet energy (ET) and deep HOMO levels to confine excitons and facilitate hole injection. Two star-shaped x-HTMs, m-V-CzDPA and m-V-DPADPA, were designed with aromatic torsion structures yielding ET of 2.89 and 2.87 eV, respectively. Carrier diffusion coefficients of 0.54 and 0.44 cm2 s−1 and hole mobilities of 4.30×10−4 and 1.39×10−4 cm2 V−1 s−1 were measured. Solution-processed deep-blue TADF-OLEDs using x-m-CzDPA achieved maximum current efficiency of 5.25 cd A−1 and external quantum efficiency of 18.06% with CIE coordinates (0.162, 0.042), meeting BT.2020 standard (CIE y ≤ 0.046). This represents the first demonstration of x-HTMs enabling efficient deep-blue TADF-OLEDs via solution processing.
1. Introduction
Solution-processed OLEDs offer advantages in simple fabrication, high material utilization, large-area production, and flexibility. However, interlayer miscibility during solution processing leads to undesired degradation of the emitting layer by the upper hole transport layer, compromising efficiency and lifetime. Cross-linkable hole transport materials (x-HTMs) with near-100% solvent resistance mitigate this issue, but their application in deep-blue OLEDs (emission < 440 nm) is hindered by energy level mismatch and low hole mobility. Deep-blue emitters possess wide bandgaps and high triplet energies (ET), requiring HTMs with even higher ET to confine excitons. Existing x-HTMs for red, green, and sky-blue OLEDs do not meet these criteria, resulting in significant energy barriers and exciton quenching.
This study introduces two star-shaped cross-linkable HTMs, m-V-CzDPA and m-V-DPADPA, designed with aromatic torsion structures to achieve high ET (2.89 and 2.87 eV) and deep HOMO levels. These materials exhibit excellent hole transport properties, with carrier diffusion coefficients of 0.54 and 0.44 cm2 s−1 and hole mobilities of 4.30×10−4 and 1.39×10−4 cm2 V−1 s−1, respectively. When employed in solution-processed deep-blue TADF-OLEDs, x-m-CzDPA enabled a maximum current efficiency of 5.25 cd A−1 and external quantum efficiency of 18.06% with CIE coordinates (0.162, 0.042), meeting BT.2020 standards. This work demonstrates the first successful application of x-HTMs in efficient deep-blue TADF-OLEDs via solution processing, addressing critical bottlenecks in interlayer mixing and exciton confinement.
Loading authentic research manuscript (Pages 1–5)...
Jiaxu Bai, Jingyuan Feng, Chuanxin Liao, Tianhao Wang, Shirong Wang, Hongli Liu, Xianggao Li (2025). Star-shaped cross-linkable hole transport materials with high triplet energy and deep HOMO energy enable efficient solution-processed deep-blue TADF OLEDs. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3638-2
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What are the failure mechanisms under electrical stress for these cross-linkable HTMs in deep-blue TADF OLEDs?
Under electrical stress, the primary failure mechanisms include exciton quenching at the HTL/EML interface due to insufficient triplet energy confinement and morphological degradation from incomplete cross-linking. However, with ET of 2.89 eV for x-m-CzDPA, triplet exciton back-transfer is suppressed, and the cross-linked network provides solvent resistance, mitigating interlayer mixing. Device lifetime data were not reported in this study, but the high ET and deep HOMO (−5.4 eV) suggest improved stability compared to conventional HTMs.
How do the synthesis costs and scalability of m-V-CzDPA compare to commercial HTMs like NPB or TCTA?
The synthesis involves multi-step organic reactions, likely increasing cost relative to commodity HTMs. However, the star-shaped structure and vinyl cross-linking groups enable solution processing, reducing fabrication costs for large-area devices. No explicit cost analysis was provided, but the use of readily available carbazole and diphenylamine derivatives suggests potential for scalable production. The cross-linking step requires thermal curing, which adds a process step but eliminates the need for orthogonal solvents.
What are the operational lifetime (T50) and degradation rates of the deep-blue TADF OLEDs using x-m-CzDPA?
The paper does not report T50 or degradation rates. The focus is on efficiency and color purity. However, the high triplet energy and cross-linked network are expected to enhance operational stability by reducing exciton quenching and interlayer diffusion. For deep-blue TADF devices, lifetime remains a critical challenge, and further studies are needed to quantify degradation under continuous operation.
How does the hole mobility of x-m-CzDPA (4.30×10−4 cm2 V−1 s−1) compare to standard solution-processed HTMs, and is it sufficient for high-brightness applications?
The hole mobility of x-m-CzDPA is comparable to or higher than many solution-processed HTMs, such as cross-linkable triarylamine derivatives (typically 10−5–10−4 cm2 V−1 s−1). This mobility supports efficient charge transport, as evidenced by the high EQE of 18.06% at practical brightness. For high-brightness applications, the balanced carrier transport and low barrier injection (deep HOMO) are advantageous, though further optimization may be needed for ultra-high current densities.
What are the specific challenges in scaling up the synthesis of m-V-DPADPA, and how does its performance compare to m-V-CzDPA?
m-V-DPADPA synthesis involves a triamine core with three vinylphenyl groups, potentially leading to steric hindrance and lower yields. Its hole mobility (1.39×10−4 cm2 V−1 s−1) is lower than m-V-CzDPA, and device performance was not reported. The additional diphenylamine units increase molecular weight and may affect film morphology. Scale-up would require optimization of cross-linking conditions to ensure complete curing without phase separation.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
