Key Takeaways & Executive Findings
- •• • Symmetric Zn||Zn cells with PQ-7 additive sustain 2117 h of cycling at 5 mA cm−2 and 1 mAh cm−2, a 15-fold life extension versus additive-free cells (approximately 141 h). This directly addresses the industrial requirement for >2000 h operation in stationary storage, reducing battery replacement frequency and total cost of ownership. • • Zn||Ti cells achieve Coulombic efficiency above 98% after 240 cycles, indicating that the additive suppresses HER and Zn corrosion to a level compatible with commercial viability. This metric is critical because CE below 99.9% in full cells typically leads to rapid capacity fade; the observed stability suggests that PQ-7 mitigates irreversible byproduct accumulation. • • Zn||MnO2 full batteries retain 92.1% capacity after 1000 cycles at 1 C and 80% after 1000 cycles at 5 C. The high-rate retention (80% at 5 C) demonstrates that the additive does not impede Zn2+ transport kinetics, a common failure mode for bulky surfactant additives, and supports fast-charging applications. • • The additive functions via competitive adsorption: PQ-7 replaces H2O and [Zn(H2O)6]2+ at the Zn surface, shielding water and homogenizing Zn2+ flux. This dual mechanism simultaneously addresses dendrite growth and HER, two degradation modes that are typically tackled separately, simplifying electrolyte formulation and reducing system complexity.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Aqueous zinc-ion batteries (ZIBs) are a low-cost, high-safety alternative to lithium-ion batteries for grid-scale energy storage, but their commercial viability is constrained by zinc dendrite growth and the hydrogen evolution reaction (HER) on the Zn anode, which cause low Coulombic efficiency (CE), short cycle life, and capacity fade. This study introduces polyquaternium-7 (PQ-7), a cationic surfactant, as a multifunctional electrolyte additive. Experimental and theoretical analyses reveal that PQ-7 adsorbs at initial tip sites on the Zn anode, shielding H2O molecules and inhibiting HER. Competitive adsorption with Zn2+ mitigates the tip effect, promoting uniform Zn deposition over dendritic growth. Consequently, symmetric Zn||Zn cells with PQ-7 achieve stable cycling for over 2117 h at 5 mA cm−2 and 1 mAh cm−2, a 15-fold increase over additive-free cells. Zn||Ti cells exhibit a CE exceeding 98% after 240 cycles. Zn||MnO2 full batteries retain 92.1% capacity after 1000 cycles at 1 C and 80% after 1000 cycles at 5 C. These results demonstrate that PQ-7 effectively regulates Zn deposition and suppresses parasitic reactions, offering a straightforward, low-cost strategy for long-life aqueous ZIBs.
1. Introduction
Aqueous zinc-ion batteries (ZIBs) present a compelling alternative to lithium-ion systems for grid-scale energy storage, owing to zinc's abundance, low cost, and intrinsic safety in aqueous electrolytes. However, the commercial deployment of ZIBs is stalled by two interrelated failure mechanisms at the zinc anode: dendritic growth and the hydrogen evolution reaction (HER). Dendrites arise from the tip effect, where Zn2+ preferentially deposits at protrusions, leading to uneven plating, short circuits, and premature cell death. Concurrently, the high activity of zinc in water drives HER and self-corrosion, generating inert byproducts that passivate the electrode and reduce Coulombic efficiency (CE). These phenomena collectively limit cycle life and capacity retention, undermining the economic case for ZIBs in stationary storage.
Existing mitigation strategies—such as interfacial layer modulation, anode structure design, and electrolyte modification—have shown partial success but face trade-offs. Anodic alloying and surface modification improve stability but involve complex, high-cost processes. Organic electrolytes inhibit HER but introduce flammability risks. Electrolyte additives, by contrast, offer a low-cost, scalable route to protect the Zn anode. Prior additives rely on functional groups that adsorb on the Zn surface to shield H2O, yet few simultaneously address dendrite growth and HER without compromising rate performance. This study introduces polyquaternium-7 (PQ-7), a cationic surfactant with abundant polar (–NH2, C=O) and non-polar (–CH3) groups, as a multifunctional additive. PQ-7 adsorbs at initial tip sites, displacing H2O and [Zn(H2O)6]2+, thereby suppressing HER and mitigating the tip effect to promote uniform Zn deposition. The result is a 15-fold increase in symmetric cell cycle life and high capacity retention in full cells, providing a straightforward design pathway for long-life ZIBs.
Loading authentic research manuscript (Pages 1–5)...
YIN Zihao, YAN Xiaoying, LIU Yingjie, GAO Zepeng, LI Zhengyu, QIN Zhenbo, ZHANG Jinfeng, WU Zhong, HU Wenbin (2025). Regulation of Hydrogen Evolution Reaction and Dendrite Growth by Multifunctional Additive for Zn-Ion Batteries. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3532-0
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the long-term stability of the PQ-7 additive under continuous cycling, and does it undergo decomposition or consumption?
The symmetric Zn||Zn cells with PQ-7 cycled for over 2117 h at 5 mA cm−2 and 1 mAh cm−2 without failure, indicating that the additive remains effective throughout extended operation. While the study does not report post-mortem additive concentration analysis, the sustained low overpotential and stable CE suggest minimal consumption. For industrial deployment, additive depletion is a concern; however, the 15-fold life extension compared to additive-free cells implies that PQ-7 is not rapidly degraded. Future work should quantify additive retention after 1000+ cycles to ensure cost-effective replenishment schedules.
Does the PQ-7 additive affect the ionic conductivity or viscosity of the electrolyte, and how does this impact rate capability?
The Zn||MnO2 batteries retained 80% capacity after 1000 cycles at 5 C, demonstrating that the additive does not severely impede Zn2+ transport. While the paper does not provide explicit conductivity or viscosity measurements, the high-rate performance indicates that any increase in viscosity or reduction in conductivity is within acceptable limits. For high-power applications, the additive concentration must be optimized to balance HER suppression with ionic mobility; the observed 5 C retention suggests that PQ-7 is compatible with fast-charging protocols.
How does PQ-7 compare in cost and scalability to established electrolyte additives for ZIBs, such as polyethylene glycol or zinc sulfate?
PQ-7 is a commercially available cationic surfactant used in personal care products, implying low raw material cost and existing production capacity. The study positions PQ-7 as a low-cost additive, but does not provide a detailed cost analysis. For industrial adoption, the additive must be competitive with incumbent strategies. Given that PQ-7 operates at likely low concentrations (not specified in the abstract), the cost per liter of electrolyte is expected to be marginal. Scalability is favorable because surfactant additives are easily integrated into existing electrolyte formulation lines without additional equipment.
What is the mechanism by which PQ-7 mitigates the tip effect, and does it fully eliminate dendrite formation or merely suppress it?

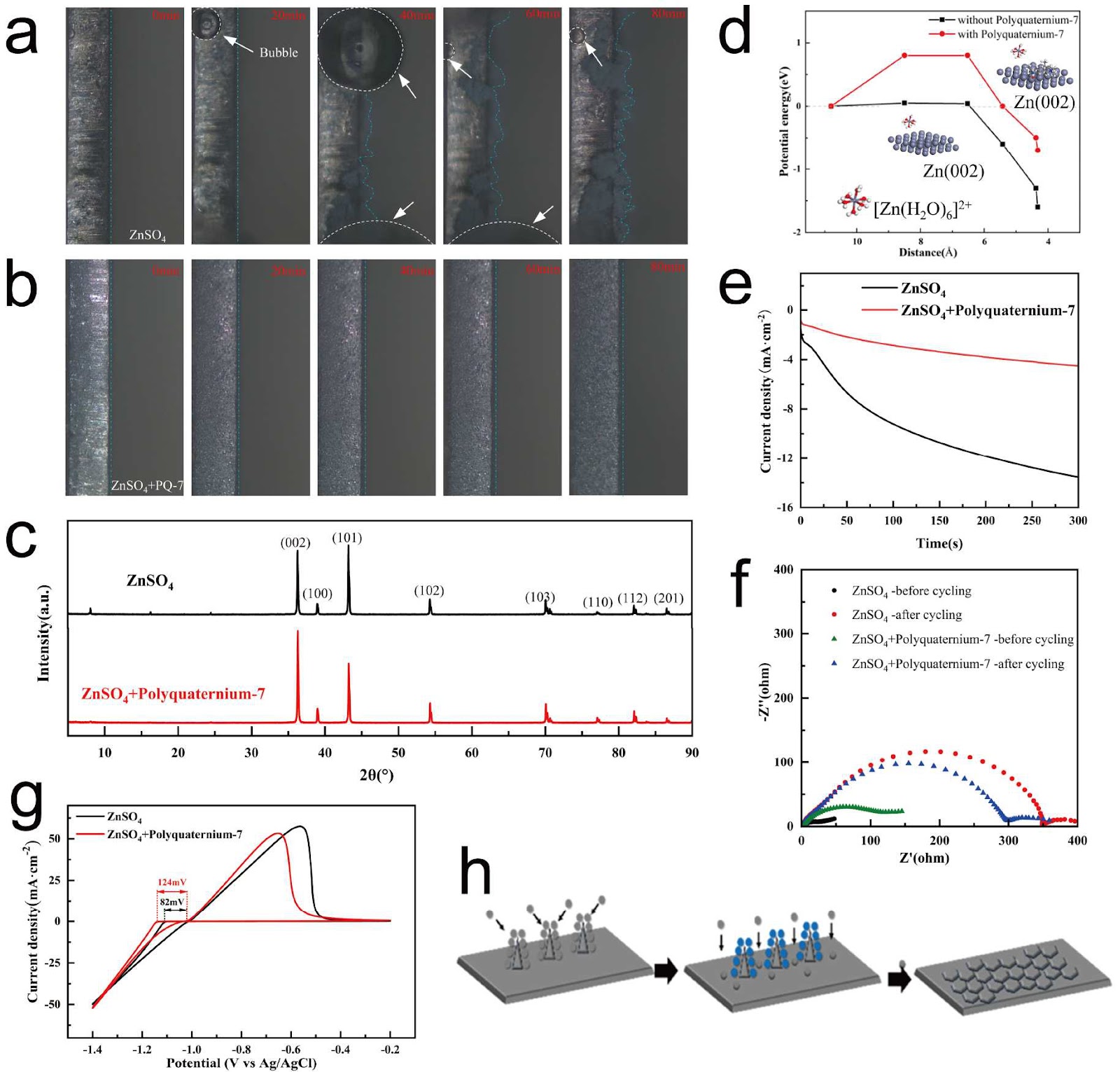

PQ-7 adsorbs at initial tip positions on the Zn anode, competing with Zn2+ and [Zn(H2O)6]2+. This competitive adsorption reduces the local Zn2+ flux at protrusions, homogenizing deposition and preventing dendritic growth. The study reports uniform deposition rather than dendrites, but does not claim complete elimination under all conditions. The 2117 h cycling stability at 5 mA cm−2 suggests that dendrite suppression is robust. However, at higher current densities or areal capacities, the additive may need concentration optimization to maintain effectiveness.
Are there any safety concerns associated with PQ-7 in aqueous electrolytes, such as toxicity or flammability?
PQ-7 is a water-soluble cationic polymer commonly used in cosmetics and personal care products, indicating low toxicity and non-flammability. Unlike organic electrolyte additives, PQ-7 does not introduce combustion risks. The aqueous nature of the electrolyte remains intact, preserving the intrinsic safety advantages of ZIBs. The study does not report any safety incidents, and the additive is expected to be environmentally benign. For large-scale deployment, regulatory approval for use in energy storage devices would require standard toxicology assessments, but no red flags are apparent.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
