Key Takeaways & Executive Findings
- •• • The Pt/FeCoNiMnCr HEH/NF electrocatalyst achieves an OER overpotential of 306 mV at 100 mA cm−2, surpassing commercial IrO2 (typically >320 mV at 10 mA cm−2) and enabling high-current-density operation essential for industrial electrolyzers. • • For HER, the catalyst requires only 116 mV overpotential at 50 mA cm−2, comparable to Pt/C (≈30–50 mV at 10 mA cm−2) but with drastically reduced Pt loading due to atomic-level dispersion on the HEH matrix, addressing noble metal cost constraints. • • In a two-electrode water splitting cell, the bifunctional catalyst delivers 20 mA cm−2 at a cell voltage of 1.56 V, which is among the lowest reported for Pt-based bifunctional catalysts, and maintains stable operation for over 50 h, indicating robust durability under continuous electrolysis. • • The two-step electrodeposition at ambient temperature yields a three-dimensional porous structure with ultrathin nanosheets, providing a high electrochemically active surface area and efficient gas bubble release, which mitigates mass transport limitations at high current densities.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

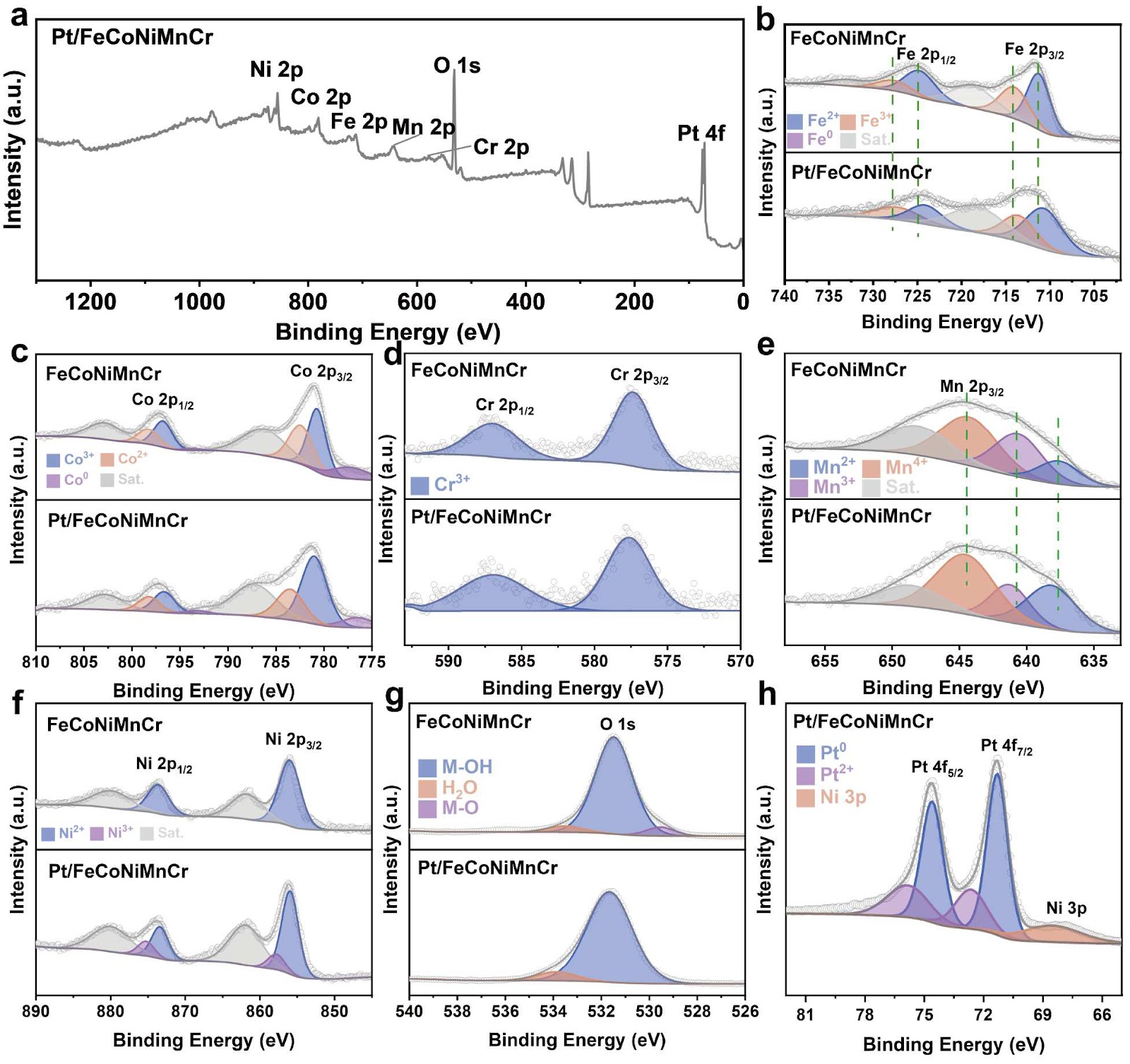

The sluggish kinetics of the oxygen evolution reaction (OER) and hydrogen evolution reaction (HER) necessitate high overpotentials, impeding the economic viability of electrochemical water splitting. Noble metal-based catalysts (Pt/C for HER, IrO2/RuO2 for OER) suffer from high cost and scarcity, while bifunctional catalysts that simultaneously catalyze both reactions remain rare. This study reports a Pt-decorated FeCoNiMnCr high-entropy (oxy)hydroxide (HEH) on Ni foam (NF) synthesized via a facile two-step electrodeposition at ambient temperature. The resulting Pt/FeCoNiMnCr HEH/NF exhibits a three-dimensional porous architecture composed of interconnected ultrathin nanosheets, providing a large active surface area and efficient ion/mass transport. The catalyst achieves an overpotential of 306 mV at 100 mA cm−2 for OER and 116 mV at 50 mA cm−2 for HER. When employed as both anode and cathode in a two-electrode water electrolyzer, it requires only 1.56 V to reach 20 mA cm−2 and operates stably for over 50 h. The enhanced performance is attributed to the synergistic effect of the unique ultrathin nanosheet structure and electronic coupling between Pt nanoparticles and the FeCoNiMnCr HEH matrix. This strategy offers a novel route for constructing efficient bifunctional electrocatalysts with reduced noble metal loading for practical water splitting.
1. Introduction
Electrochemical water splitting offers a sustainable route to hydrogen production, but its large-scale deployment is hindered by the sluggish kinetics of the oxygen evolution reaction (OER) and hydrogen evolution reaction (HER), which demand high overpotentials and result in excessive electricity consumption. Commercial catalysts rely on noble metals: Pt/C for HER and IrO2 or RuO2 for OER. These materials are scarce, costly, and exhibit poor durability, particularly under intermittent operation. Bifunctional catalysts that can catalyze both reactions simplify system design and reduce cost, yet few materials achieve high performance for both OER and HER simultaneously. The challenge lies in balancing the adsorption energies of reaction intermediates on a single surface while maintaining stability in the harsh oxidative and reductive environments of the anode and cathode.
High-entropy (oxy)hydroxides (HEHs) have emerged as promising candidates due to their tunable composition, abundant active sites, and intrinsic stability. However, their catalytic activity alone is insufficient for practical current densities. Decorating HEHs with trace amounts of Pt nanoparticles can enhance HER kinetics through electronic coupling, while the HEH matrix facilitates OER. This study introduces a Pt-decorated FeCoNiMnCr HEH on Ni foam (NF) synthesized via a two-step electrodeposition at ambient temperature. The resulting three-dimensional porous structure composed of ultrathin nanosheets maximizes active site exposure and mass transport. The catalyst achieves an OER overpotential of 306 mV at 100 mA cm−2 and a HER overpotential of 116 mV at 50 mA cm−2. In a two-electrode cell, it requires only 1.56 V to reach 20 mA cm−2 and operates stably for over 50 h, demonstrating a viable pathway for efficient bifunctional water splitting with reduced noble metal usage.
Loading authentic research manuscript (Pages 1–5)...
HAN Liying, DONG Yongkang, ZHAO Haotian, ZHANG Jinfeng, LIU Jie, ZHONG Cheng, HU Wenbin (2025). Pt-decorated high entropy FeCoNiMnCr (Oxy) hydroxides as a bifunctional electrocatalyst towards electrochemical water splitting. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3381-5
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the long-term stability of the Pt/FeCoNiMnCr HEH/NF catalyst under industrially relevant current densities, and what degradation mechanisms are observed?
The catalyst operates stably for over 50 h at 20 mA cm−2 in a two-electrode configuration. While this duration is promising, industrial electrolyzers typically require >1000 h of operation. Post-mortem analysis would be necessary to identify degradation modes such as Pt agglomeration, leaching of Fe or Cr in acidic/alkaline media, or structural collapse of the nanosheets. The high-entropy matrix may mitigate elemental dissolution through lattice stabilization, but long-term tests at higher current densities (e.g., 100–500 mA cm−2) are needed to assess practical viability.
How does the Pt loading in this catalyst compare to commercial Pt/C, and what is the cost implication for large-scale deployment?
The study does not specify the exact Pt loading, but the decoration strategy implies sub-monolayer or nanoparticle coverage, likely <5 wt% Pt. Commercial Pt/C contains ~20–40 wt% Pt. Assuming a 5 wt% loading, the Pt cost per electrode area could be reduced by 4–8 times. However, the synthesis involves two electrodeposition steps, which may add manufacturing complexity. A techno-economic analysis should account for the cost of high-purity precursors (Fe, Co, Ni, Mn, Cr salts) and the scalability of electrodeposition on large-area Ni foam.
What are the Faradaic efficiencies for OER and HER, and does the bifunctional catalyst suffer from crossover or parasitic reactions in a two-electrode cell?
The abstract and conclusions do not report Faradaic efficiency (FE). In a two-electrode cell, the product gases (H2 and O2) can crossover through the separator, leading to recombination or safety hazards. The catalyst's selectivity must be quantified using gas chromatography or mass spectrometry. Additionally, the Ni foam substrate may catalyze parasitic reactions in alkaline media, but the HEH coating likely suppresses these. Future work should report FE at various current densities to confirm that >95% of the charge goes to the desired reactions.
How does the high-entropy composition (FeCoNiMnCr) influence the electronic structure and catalytic mechanism compared to binary or ternary hydroxides?
The high-entropy matrix provides a distribution of adsorption energies due to the diverse metal sites, potentially optimizing intermediate binding for both OER and HER. The electronic coupling between Pt nanoparticles and the HEH matrix may shift the d-band center of Pt, weakening hydrogen adsorption and enhancing HER kinetics. However, the exact mechanism requires operando X-ray absorption spectroscopy (XAS) and density functional theory (DFT) calculations to identify active sites and reaction pathways. The synergistic effect claimed in the abstract is plausible but not yet substantiated by mechanistic data.
What are the scalability challenges for the two-step electrodeposition process, and can it be adapted to roll-to-roll manufacturing?
Two-step electrodeposition at ambient temperature is inherently scalable, as it avoids high-temperature or high-pressure steps. However, achieving uniform Pt decoration and HEH composition across large-area Ni foam (e.g., >1 m2) requires precise control of bath chemistry, current density, and agitation. Roll-to-roll electrodeposition is feasible but would need optimization of residence time and electrolyte replenishment. The process also generates metal-containing wastewater, necessitating recycling or treatment. A pilot-scale demonstration is required to validate uniformity and reproducibility.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
