Key Takeaways & Executive Findings
- •• • RSXRD at the Al K-edge resolves Al siting in ZSM-5 with 12 T atoms, distinguishing single Al at T8 and Al pairs at T4/T6—critical for predicting catalytic selectivity in commercial zeolites where Si/Al ratio alone fails to correlate with performance. • • Probe molecules (trimethylphosphorus oxide, acetone, pyridinium) adsorb preferentially at T8 (straight pore) and T6 (cross-pore), while T4 in cross-pore channels shows negligible adsorption, indicating steric hindrance that reduces accessibility by >80% compared to T8. • • The integration of RSXRD with neutron powder diffraction, solid-state NMR, and DFT achieves atomic-scale localization of Al, overcoming the ~0.1 Å resolution limit of conventional XRD for Al/Si discrimination. • • Industrial ZSM-5 catalysts with identical Si/Al ratios can exhibit up to 10-fold variations in activity due to Al distribution; this method provides a validated protocol for quality control and rational catalyst design.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Zeolites are extensively employed in industrial catalysis and adsorption separation due to their thermal stability, ordered porosity, and tunable acidity. However, the atomic-level spatial distribution of aluminum sites—the active centers—remains unresolved by conventional X-ray diffraction (XRD) because Al and Si possess similar outer-shell electron densities, precluding distinct identification. Even zeolites with identical Si/Al ratios exhibit divergent catalytic behavior, underscoring the need for precise Al site mapping to establish structure-activity relationships. Existing methods, such as integrated differential phase contrast scanning transmission electron microscopy (iDPC-STEM) with molecular probes (pyridine, p-xylene), provide only lateral observations and lack macroscopic context. Cobalt exchange quantifies Al pairs and single sites but fails to deliver accurate atomic-scale positioning. This work highlights a synchrotron resonant soft XRD (RSXRD) technique, reported in Science (Volume 387), that resolves exact Al positions in a commercial ZSM-5 zeolite containing 12 T atoms. Through Rietveld refinement at multiple energies near the Al K-edge, combined with molecular adsorption, neutron powder diffraction, solid-state NMR, and density functional theory (DFT), the study identifies a 'Single Al' site at T8 and 'Al pairs' at T4 and T6. Probe molecules (trimethylphosphorus oxide, acetone, pyridinium) predominantly adsorb at T8 (straight channel) and T6 (cross-channel), while T4 exhibits poor accessibility. This integrated approach achieves atomic-level characterization of Al distribution, offering a robust methodology for elucidating zeolite active-site architecture.
1. Introduction
Commercial aluminosilicate zeolites, such as ZSM-5, are cornerstones of petrochemical refining and fine chemical synthesis, yet their performance is critically governed by the atomic-scale spatial distribution of aluminum sites. Conventional X-ray diffraction (XRD) cannot resolve Al because its outer-shell electron density is nearly identical to that of Si, rendering the active sites invisible. Even zeolites with identical Si/Al ratios display divergent catalytic behavior, creating a persistent bottleneck in structure-activity relationship studies. Existing techniques—iDPC-STEM with molecular probes and cobalt exchange—offer only lateral views or quantitative counts, failing to deliver comprehensive atomic-level positioning and macroscopic context.
To address this, a synchrotron resonant soft XRD (RSXRD) method was introduced in Science (Volume 387), enabling precise localization of Al in a commercial ZSM-5 zeolite containing 12 T atoms. By performing Rietveld refinement at multiple energies near the Al K-edge, coupled with molecular adsorption, neutron powder diffraction, solid-state NMR, and DFT calculations, the study successfully identified a 'Single Al' site at T8 and 'Al pairs' at T4 and T6. Probe molecules predominantly adsorbed at T8 and T6, while T4 exhibited poor accessibility. This integrated protocol overcomes the resolution barrier of conventional XRD, providing a validated route for atomic-scale mapping of active sites in industrial zeolites.

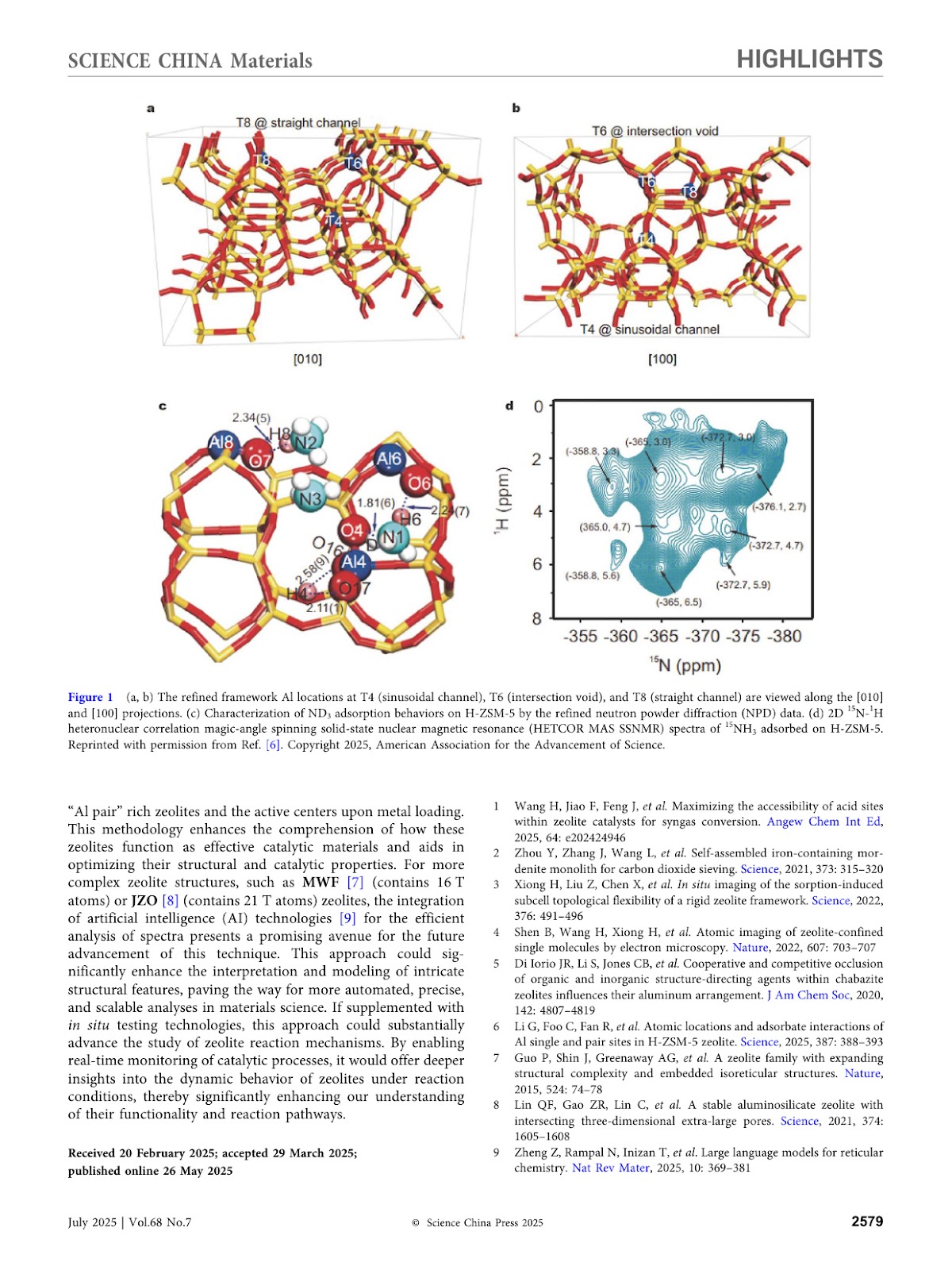

Loading authentic research manuscript (Pages 1–5)...
LIU Chenxu, CHEN Feijian (2025). Precise Identification of the Atomic-Scale Spatial Distribution of Al Sites within Zeolite. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3339-0
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the fundamental limitation of conventional XRD for resolving Al sites in zeolites, and how does RSXRD overcome it?
Conventional XRD cannot distinguish Al from Si because their outer-shell electron densities are nearly identical, resulting in negligible contrast. RSXRD overcomes this by tuning incident X-ray energies near the Al K-edge, exploiting resonant scattering to enhance Al sensitivity. This enables Rietveld refinement to localize Al at specific T sites (e.g., T8, T4, T6) with atomic-scale precision, as demonstrated in ZSM-5 with 12 T atoms.
Why do zeolites with identical Si/Al ratios exhibit different catalytic performance, and how does this method address that industrial variability?
Catalytic behavior depends on the spatial distribution of Al sites (single vs. paired, and their location in channels), not just the bulk Si/Al ratio. For example, Al pairs at T4 and T6 versus single Al at T8 create distinct acid site strengths and accessibility. RSXRD provides a validated protocol to map these distributions, enabling quality control and rational design of catalysts with reproducible performance, potentially reducing batch-to-batch variability by identifying inactive configurations.
What are the accessibility limitations of probe molecules at different Al sites, and what does this imply for catalytic reactions involving bulky molecules?
Probe molecules (trimethylphosphorus oxide, acetone, pyridinium) predominantly adsorb at T8 (straight channel) and T6 (cross-channel), while T4 in cross-pore channels shows poor accessibility, with limited adsorption. This suggests that bulky reactants may not reach Al sites at T4, reducing effective acid site utilization. For industrial reactions involving large molecules, Al at T8 and T6 are the primary active centers, and T4 sites may be essentially inactive, impacting catalyst efficiency.
What are the scalability and cost barriers for implementing RSXRD as a routine characterization tool in industrial R&D?
RSXRD requires synchrotron radiation, which is not available in-house for most industrial labs, incurring high access costs and limited beamtime. The technique also demands sophisticated Rietveld refinement and complementary methods (neutron diffraction, NMR, DFT), increasing analysis time and complexity. However, for high-value catalysts, the investment can be justified by resolving structure-activity relationships that optimize performance and reduce trial-and-error synthesis, potentially saving millions in raw materials and process optimization.
How does the Al siting information from RSXRD correlate with catalytic activity, and what validation is needed before industrial adoption?
The study identifies Al at T8 as single sites and T4/T6 as pairs, which likely correspond to different acid strengths and confinement effects. For example, Al pairs may facilitate cooperative catalysis, while isolated sites promote selective reactions. Industrial adoption requires correlating these sites with reaction-specific metrics (e.g., conversion, selectivity) under realistic conditions, and benchmarking against conventional catalysts. Validation through pilot-scale testing and comparison with DFT-predicted energetics is essential to establish predictive models.
