Key Takeaways & Executive Findings
- •• • Afterglow duration exceeds 70 s by naked eye, enabling practical visual readout without instrumentation; this threshold is critical for field-deployable cold-chain indicators where rapid, equipment-free verification is required. • • Activated RTP state persists ~5 h at 25°C versus ~72 h at 4°C, a 14.4-fold kinetic difference; this temperature-dependent lifetime provides a cumulative thermal exposure metric, essential for monitoring perishable goods during transport. • • Relative RTP intensity loss >84.2% after 3 h at 25°C compared to 4°C, establishing a quantitative threshold for irreversible temperature abuse detection; such sensitivity allows early intervention in cold-chain logistics. • • Photoactivation occurs under both aerobic and anaerobic conditions, eliminating oxygen sensitivity that plagues conventional RTP turn-on mechanisms; this robustness ensures reliable performance in sealed packaging where oxygen levels vary.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Stimuli-responsive room-temperature phosphorescence (RTP) materials face challenges in environmental robustness and spatiotemporal controllability, particularly for oxygen- and temperature-sensitive applications. Here, by taking advantage of the high oxygen-permeability barrier of polyvinyl alcohol (PVA) and its photochemical reaction toward certain polyaromatic hydrocarbons, we present phenanthrene- and triphenylene-doped PVA films that exhibit photoactivatable and persistent RTP, with an observable afterglow time >70 s by the naked eye, likely via a kinetically trapped radical pathway. Specifically, such UV-enhanced persistent RTP occurs under both aerobic and anaerobic conditions, contrasting with a regular RTP turn-on mechanism via photo-induced molecular oxygen depletion. The activated RTP state shows temperature-dependent kinetic persistence, i.e., lasting ~5 h at 25°C vs. ~72 h at 4°C, creating irreversible RTP switching from “on” to “off” ideal for cumulative temperature monitoring. The PVA-based ink patterns printed on perishables (e.g., fresh milk bottles) can be used to quantify ambient exposure via RTP decay kinetics (relative intensity loss >84.2% after 3 h at 25°C vs. at 4°C). The current study establishes a kinetic-control strategy for designing programmable RTP materials, addressing unmet needs in smart sensing and quality assurance.
1. Introduction

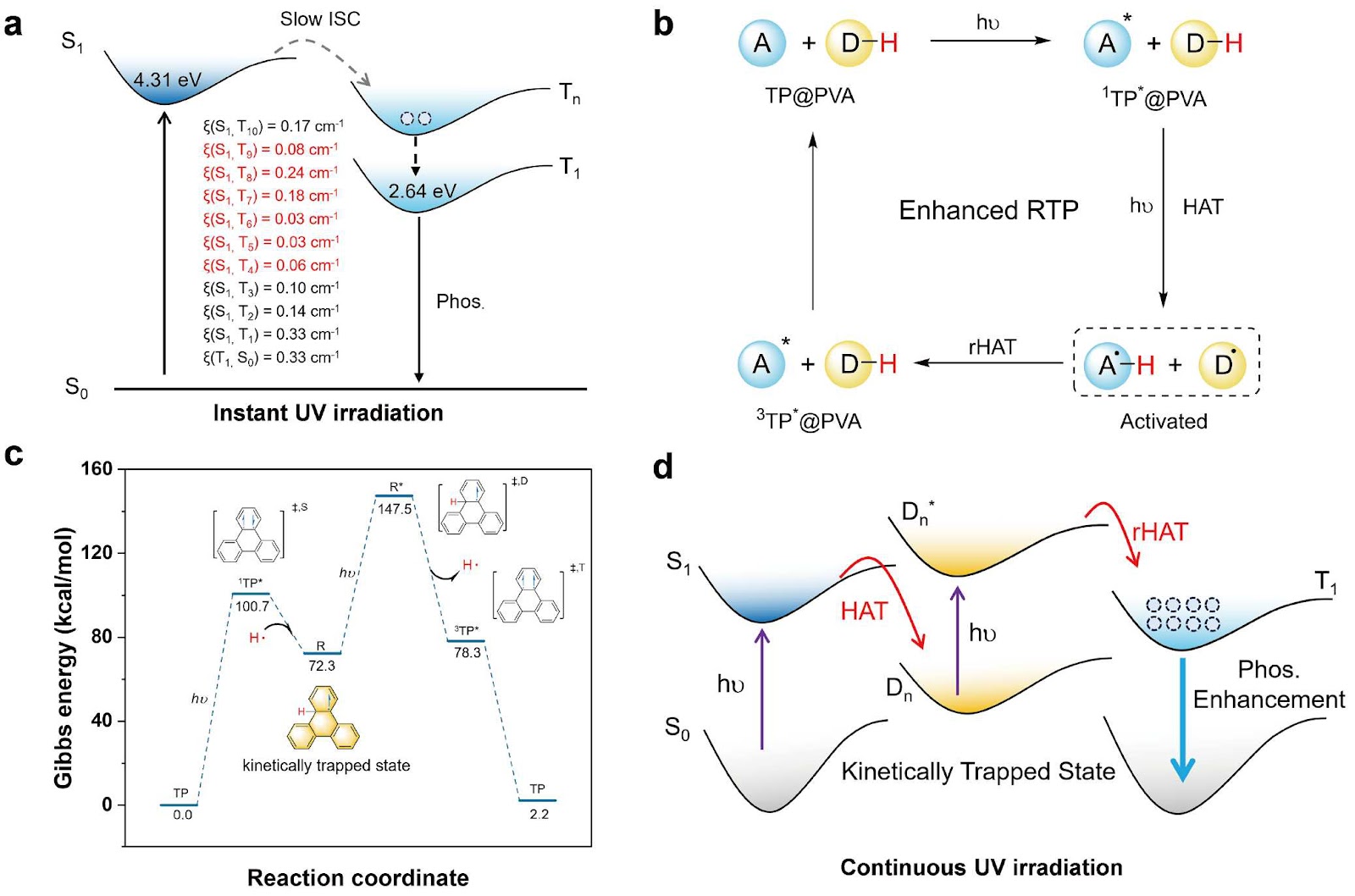

Organic persistent room-temperature phosphorescent (pRTP) materials offer high exciton utilization, low cost, and biocompatibility, yet their application in cold-chain monitoring has been stymied by environmental oxygen sensitivity and limited spatiotemporal control. Existing photoactivated RTP systems predominantly rely on triplet oxygen depletion or enhanced crosslinking, which fail under anaerobic conditions or require complex synthesis. The need for robust, oxygen-independent photoactivation that yields kinetically trapped states with temperature-dependent decay remains unmet.
This study exploits the oxygen barrier properties of polyvinyl alcohol (PVA) and its photochemical interaction with polycyclic aromatic hydrocarbons (PAHs) to create phenanthrene- and triphenylene-doped films. The resulting kinetically trapped radical pathway enables photoactivation under both aerobic and anaerobic conditions, producing persistent RTP with afterglow >70 s. The temperature-dependent persistence—~5 h at 25°C versus ~72 h at 4°C—creates an irreversible on/off switch, ideal for cumulative temperature monitoring. Printed on perishables, these films quantify ambient exposure via RTP decay, achieving >84.2% intensity loss after 3 h at 25°C. This kinetic-control strategy addresses critical gaps in smart sensing and quality assurance for cold-chain logistics.
Loading authentic research manuscript (Pages 1–5)...
LIU Shulin, LI Chensheng, XIE Weijia, CHENG Aoyuan, MU Yingxiao, HUO Yanping, LIANG Fushun, ZHANG Guoqing (2025). Oxygen-Independent Photoactivation of Kinetically Trapped Persistent Room-Temperature Phosphorescence State for Smart Cold-Chain Monitoring. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3441-9
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the mechanism behind the oxygen-independent photoactivation, and how does it differ from conventional RTP turn-on?
The mechanism involves a kinetically trapped radical pathway facilitated by PVA's oxygen barrier and photochemical reaction with PAHs. Unlike conventional RTP turn-on that relies on photo-induced oxygen depletion, this system operates under both aerobic and anaerobic conditions, as evidenced by persistent RTP after UV irradiation regardless of oxygen presence. The afterglow time exceeds 70 s, and the activated state shows temperature-dependent persistence (~5 h at 25°C vs. ~72 h at 4°C), indicating a radical-mediated process that is not oxygen-sensitive.
How does the temperature-dependent RTP decay enable cumulative cold-chain monitoring, and what are the quantitative thresholds?
The RTP decay kinetics are temperature-dependent: at 25°C, the relative intensity loss exceeds 84.2% after 3 h, while at 4°C, the loss is significantly lower, allowing cumulative tracking of thermal exposure. The activated state persists ~5 h at 25°C but extends to ~72 h at 4°C, providing a 14.4-fold difference. This irreversible switching from 'on' to 'off' states quantifies ambient exposure, with the 84.2% loss threshold serving as a marker for temperature abuse.
What are the scalability and manufacturing challenges for producing PVA-based RTP inks for commercial cold-chain labels?
PVA is a low-cost, widely available polymer, and the doping with phenanthrene or triphenylene is straightforward. However, scalability requires uniform dispersion of PAHs in PVA and controlled film thickness to ensure consistent afterglow >70 s. The photoactivation step necessitates UV exposure, which can be integrated into roll-to-roll printing. Challenges include maintaining oxygen barrier integrity during large-scale production and ensuring reproducibility of the kinetically trapped state. The temperature-dependent persistence (~5 h at 25°C vs. ~72 h at 4°C) must be validated across batches.
What is the failure mechanism under prolonged storage or extreme humidity, and how does it affect RTP performance?
PVA is hygroscopic, and high humidity could plasticize the matrix, increasing molecular mobility and accelerating non-radiative decay, thereby reducing afterglow time. The kinetically trapped radical state may also be quenched by moisture or oxygen over time. However, the oxygen-independent mechanism provides some robustness. For cold-chain applications, where temperatures are low, humidity effects are mitigated. Accelerated aging tests are needed to quantify degradation rates, but the >84.2% intensity loss after 3 h at 25°C suggests that the state is metastable and will eventually decay, limiting shelf life.
How does the cost and performance of this PVA-based system compare to existing commercial cold-chain indicators (e.g., time-temperature indicators)?
PVA and PAHs are inexpensive compared to enzyme-based or electronic time-temperature indicators. The system offers a visual readout (afterglow >70 s) without instrumentation, reducing cost. Performance-wise, the temperature-dependent persistence (~5 h at 25°C vs. ~72 h at 4°C) provides a wide dynamic range. However, commercial indicators often have defined thresholds and are single-use; this system is irreversible, aligning with cumulative monitoring. Cost parity is favorable, but large-scale production and validation against regulatory standards are required.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
