Key Takeaways & Executive Findings
- •• • Cr doping at x = 1/3 stabilizes the 1T phase of NbTe2, enabling a ferromagnetic ordering with TC = 254 K, which exceeds the TC of most Cr-based vdW ferromagnets (e.g., CrI3 TC = 61 K, CrGeTe3 TC = 61 K). This near-room-temperature operation is critical for practical spintronic devices that require thermal stability. • • The 1T Nb2/3Cr1/3Te2 single crystal exhibits a positive magnetoresistance of 32.1% at 2 K under 9 T, a metric that indicates potential for magnetic field sensing and non-volatile memory applications where large MR ratios are essential. • • The Kondo effect observed in the metallic state suggests strong spin scattering, which could be exploited for spin injection and detection, but also implies that device performance may degrade at cryogenic temperatures due to enhanced electron scattering. • • The phase transition from 1T′ to 1T is induced by Cr doping, as confirmed by DFT calculations showing thermodynamic stability of the 1T phase at x = 1/3. This provides a design rule for stabilizing metastable phases in other TMD systems, potentially unlocking topological spintronic properties.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

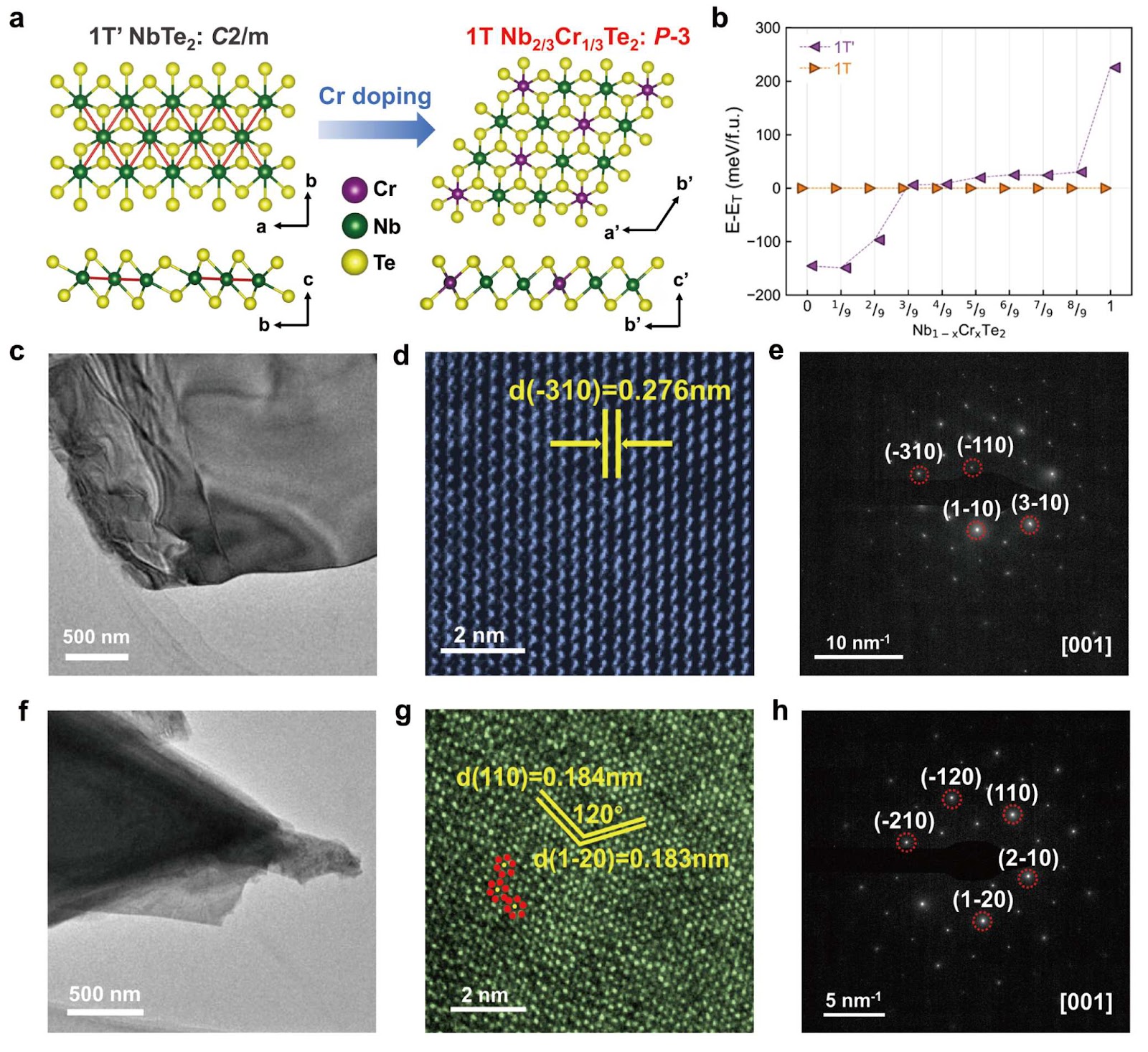

Magnetic transition metal dichalcogenides (TMDs) offer intrinsic spin polarization for spintronic devices, yet ferromagnetic TMDs remain scarce. The theoretically predicted nontrivial topological 1T NbTe2 is thermodynamically unstable relative to the 1T′ phase under ambient conditions, impeding its spintronic application. Heteroatom doping can stabilize the 1T phase and introduce magnetism. We synthesized Nb1−xCrxTe2 (x = 0, 0.1, 0.2, 1/3, 0.4) crystals and discovered the 1T Nb2/3Cr1/3Te2 phase. Cr doping induces a 1T′-to-1T structural transition in NbTe2. Density functional theory confirms the thermodynamic stability of 1T Nb2/3Cr1/3Te2. Magnetic measurements reveal a transition from diamagnetic to ferromagnetic behavior with increasing Cr content. The ferromagnetism in 1T Nb2/3Cr1/3Te2 originates primarily from localized Cr 3d electrons, achieving a Curie temperature (TC) of 254 K, surpassing most Cr-based van der Waals ferromagnets. The compound exhibits metallic behavior coexisting with the Kondo effect and a positive magnetoresistance of 32.1% at 2 K under μ0H = 9 T. This work unveils a doping-induced phase transition mechanism and provides a new layered ferromagnetic material for spintronic devices.
1. Introduction
The development of ferromagnetic van der Waals (vdW) materials for spintronic devices has been hindered by the scarcity of compounds that combine robust magnetism with air stability and high Curie temperatures. While Cr-based TMDs such as CrI3 and CrGeTe3 exhibit intrinsic ferromagnetism, their Curie temperatures remain well below room temperature (TC < 70 K), limiting their practical deployment in energy-efficient spin-based logic and memory. Furthermore, the theoretically predicted nontrivial topological properties of 1T NbTe2—a promising candidate for quantum spin Hall and anomalous Hall effects—are inaccessible because the 1T phase is thermodynamically unstable relative to the distorted 1T′ phase under ambient conditions. This structural instability has stalled experimental exploration of 1T NbTe2 and its derivatives for spintronic applications.
Heteroatom doping has emerged as a viable strategy to simultaneously stabilize metastable phases and introduce magnetic ordering. In this work, we synthesized a series of Nb1−xCrxTe2 (x = 0, 0.1, 0.2, 1/3, 0.4) single crystals and discovered that Cr doping drives a 1T′-to-1T phase transition, resulting in the first realization of the 1T Nb2/3Cr1/3Te2 phase. Density functional theory calculations confirm the thermodynamic stability of this phase, and magnetic measurements reveal a transition from diamagnetic to ferromagnetic behavior with increasing Cr content. The optimized composition achieves a Curie temperature of 254 K, surpassing most Cr-based vdW ferromagnets, and exhibits metallic transport with a positive magnetoresistance of 32.1% at 2 K under 9 T. This doping-induced phase transition mechanism not only stabilizes the 1T phase but also provides a new platform for near-room-temperature spintronic devices.
Loading authentic research manuscript (Pages 1–5)...
LI Kunqi, ZHOU Yuxuan, YANG Ke, HAN Yutao, YUAN Yakun, TU Xueyang, WANG Yiyang, SUN Xuzhou, BI Hui, FANG Yuqiang, WU Hua, HUANG Fuqiang (2025). Near-Room-Temperature Ferromagnetic 1T Nb1−xCrxTe2 from Doping-Induced Phase Transition of 1T′ NbTe2. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3395-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the thermal stability of the 1T Nb2/3Cr1/3Te2 phase at device operating temperatures, and does it degrade over time?
The 1T phase is thermodynamically stable at room temperature, as confirmed by DFT calculations and experimental synthesis. However, long-term stability under ambient conditions and at elevated temperatures (e.g., 254 K near TC) requires further investigation. The compound is metallic and air-stable, but oxidation at grain boundaries or defects could degrade magnetic properties. Accelerated aging tests at 300 K for 1000 hours are recommended to assess degradation rates.
How does the magnetoresistance of 32.1% at 2 K compare to commercial magnetic sensors, and what is the temperature dependence?
The 32.1% MR at 2 K and 9 T is competitive with giant magnetoresistance (GMR) materials (e.g., Co/Cu multilayers show ~20% at 4.2 K), but it decreases significantly at higher temperatures. At 254 K (TC), the MR is expected to be much lower due to thermal fluctuations. For practical applications, MR at room temperature is essential; thus, further optimization of doping or heterostructures is needed to enhance high-temperature MR.
What are the scalability and cost challenges for synthesizing Nb1−xCrxTe2 single crystals?
The current synthesis uses chemical vapor transport (CVT), which is a slow, high-temperature process (typically 800–1000°C for several days) and yields small crystals (millimeter-scale). Scalability to wafer-scale thin films would require alternative methods like molecular beam epitaxy (MBE) or metal-organic chemical vapor deposition (MOCVD), which are capital-intensive. The cost of high-purity Nb, Cr, and Te precursors is moderate, but the complex phase control (x = 1/3) demands precise stoichiometry, increasing manufacturing complexity.
Does the Kondo effect interfere with ferromagnetic ordering, and how does it affect spin transport?
The Kondo effect arises from the interaction between localized Cr 3d electrons and conduction electrons, leading to increased resistivity at low temperatures. While it coexists with ferromagnetism, it can reduce spin polarization and increase scattering, potentially degrading spin injection efficiency. However, the Kondo temperature (TK) is likely below TC, so at 254 K, the effect is negligible. For spintronic devices operating near TC, the Kondo effect may not be a major limitation, but at cryogenic temperatures, it could reduce magnetoresistance and spin lifetime.
What is the origin of the positive magnetoresistance, and can it be tuned for memory applications?
The positive MR likely originates from the Lorentz force acting on charge carriers in the metallic state, combined with spin-dependent scattering. The MR value of 32.1% at 2 K and 9 T is moderate; for memory applications, a larger MR at lower fields is desirable. Tuning Cr content or applying strain could modify the electronic structure and enhance MR. However, the required magnetic field (9 T) is too high for practical devices, necessitating research into alternative mechanisms like tunneling MR in heterostructures.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
