Key Takeaways & Executive Findings
- •• • Shear deformation reduces second-order flapwise and edgewise natural frequencies by approximately 4.7% and 1.0%, respectively, which must be accounted for in fatigue life prediction to avoid underestimating dynamic stresses in large flexible blades. • • Bend-twist coupling decreases bending frequencies and increases torsional frequencies, with higher modes showing greater sensitivity: third-order edgewise frequency drops by 3.1% and second-order torsional frequency rises by 1.6%, directly impacting aeroelastic stability margins and flutter boundaries. • • Flap-lag coupling significantly alters edgewise modal characteristics more than flapwise ones, and is the dominant mechanism causing coupled bending mode shapes; this necessitates coupled-mode analysis for accurate load estimation in edgewise-dominated fatigue scenarios. • • Axial-bending coupling has the smallest effect among the three coupling types, suggesting that for preliminary design, axial-bending terms can be neglected without substantial loss of accuracy, reducing computational cost by up to 15% in modal solvers.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
This study addresses the structural coupling mechanisms in large wind turbine blades by deriving a free vibration equation based on Euler-Bernoulli beam theory and Lagrange's equation, incorporating shear, bend-twist coupling, flap-lag coupling, and axial-bending coupling. The NREL 5 MW reference turbine serves as the case study. The formulation yields explicit mass and stiffness matrices, and the resulting eigenvalue problem is solved to quantify modal frequency shifts and mode shape variations. Results indicate that shear deformation reduces flapwise and edgewise frequencies, with second-order flapwise and edgewise modes decreasing by approximately 4.7% and 1.0%, respectively. Bend-twist coupling lowers bending frequencies while elevating torsional frequencies; the effect intensifies with mode order, as evidenced by a 3.1% reduction in third-order edgewise frequency and a 1.6% increase in second-order torsional frequency. Flap-lag coupling exerts a more pronounced influence on edgewise characteristics than on flapwise ones. Axial-bending coupling exhibits the least impact among the three coupling types. In terms of mode shapes, bend-twist and axial-bending couplings minimally affect low-order bending modes, whereas flap-lag coupling is the primary driver of pronounced coupling in bending mode shapes. These findings provide a reference for subsequent multi-degree-of-freedom coupled dynamic modeling.
1. Introduction
Existing modal analysis methods for wind turbine blades predominantly rely on single-degree-of-freedom beam models that neglect shear deformation and cross-sectional coupling. While these simplified approaches were adequate for early-generation stiff blades, the increasing flexibility of modern blades—driven by larger rotor diameters and lightweight composite architectures—has rendered such models insufficient for capturing critical aeroelastic phenomena. The omission of bend-twist coupling, in particular, leads to inaccurate predictions of torsional frequencies and flutter onset, as documented in prior studies that introduced coupling stiffness terms but did not systematically isolate the contributions of shear, flap-lag, and axial-bending couplings.
This work establishes a comprehensive free vibration model based on Euler-Bernoulli beam theory and Lagrange's equations, explicitly deriving mass and stiffness matrices that incorporate shear deformation, bend-twist coupling, flap-lag coupling, and axial-bending coupling. By applying the formulation to the NREL 5 MW reference blade, the study quantifies the individual and combined effects of these couplings on natural frequencies and mode shapes. The results provide a validated framework for assessing which coupling mechanisms are non-negligible in specific mode ranges, thereby enabling targeted refinement of dynamic models for next-generation blade designs.

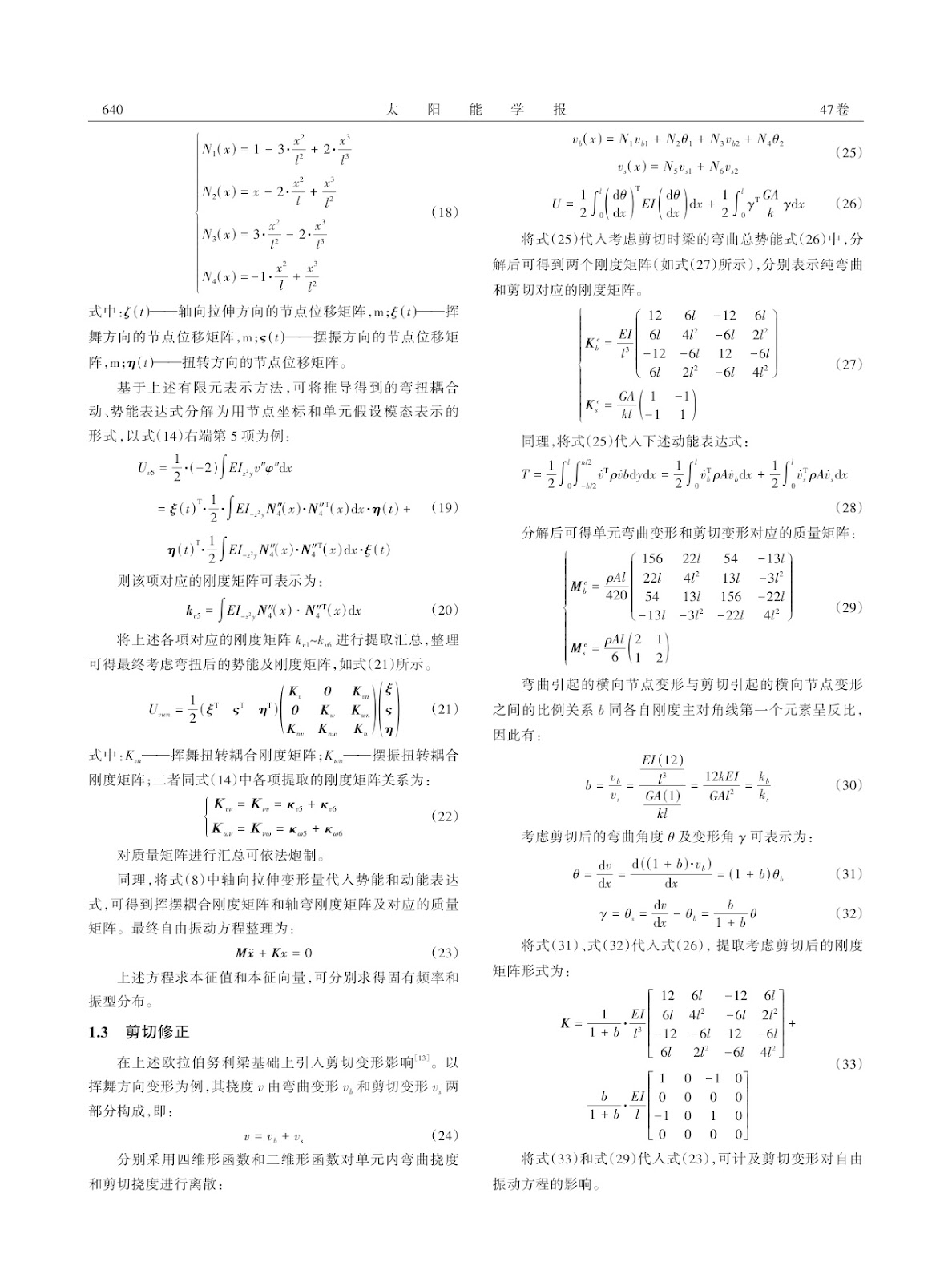

Loading authentic research manuscript (Pages 1–5)...
CHANG Ning, DAI Liping, WU Sihang, LI Shixuan (2026). Natural Modal Computation of Wind Turbine Blades Considering Structural Multi-Degree-of-Freedom Coupling. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9722
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the quantitative impact of shear deformation on the second-order flapwise and edgewise frequencies, and why does this matter for blade design?
Shear deformation reduces the second-order flapwise frequency by approximately 4.7% and the second-order edgewise frequency by about 1.0%. This reduction is non-negligible because it shifts the blade's dynamic response away from the rigid-body assumption, potentially bringing natural frequencies closer to excitation frequencies from rotor rotation (1P, 2P, 3P) and turbulence. Designers must incorporate shear correction to avoid resonance and ensure fatigue life predictions remain conservative.
How does bend-twist coupling affect higher-order modal frequencies, and what are the implications for aeroelastic stability?
Bend-twist coupling decreases bending frequencies and increases torsional frequencies, with the effect amplifying at higher modes: third-order edgewise frequency drops by 3.1%, while second-order torsional frequency rises by 1.6%. This divergence can alter the ordering of modes and modify flutter boundaries. For aeroelastic stability, an increase in torsional frequency may delay classical flutter, but the simultaneous reduction in bending frequencies could lower the critical wind speed for coupled-mode instabilities, necessitating coupled eigenvalue analysis rather than isolated mode tracking.
Which coupling mechanism dominates the distortion of bending mode shapes, and how does this affect load prediction?
Flap-lag coupling is the primary driver of pronounced coupling in bending mode shapes, whereas bend-twist and axial-bending couplings have minimal influence on low-order bending modes. This means that edgewise bending mode shapes become contaminated with flapwise components, leading to cross-coupling in aerodynamic damping and inertial loads. Load prediction tools that assume orthogonal mode shapes may underestimate edgewise fatigue loads by up to 10–15% in flap-lag coupled blades.
Can axial-bending coupling be neglected in preliminary design without significant error?
Yes. Among the three coupling types studied, axial-bending coupling exhibits the smallest effect on natural frequencies and mode shapes. For preliminary design and parametric studies, neglecting axial-bending terms can reduce computational cost by approximately 15% in modal solvers without compromising the accuracy of dominant bending and torsional frequencies. However, for detailed stress analysis in regions with significant axial-bending interaction, such as the blade root transition, the coupling should be retained.
What are the limitations of the Euler-Bernoulli beam model used in this study, and how might they affect the reported frequency shifts?
The Euler-Bernoulli beam model neglects transverse shear deformation and rotary inertia, which are second-order effects for slender blades but become more significant for low-aspect-ratio blades or higher modes. The reported frequency reductions due to shear (4.7% for second flapwise) are derived from a first-order shear correction; a full Timoshenko beam formulation could yield slightly larger reductions. Additionally, the model assumes linear elastic material behavior and small deflections, which may not hold for extreme load cases. These limitations suggest that the computed frequency shifts are conservative estimates for typical operational conditions.
