Key Takeaways & Executive Findings
- •• • HC-BO-MA achieves an ICE of 93.9% and a reversible capacity of 324 mAh g−1 at 20 mA g−1, exceeding typical HC anodes (ICE <90%) and approaching graphite's ICE (>93%) while retaining sodium-ion compatibility; this reduces cathode sodium inventory by ~15–20% in full cells, directly boosting energy density and cycle life. • • Modulating lignin:cellulose:hemicellulose ratios in bamboo promotes sp2 hybridization and enlarges graphite-like microcrystalline domains, which enhance sodium storage kinetics and reversible capacity; this compositional control is critical for scaling biomass precursors with consistent electrochemical performance. • • Maleic anhydride (MA)-assisted thermal crosslinking creates closed pores during carbonization, which mitigate irreversible sodium trapping at defect sites and SEI overgrowth; closed pores are essential for minimizing first-cycle capacity loss, a key industrial bottleneck for SIB adoption. • • The dual regulation strategy decouples the traditional trade-off between capacity and ICE, enabling simultaneous optimization; this provides a scalable, low-cost route using abundant bamboo biomass, potentially reducing anode material cost below $10 kg−1 and accelerating SIB deployment in grid storage.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

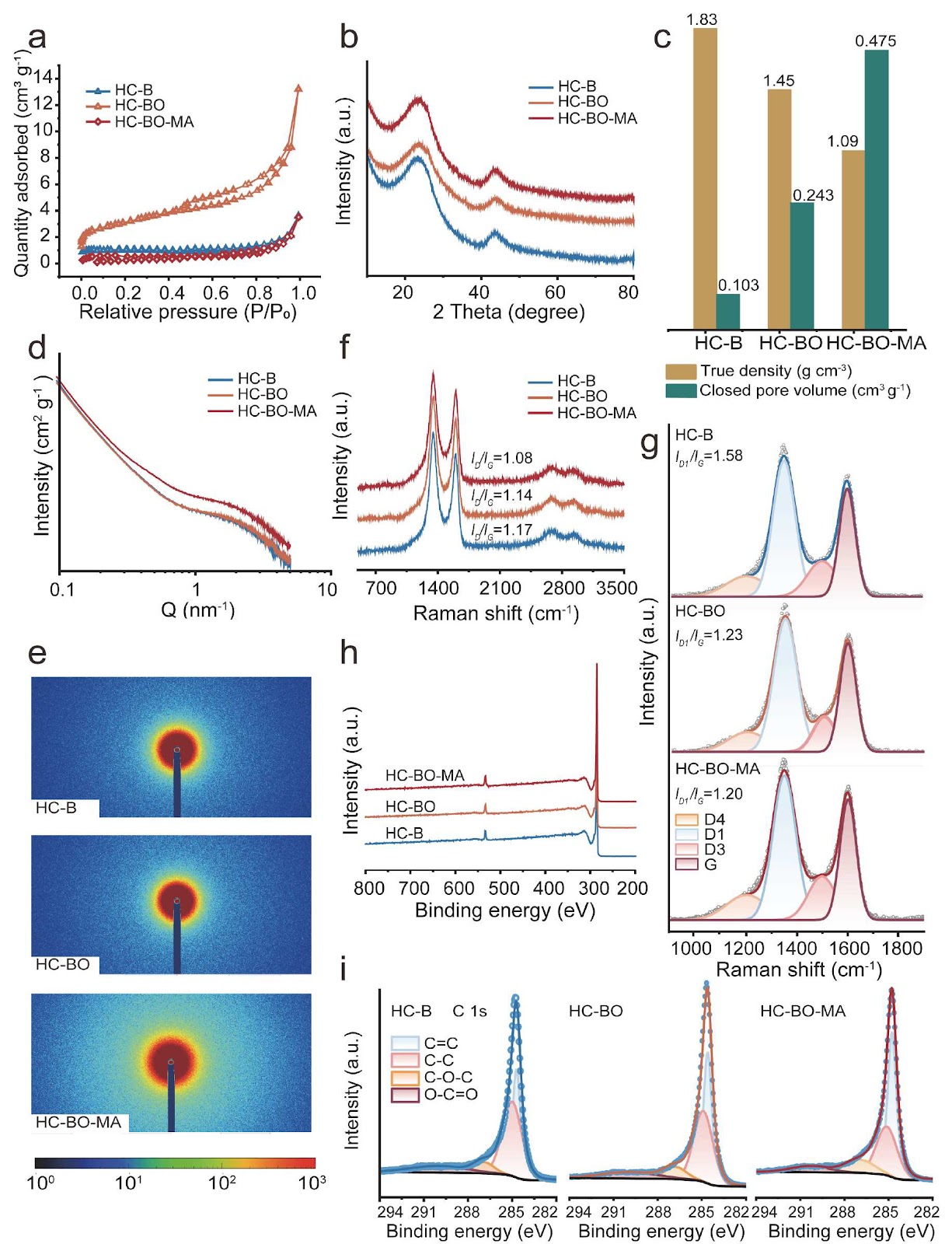

Hard carbon (HC) is a leading anode for sodium-ion batteries (SIBs), but its low initial Coulombic efficiency (ICE) causes excessive sodium consumption at the cathode, limiting full-cell energy density and cycle life. This study modulates the lignin, cellulose, and hemicellulose ratios in raw bamboo and employs maleic anhydride (MA)-assisted thermal crosslinking to precisely control carbon layer orientation, graphite-like domain size, and closed pore structure in the resulting HC. Precursor composition regulation promotes sp2 hybridization within the carbon skeleton, generating larger graphite-like microcrystalline domains, while MA-induced crosslinking fosters closed pore development during high-temperature carbonization. The optimized HC (HC-BO-MA) delivers an ICE of 93.9% and a reversible specific capacity of 324 mAh g−1 at 20 mA g−1. This molecular-level strategy provides a rational design pathway for high-performance biomass-derived HC anodes, addressing the trade-off between capacity and ICE that has hindered SIB commercialization. The work demonstrates that simultaneous enhancement of reversible capacity and ICE is achievable through precise control of biomass composition and crosslinking chemistry.
1. Introduction
Hard carbon (HC) is widely regarded as the most viable anode for sodium-ion batteries (SIBs) due to its natural abundance, low cost, high theoretical capacity, and suitable working potential. However, its low initial Coulombic efficiency (ICE) remains a critical barrier: excessive sodium is consumed during the first cycle to form a thick, unstable solid electrolyte interphase (SEI) and to irreversibly trap sodium at defect sites. This sodium loss depletes the cathode's limited sodium inventory, severely degrading full-cell energy density and cycle life. While graphite anodes in lithium-ion batteries achieve ICE >93% and reversible capacity of 372 mAh g−1, the larger ionic radius of Na+ elevates diffusion barriers and weakens solvation, exacerbating interfacial side reactions and SEI instability in HC. Current HC anodes typically deliver ICE below 90%, and efforts to improve ICE often sacrifice reversible capacity, creating a persistent trade-off.
Existing strategies—such as surface coating, heteroatom doping, and pore engineering—have yielded incremental gains but often introduce cost, complexity, or scalability issues. Biomass-derived HC offers a cost-effective alternative, yet the inherent variability in biomass composition (lignin, cellulose, hemicellulose) and the lack of molecular-level control over carbonization hinder reproducibility and performance. This study addresses the bottleneck by precisely modulating the lignin, cellulose, and hemicellulose ratios in raw bamboo and employing maleic anhydride (MA)-assisted thermal crosslinking. The approach simultaneously regulates carbon layer orientation, graphite-like domain size, and closed pore structure, enabling an HC anode (HC-BO-MA) with an ICE of 93.9% and a reversible capacity of 324 mAh g−1 at 20 mA g−1. This molecular-level engineering provides a rational, scalable pathway to overcome the capacity–ICE trade-off in biomass-derived HC for SIBs.
Loading authentic research manuscript (Pages 1–5)...
XIE Yandong, LI Sishi, XIE Shiyin, ZHANG Yulong, FAN Ziqiang, CHEN Yuecong, ZHU Jian, DOU Qingyun, YAN Xingbin (2025). Molecular-level biomass composition and crosslinking regulation towards hard carbon with high initial Coulombic efficiency for sodium-ion battery. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3419-2
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the measured initial Coulombic efficiency (ICE) and reversible capacity of HC-BO-MA, and how do these compare to conventional hard carbon anodes?
HC-BO-MA exhibits an ICE of 93.9% and a reversible specific capacity of 324 mAh g−1 at 20 mA g−1. Conventional hard carbon anodes typically show ICE below 90% (often 80–88%) and capacities of 250–300 mAh g−1. The simultaneous improvement in both metrics is notable, as prior approaches often sacrifice capacity for ICE or vice versa.
What specific role does maleic anhydride (MA) play in the crosslinking process, and how does it affect closed pore formation?
MA assists thermal crosslinking during carbonization, which promotes the development of closed pores. These closed pores reduce irreversible sodium trapping and SEI overgrowth by limiting electrolyte access to internal surfaces, thereby lowering first-cycle capacity loss. The crosslinking also stabilizes the carbon skeleton, contributing to the high ICE.
How does modulating the lignin, cellulose, and hemicellulose ratios in bamboo influence the microstructure and electrochemical performance of the resulting hard carbon?
Adjusting the composition ratios promotes sp2 hybridization within the carbon skeleton, leading to larger graphite-like microcrystalline domains. This structural change enhances sodium storage kinetics and reversible capacity. The optimal ratio (BO) combined with MA crosslinking yields the best performance, demonstrating that molecular-level precursor control is critical for reproducible, high-performance HC.
What are the scalability and cost implications of using bamboo biomass and MA-assisted crosslinking for industrial production of hard carbon anodes?
Bamboo is abundant, fast-growing, and low-cost, making it an attractive precursor for scalable HC production. MA is a common, inexpensive industrial chemical. The process involves thermal crosslinking and carbonization, which are compatible with existing biomass carbonization infrastructure. While exact cost figures are not provided, the use of cheap feedstocks and a simple additive suggests potential for cost parity with current HC production, though pilot-scale validation is needed.
Does the HC-BO-MA anode maintain its high ICE and capacity over extended cycling, and what degradation mechanisms might limit long-term stability?
The provided text does not include cycling stability data beyond the initial metrics. However, the closed pore structure and stable SEI are expected to mitigate continuous electrolyte decomposition and sodium inventory loss. Potential degradation mechanisms include pore clogging, SEI thickening, and structural fatigue, which require further investigation. The high ICE reduces initial sodium loss, which should benefit long-term cycling, but full-cell testing is necessary to confirm.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
