Key Takeaways & Executive Findings
- •• • Extraction of the first 15 modes yields a cumulative effective mass participation ratio of 91.20%, satisfying the ≥90% engineering threshold mandated by JGJ 3—2010 and GB/T 50011—2010; this truncation scheme exhibits numerical fluctuation below 0.10% across varying pitch angles, confirming its reliability for structural dynamic analysis of full-scale PTCs. • • Pitch angle variation produces negligible effects on modal parameters, with maximum natural frequency relative error of only 0.57% and essentially invariant mode shapes; this justifies simplifying the experimental object to the outermost purlin, reducing field test complexity without compromising data validity. • • Experimental modal parameters obtained via impulse hammer excitation on the outermost purlin show maximum natural frequency relative error of 3.86% compared to computational results, with highly similar mode shapes for corresponding orders; this level of agreement validates the finite element model's applicability for engineering design. • • Modes 4–7 were lost in experimental identification due to modal density and excitation limitations, yet the high-precision agreement of low-order modes (1–3 and 8–15) confirms that critical vibration characteristics are captured; this demonstrates that low-order modes dominate the dynamic response under field excitation conditions.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

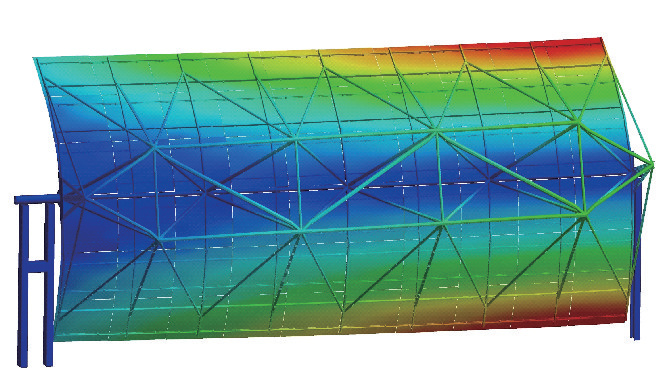

Modal analysis of parabolic trough solar collectors (PTCs) is critical for structural dynamic design under field operating conditions, yet the rational truncation of modal extraction orders remains inadequately addressed. This study derives theoretical expressions for mode participation factors and cumulative effective mass participation ratios from the differential equations of motion for proportionally damped systems under base excitation. Finite element modeling of a full-scale PTC (19.5 m length, 5.1 m rotational axis height, 8.5 m aperture width) was performed with mesh independence verification. Using a modal truncation criterion requiring cumulative effective mass participation ratio ≥90%, the first 15 modes were extracted, achieving 91.20% cumulative effective mass participation with numerical fluctuation below 0.10% across pitch angles. Computational modal parameters were solved for varying pitch angles, and field modal tests were conducted on the outermost purlin using impulse hammer excitation. Results demonstrate that pitch angle variation exerts minimal influence on modal parameters, with maximum natural frequency relative error of 0.57% and consistent mode shapes. Experimental and computational modal comparisons show high similarity in corresponding mode shapes, with maximum natural frequency relative error of 3.86%. Despite loss of modes 4–7 due to modal density and excitation limitations, the high-fidelity agreement of low-order modes validates the finite element model's applicability. The established methodology provides quantitative support for dynamic design of PTCs and offers generalizable reference for modal truncation and dominant mode selection in complex structures.
1. Introduction
Parabolic trough solar collectors operate in open outdoor environments where drive system frequencies, sustained wind loads, and occasional seismic events can induce structural resonance and catastrophic failure. Modal analysis is therefore a critical step in structural dynamic design, yet existing studies predominantly determine modal extraction orders through qualitative judgment rather than quantitative criteria. Prior investigations by Zou Qiong et al. on rooftop PTCs, Liu Xinran et al. on flat-plate collectors, and Vásquez-Arango et al. on heliostats have established foundational modal characteristics, but none have systematically addressed the rationality of modal truncation orders in finite element simulations of full-scale PTCs.
Current engineering codes JGJ 3—2010 and GB/T 50011—2010 mandate that modal extraction orders satisfy cumulative mode participation mass ≥90% of total mass for large structures, yet this criterion has not been applied to PTC modal analysis. The mode participation factor, defined as the ratio of modal excitation force to modal mass, quantifies the contribution of each mode to structural dynamic response under base excitation. This study derives theoretical expressions for mode participation factors and cumulative effective mass participation ratios from the differential equations of motion, applies the 90% truncation criterion to determine modal extraction orders for a full-scale PTC, and validates the finite element model through field modal testing using impulse hammer excitation on the outermost purlin.
Loading authentic research manuscript (Pages 1–5)...
YANG Yuke, SUN Beibei (2026). Modal Analysis of Parabolic Trough Solar Collectors Based on Mode Participation Factors. Acta Energiae Solaris Sinica. https://doi.org/10.19912/j.0254-0096.tynxb.202608_9685
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the physical significance of the mode participation factor in the context of parabolic trough solar collector modal analysis, and how does it differ from conventional modal parameter extraction?
The mode participation factor γi = φi^T M D / (φi^T M φi) quantifies the excitation effectiveness of a specific mode under base acceleration in a given direction. Unlike conventional modal extraction that focuses solely on natural frequencies and mode shapes, this parameter directly weights each mode's contribution to structural dynamic response. For the PTC studied, the first 15 modes achieve 91.20% cumulative effective mass participation, meaning these modes capture the dominant dynamic response under field excitation. This approach enables quantitative truncation rather than qualitative judgment, ensuring that extracted modes sufficiently characterize the system's vibration behavior.
Why does pitch angle variation exert minimal influence on modal parameters, and what are the implications for structural design and field testing?
Pitch angle variation from 0° to 90° changes the mass and stiffness distribution of the PTC, but the maximum natural frequency relative error is only 0.57% across all extracted modes. This negligible sensitivity arises because the collector's structural configuration—reflective mirror array, frame, drive system, and support columns—maintains consistent load paths and boundary conditions regardless of rotational orientation. The practical implication is that modal testing can be simplified to the outermost purlin without significant loss of fidelity, reducing field test complexity and cost while maintaining data validity for model validation.
What caused the loss of modes 4–7 in experimental modal identification, and does this compromise the validation of the finite element model?
Modes 4–7 were lost due to modal density and excitation limitations inherent to impulse hammer testing on the outermost purlin. High modal density in this frequency range causes closely spaced modes that are difficult to separate with single-point excitation, while the purlin's local stiffness may not efficiently excite these global modes. However, the high-precision agreement of modes 1–3 and 8–15 (maximum natural frequency relative error 3.86%, highly similar mode shapes) confirms that the finite element model accurately captures the dominant low-order vibration characteristics. Since low-order modes contribute most to structural response under field excitation, the validation remains robust for engineering design purposes.
How does the 90% cumulative effective mass participation criterion compare with alternative modal truncation methods, and what are the computational cost implications?
The 90% cumulative effective mass participation criterion, mandated by JGJ 3—2010 and GB/T 50011—2010, provides a quantitative, code-compliant basis for modal truncation. Alternative methods such as fixed-order extraction (e.g., first 10 modes) or frequency-based cutoffs lack physical justification and may either over-extract (increasing computational cost) or under-extract (missing significant response contributions). For this PTC, 15 modes achieve 91.20% participation, with numerical fluctuation below 0.10% across pitch angles. The computational cost of extracting 15 modes via ANSYS Workbench is modest, and the criterion ensures that all modes contributing ≥0.1% to total mass participation are captured, balancing accuracy and efficiency.
What are the scalability bottlenecks for applying this modal analysis methodology to larger parabolic trough collector arrays or alternative concentrated solar power configurations?
Scaling to larger PTC arrays introduces increased modal density and potential mode localization, requiring higher extraction orders to achieve 90% cumulative effective mass participation. For a single 19.5 m collector, 15 modes suffice; a 100 m array may require 30–50 modes, increasing computational cost nonlinearly. Additionally, field testing on larger arrays faces excitation limitations—impulse hammer energy may be insufficient to excite global modes of massive structures, necessitating shaker or ambient vibration testing. For alternative configurations such as heliostats or dish collectors, the methodology remains applicable but requires re-derivation of mode participation factors for different boundary conditions and excitation directions. The fundamental bottleneck is the trade-off between modal truncation accuracy and experimental feasibility at scale.
