Key Takeaways & Executive Findings
- •• • CNT fibers achieve a specific tensile strength of 25.3 cN/dtex and electrical conductivity of 3634.2 ± 114.0 S/cm, enabling robust, conductive fabrics that outperform many metallic alternatives on a weight-adjusted basis. • • Single-layer CNT fabric provides 66.8 dB EMI SE, while multilayer stacks reach 111 dB, exceeding the 90.49 dB reported for MXene-incorporated sponges and satisfying stringent aerospace and defense shielding requirements (typically >60 dB). • • The fabric maintains an ultralow density of 0.2 g/cm³, reducing the shielding layer mass in coaxial cables by 32.1% compared to copper, directly addressing weight-critical applications in aerospace and portable electronics. • • Durability tests confirm resistance to repeated bending and washing, with no reported degradation in shielding performance, indicating suitability for wearable and machine-washable electronics where mechanical robustness is essential.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Electromagnetic interference (EMI) shielding materials are critical for protecting sensitive electronic devices from external interference. Traditional metallic shields suffer from high density, rigidity, and poor adaptability to complex circuitry. This study presents a lightweight, flexible carbon nanotube (CNT) fabric with superior EMI shielding performance, fabricated through scalable CNT fiber preparation and knitting of CNT yarns. The CNT fibers exhibit a specific tensile strength of 25.3 cN/dtex and an electrical conductivity of 3634.2 ± 114.0 S/cm. The resulting CNT fabric achieves an EMI shielding effectiveness (SE) of 66.8 dB for a single layer and 111 dB for multiple layers, while maintaining an ultralow density of 0.2 g/cm³. The fabric withstands repeated bending and washing without significant degradation. When applied as the EMI shielding layer in coaxial cables, the CNT fabric delivers signal transmission performance comparable to copper while reducing the shielding layer mass by 32.1%. These combined properties position CNT fabric as a viable alternative to conventional metal-based shielding materials, with potential applications in aerospace, electronics, and wearable technologies.
1. Introduction
Metallic EMI shielding materials, while effective due to high electrical conductivity and impedance mismatch with air, suffer from high density, brittleness, low flexibility, and susceptibility to corrosion. These limitations impede their integration into lightweight, miniaturized electronic devices and complex circuitry. Nanomaterials such as carbon nanotubes (CNTs), graphene, and MXenes offer high conductivity, corrosion resistance, and ultralight weight, but existing fabrication methods for nano-based EMI shielding fabrics—dispersion, dip-coating, vacuum filtration, and spraying—often yield inconsistent coatings, poor durability, and limited scalability.
This study addresses these bottlenecks by developing a scalable knitting process for CNT yarns into fabrics. The resulting CNT fabric combines high electrical conductivity (3634.2 S/cm), exceptional EMI shielding (66.8 dB single layer, 111 dB multilayer), and ultralow density (0.2 g/cm³). The fabric withstands repeated bending and washing, and when used as a coaxial cable shielding layer, it matches copper's signal transmission while reducing mass by 32.1%. This protocol provides a commercially viable route to lightweight, durable EMI shields for aerospace, electronics, and wearable technologies.
Loading authentic research manuscript (Pages 1–5)...
Hongyu Jiang, Hongji Sun, Songlin Zhang, Peining Chen, Huisheng Peng (2025). Lightweight and High-Performance Carbon Nanotube Fabrics for Electromagnetic Interference Shielding. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3319-4
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the electrical conductivity and specific tensile strength of the CNT fibers, and how do these compare to conventional metal-based shielding materials?
The CNT fibers exhibit an electrical conductivity of 3634.2 ± 114.0 S/cm and a specific tensile strength of 25.3 cN/dtex. While bulk copper has higher absolute conductivity (~5.96 × 10^5 S/cm), its density is 8.96 g/cm³, resulting in a specific conductivity far lower than that of the CNT fabric (0.2 g/cm³). The CNT fabric's combination of high conductivity and ultralow density enables effective EMI shielding with a 32.1% mass reduction in coaxial cable shielding layers.
How does the EMI shielding effectiveness of the CNT fabric compare to state-of-the-art MXene-based shields, and what is the mechanism?

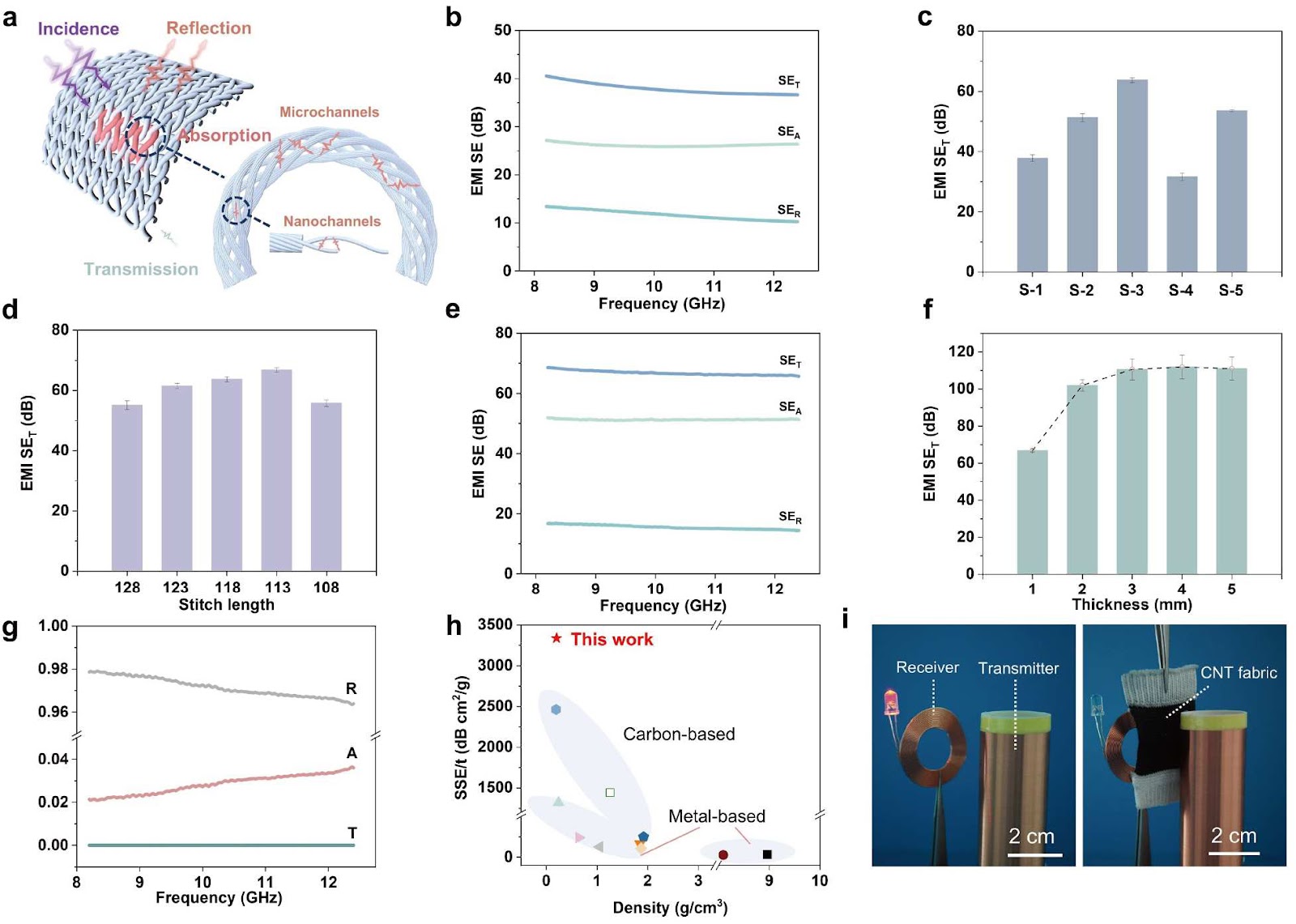

The CNT fabric achieves 66.8 dB for a single layer and 111 dB for multiple layers, surpassing the 90.49 dB reported for MXene-incorporated melamine/polyurethane sponges. The shielding mechanism primarily involves reflection due to impedance mismatch and absorption via dielectric losses within the CNT network. The knitted structure provides a continuous conductive pathway, enhancing multiple internal reflections and absorption.
What is the durability of the CNT fabric under repeated bending and washing, and what are the failure mechanisms?
The CNT fabric remains stable and durable under repeated bending and washing, with no significant degradation in EMI shielding performance reported. The knitted architecture allows for mechanical flexibility, distributing stress across yarn intersections. Failure mechanisms under extreme conditions may include fiber breakage or yarn pull-out, but the fabric's robustness suggests suitability for wearable electronics and machine-washable textiles.
What are the scalability and cost considerations for industrial production of CNT fabrics?
The fabrication process involves scalable preparation of CNT fibers and knitting of CNT yarns, which is amenable to continuous manufacturing. While CNT production costs remain higher than copper, the 32.1% mass reduction and elimination of corrosion protection (required for metals) can offset material costs in weight-sensitive applications. Industrial scalability is further supported by the use of established textile knitting techniques.
How does the CNT fabric perform as a coaxial cable shielding layer compared to copper in terms of signal transmission?
When applied as the EMI shielding layer in coaxial cables, the CNT fabric delivers comparable signal transmission performance to copper while reducing the shielding layer mass by 32.1%. This indicates that the CNT fabric does not compromise electrical performance and offers a lightweight alternative for RF cables in aerospace and portable electronics.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
