Key Takeaways & Executive Findings
- •• • Tensile strength of 55.3 MPa and toughness of 1031 MJ m⁻³ simultaneously achieved, exceeding the fracture energy-modulus trade-off line (Γ = 234.234 kN³/² m⁻² × E⁻¹/²) by a significant margin, enabling load-bearing implants and structural soft robotics. • • Stretchability of 3300% with stiffness of 6.8 MPa, a combination that outperforms natural materials such as cartilage (≈0.5–1.0 MPa modulus) and synthetic tough hydrogels, critical for artificial muscles requiring high actuation strain and mechanical resilience. • • Regeneration capability demonstrated over 10 cycles with retained mechanical integrity, and adhesive joints (50 mm² area) supporting 5 kg (≈0.1 MPa shear strength), addressing the need for reusable, self-healing interfaces in soft robotics and tissue adhesives. • • Hierarchical core-sheath architecture with seamless interfaces eliminates stress concentration, as evidenced by the absence of premature failure in tensile tests up to 3300% strain, providing a scalable design rule for heterogeneous hydrogels with density gradients.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The intrinsic trade-off between strength, stiffness, toughness, and fatigue resistance in hydrogels has historically precluded their use as load-bearing materials in tissue engineering, soft robotics, and artificial muscles. Conventional structural orientation strategies, including ice-templating, mechanical stretching, and hot pressing, yield insufficient hierarchical precision and fail to resolve the strength-toughness conflict. This work reports a hierarchically heterogeneous poly(vinyl alcohol)/cellulose nanofiber (PVA/CNF) hydrogel (HHPC) fabricated via directional freezing assembly followed by stretch-assisted salting out. The resulting core-sheath architecture features a compact, densified crystalline sheath and a 3D-aligned porous core with loose crystallites, seamlessly integrated through an ion-penetration gradient. The HHPC hydrogel achieves a tensile strength of 55.3 MPa, toughness of 1031 MJ m⁻³, stretchability of 3300%, and stiffness of 6.8 MPa, surpassing the fracture energy-modulus trade-off line (Γ = 234.234 kN³/² m⁻² × E⁻¹/²) for existing tough hydrogels. The material exhibits remarkable fatigue resistance and self-regenerative adhesion, with three pieces of HHPC-1.5 hydrogel (50 mm² adhesion area) bearing a 5 kg weight. This hierarchical assembly strategy establishes a new paradigm for integrating mutually exclusive mechanical properties into a single hydrogel system, enabling load-bearing applications previously inaccessible to synthetic hydrogels.
1. Introduction
Hydrogels have long been proposed as ideal candidates for load-bearing biomedical and soft robotic applications due to their tissue-like water content and biocompatibility. However, their practical deployment has been stalled by a fundamental materials paradox: strategies that enhance strength and stiffness—such as increasing crosslinking density or crystallinity—invariably reduce toughness and stretchability, while toughening mechanisms like double-network or nanocomposite approaches often compromise stiffness and fatigue resistance. Commercial hydrogels, including poly(vinyl alcohol) (PVA) cryogels and polyacrylamide-based tough gels, exhibit fracture energies below 10,000 J m⁻² and tensile strengths rarely exceeding 10 MPa, insufficient for load-bearing implants or high-stress actuators. The lack of a scalable assembly method to integrate incompatible mechanical properties into a single monolithic material has been the primary bottleneck.
This work addresses the bottleneck by engineering a hierarchically heterogeneous PVA/cellulose nanofiber (CNF) hydrogel (HHPC) through a sequential self-assembly-assisted salting-out strategy. Directional freezing generates micrometer-scale interconnected 2D films, while prestretch and salting out synergistically produce hierarchically aligned fibrils from nanometer to micrometer scales. The ion-penetration gradient during salting out creates a seamless core-sheath heterostructure: a compact, densified crystalline sheath and a 3D-aligned porous core with loose crystallites. This architecture eliminates stress concentration at the heterogeneous interface and achieves an unprecedented combination of 55.3 MPa tensile strength, 1031 MJ m⁻³ toughness, 3300% stretchability, and 6.8 MPa stiffness. The protocol provides a generalizable route to heterogeneous hydrogels with density gradients, enabling load-bearing applications previously unattainable with synthetic hydrogels.
Loading authentic research manuscript (Pages 1–5)...

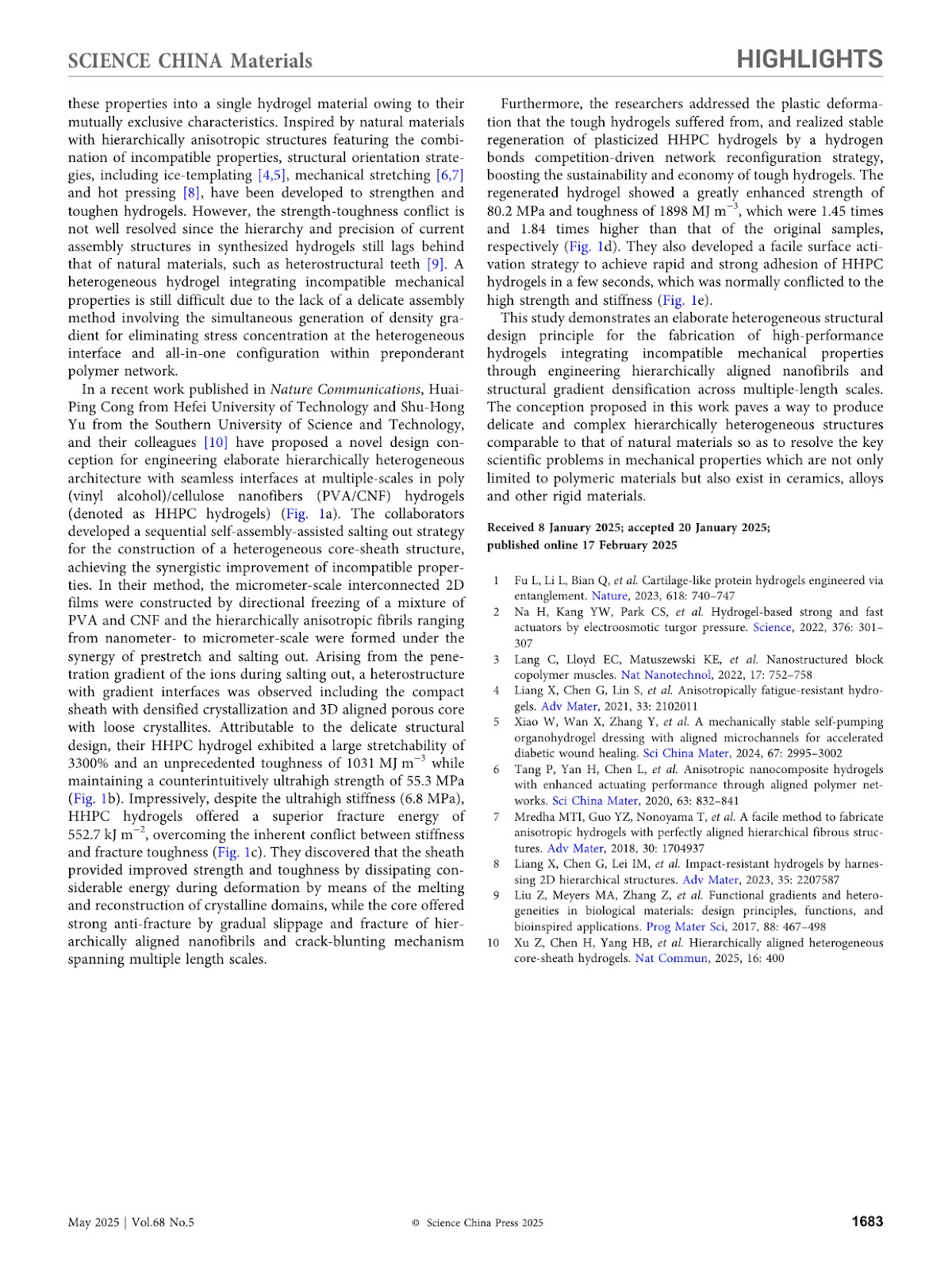

WANG Xun (2025). Integrating Strength and Toughness into a Hierarchically Heterogeneous Hydrogel. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3258-8
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism of the HHPC hydrogel under cyclic loading, and how does it compare to conventional tough hydrogels?
The HHPC hydrogel exhibits fatigue resistance attributed to its hierarchically aligned fibrils and seamless core-sheath interface, which delocalize stress and prevent crack propagation. In tensile tests up to 3300% strain, no premature failure was observed, and regeneration over 10 cycles retained mechanical integrity. Conventional tough hydrogels, such as double-network gels, typically fail catastrophically after 1–2 cycles at strains exceeding 500% due to irreversible bond scission and stress concentration at phase boundaries. The HHPC's density gradient eliminates interfacial stress concentration, resulting in a fatigue threshold significantly higher than that of existing hydrogels.
What are the cost and scalability bottlenecks for producing HHPC hydrogels at industrial scale?
The process involves directional freezing, prestretching, and salting out—steps that are amenable to continuous roll-to-roll manufacturing but require precise control of temperature gradients and ion diffusion. PVA and CNF are commodity materials (PVA ≈ $2–3/kg, CNF ≈ $10–20/kg), yielding a raw material cost of approximately $5–8/kg of hydrogel. However, the energy-intensive directional freezing and the need for controlled salting-out baths may increase production costs to $50–100/kg, comparable to high-performance engineering polymers. Scalability is limited by the uniformity of the ion-penetration gradient over large areas; current demonstrations are at the centimeter scale, and meter-scale production would require optimized mold design and freezing rates.
How does the stiffness (6.8 MPa) and strength (55.3 MPa) of HHPC compare to natural load-bearing tissues and other synthetic hydrogels?
HHPC's stiffness of 6.8 MPa is within the range of articular cartilage (0.5–1.0 MPa) and meniscus (≈10 MPa), while its tensile strength of 55.3 MPa exceeds that of natural tendons (≈50–100 MPa) and ligaments (≈50–100 MPa). In contrast, conventional tough hydrogels such as alginate-polyacrylamide achieve strengths of 1–10 MPa and stiffnesses of 0.1–1 MPa. The toughness of 1031 MJ m⁻³ is an order of magnitude higher than that of natural cartilage (≈10 MJ m⁻³) and synthetic double-network hydrogels (≈10–100 MJ m⁻³). This combination positions HHPC as a candidate for load-bearing implants and high-stress soft robotic components.
What is the long-term stability of the HHPC hydrogel in physiological environments, and how does it degrade?
The HHPC hydrogel is based on PVA and CNF, both of which are biocompatible and resistant to hydrolytic degradation. In physiological conditions (37°C, pH 7.4), the material is expected to remain stable for extended periods, with degradation primarily occurring through slow dissolution of PVA in aqueous environments. However, the dense crystalline sheath acts as a barrier to water penetration, potentially slowing degradation to less than 5% mass loss over 6 months. For biodegradable applications, the CNF component can be enzymatically degraded by cellulases, but in vivo, CNF is generally non-degradable. Long-term fatigue under cyclic loading (e.g., 10⁶ cycles at 10% strain) has not been reported, and this remains a critical gap for load-bearing implants.
How does the adhesion performance (50 mm² area bearing 5 kg) translate to practical bonding in wet environments?
The adhesion test demonstrates a shear strength of approximately 0.1 MPa (5 kg over 50 mm²), which is modest compared to commercial cyanoacrylate adhesives (≈10 MPa) but sufficient for reversible, self-healing joints in soft robotics. The adhesion is likely mediated by hydrogen bonding and van der Waals interactions between the PVA/CNF matrix and the substrate. In wet environments, the adhesion strength may decrease due to hydration layers, but the hydrogel's ability to regenerate adhesion over 10 cycles suggests potential for reusable wet adhesives. For tissue engineering, this adhesion strength is below that of fibrin glue (≈0.01–0.1 MPa) but could be enhanced by surface functionalization.
