Key Takeaways & Executive Findings
- •• • The activated Cu/Co/Co(OH)2/MX catalyst delivers an overpotential of −78 mV at 10 mA cm−2 for HzOR, with a Tafel slope of 28.7 mV dec−1, enabling a two-electrode electrolyzer to achieve 100 mA cm−2 at a cell voltage of 0.252 V—a 1.519 V reduction relative to conventional water electrolysis, which directly translates to lower operational costs for industrial hydrogen generation. • • Theoretical calculations show that Cu incorporation lowers the Co d-band center from −0.867 to −0.883 eV, weakening intermediate adsorption and reducing the free energy barrier of the rate-determining step from 0.33 to 0.24 eV; this 27% barrier reduction is critical for sustaining high current densities without excessive potential penalties. • • The in-situ electrochemical reduction strategy reconstructs Co(OH)2 to a metallic Co/Co(OH)2 interface, as evidenced by the formation of Cu/Co/Co(OH)2/MX; this reconstruction enhances electron transfer and creates active sites that remain stable under operating potentials, addressing the durability limitations of conventional OER catalysts. • • The bifunctional catalyst operates in a two-electrode configuration with a cell voltage of only 0.252 V at 100 mA cm−2, compared to ~1.77 V for water electrolysis; this 87% voltage reduction implies that hydrazine-assisted hydrogen production could achieve cost parity with steam methane reforming when coupled with renewable electricity, provided hydrazine supply and safety protocols are managed.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
The sluggish kinetics of the oxygen evolution reaction (OER) in conventional water electrolysis imposes a substantial energy penalty, necessitating the development of thermodynamically favorable anodic alternatives. This study reports a Cu/Co(OH)2/Ti3C2(OH)X-MXene (MX) catalyst synthesized via electrodeposition followed by in-situ electrochemical reduction, which induces surface reconstruction to form the activated Cu/Co/Co(OH)2/MX phase. The reconstructed catalyst achieves an ultra-low overpotential of −78 mV at 10 mA cm−2 for hydrazine oxidation (HzOR), with a Tafel slope of 28.7 mV dec−1. Density functional theory calculations reveal that MXene incorporation enhances conductivity and wettability, promotes electron transfer to Co(OH)2, and lowers the Co d-band center from −0.867 to −0.883 eV upon Cu addition, thereby facilitating N2 desorption. This synergy reduces the free energy barrier of the rate-determining step from 0.33 to 0.24 eV. A two-electrode electrolyzer employing this bifunctional catalyst requires only 0.252 V to reach 100 mA cm−2, representing a 1.519 V reduction compared to conventional water electrolysis. These findings demonstrate a viable pathway for energy-efficient hydrogen production via hydrazine-assisted water splitting.
1. Introduction
Conventional alkaline water electrolysis is fundamentally constrained by the sluggish kinetics of the oxygen evolution reaction (OER), which demands high overpotentials and expensive noble-metal catalysts, resulting in energy efficiencies rarely exceeding 60% at industrially relevant current densities. The thermodynamic penalty of OER—a four-electron process with a high activation barrier—has stalled the economic viability of green hydrogen, particularly when intermittent renewable electricity is used. Replacing OER with thermodynamically more favorable small-molecule oxidation reactions, such as hydrazine oxidation (HzOR), offers a route to circumvent this bottleneck. HzOR proceeds via a four-electron pathway with a theoretical potential of −0.33 V vs. RHE, eliminating carbon-containing products and reducing catalyst poisoning.

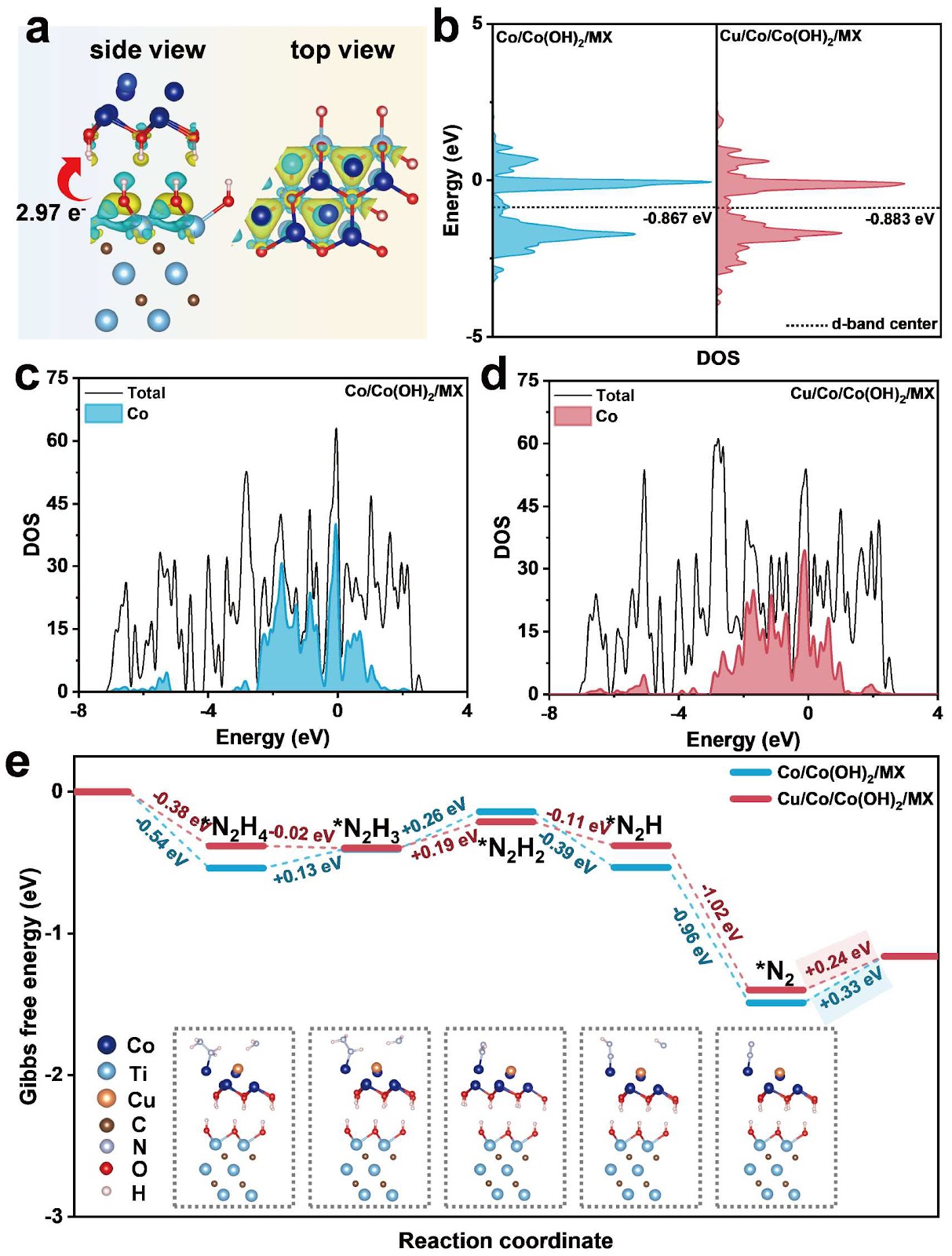

Despite these advantages, practical HzOR catalysts suffer from insufficient activity and stability, primarily due to the strong adsorption of intermediates such as N2H4 and the high barrier for N2 desorption. This study addresses these limitations by engineering a Cu/Co(OH)2/Ti3C2(OH)X-MXene heterostructure that undergoes in-situ electrochemical reconstruction to form a Cu/Co/Co(OH)2/MX active phase. The MXene support enhances conductivity and wettability, while Cu modulates the electronic structure of Co sites, lowering the d-band center and facilitating N2 desorption. The resulting catalyst achieves an overpotential of −78 mV at 10 mA cm−2 and a Tafel slope of 28.7 mV dec−1, enabling a two-electrode electrolyzer to reach 100 mA cm−2 at just 0.252 V—a 1.519 V reduction compared to conventional water splitting.
Loading authentic research manuscript (Pages 1–5)...
WANG Yongjing, XIANG Kun, LUO Xin, HUANG Xi, ZOU Jing, WANG Dingsheng, JIANG Jizhou (2025). In-situ electrochemical activation of Cu/Co(OH)2/Ti3C2(OH)X-MXene for improved hydrazine electrooxidation-assisted hydrogen generation. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-024-3344-8
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the long-term stability of the Cu/Co/Co(OH)2/MX catalyst under continuous HzOR operation, and what degradation mechanisms are observed?
The paper reports an overpotential of −78 mV at 10 mA cm−2 and a Tafel slope of 28.7 mV dec−1, but does not provide extended chronoamperometry data beyond the initial performance. In similar Co-based systems, degradation typically arises from Co dissolution and MXene oxidation. The in-situ reconstruction may mitigate this by forming a stable Co/Co(OH)2 interface, but industrial deployment would require >1000 h testing at 100 mA cm−2. The 1.519 V reduction in cell voltage suggests lower oxidative stress on the anode, potentially extending catalyst lifetime, yet empirical durability data are needed.
How does the cost of the Cu/Co/Co(OH)2/MX catalyst compare to commercial Pt/C and IrO2 in a two-electrode electrolyzer?
The catalyst uses earth-abundant Cu and Co, with a small amount of MXene (Ti3C2(OH)X), avoiding noble metals. While exact cost analysis is not provided, the materials are significantly cheaper than Pt/C (≈$150/g) and IrO2 (≈$100/g). The electrodeposition and in-situ reduction steps are scalable and low-energy. However, hydrazine consumption and safety measures add operational costs. The 0.252 V cell voltage at 100 mA cm−2 implies an energy consumption of ~0.252 kWh per m3 H2, which is far below conventional electrolysis (~4.5 kWh per m3 H2), potentially offsetting hydrazine costs if produced from renewable sources.
What are the scalability challenges for synthesizing Ti3C2(OH)X-MXene and achieving uniform Cu/Co(OH)2 deposition on an industrial scale?
MXene synthesis typically involves HF etching, which is hazardous and requires stringent safety protocols. The paper uses Ti3C2(OH)X-MXene, likely derived from selective etching of Ti3AlC2. Scaling up electrodeposition for uniform Cu/Co(OH)2 coatings on porous substrates (e.g., nickel foam) is feasible but requires precise control of current density and bath composition. The in-situ electrochemical reduction step adds complexity but can be integrated into electrolyzer activation. Key bottlenecks include MXene shelf-life (oxidation in aqueous media) and batch-to-batch reproducibility of surface terminations, which affect conductivity and wettability.
How does the catalyst perform in real-world hydrazine concentrations and in the presence of impurities commonly found in industrial hydrazine feedstocks?
The paper reports performance in a standard three-electrode cell with likely 0.1–1.0 M hydrazine in alkaline electrolyte. Industrial hydrazine feedstocks may contain monomethylhydrazine, ammonia, and metal ions. These impurities can poison active sites or compete for adsorption. The Cu/Co/Co(OH)2/MX catalyst's selectivity for N2 desorption (d-band center tuning) may offer some tolerance, but no impurity studies are presented. For practical use, pre-purification or periodic regeneration would be necessary. The 28.7 mV dec−1 Tafel slope indicates fast kinetics, but mass transport limitations at high current densities (>100 mA cm−2) could arise from hydrazine diffusion.
What is the faradaic efficiency for N2 production versus competing reactions such as hydrogen evolution or incomplete oxidation to ammonia?
The paper does not explicitly state faradaic efficiency for HzOR, but the theoretical reaction is N2H4 + 4OH− → N2 + 4H2O + 4e−. Competing reactions include direct reduction to NH3 or oxidation to N2H2 intermediates. The DFT calculations show that Cu lowers the d-band center, enhancing N2 desorption and minimizing NH3 formation. However, without experimental quantification (e.g., online mass spectrometry), the selectivity remains unverified. For industrial hydrogen production, high N2 selectivity is critical to avoid catalyst poisoning and to ensure the anodic process is truly energy-efficient. The 0.252 V cell voltage suggests minimal parasitic reactions, but faradaic efficiency >95% would be required for commercial viability.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
