Key Takeaways & Executive Findings
- •• • Cu reconstruction in CO2RR requires Cu+ species generated from HCO3−-mediated ·OH radicals; in HCO3−-free acidified K2SO4 electrolyte, reconstruction is minimal, indicating that oxidative dissolution-redeposition dominates only under neutral/alkaline conditions. This dictates electrolyte selection for stable CO2RR operation. • • CORR-induced reconstruction proceeds independently of Cu+ and ·OH, with potential-induced atomic migration as the sole mechanism; this enables reconstruction even in HCO3−-free electrolytes, simplifying electrolyte management for CORR. • • DFT calculations show that adsorbed *CO weakens Cu–Cu bonds, creating metastable surface configurations that lower the activation barrier for atomic migration; this explains why CORR, which produces high *CO coverage, promotes migration-driven reconstruction. • • In situ AFM and DFT results across varying potentials confirm that applied potential promotes both mechanisms, with the balance shifting from dissolution-redeposition to atomic migration as potential increases; this provides a unified framework for predicting reconstruction under operational conditions.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

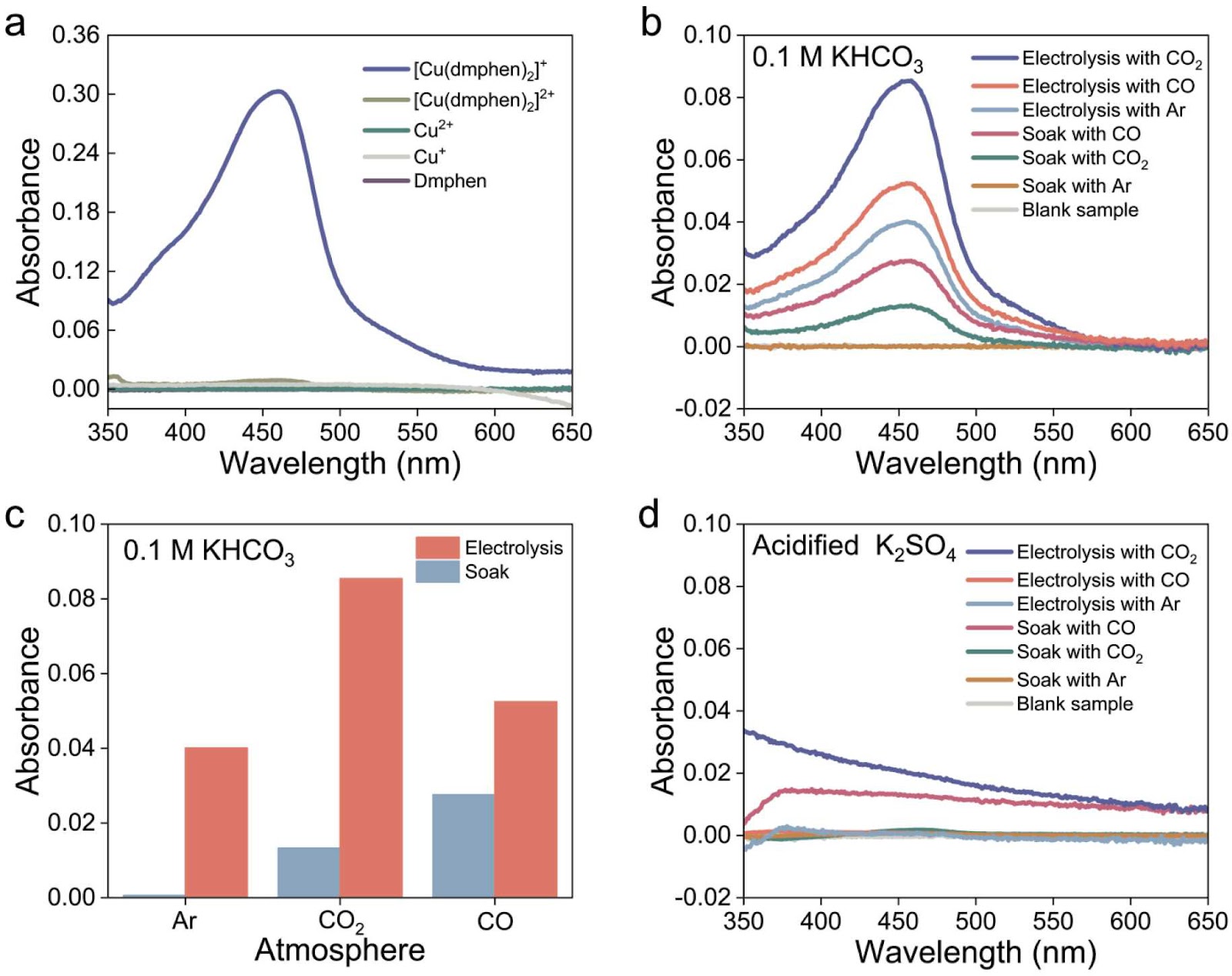

Elucidating the fundamental mechanisms underlying Cu reconstruction is paramount for the rational design of catalysts that meet the stringent activity, selectivity, and durability requirements for industrial-scale CO2/CO electroreduction (CO2RR/CORR). While both dissolution-redeposition and atomic migration pathways have been proposed, the operational conditions dictating their relative dominance remain poorly understood. Through quasi in situ Cu+ detection and in situ atomic force microscopy (AFM), we reveal a striking mechanistic dichotomy: Cu reconstruction during CO2RR occurs strictly in the presence of Cu+, whereas CORR-induced reconstruction proceeds independently of Cu+ species. These findings suggest that Cu reconstruction in CO2RR follows a dissolution-redeposition mechanism induced by oxidative radicals, while atomic migration emerges as the dominant pathway in CORR. Density functional theory calculations further demonstrate that adsorbed *CO intermediates reduce Cu–Cu bond strength, creating metastable surface configurations that promote Cu atomic migration. The investigation extends to broader metal catalysts (e.g., Ag, Au, Zn) and highlights the interplay between adsorbed species, interfacial environments, and applied potentials. Our findings establish a unified framework for understanding Cu restructuring dynamics, providing a paradigm for strategically engineering metal catalysts through controlled reconstruction, advancing the rational design of CO2RR/CORR systems.
1. Introduction
Electrochemical CO2/CO reduction (CO2RR/CORR) offers a sustainable route to value-added multi-carbon products, but the inherent low cohesive energy of metallic Cu causes potential-driven migration and structural reconstruction under cathodic conditions. This dynamic reconstruction compromises meticulously engineered architectures—such as Cu(100) single crystals and faceted Cu nanocubes—leading to diminished selectivity toward multi-carbon products. While strategic electrolyte engineering can direct reconstruction toward favorable facets, the operational conditions that dictate whether reconstruction follows dissolution-redeposition or atomic migration remain poorly understood, hindering rational catalyst design.
Existing mechanistic studies propose two pathways: dissolution-redeposition mediated by oxidative hydroxyl radicals (·OH) from bicarbonate/H2O oxygen exchange, and potential-induced atomic migration driven by electric field effects. However, the relative dominance of these pathways under varying atmospheres and electrolyte compositions has not been resolved. This work addresses the bottleneck by combining quasi in situ Cu+ detection, in situ atomic force microscopy, and density functional theory to identify the specific conditions that trigger each mechanism. The findings establish a unified framework that links adsorbed species, interfacial environments, and applied potentials to Cu reconstruction dynamics, enabling strategic engineering of metal catalysts for industrial-scale CO2RR/CORR.
Loading authentic research manuscript (Pages 1–5)...
YUE Yunpei, WU Zhitan, YE Zilin, LI Zhiguo, WANG Xinyu, XIE Kai, HAN Daliang, YANG Quan-Hong, WENG Zhe (2025). Identifying Cu reconstruction mechanism in CO2 and CO electroreduction via Cu+ detection and in situ atomic force microscopy. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3412-2
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the primary failure mechanism that degrades Cu-based catalysts during CO2RR, and how does this work quantify it?
The primary failure mechanism is potential-driven Cu reconstruction, which compromises engineered architectures such as Cu(100) single crystals and faceted Cu nanocubes, leading to diminished selectivity toward multi-carbon products. This work quantifies reconstruction via quasi in situ Cu+ detection and in situ AFM, showing that in CO2RR, reconstruction strictly requires Cu+ species generated from HCO3−-mediated ·OH radicals. In HCO3−-free acidified K2SO4 electrolyte, reconstruction is minimal, indicating that eliminating HCO3− or ·OH suppresses the dissolution-redeposition pathway.
How does the reconstruction mechanism differ between CO2RR and CORR, and what are the operational implications?
In CO2RR, reconstruction follows a dissolution-redeposition mechanism dependent on Cu+ and ·OH, requiring neutral or alkaline electrolytes that promote ·OH formation via HCO3−. In CORR, reconstruction proceeds independently of Cu+ and ·OH, driven solely by potential-induced atomic migration. Operationally, this means CORR can use HCO3−-free electrolytes without suppressing reconstruction, whereas CO2RR requires careful electrolyte selection to control reconstruction. The coexistence of both mechanisms occurs when potential is sufficient for significant CO and local HCO3− generation.
What is the role of adsorbed *CO in Cu reconstruction, and how does it affect Cu–Cu bond strength?
DFT calculations demonstrate that adsorbed *CO intermediates reduce Cu–Cu bond strength, creating metastable surface configurations that promote Cu atomic migration. This weakening of Cu–Cu interactions lowers the barrier for atomic migration, making it the dominant pathway in CORR where *CO coverage is high. The effect is not limited to reaction intermediates; other adsorbable species such as electrolyte anions, cations, and additives can similarly influence M–M bonds, extending the principle to Ag, Au, and Zn catalysts.
What experimental evidence supports the conclusion that applied potential promotes both reconstruction mechanisms?
In situ AFM and DFT results across varying potentials provide evidence that applied potential promotes both dissolution-redeposition and atomic migration. The balance shifts with potential: at low overpotentials in CO2RR, limited CO production leads to predominant *CO2 adsorption, and reconstruction requires neutral or alkaline electrolytes for ·OH formation. At higher potentials, significant CO and local HCO3− generation lead to continuous ·OH production and *CO-induced Cu spacing enlargement, resulting in coexistence of both mechanisms. This unified framework is supported by the observed potential-dependent reconstruction dynamics.
Can the findings be generalized to other metal catalysts, and what are the scalability bottlenecks?
The principle that adsorbed intermediates elongate and weaken M–M bonds applies broadly to metal catalysts such as Ag, Au, and Zn used in CO2RR/CORR. The scope of adsorbable species extends beyond reaction intermediates to electrolyte anions, cations, and additives. Scalability bottlenecks include the need for in situ characterization techniques (AFM, Cu+ detection) that are not amenable to high-throughput industrial monitoring, and the challenge of maintaining controlled reconstruction across large electrode areas. However, the unified framework enables strategic engineering of metal catalysts through controlled reconstruction, potentially reducing reliance on precious metals and improving durability.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
