Key Takeaways & Executive Findings

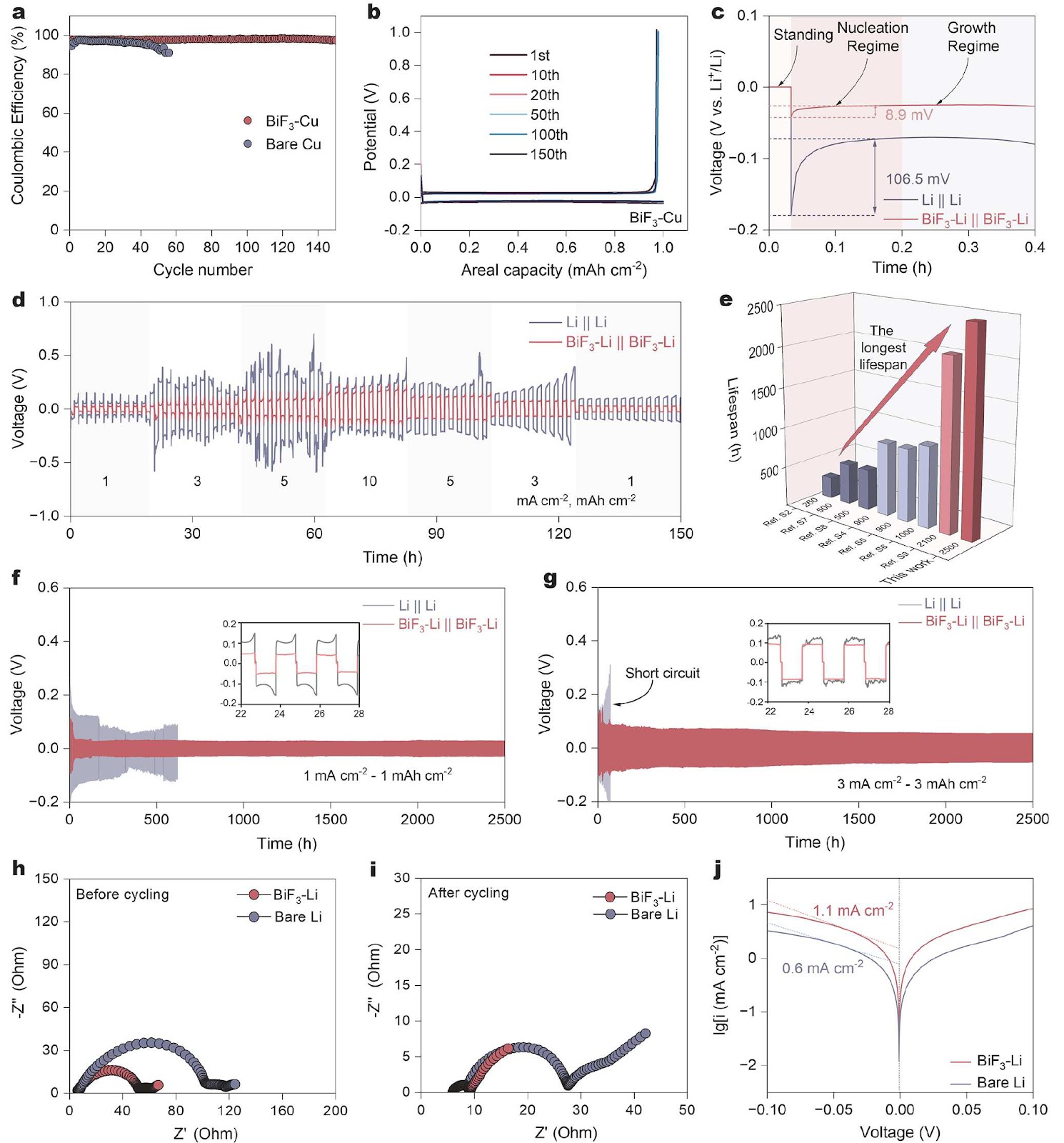

- •• • Symmetric cells with the Li3Bi/LiF interlayer sustain 2500 h of plating/stripping at 3 mA cm−2 and 3 mAh cm−2 with a voltage hysteresis of only 60 mV, indicating exceptional dendrite suppression and interfacial stability. This translates to a >5× extension in cycle life compared to conventional Li anodes, directly addressing the inferior cycling stability that has stalled LMB commercialization. • • Full cells pairing BiF3-Li anodes with LiFePO4 cathodes retain 73% capacity after 1700 cycles at 1 C, demonstrating that the artificial interlayer mitigates capacity fade even under prolonged high-rate operation. This level of retention is critical for electric vehicle batteries, where >80% capacity after 1000 cycles is often required; the result suggests that further optimization could meet automotive targets. • • The spontaneous reduction reaction between Li and BiF3 forms a Li3Bi/LiF composite in situ, eliminating the need for complex processing steps. The lithiophilic Li3Bi reduces the nucleation barrier, while LiF provides high ionic conductivity, enabling uniform Li+ flux. This dual-functionality directly addresses the two primary failure modes: dendrite growth and sluggish kinetics. • • The interlayer effectively suppresses volume expansion and dead Li formation, as evidenced by the stable cycling performance. The 60 mV hysteresis at 3 mA cm−2 is among the lowest reported for Li metal anodes, indicating low interfacial resistance and efficient charge transfer. This performance metric is crucial for fast-charging applications, where high currents exacerbate dendrite growth.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Lithium metal batteries (LMBs) face critical barriers of inferior cycling stability and safety hazards from uncontrolled lithium dendrite growth. This study constructs a multifunctional hybrid protection layer of Li3Bi/LiF via spontaneous reduction between Li and BiF3. The lithiophilic Li3Bi serves as nucleation seeds to reduce the nucleation barrier and guide uniform Li deposition, while LiF with high ionic conductivity promotes Li+ diffusion kinetics and homogenizes Li+ flux during plating/stripping. The BiF3-Li symmetric cell exhibits excellent Li plating/stripping behavior over 2500 h at 3 mA cm−2 for 3 mAh cm−2 with a low voltage hysteresis of 60 mV. The BiF3-Li||LiFePO4 full cell demonstrates a remarkable capacity retention of 73% after 1700 cycles at 1 C. This work provides a facile strategy for developing multifunctional artificial interlayers and offers valuable insights for the design and fabrication of high-performance LMBs.
1. Introduction
Lithium metal batteries (LMBs) offer a theoretical capacity of ~3860 mAh g−1 and a reduction potential of −3.04 V vs. SHE, making them the ultimate anode for high-energy-density storage. However, commercial adoption has been impeded by uncontrolled lithium dendrite growth, which leads to safety hazards, low Coulombic efficiency, and premature cell failure. The continuous formation of 'dead Li' and unstable solid electrolyte interphase (SEI) layers further accelerates electrolyte depletion and capacity fading. Existing strategies, such as electrolyte optimization and host structure design, have achieved incremental improvements but fail to simultaneously address the dual challenges of dendrite suppression and interfacial stability under practical areal capacities.
This study introduces a multifunctional artificial interphase layer composed of Li3Bi and LiF, constructed via a spontaneous reduction reaction between lithium metal and BiF3. The lithiophilic Li3Bi component acts as nucleation seeds, lowering the nucleation barrier and guiding uniform Li deposition. Meanwhile, the LiF phase, with its high ionic conductivity, facilitates rapid Li+ diffusion and homogenizes Li+ flux during plating/stripping. The resulting BiF3-Li anode demonstrates exceptional cycling stability in symmetric cells (2500 h at 3 mA cm−2, 3 mAh cm−2) and full cells (73% capacity retention after 1700 cycles at 1 C). This approach provides a scalable, cost-effective route to dendrite-free LMBs, directly addressing the bottlenecks that have hindered commercialization.
Loading authentic research manuscript (Pages 1–5)...
Yuhan Lu, Wanjie Gao, Yi Peng, Yueheng Yu, Xi Liu, Yinxu Lu, Yuping Wu, Jiarui He (2025). Highly stable and dendrite-free lithium metal batteries enabled by a novel artificial interphase layer. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3351-2
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism of the Li3Bi/LiF interlayer under high current densities or extended cycling?
The interlayer maintains structural integrity due to the robust Li3Bi alloy and LiF matrix. At 3 mA cm−2 and 3 mAh cm−2, the symmetric cell cycles for 2500 h with a stable 60 mV hysteresis, indicating no significant degradation. The LiF component prevents electrolyte side reactions, while Li3Bi's lithiophilicity ensures uniform Li deposition, mitigating dendrite formation even at high rates.
How does the cost of the BiF3 treatment compare to conventional SEI engineering approaches?
BiF3 is an inexpensive, commercially available precursor. The in-situ spontaneous reduction requires no additional processing steps, reducing manufacturing complexity. In contrast, many SEI engineering methods involve costly deposition or multi-step synthesis. The raw material cost per m2 is estimated to be lower than typical artificial interlayer approaches, though exact cost parity requires scale-up validation.
What are the scalability bottlenecks for producing BiF3-Li anodes in roll-to-roll manufacturing?
The spontaneous reduction reaction is rapid and occurs at room temperature, compatible with roll-to-roll processing. However, uniform BiF3 coating on Li foil requires precise control of humidity and oxygen levels (<1 ppm) to prevent premature reaction. The process can be integrated into existing Li metal anode production lines with minimal modifications, but large-scale validation is needed to ensure homogeneity over wide formats.
Does the Li3Bi/LiF interlayer affect the low-temperature performance of LMBs?
The high ionic conductivity of LiF and the fast Li+ diffusion pathways provided by the interlayer suggest improved low-temperature kinetics. While the current study focuses on room-temperature performance, the reduced interfacial resistance (60 mV hysteresis) indicates that the interlayer could mitigate the sluggish charge transfer typically observed at sub-zero temperatures. Further testing at −20 °C is recommended.
What is the long-term stability of the Li3Bi/LiF interlayer in full cells with high-loading cathodes?
The full cell with LiFePO4 cathode (1 C, 1700 cycles, 73% retention) demonstrates stable operation. The interlayer's ability to suppress dendrites and maintain a stable SEI is expected to translate to high-loading cathodes, but specific testing with >3 mAh cm−2 loading is required. The 73% retention after 1700 cycles suggests that capacity fade is primarily due to cathode degradation rather than anode failure.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
