Key Takeaways & Executive Findings
- •• • Co-doping DPA single crystals with 3% Tc and 0.5% Pen yields white emission with a PLQY of 38.3%, enabling efficient intrinsically polarized white light sources for displays and optical communication. • • The degree of polarization (DOP) reaches 0.96 at 450 nm, 0.71 at 500 nm, and 0.69 at 610 nm, providing high polarization purity essential for 3D displays and quantum computing. • • Large-scale fabrication on a 0.9 cm × 0.9 cm silicon wafer demonstrates scalability, addressing a critical bottleneck in manufacturing miniaturized polarized OLEDs. • • X-ray diffraction confirms that the bc crystal plane is parallel to the substrate, ensuring uniform in-plane crystal orientation and consistent polarized emission across the device area.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Organic light-emitting devices (OLEDs) offer flexibility, lightweight design, and low manufacturing cost, but their emission is typically unpolarized, limiting applications in optical communication, 3D displays, biological imaging, and quantum computing. Conventional polarized light generation relies on external polarizers, which complicates miniaturization and reduces emission intensity. Intrinsically polarized light-emitting materials are sought, yet achieving white-color intrinsically polarized luminescence remains challenging due to a lack of suitable materials and efficient preparation methods. This study reports a groundbreaking fabrication strategy for white organic polarized emissive semiconductor single crystals (WOPESSCs). Using 2,6-diphenylanthracene (DPA) as the host single crystal, tetracene (Tc) and pentacene (Pen) were co-doped into the crystal bulk at mass ratios of 3% and 0.5%, respectively. Density functional theory calculations confirmed that the molecular sizes of Pen and Tc are slightly smaller than DPA, enabling incorporation into the DPA lattice. Spectral overlap between DPA fluorescence and Tc/Pen absorption indicated efficient energy transfer. The fluorescence emission spectra of DPA, Tc, and Pen span blue, green, and red regions, enabling white light generation. Double-doped single crystals with near-white-light emission were grown, and large-scale fabrication was realized on a 0.9 cm × 0.9 cm silicon wafer. The WOPESSCs exhibited uniform luminescence with a photoluminescence quantum yield (PLQY) of 38.3%. X-ray diffraction confirmed that the bc crystal plane was parallel to the substrate. Polarized fluorescence and electroluminescence spectra were measured, revealing a strong dependence of fluorescence intensity on polarization angle. The degree of polarization (DOP) values were 0.96 at 450 nm, 0.71 at 500 nm, and 0.69 at 610 nm. The WOPESSCs were successfully integrated into polarized organic light-emitting diodes (OLEDs), demonstrating their potential for advanced optoelectronic applications.
1. Introduction
Organic light-emitting devices (OLEDs) have gained traction due to their flexibility, lightweight design, and low manufacturing cost. However, their emitted light is typically unpolarized, with electromagnetic fields oscillating randomly in all directions. Polarized light, where the electromagnetic field oscillates in a specific direction, is indispensable for optical communication, three-dimensional displays, biological imaging, and quantum computing. Conventional methods generate polarized light by integrating an unpolarized source with an external polarizer, but this approach is incompatible with miniaturized devices that require complex micro-nano structures, complicating fabrication and reducing emission intensity.

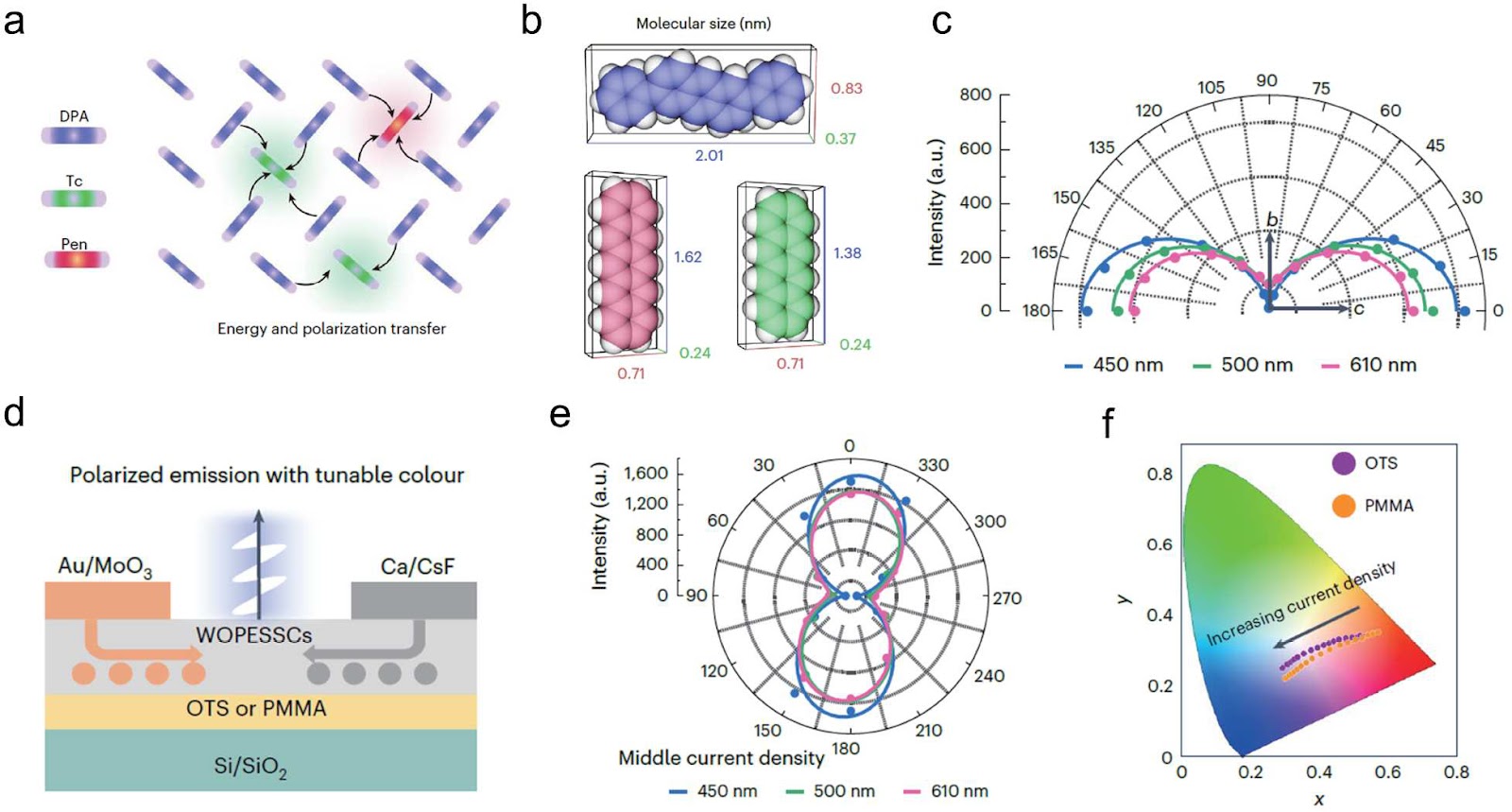

Recent efforts have focused on intrinsically polarized light-emitting materials, yet achieving white-color intrinsically polarized luminescence remains a significant challenge due to the lack of suitable materials and efficient preparation methods. This study introduces a groundbreaking fabrication strategy for white organic polarized emissive semiconductor single crystals (WOPESSCs). By co-doping 2,6-diphenylanthracene (DPA) host crystals with green-emitting tetracene (Tc) and red-emitting pentacene (Pen), the researchers achieved efficient energy transfer and white light generation. The resulting WOPESSCs exhibit a photoluminescence quantum yield of 38.3% and high degree of polarization values (0.96 at 450 nm, 0.71 at 500 nm, 0.69 at 610 nm), and were successfully integrated into polarized organic light-emitting diodes, demonstrating a viable path for advanced optoelectronic applications.
Loading authentic research manuscript (Pages 1–5)...
Yusheng Chen, Paolo Samorì (2025). High-Performance White Emission Polarized Single Crystal and Device. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3289-5
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the photoluminescence quantum yield (PLQY) of the WOPESSCs, and how does it compare to conventional white OLEDs?
The WOPESSCs exhibit a PLQY of 38.3%, which is competitive with conventional white OLEDs that typically range from 20% to 40% for solution-processed devices. This value indicates efficient energy transfer from the DPA host to the Tc and Pen guests, enabling bright white emission suitable for practical applications.
What are the degree of polarization (DOP) values at different wavelengths, and what do they imply for device performance?
The DOP values are 0.96 at 450 nm, 0.71 at 500 nm, and 0.69 at 610 nm. The high DOP at 450 nm ensures strong polarization purity in the blue region, critical for 3D displays, while the moderate values in green and red regions still provide sufficient polarization for most applications. These values demonstrate that the WOPESSCs maintain polarized emission across the visible spectrum.
How scalable is the fabrication process for WOPESSCs, and what are the limitations?
The process has been demonstrated on a 0.9 cm × 0.9 cm silicon wafer, showing potential for large-scale fabrication. However, scaling to industrial levels may require optimization of crystal growth conditions to maintain uniformity and avoid defects. The use of co-doping with precise mass ratios (3% Tc, 0.5% Pen) necessitates stringent control, which could pose challenges for high-throughput manufacturing.
What is the stability of the WOPESSCs under continuous operation, and what degradation mechanisms are expected?
The research text does not provide explicit stability data. However, organic single crystals typically exhibit better thermal and photochemical stability than amorphous films. Potential degradation mechanisms include photo-oxidation and thermal quenching, which could be mitigated by encapsulation. Long-term operational stability tests are required to validate their commercial viability.
How does the cost of WOPESSC fabrication compare to conventional polarized OLEDs with external polarizers?
The WOPESSC approach eliminates the need for external polarizers, reducing material and assembly costs. However, the co-doping process and single-crystal growth may incur higher initial costs due to precise control requirements. At scale, the simplified device architecture and potential for roll-to-roll processing could lead to cost parity or even savings compared to conventional polarized OLEDs.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
