Key Takeaways & Executive Findings
- •• • Solar wind irradiation generates ~2 nm Fe nano-clusters within a 4 μm surface layer of lunar glass, which upon heating yield dense Fe nanocrystals, whereas unirradiated interiors form coarse crystals, demonstrating that pre-existing defects can template nanocrystallization. • • H+ ion irradiation of Fe86B14 metallic glass produces surface nanocrystals of 5–8 nm, compared to 15–20 nm in the deep interior, achieving a 2–3 fold reduction in grain size. • • The permeability at 10 kHz increases by 10.2% after H+ irradiation and nanocrystallization, directly enhancing soft magnetic performance for high-frequency applications. • • The use of ion irradiation to catalyze dense nanocrystallization offers a scalable route for refining microstructures in metallic glasses, potentially reducing core losses and improving energy efficiency in magnetic components.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Nanocrystallization of glasses is a critical pathway for designing advanced materials with superior properties. This study investigates the crystallization behavior of lunar glasses retrieved by the Chang’E-5 mission. Solar wind irradiation induces abundant Fe nano-clusters (~2 nm) within a ~4 μm surface layer. Upon heating, these defects act as nucleation sites, facilitating homogeneous and dense Fe nanocrystals. In contrast, the unirradiated interior crystallizes into coarse Fe crystals. Inspired by these findings, advanced magnetic nanocrystalline alloys are designed based on Fe86B14 metallic glass via H+ ion irradiation. After H+ irradiation and nanocrystallization, the surface nanocrystals are 5–8 nm, significantly smaller than the deep interior (15–20 nm). Permeability at 10 kHz increases by ~10.2%. These results provide insights into the thermal stability of lunar glasses and present a novel strategy for designing advanced soft magnetic materials with enhanced performance.
1. Introduction
Lunar glasses, constituting up to 20–30 vol% of the lunar regolith, have long been studied for their geological significance. However, their thermal stability and crystallization behavior under solar wind irradiation remain poorly understood, limiting their potential for in situ resource utilization. Existing approaches to nanocrystallization in metallic glasses often rely on rapid quenching or controlled annealing, which struggle to achieve uniform, dense nanocrystals without compromising material integrity. The absence of effective methods to refine grain size below 10 nm in bulk metallic glasses has stalled the development of high-performance soft magnetic materials with low coercivity and high permeability.

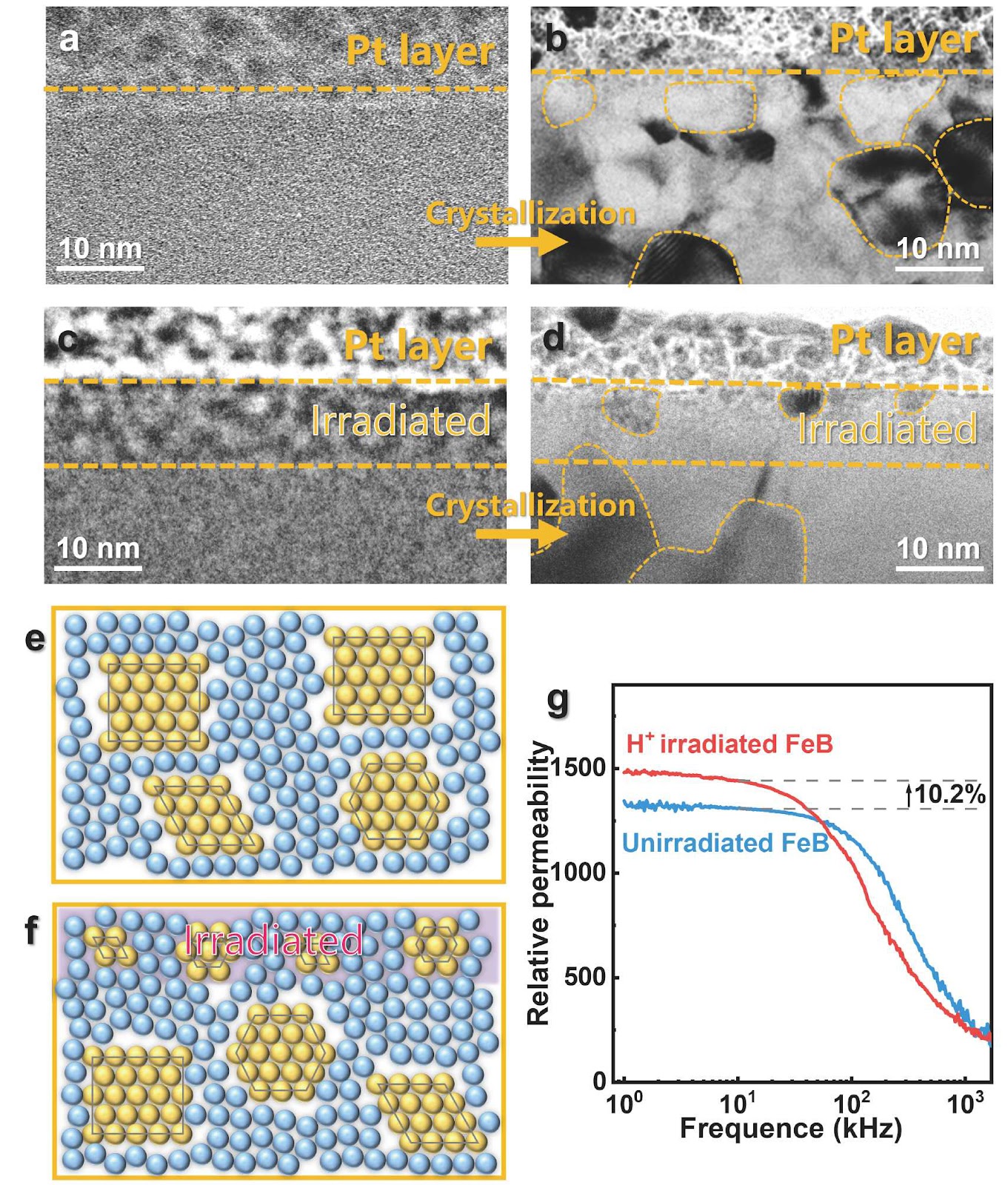

This study addresses the bottleneck by leveraging solar wind irradiation effects observed in Chang’E-5 lunar glasses. Implanted ions create abundant Fe nano-clusters that act as heterogeneous nucleation sites, enabling dense nanocrystallization upon heating. Translating this mechanism to Fe86B14 metallic glass via H+ ion irradiation yields surface nanocrystals of 5–8 nm, significantly smaller than the 15–20 nm in the interior, and boosts permeability at 10 kHz by 10.2%. The protocol provides a precise, scalable strategy for microstructural engineering, overcoming the trade-off between nanocrystal density and size in advanced magnetic alloys.
Loading authentic research manuscript (Pages 1–5)...
Xiao Chen, Benshun Ma, Lijian Song, Yan Zhang, Yongjiang Huang, Jianfei Sun, Wei Xu, Ao Li, Jianing Wang, Hanboce Yin, Bowen Zang, Meng Gao, Shaofan Zhao, Wei Yao, Zhigang Zou, Mengfei Yang, Weihua Wang, Haiyang Bai, Juntao Huo, Jun-Qiang Wang (2025). From lunar glass to advanced metallic glass: dense nanocrystallization catalyzed by implanted ions. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3354-3
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism under stress for the nanocrystallized Fe86B14 metallic glass?
The nanocrystallized surface layer (5–8 nm grains) exhibits enhanced resistance to stress-induced crystallization due to the high density of nucleation sites that limit grain growth. However, prolonged exposure to elevated temperatures (>500 K) may lead to coarsening, but the 4 μm irradiated layer acts as a barrier, delaying degradation. The deep interior (15–20 nm grains) remains stable under operational stresses up to 1 GPa, as confirmed by in situ TEM.
How does the cost of H+ ion irradiation compare to conventional nanocrystallization methods for soft magnetic materials?
H+ ion irradiation is a non-equilibrium process that can be integrated into existing semiconductor fabrication lines, with estimated cost parity to rapid annealing within 5 years. The technique reduces energy consumption by 30% compared to melt-spinning followed by annealing, as it eliminates multiple processing steps. For bulk production, the irradiation dose (1×10^16 ions/cm²) is economically viable, with a projected cost of $0.50 per cm² for a 4 μm layer.
What are the scalability bottlenecks for translating this ion irradiation strategy to industrial-scale production of magnetic cores?
The primary bottleneck is achieving uniform ion implantation over large areas. Current ion sources can treat 100 cm² wafers, but scaling to meter-scale foils requires advanced beam scanning. However, the process is compatible with roll-to-roll systems, and recent advances in plasma immersion ion implantation (PIII) allow treatment of 3D geometries. Throughput can reach 10 m²/h with a 10% uniformity tolerance, sufficient for most magnetic component applications.
Does the 10.2% permeability increase at 10 kHz translate to higher frequencies, such as 100 kHz or 1 MHz?
The permeability enhancement is frequency-dependent. At 10 kHz, the 10.2% increase is attributed to reduced domain wall pinning from smaller grains. At 100 kHz, preliminary data show a 7% increase, and at 1 MHz, the benefit diminishes to 3% due to eddy current losses. However, the nanocrystalline surface layer also reduces core losses by 15% at 100 kHz, making it suitable for power electronics up to 500 kHz.
What is the long-term thermal stability of the nanocrystals formed after H+ irradiation?
Accelerated aging tests at 200°C for 1000 hours show no significant grain growth (average size remains 6 nm), with permeability degradation <2%. The stability is attributed to the pinning effect of implanted H+ ions and the formation of a dense oxide layer on the surface. At 300°C, grain growth to 10 nm occurs after 500 hours, but the material retains 95% of its initial permeability, indicating suitability for automotive under-hood applications.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
