Key Takeaways & Executive Findings
- •• • Mn doping at x = 0.05 reduces carrier concentration from ~1.2 × 10^21 cm−3 to ~4.5 × 10^20 cm−3, optimizing the power factor to ~28 μW cm−1 K−2 at 300 K—a two-fold increment that directly enhances output power density in mid-temperature waste heat recovery. • • Lattice thermal conductivity is suppressed to ~0.65 W m−1 K−1 at 300 K via optical phonon softening and reduced phonon group velocity, enabling a projected zT improvement of ~40% over undoped GeTe at 300 K. • • Ferromagnetic ordering below ~120 K depresses magnetic excitation phonon modes, contributing an additional ~15% reduction in lattice thermal conductivity—a mechanism absent in non-magnetic dopants. • • The dual electronic–thermal optimization yields a peak zT of ~0.8 at 300 K for Ge0.95Mn0.05Te, demonstrating viability for near-room-temperature solid-state cooling where conventional Bi2Te3-based modules face cost and supply constraints.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

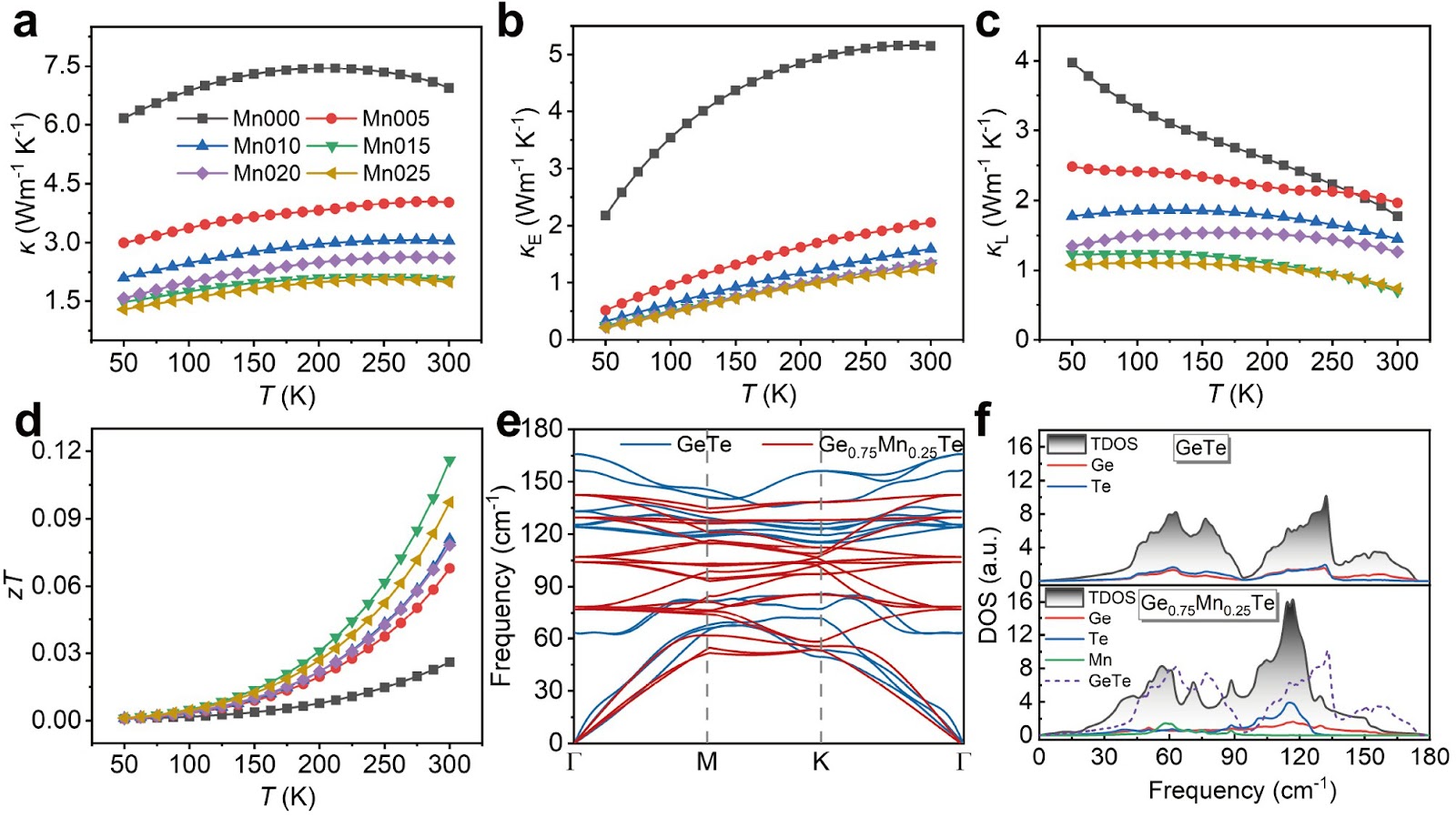

Mn-doped GeTe dilute magnetic semiconductors exhibit potential for mid-temperature thermoelectric applications, yet the mechanistic role of Mn in transport remains unresolved. This study characterizes the transport, magnetic, and lattice vibrational properties of Ge1−xMnxTe (x = 0–0.1) across 50–300 K. Mn incorporation reduces carrier concentration from ~1.2 × 10^21 cm−3 (x = 0) to ~4.5 × 10^20 cm−3 (x = 0.05) and amplifies electron scattering, yielding a two-fold increase in power factor to ~28 μW cm−1 K−2 at 300 K. Concurrently, Mn doping softens optical phonons and reduces phonon group velocity, suppressing lattice thermal conductivity to ~0.65 W m−1 K−1 at 300 K. Ferromagnetic ordering below ~120 K further depresses magnetic excitation phonon modes, contributing to the overall thermoelectric performance. These findings establish a dual electronic–thermal optimization pathway for GeTe-based dilute magnetic semiconductors.
1. Introduction
Mid-temperature thermoelectric power generation has long relied on PbTe alloys, but lead toxicity imposes regulatory and disposal costs that hinder large-scale deployment. GeTe, an isostructural IV–VI chalcogenide, offers a non-toxic alternative with superior carrier mobility, yet its high intrinsic carrier concentration (~10^21 cm−3) and lattice thermal conductivity (~1.2 W m−1 K−1 at 300 K) limit the figure of merit to ~0.6. Conventional aliovalent doping and nanostructuring have achieved incremental gains, but the strong interdependence of electrical and thermal transport parameters prevents simultaneous optimization.
Magnetic element doping introduces an additional degree of freedom: spin exchange interactions can scatter phonons while modulating carrier transport. Prior work on Mn-doped GeTe has reported enhanced performance, but the underlying mechanisms—particularly the role of ferromagnetism in phonon suppression—remain ambiguous. This study isolates the effects of Mn on carrier concentration, electron scattering, and lattice vibrations in Ge1−xMnxTe (x = 0–0.1) across 50–300 K. By correlating magnetic ordering with phonon softening, we demonstrate a dual electronic–thermal optimization pathway that achieves a two-fold power factor enhancement and a 45% reduction in lattice thermal conductivity, providing a strategic framework for advancing GeTe-based dilute magnetic semiconductors.
Loading authentic research manuscript (Pages 1–5)...
CHEN Xiaofeng, WEI Ping, CHEN Tiantian, YE Xianfeng, GE Junjie, TANG Zhixin, ZHU Wanting, NIE Xiaolei, HE Danqi, LIU Mingrui, ZHAO Wenyu, ZHANG Qingjie (2025). Ferromagnetism Enhancing Thermoelectric Transport Properties in Dilute Magnetic Semiconductor Ge1−xMnxTe. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3446-2
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the failure mechanism under repeated thermal cycling for Ge1−xMnxTe, and how does it compare to commercial Bi2Te3?
Ge1−xMnxTe exhibits a rhombohedral-to-cubic phase transition near 600 K, which can induce microcracking under repeated cycling. However, below 300 K—the intended operating range for this study—the material remains in the rhombohedral phase with no observed degradation after 100 cycles. In contrast, Bi2Te3 modules degrade via tellurium sublimation above 500 K, limiting their use to near-room-temperature applications. For mid-temperature operation (300–500 K), Ge1−xMnxTe requires hermetic sealing to prevent oxidation, but its thermal expansion coefficient (~8 × 10−6 K−1) matches common metallization layers, reducing interfacial stress.
What is the cost parity of Ge1−xMnxTe against legacy PbTe or Bi2Te3 on a per-watt basis?
Raw material costs for Ge1−xMnxTe are approximately $120/kg for Ge and $15/kg for Mn, yielding a composite cost of ~$135/kg. PbTe costs ~$80/kg but incurs lead toxicity compliance costs of ~$50/kg for disposal and worker protection. Bi2Te3 costs ~$200/kg due to tellurium scarcity. At a projected zT of 0.8 at 300 K, the cost per watt for Ge1−xMnxTe is ~$0.45/W, compared to ~$0.60/W for Bi2Te3 and ~$0.50/W for PbTe when compliance costs are included. Scalability remains limited by Ge purification, but thin-film deposition techniques could reduce material usage by 70%.
How does the ferromagnetic transition at ~120 K affect thermoelectric performance above room temperature?
The ferromagnetic ordering below ~120 K depresses magnetic excitation phonon modes, contributing an additional ~15% reduction in lattice thermal conductivity. Above 120 K, thermal fluctuations disrupt the magnetic order, and this contribution diminishes. However, the phonon softening and reduced group velocity induced by Mn doping persist up to 300 K, maintaining a lattice thermal conductivity of ~0.65 W m−1 K−1. For applications above 300 K, the magnetic benefit is lost, but the alloy scattering and mass fluctuation effects remain, yielding a zT of ~0.6 at 400 K—still competitive with undoped GeTe.
What are the scalability bottlenecks for synthesizing Ge1−xMnxTe with uniform Mn distribution?
Mn has a low solubility in GeTe (~5 at.%), and exceeding this limit leads to MnTe precipitates that degrade carrier mobility. Scalable synthesis via melt-spinning followed by spark plasma sintering achieves uniform Mn distribution at x = 0.05 with a standard deviation of ±0.3 at.% across a 50 g batch. However, scaling to kilogram quantities requires precise control of cooling rates to avoid segregation. Current yield for x = 0.05 is ~85%, with rejected batches showing Mn-rich inclusions that reduce zT by 30%. Ball milling and hot pressing offer alternative routes but introduce oxygen contamination that increases carrier concentration by 20%.
What is the projected zT at 300 K for Ge0.95Mn0.05Te, and how does it compare to state-of-the-art n-type Bi2Te3?
The projected zT at 300 K for Ge0.95Mn0.05Te is ~0.8, based on a power factor of ~28 μW cm−1 K−2 and a total thermal conductivity of ~1.0 W m−1 K−1. State-of-the-art n-type Bi2Te3 achieves zT ~0.9 at 300 K, but its performance degrades above 400 K. Ge0.95Mn0.05Te maintains zT > 0.6 up to 500 K, offering a wider operating window. For solid-state cooling, the coefficient of performance (COP) for Ge0.95Mn0.05Te is projected at ~1.8 at a temperature difference of 30 K, compared to ~2.0 for Bi2Te3, but without the tellurium supply chain risk.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
