Key Takeaways & Executive Findings
- •• • 10% Mn2+ doping in cubic CsCdCl3 achieves near-unity PL QY and 10 h afterglow, enabling high-efficiency persistent luminescence for information storage and anti-counterfeiting. • • Phase transition from cubic to hexagonal occurs at 100 °C, with Mn2+ concentration as a tunable parameter, allowing precise control over lattice structure for tailored optical properties. • • X-ray imaging resolution reaches approximately 6 lp/mm, and luminescence intensity remains stable after 10 min of X-ray irradiation, indicating suitability for radiation detection and imaging. • • Information retrieval via heating at 125 °C demonstrates practical optical data storage with thermal readout, while hand-printed patterns on PET show potential for flexible anti-counterfeiting labels.
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract

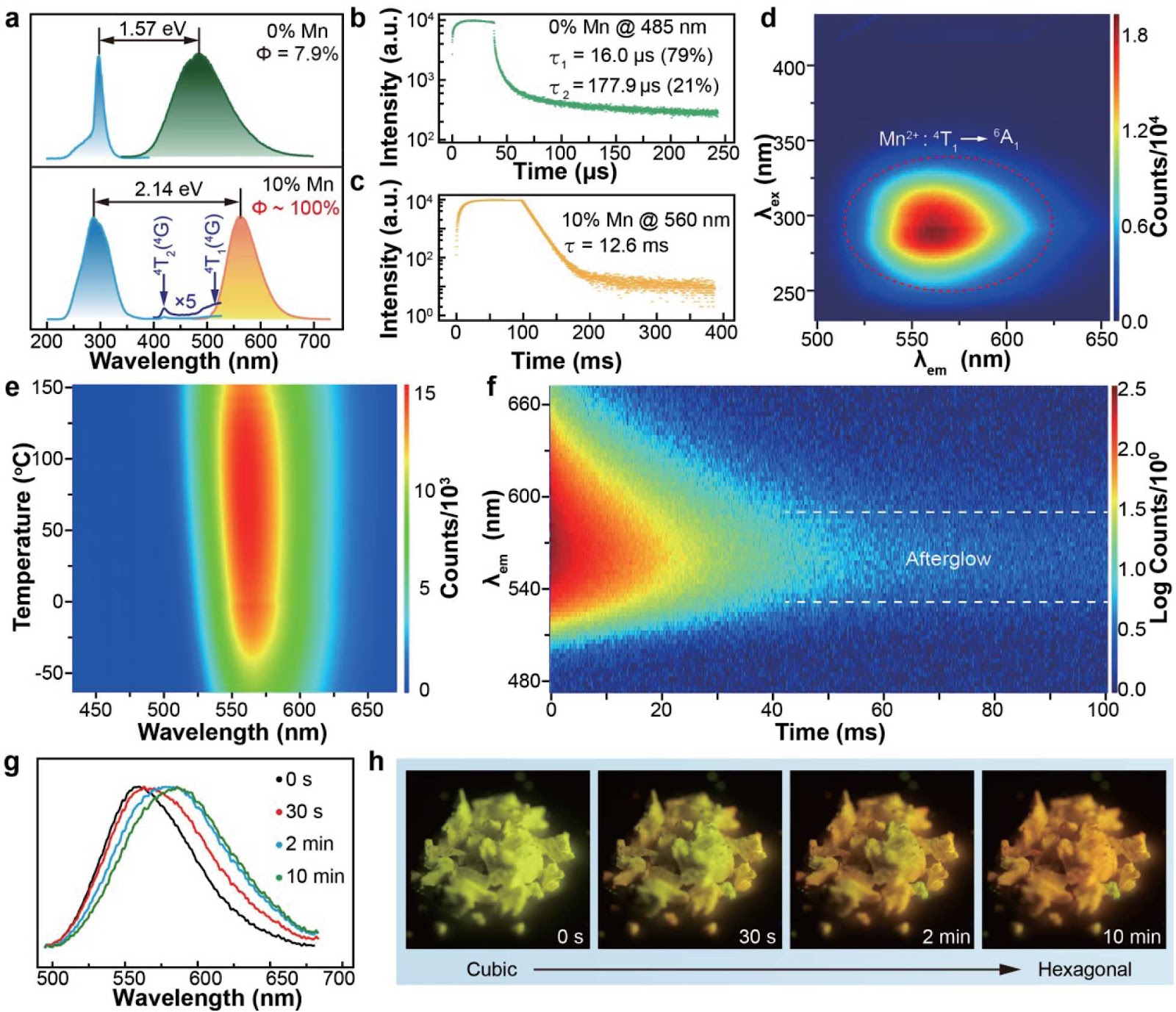

Cubic-phase CsCdCl3 microcrystals were synthesized via room-temperature solid-state synthesis, overcoming the elusiveness of this polymorph relative to the extensively reported hexagonal phase. Doping with 10% Mn2+ elevated the photoluminescence quantum yield (PL QY) to near unity and extended afterglow duration to 10 h. The cubic phase exhibits metastability toward thermal treatment, transitioning to the hexagonal phase upon heating at 100 °C. Phase transition is also sensitive to Mn2+ doping concentration, providing a facile tool to manipulate the lattice structure of octahedra dimers (hexagonal) or monomers (cubic). Phonon spectrum and lattice formation energy calculations rationalize the phase transition mechanism. The phosphor demonstrates potential for information storage, X-ray imaging, and anti-counterfeiting. Under X-ray excitation, a spatial resolution of approximately 6 lp/mm was achieved, and luminescence intensity remained unchanged after 10 min of irradiation. Stored information, including a poem and a chip pattern, was retrievable upon heating at 125 °C. A hand-printed flower-like pattern on PET substrate, composed of pristine, 10% Mn2+, and 20% Mn2+-doped CsCdCl3, exhibited tunable photoluminescence color and afterglow duration. The digit '8' hidden under UV excitation was revealed after ceasing excitation, demonstrating anti-counterfeiting capability. This work opens avenues for advanced applications in information storage, X-ray imaging, and anti-counterfeiting.
1. Introduction
Afterglow phosphors capable of photon storage and sustained release have found broad applications in safety signaling, anti-counterfeiting, data storage, antimicrobial technologies, and in vivo imaging. Conventional oxide, nitride, or sulfide phosphors require high-temperature sintering (>1000 °C) and reductive atmospheres due to high phase-formation energy, posing manufacturing safety challenges and limiting cost-effective production. Reducing synthesis temperature has become a critical objective, with recent solution-grown phosphors achieving room-temperature synthesis. Cadmium-based afterglow phosphors, particularly CsCdCl3, have garnered attention for exceptional afterglow properties and facile synthesis. However, the cubic-phase CsCdCl3 remained elusive despite extensive reports on the hexagonal phase, restricting access to its unique optical properties.
This work synthesizes pure cubic-phase CsCdCl3 microcrystals via room-temperature solid-state synthesis. Doping with 10% Mn2+ boosts PL QY to near unity and extends afterglow to 10 h. A phase transition from cubic to hexagonal is achieved by increasing Mn2+ doping, with underlying physics rationalized through phonon spectrum and lattice formation energy calculations. The phase-tunable phosphor demonstrates ultra-long afterglow and potential for information storage, X-ray imaging, and anti-counterfeiting, addressing the bottleneck of limited phase control and low quantum yield in cubic CsCdCl3.
Loading authentic research manuscript (Pages 1–5)...
LIU Yeqi, ZHANG Xiangzhou, WEI Jun, WANG Xiaojia, ZHANG Yuhai (2025). Facile phase tuning of CsCdCl3:Mn2+ phosphor for nearly-unity quantum yield and extended afterglow. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3442-0
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the thermal stability limit of the cubic phase, and what failure mechanism occurs upon heating?
The cubic phase is metastable and transitions to the hexagonal phase upon heating at 100 °C. This phase transition is sensitive to Mn2+ doping concentration, with higher doping levels promoting hexagonal phase formation. The failure mechanism involves a reconstructive transformation from octahedra monomers (cubic) to dimers (hexagonal), which alters the optical properties and afterglow duration.
How does the afterglow duration compare to commercial persistent phosphors, and what is the cost parity?
The afterglow duration reaches 10 h, which is competitive with commercial oxide-based phosphors that typically exhibit afterglow of several hours. Cost parity is favorable due to room-temperature solid-state synthesis, eliminating high-temperature sintering (>1000 °C) and reductive atmospheres, reducing energy consumption and manufacturing complexity.
What is the spatial resolution under X-ray excitation, and how does it compare to standard scintillators?
The spatial resolution is approximately 6 lp/mm, measured using a standard line-pair card. This is comparable to some commercial scintillators but lower than high-end single-crystal scintillators (e.g., CsI:Tl with 10-20 lp/mm). The advantage lies in the facile synthesis and potential for flexible substrates, enabling cost-effective X-ray imaging applications.
What are the scalability bottlenecks for room-temperature solid-state synthesis of cubic CsCdCl3?
Scalability is promising due to the simple solid-state reaction at room temperature, avoiding high-temperature furnaces. However, bottlenecks include achieving uniform Mn2+ doping at large scales and preventing moisture-induced degradation of the cubic phase. The metastability at 100 °C requires controlled storage and processing conditions to avoid unintended phase transitions.
How does the Mn2+ doping concentration affect the phase transition and optical properties?
Increasing Mn2+ doping from 10% to 20% induces a phase transition from cubic to hexagonal, as evidenced by structural and optical changes. At 10% doping, PL QY reaches near unity and afterglow extends to 10 h. Higher doping concentrations promote hexagonal phase formation, which may reduce quantum yield but alter emission color, providing a tunable parameter for specific applications.
Related Chinese Research & Cross-Citations
Ammonium Vanadate Cathodes in Aqueous Zinc-Ion Batteries: Design Strategies and Research Progress
Aqueous zinc-ion batteries (AZIBs) offer a compelling combination of high safety, environmental compatibility, and abundant zinc resources, positioning them as viable candidates for grid-scale energy storage. Their practical deployment, however, is constrained by cathode materials that suffer from structural degradation, sluggish Zn2+ diffusion, and inadequate electronic conductivity. Ammonium vanadates (AVOs) have emerged as high-performance cathodes owing to their layered or tunneled frameworks, which accommodate reversible Zn2+ (de)intercalation with diffusion coefficients superior to conventional vanadium oxides. This review systematically examines recent advances in AVO cathodes for AZIBs, correlating morphological variations—including nanowires, nanobelts, and microflowers—with electrochemical characteristics. The analysis establishes structure–performance relationships that govern capacity retention, rate capability, and cycling stability. Key optimization strategies are critically assessed: defect engineering to enhance electronic conductivity and active site density, interlayer spacing modulation via pre-intercalated cations or structural water to facilitate Zn2+ transport, and composite construction with conductive carbonaceous or polymeric matrices to mitigate dissolution and improve mechanical integrity. Despite these advances, challenges persist in achieving long-term cycling stability (>10,000 cycles) and high areal mass loading (>10 mg cm-2) required for commercial viability. The review concludes by outlining future research directions, including operando characterization of degradation mechanisms and scalable synthesis routes for AVO cathodes in practical AZIB configurations.
Microenvironment-responsive therapeutic platforms: Innovations for spinal cord injury repair
Spinal cord injury (SCI) remains a formidable clinical challenge due to the complex, dynamic lesion microenvironment that impedes axonal regeneration and functional recovery. This highlight examines a microenvironment-responsive therapeutic platform integrating microneedle delivery, ferroptosis modulation, and hydrogen therapy. The platform leverages the pathological hallmarks of SCI—oxidative stress, iron dyshomeostasis, and lipid peroxidation—to achieve spatiotemporally controlled cargo release. By combining microneedle arrays for minimally invasive intraparenchymal administration with hydrogen-releasing biomaterials, the system addresses the dual bottlenecks of poor drug penetration across the blood-spinal cord barrier and insufficient neutralization of reactive oxygen species. Ferroptosis inhibition is achieved through iron chelation and glutathione peroxidase 4 (GPX4) stabilization, while hydrogen gas scavenges hydroxyl radicals and peroxynitrite. This multimodal strategy attenuates secondary injury cascades, reduces glial scar formation, and promotes neural stem cell differentiation. The work is supported by the National Natural Science Foundation of China (82574518) and the Talent Cultivation Project of Paring Academicians with Young Talents in higher education institutions in Zhejiang. The authors declare no conflict of interest. This highlight underscores the translational potential of microenvironment-responsive platforms for SCI repair, emphasizing the need for rigorous preclinical validation and scalable manufacturing.
Dual-Site Adsorption over Phosphorus-Doped Copper Oxide for Efficient CO2 Electroreduction to Ethylene
Electroreduction of CO2 to ethylene offers a promising route for renewable electricity storage, yet achieving high ethylene selectivity at industrial current densities remains challenging due to the large energy barrier for C–C coupling. Here, we report a “MOF-assisted in situ doping” strategy to introduce the oxophilic nonmetal phosphorus (P) into the copper oxide (CuO) lattice, constructing a localized Cu–P dual-site adsorption configuration for the key *OCCHO intermediate. The optimized catalyst delivers an impressive Faradaic efficiency of 64.6% for ethylene with a partial current density of 646 mA cm-2. Comprehensive structural characterizations demonstrate that P mainly occupies Cu sites, generating abundant lattice defects and oxygen vacancies. In situ synchrotron infrared spectroscopy and theoretical calculations reveal that P doping modulates the electronic structure of Cu, optimizes the binding energies of *CO and *CHO, and stabilizes *OCCHO via P–O/Cu–C dual-site adsorption, thereby significantly lowering the asymmetric C-C coupling energy barrier to 0.74 eV. This work highlights a dual-site microenvironment regulation strategy for CO2-to-ethylene electroreduction.
Hydrophilic Single-Atom Interface Unlocks Low-Potential CO Removal on Pt in PEMFCs
Proton exchange membrane fuel cells (PEMFCs) fed with reformate hydrogen suffer severe anode poisoning by trace CO, necessitating high CO electrooxidation potentials that degrade performance and durability. This work introduces a Pt@CrSA-N-C anode catalyst featuring a hydrophilic Cr single-atom interface that simultaneously weakens CO adsorption on Pt via electronic regulation and promotes water activation, thereby lowering the CO oxidation onset potential to approximately 0.13 V vs. RHE. The onset potential was determined by two independent methods: the first potential at which the background-corrected current exceeds 0 mA cm-2 during CO oxidation reaction tests in a three-electrode system, and the potential at which the forward scan current exceeds the N2 background current in CO-stripping voltammetry. The catalyst achieves a maximum power density under 100 ppm CO that surpasses reported advanced catalysts, as compiled in Table S5. Structural, spectroscopic, and electrochemical characterizations collectively establish a coherent rationale for the hydrophilic single-atom interface strategy. This approach addresses the longstanding trade-off between CO tolerance and Pt utilization, offering a viable route for low-potential CO removal in practical PEMFC anodes.
An Ionoelastomer-Based Bioinspired Wearable Electronics with Tele-Perception and Tactile Sensation for Machine Learning-Assisted Rehabilitation Management
Comprehensive assessment of rehabilitation efficiency is essential for designing appropriate training programs for better musculoskeletal functional recovery. Existing contact-receptor-dependent rehabilitation assessment systems mostly focus on assessing the restoration of muscle function by evaluating grip strength or joint flexion angle; however, parameters reflecting neuromuscular synergistic function are always overlooked. Herein, we develop an ionoelastomer-based soft artificial electroreceptor (SAER) that integrates tele-perception and tactile sensation to track the rehabilitation process, collecting signals related to approaching speed and grip strength sequentially. The SAER uses polyurethane ionoelastomer incorporated with quasi-solid conductive salt as the electric field receptor, and is integrated on a rehabilitation-training ball after assembly to establish an untethered detection device; this enables the remote capture of hand approaching parameter within a 9 cm range, followed by the quantification of grip strength when contacting and grasping. Furthermore, a data-driven assessment system is established by integrating machine learning, which accurately classifies rehabilitation efficiency into six levels; it supports for rehabilitation evaluation and training programs adjustment. Overall, the SAER-based rehabilitation management system establishes a paradigm that synergistically evaluating parameters corresponding to neuromuscular functional restoration and holds strong potential for home-based active rehabilitation for minimizing dependence on frequent clinical supervision.
Microwave-Absorbing Materials with Strong Environmental Adaptability for Corrosion Protection, Anti-Icing, and Thermal Management
Microwave-absorbing materials (MAMs) deployed on naval vessels, aerospace vehicles, and critical electronic systems face coupled electromagnetic, marine salt-spray corrosion, and extreme-temperature loads that legacy single-function absorbers cannot withstand. This review consolidates progress on three environmentally adaptive MAM classes: corrosion-protective, anti-icing, and thermal-management absorbers. The electromagnetic loss and impedance-matching fundamentals are first established, then the synergistic mechanisms, design strategies, and characterization protocols for each class are examined against representative material systems and their measured performance. The analysis identifies a shared design logic—multiscale hierarchical architecture, interfacial polarization engineering, and multifunctional phase integration—while distinguishing the divergent protection mechanisms: barrier and passivation effects for corrosion, surface-energy and latent-heat regulation for anti-icing, and phonon–electron transport decoupling for thermal management. Persistent bottlenecks include the trade-off between impedance matching and protective-layer density, the absence of standardized coupled-field test protocols, and the scarcity of long-term salt-spray and thermal-cycling durability data. Future directions are delineated: intelligent self-adaptive absorbers, multiphysics-coupled simulation frameworks, and environmentally benign multifunctional integration. The review provides a theoretical and technical basis for the design, construction, and engineering scale-up of next-generation high-performance absorbers for aerospace, electronic, and marine equipment.
