Key Takeaways & Executive Findings
- •• • Cation hybridization with Mg2+ and Ba2+ in germanate glass yields a stable multi-band NIR emission spanning 920, 1142, 1265, and 1516 nm with a record bandwidth of 526 nm, enabling optical amplification across O+E+S+C bands (1260–1675 nm) and potentially doubling the usable bandwidth of current Er-doped fiber amplifiers (1530–1610 nm). • • The strategy achieves a positive on-off gain in multiple communication bands (O, E, S, C) in a fabricated Bi-doped hybrid germanate glass fiber, demonstrating net signal amplification without the need for complex multi-stage or hybrid amplifier architectures. • • By tailoring the local glass network with Ba2+ and repairing it with Mg2+, the variability of Bi active centers (BACs) is suppressed, leading to stable emission at 1142 nm as a single main peak or as part of a multi-band profile, which is critical for reproducible fiber amplifier manufacturing. • • The ultra-broadband response (526 nm) exceeds the bandwidth of conventional rare-earth-doped glasses by a factor of ~3.5 (typical Er bandwidth ~80 nm), directly addressing the capacity crunch in optical communication systems by covering the entire low-loss transmission window (1260–1675 nm).
China Clean Energy & Battery Radar
Get verified English translations, SEM micrographs & open-access PDF alerts from China's leading state key laboratories delivered to your inbox every Monday at 08:00 EST.
Abstract
Bi-doped glass fibers with controllable optical response are essential for next-generation broadband amplifiers and tunable lasers. However, achieving broad wavelength tunability and stable near-infrared (NIR) emission remains challenging due to limited structural modification of conventional silica glasses and variability of Bi active centers (BACs). Here, we propose a cation hybridization strategy to overcome these issues, demonstrating an enhanced ultra-broadband, multi-band NIR optical response in Bi-doped photonic glasses. Alkaline earth metal ions, such as Mg2+ and Ba2+, were employed as the hybrid cations to 'repair' (Mg2+) and 'tailor' (Ba2+) the flexible glass network of germanate glasses, enabling precise customization of the local environment to stabilize different BACs. Impressively, this enables a tunable optical response, ranging from one main peak emission at 1142 nm to a stable multi-band emission spanning 920, 1142, 1265, and 1516 nm, with an emission bandwidth of 526 nm, which is distinct from conventional rare-earth ions doped glasses. Furthermore, Bi-doped hybrid germanate glass fibers were fabricated and a positive on-off gain in multiple communication bands (O + E + S + C bands) was successfully achieved. The results offer new insights into the Bi NIR luminescence behavior and introduce a promising strategy for developing advanced photonic glass materials.
1. Introduction
The exponential growth in global data traffic, driven by big data, cloud computing, and the Internet of Things, has outpaced the capacity of current optical communication infrastructure. Existing erbium-doped fiber amplifiers (EDFAs) are constrained to the C-band (1530–1610 nm), leaving the vast low-loss transmission window of silica fiber (O–U band, 1260–1675 nm) largely unexploited. This bandwidth bottleneck necessitates gain fibers that can amplify signals across multiple communication bands simultaneously. Bismuth-doped glass fibers (BDFs) have emerged as promising candidates due to their ultra-broadband NIR luminescence (1000–1700 nm), but their practical deployment is hindered by the inherent variability of Bi active centers (BACs) and the limited structural flexibility of conventional silica glass, which restricts precise control over the local environment.
To overcome these limitations, this study introduces a cation hybridization engineering strategy in germanate glasses. By incorporating alkaline earth metal ions—Mg2+ to 'repair' the glass network and Ba2+ to 'tailor' it—the local environment around Bi ions is systematically modified, stabilizing specific BACs and enabling tunable multi-band emission. This approach yields a remarkable emission bandwidth of 526 nm, covering 920, 1142, 1265, and 1516 nm, and facilitates the fabrication of Bi-doped hybrid germanate glass fibers that demonstrate positive on-off gain across the O, E, S, and C bands. The results provide a viable pathway for developing advanced photonic glass materials that can transcend the bandwidth limitations of current rare-earth-doped amplifiers.
Loading authentic research manuscript (Pages 1–5)...

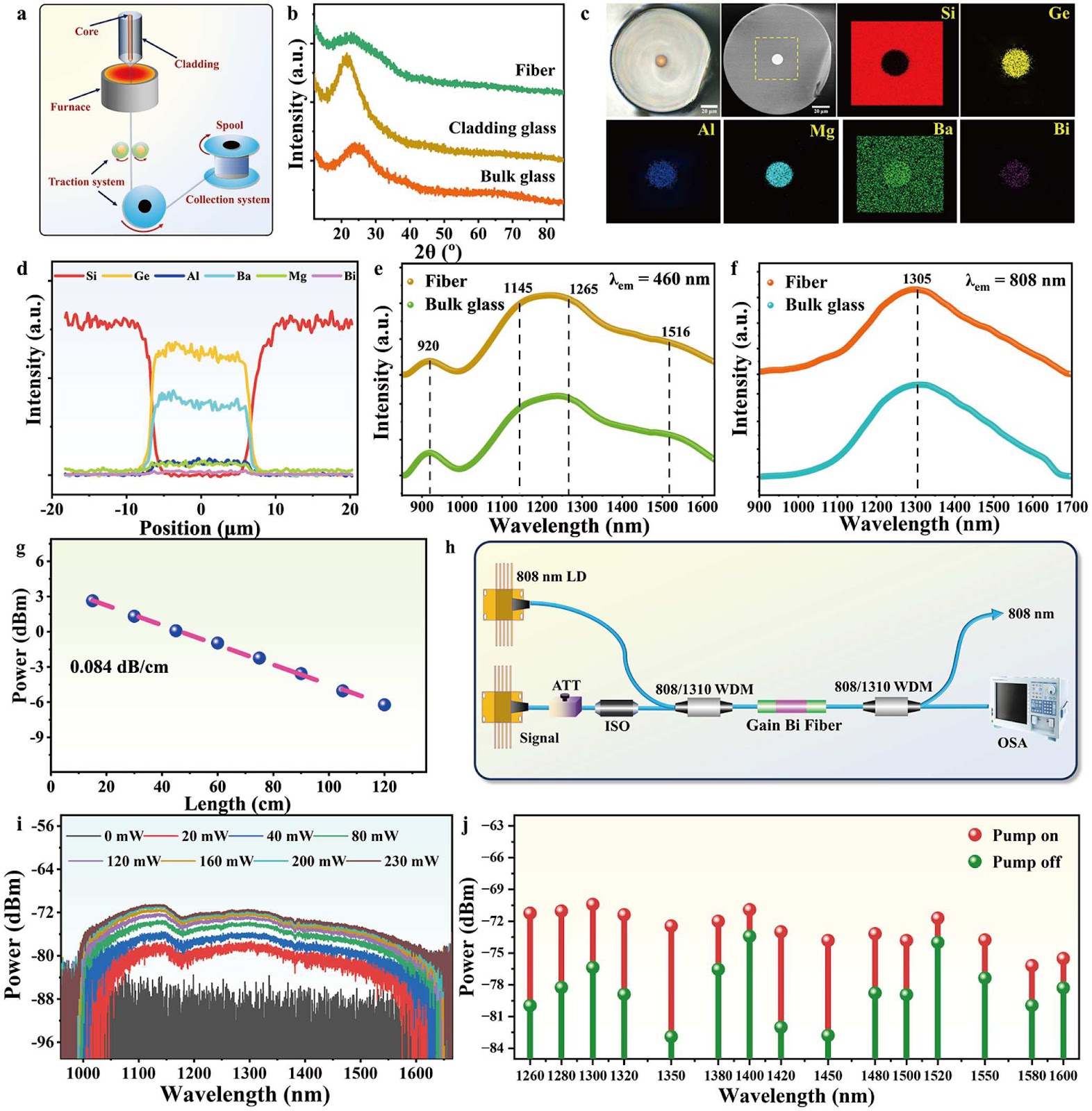

CHEN Weiwei, OUYANG Min, HUANG Xiongjian, WU Minbo, YIN Bozhao, HAN Anran, GUO Weibang, XIONG Puxian, XIAO Xiudi, QIU Jianrong, YANG Zhongmin, DONG Guoping (2025). Enhanced Tunable Ultra-Broadband Multi-Band NIR Optical Response in Bi-Doped Photonic Glass and Fibers by Cation Hybridization Engineering. SCIENCE CHINA Materials. https://doi.org/10.1007/s40843-025-3371-0
Research & Educational Purpose Only: The translations, structured abstracts, analytical annotations, and data reports provided by SinoGreenTechare intended exclusively for academic research, internal corporate R&D, and educational benchmarking. They do not constitute formal engineering, chemical safety, legal, or professional advice.
Copyright & Intellectual Property Notice: Original copyright of the underlying source articles and experimental data remains with the respective authors, institutions, and original publishing journals. SinoGreenTech claims intellectual property only over its proprietary translations, analytical syntheses, and AEO structured enhancements in accordance with international fair use and academic citation principles.
Frequently Asked Questions
What is the measured emission bandwidth and how does it compare to conventional Er-doped fiber amplifiers?
The Bi-doped hybrid germanate glass exhibits a multi-band emission spanning 920, 1142, 1265, and 1516 nm with a total bandwidth of 526 nm. In contrast, conventional Er-doped fiber amplifiers operate within a bandwidth of approximately 80 nm (1530–1610 nm). This 6.5-fold increase in bandwidth enables signal amplification across the entire low-loss transmission window (1260–1675 nm), directly addressing the capacity limitations of current optical networks.
What specific role do Mg2+ and Ba2+ play in stabilizing the Bi active centers?
Mg2+ acts as a network 'repairer', reinforcing the germanate glass structure and reducing defects that quench Bi luminescence. Ba2+, with its larger ionic radius, 'tailors' the glass network by expanding interstitial sites, which accommodates different Bi active centers and stabilizes their emission. This dual-cation hybridization suppresses the variability of BACs, enabling reproducible multi-band emission with a stable 1142 nm peak.
Has a positive gain been demonstrated in actual fiber devices, and across which communication bands?
Yes, Bi-doped hybrid germanate glass fibers were fabricated and tested, achieving positive on-off gain in multiple communication bands: O-band (1260–1360 nm), E-band (1360–1460 nm), S-band (1460–1530 nm), and C-band (1530–1565 nm). This demonstrates the practical viability of the approach for broadband amplification without the need for multiple discrete amplifiers.
What are the potential failure mechanisms or degradation risks under high-power operation?
The primary risks include photo-induced darkening and thermal degradation of BACs under high pump intensities. However, the cation hybridization strategy enhances the glass network rigidity, which mitigates structural relaxation and reduces the formation of color centers. The stable multi-band emission observed suggests that the BACs are robustly stabilized, though long-term reliability tests under high-power pumping are required to quantify degradation rates.
How scalable is this cation hybridization approach for industrial fiber production?
The method leverages conventional modified chemical vapor deposition (MCVD) or melt-quenching techniques, as the alkaline earth ions are incorporated during glass synthesis. The process is compatible with existing fiber drawing towers, and the use of Mg2+ and Ba2+—inexpensive and abundant—ensures cost parity with current rare-earth-doped fibers. The main scalability challenge lies in maintaining uniform cation distribution along the fiber length, which can be addressed through optimized doping protocols.
